Gigabyte B450M AORUS ELITE AM4 Micro-ATX Motherboard

Supports AMD 3rd Gen Ryzen/ 2nd Gen Ryzen/ 1st Gen Ryzen/ 2nd Gen Ryzen with Radeon Vega Graphics/ 1st Gen Ryzen with Radeon Vega Graphics/ Athlon with Radeon Vega Graphics Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs HDMI, DVI-D Ports for Multiple Display Ultra-Fast Dual NVMe PCIe Gen3 M. 2 Connectors High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting RGB FUSION 2.0 with Multi-Zone LED Light Show Design, Supports Digital LED & RGB LED Strips GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management Smart Fan 5 Features 6 Temperature Sensors and 4 Hybrid Fan Headers with FAN STOP APP Center Including EasyTune and Cloud Station Utilities Anti-Sulfur Resistors Design Ultra Durable 25KV ESD and 15KV Surge LAN Protection CEC 2019 Ready, Save Power with a Simple Click AMD Socket AM4, support
for: 3rd Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen processors/ 1st Generation AMD Ryzen processors/ 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/ 1st Generation AMD Ryzen with Radeon Vega Graphics processors/ AMD Ryzen with Radeon Vega Graphics processors 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Dual channel memory architecture Support for DDR4 3600(O. C. )/3466(O. C. )/3200(O. C. )/2933/2667/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules Realtek® ALC892 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel Support for S/PDIF Out 1 x PCI Express x16 slot, running at x16 (PCIEX16) (Note) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. (Note) Actual support may vary by CPU. (The PCIEX16 slot conforms to PCI Express 3.0 standard.) 1 x PCI Express x16 slot, running at x4 (PCIEX4) 1 x PCI Express x1 slot (The PCIEX4 and PCIEX1 slots conform to PCI Express 2.0 standard.

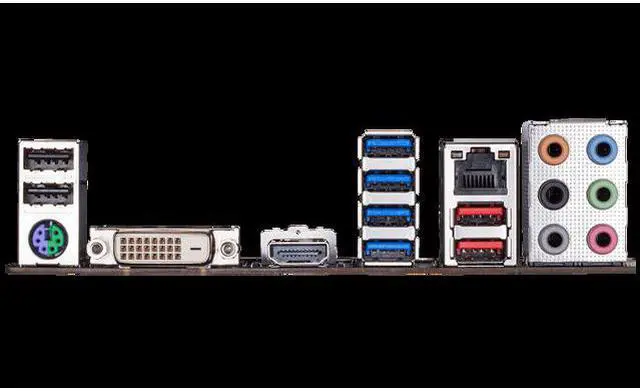

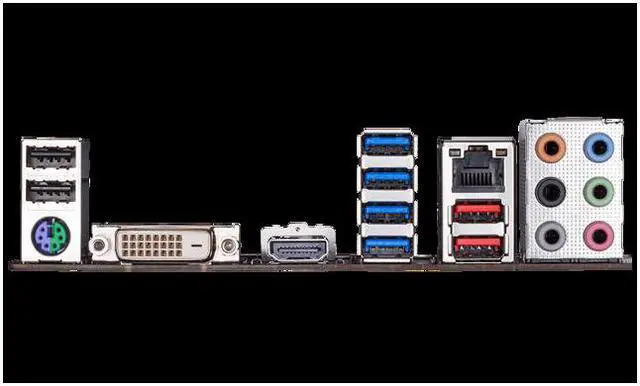

) 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 3 x system fan headers 2 x M. 2 Socket 3 connectors 6 x SATA 6Gb/s connectors 2 x addressable LED strip headers 2 x addressable LED strip power select jumpers 1 x CPU cooler LED strip/RGB LED strip header 1 x RGB (RGBW) LED strip header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x USB 3.1 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module only) 1 x serial port header 1 x speaker header 1 x Clear CMOS jumper 1 x chassis intrusion header 1 x PS/2 keyboard/mouse port 2 x USB 2.0 / 1.1 ports 1 x DVI-D port 1 x HDMI port 4 x USB 3.1 Gen 1 ports 1 x RJ-45 port 2 x USB 3.1 Gen 2 Type-A ports (red) 6 x audio jacks Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported f
