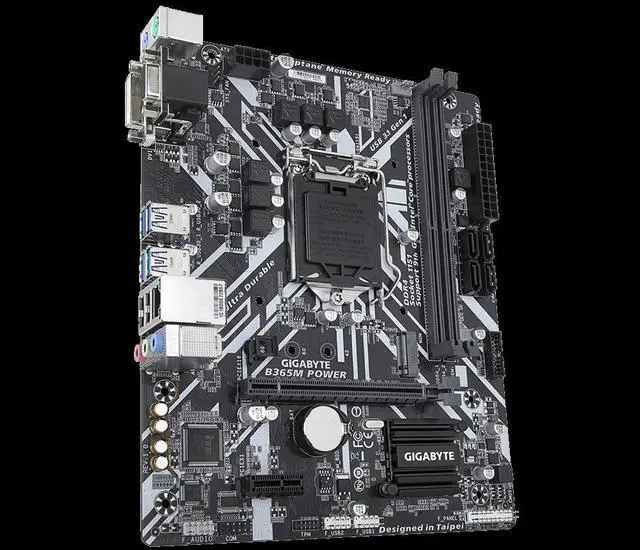

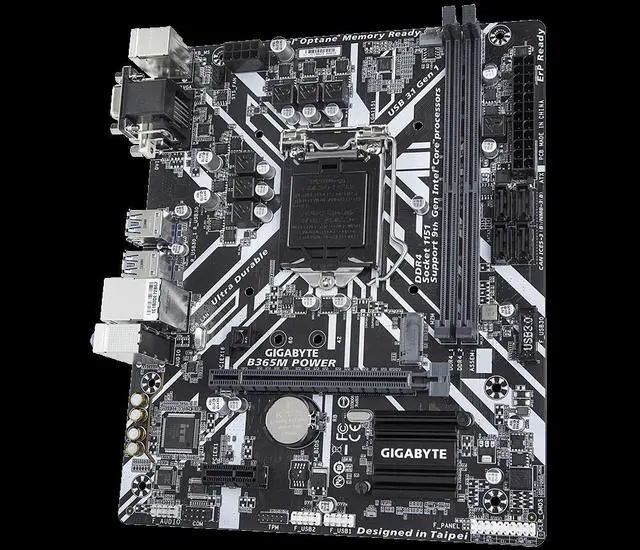

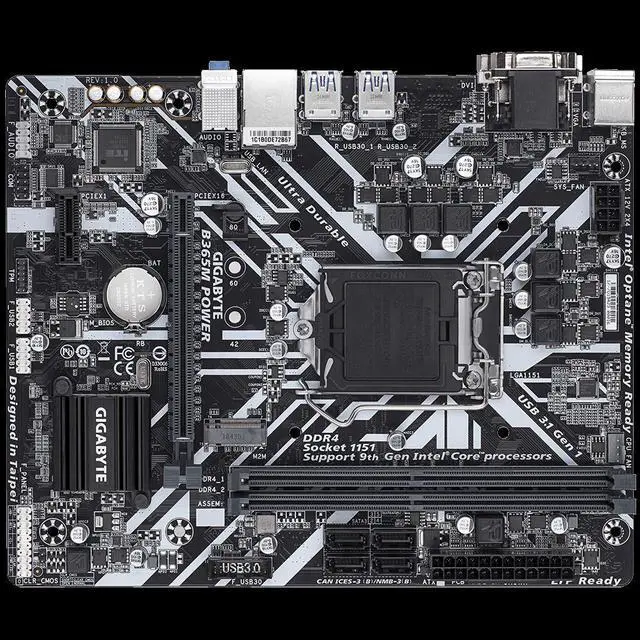

GIGABYTE B365M POWER DDR4 LGA1151 8th/9th POWER Ultra Durable motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Smart Fan 5, Anti-Sulfur Resistors, CEC 2019 ready

CPU Support for 9th and 8th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package L3 cache varies with CPU (Please refer "CPU Support List" for more information. ) Chipset Intel® B365 Express Chipset Memory 2 x DDR4 DIMM sockets supporting up to 32 GB of system memory Dual channel memory architecture Support for DDR4 2666/2400/2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core™ i9/i7/i5 processor.

(Please refer "Memory Support List" for more information. ) Onboard Graphics Integrated Graphics Processor-Intel® HD
Graphics support: 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz * The DVI-D port does not support D-Sub connection by adapter. Maximum shared memory of 1 GB Actual support may vary by CPU Audio Realtek® ALC887 codec High Definition Audio 2/4/ 5.1 / 7.1 -channel * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver. LAN Realtek® GbE LAN chip (10/100/1000 Mbit) Expansion Slots 1 x PCI Express x16 slot, running at x16 1 x PCI Express x1 slot (All of the PCI Express slots conform to PCI Express 3.0 standard.
) Storage Interface Chipset: 1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) 4 x SATA 6Gb/s connectors Support for RAID 0, RAID 1, RAID 5, and RAID 10 * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors. Intel® Optane™ Memory Ready

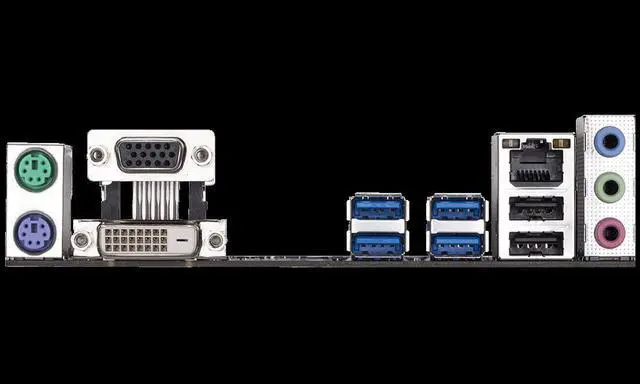

USB Chipset: 6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header) 6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers) Internal I/O Connectors 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x CPU fan header 1 x system fan header 4 x SATA 6Gb/s connectors 1 x M. 2 Socket 3 connector 1 x front panel header 1 x front panel audio header 1 x USB 3.1 Gen 1 header 2 x USB 2.0 / 1.1 headers 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module only) 1 x serial port header 1 x Clear CMOS jumper Back Panel Connectors 1 x PS/2 mouse port 1 x PS/2 Keyboard port 1 x D-Sub port 1 x DVI-D port 4 x USB 3.1 Gen 1 ports 2 x USB 2.0 / 1.1 ports 1 x RJ-45 port 3 x audio jacks I/O Controller iTE® I/O Controller Chip H/W Monitoring Voltage detection Temperature detection Fan speed detection Overheating warning Fan fail warning Fan speed control * Whether the fan speed control function is supported will depend on the cooler you install.

BIOS 1 x 128 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD Smart Survey System Information Viewer USB Blocker Support for Q-Flash Support for Xpress Install Bundled Software Norton® Internet Security (OEM version) Realtek® 8118 Gaming LAN Bandwidth Control Utility Operating System Support for Windows 10 64-bit Form Factor Micro ATX Form Factor; 22.6 cm x 18.5 cm
