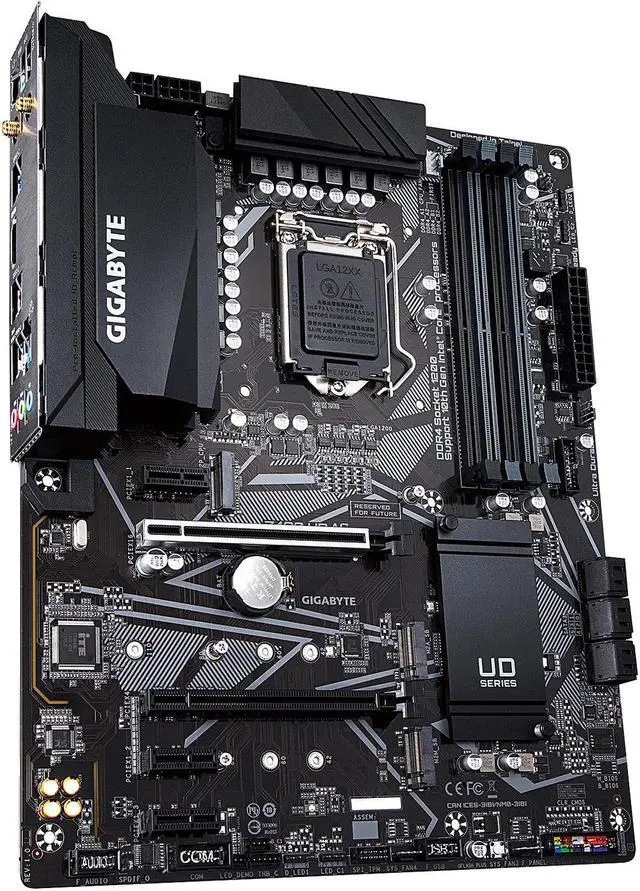

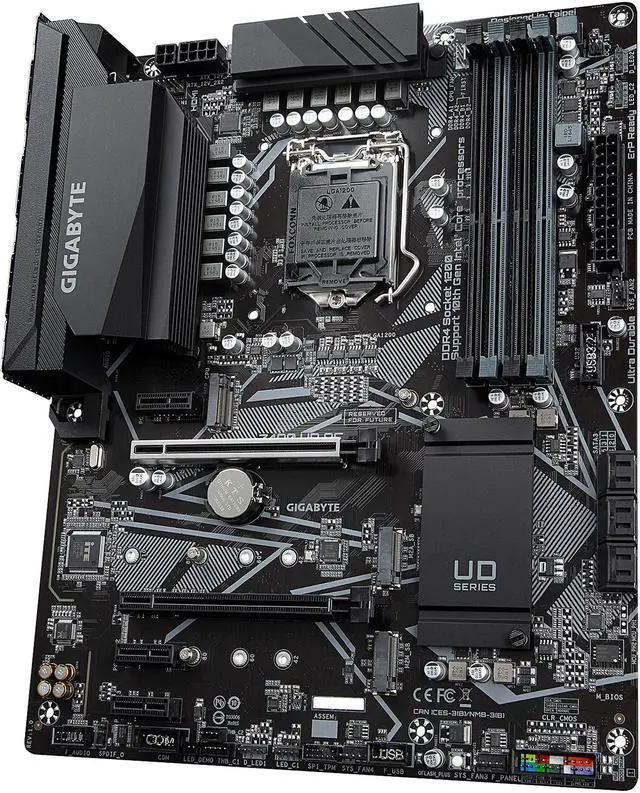

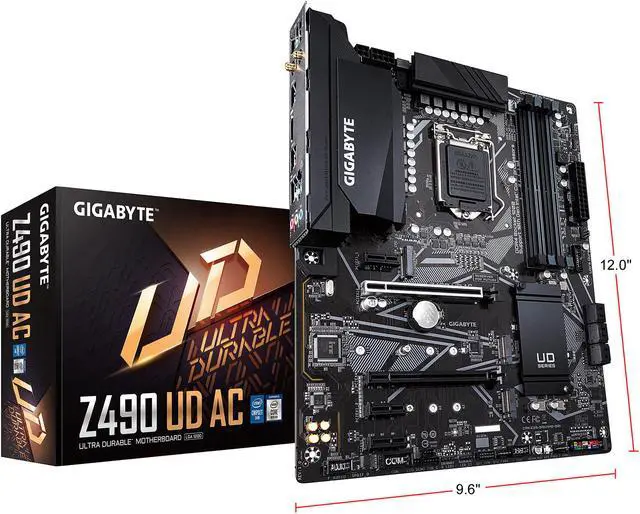

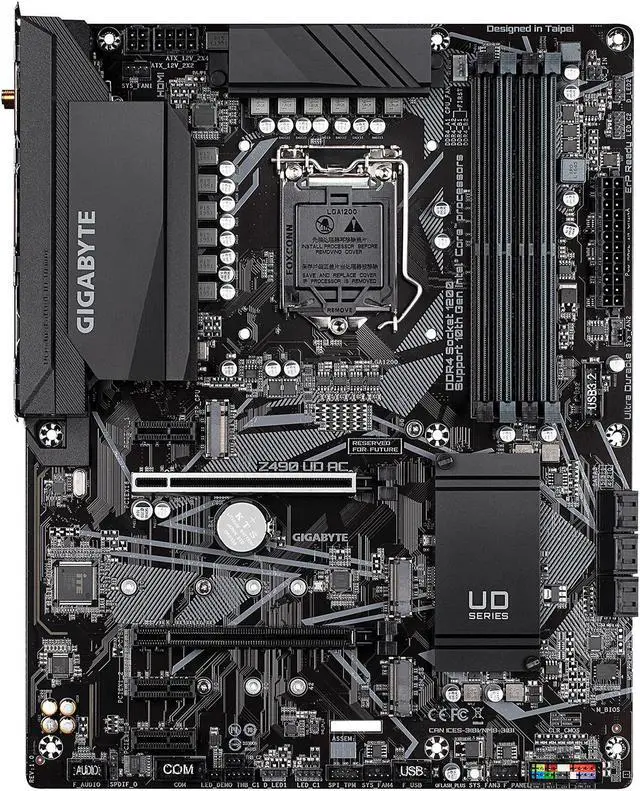

GIGABYTE Z490 UD AC ATX Intel Motherboard
REFURBISHED Product Type

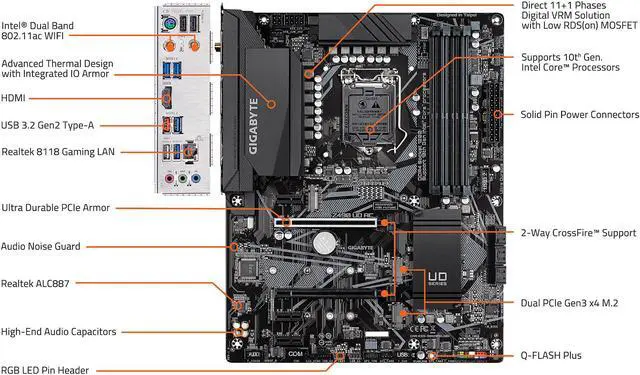

- Supports 10th Gen Intel Core Series Processors
- Direct 11+1 Phase Digital VRMs with DrMOS Stages
- Extended MOS Heatsink VRM Cooling
- Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
- Realtek GbE LAN
- 2 x M.2 slots
- Intel WiFi 802.11ac and Bluetooth 5 1x1 with High Gain Antenna
- AMP-UP AUDIO ALC887 Audio DAC
- RGB Fusion 2.0
- Smart Fan 5 Hybrid Fan Headers with smart fan functions (Fan Stop, PWM Controls, Noise Detection)
- Rear - 1 x USB 3.2 Gen2 (A), 1 x USB 3.2 Gen2 (C), 4 x USB 3.2 Gen1, 2 x USB 2.0
- Front - 2 x USB 3.2 Gen1, 2 x USB 2.0
- Integrated I/O Shield
- Q-Flash Plus Update BIOS Without Installing CPU, Memory or GPU
- PCIe 4.0 Grade Design
+
+
Overview
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Memory Standard: Intel Core i9/i7 processors:
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
Onboard Video Chipset: Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maxi...
Support for DDR4 4500(O.C.)/ 4400(O.C.)/ 4300(O.C.)/4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2800/ 2666/ 2400/ 2133 MHz memory modules
Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/2400/2133 MHz memory modules
Number of Memory Slots: 4x288pin (DDR4)
Audio Chipset: Realtek ALC887
PCI Express 3.0 x16: 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
1 x PCI Express x16 slot, running at x4 (PCIEX4)
Onboard Video Chipset: Integrated Graphics Processor-Intel HD Graphics support:
1 x HDMI port, supporting a maxi...
