CPU
LGA1700 socket for 13th and 12th generation Intel® Core, Pentium® Gold and Celeron® processors
L3 cache depends on the CPU
(Please visit the Gigabyte website for a list of supported processors)
chipset
Intel® Z790 high-speed chipset
Internal memory
Support DDR5 7600 (O. C. ) / 7400 (O. C. ) / 7200 (O. C. ) / 7000 (O. C. ) / 6800 (O. C. ) / 6600 (O. C. ) / 6400 (O. C. ) / 6200/6000 (O. C. )/(O. C. ) 5800(O. C. ) / 5600(O. C. ) / 5400(O. C. ) / 5200(O. C. ) / 4800 / 4000
4 DDR DIMM slots supporting up to 192 GB (48 GB capacity in a single slot)
Supports dual-channel memory technology
Support ECC Un-buffered DIMM 1Rx8/2Rx8 memory (non-ECC mode)
Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory
Extreme Memory Profile (XMP) memory is supported
CPU and memory configuration may affect the supported memory type, speed, and number of DRAM modules, please check the Gigabyte website for a list of supported memory modules.
Display function
Display based processor - Intel® HD Graphics support:
1 HDMI port supporting resolutions up to 4096x2160@60 Hz
* Support HDMI version 2.0 and HDCP 2.3.
One DP interface, supporting resolutions up to 4096x2304@60 Hz
* Support DP 1.2 and HDCP 2.3.
(The specifications supported by the display feature will vary depending on the CPU used. )
AUDIO
Integrated Realtek® audio chip
Support for High Definition Audio
Support 2/4/ 5.1 / 7.1 - channels
* The audio socket function can be redefined through the audio software. To enable 7.1 channel audio output, go to the audio software Settings.
Support S/PDIF output
network
Integrated Realtek® 2.5G bE Networking Chip ( 2.5G bps / 1Gbps / 100Mbps)
Wireless communication module
Intel® Wi-Fi 6E AX211
WIFI a, b, g, n, ac, ax, support 2.4 /5/6 GHz wireless band
BLUETOOTH 5.3
Supports the 11ax 160MHz wireless communication standard and can support up to 2.4G bps
* The actual transfer speed will vary depending on the environment and equipment used.
Expansion slot
CPU-based
1 PCI-E x16 slot with PCIe 5.0 and x16 running specifications (PCIEX16)
* To maximize the performance of the graphics card, be sure to install a graphics card into the PCIEX16 slot.
Based on chipset:
1 PCI-E x16 slot with PCIe 4.0 and x4 specifications (PCIEX4_1)
1 PCI-E x16 slot with PCIe 3.0 and x4 specifications (PCIEX4_2)
Storage device interface
CPU-based
1 M. 2 slot (supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU)
Based on chipset:
2 M. 2 slots (supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2P_SB, M2Q_SB)
1 M. 2 slot (supporting Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD) (M2M_SB)
6 SATA 3.0 ports
NVMe SSDS support RAID 0, RAID 1, RAID 5, and RAID 10
SATA hard drives support RAID 0, RAID 1, RAID 5, and RAID 10
* For details about the precautions for installing M. 2/SATA ports, see section 2-8 Introduction to Sockets and Jumpers.
USB
Based on chipset:
1 USB Type-C® port in the rear window IO, supporting USB 3.2 Gen 2x2
One USB Type-C® port, supporting USB 3.2 Gen 2, must be connected from the USB socket on the mainboard through a cable
Two USB 3.2 Gen 2 Type-A ports (red) IO in the rear window
5 USB 3.2 Gen 1 ports (3 I/O in the rear window, 2 need to be connected from the USB socket in the motherboard via a cable)
Based on chipset +2 USB 2.0 hubs:
8 USB 2.0 / 1.1 ports (4 IO in rear window, 4 need to be connected from USB socket in motherboard via cable)
Internal socket
1 24-pin motherboard power socket
2 8-pin CPU power sockets
One CPU fan socket
1 CPU water-cooled fan socket
3 system fan sockets
1 system fan/water pump socket
2 programmable LED lights with power outlet
2 RGB LED lights with power outlet
Four M. 2 SSD slots
6 SATA 3.0 ports
1 motherboard jumper socket
1 front audio socket
1 USB Type-C® socket with USB 3.2 Gen 2 support
1 USB 3.2 Gen 1 socket
2 USB 2.0 / 1.1 sockets
2 Thunderbolt Lightning expansion card sockets
1 secure encryption module socket (only used with GC-TPM 2.0 SPI/GC-TPM 2.0 SPI 2.0 )
1 system reset button
1 Q-Flash Plus button
1 button to clear CMOS data
1 system reset pin
1 clear CMOS data pin

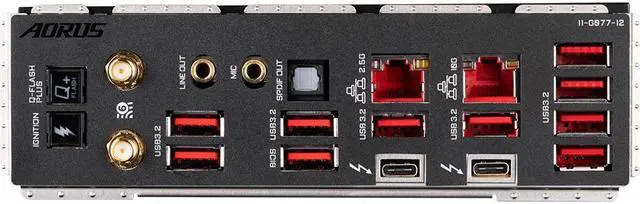

The rear panel device connects to a socket
1 USB Type-C® port, supporting USB 3.2 Gen 2x2
2 USB 3.2 Gen 2 Type-A ports (red)
Three USB 3.2 Gen 1 ports
4 USB 2.0 / 1.1 ports
2 SMA antenna interfaces (2T2R)
1 HDMI port
One DP port
One RJ-45 cable port
1 digital fiber output interface
2 audio interfaces
I/O controller
Integrated iTE® I/O control chip
Hardware monitoring
Voltage detection
Temperature detection
Fan speed detection
Water cooling system flow rate detection
Fan fault warning
Intelligent fan control
* Whether intelligent fan (water pump) control function is supported depends on different cooling fan (water pump).
BIOS
One 256 Mbit flash
Use the authorized AMI UEFI BIOS
PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Add-on tool
Support GIGABYTE Control Center (GCC)
* The programs supported by GCC vary from motherboard to motherboard; The features supported by each program will also vary depending on the specifications of the motherboard.
Q-Flash is supported
Q-Flash Plus is supported
Support Smart Backup
Complimentary software
Norton® Internet Security (OEM version)
LAN bandwidth management software
Operating system
Supports Windows 11 64-bit
Supports Windows 10 64-bit
PCB specification
ATX specifications; 30.5 cm x 24.4 cm
