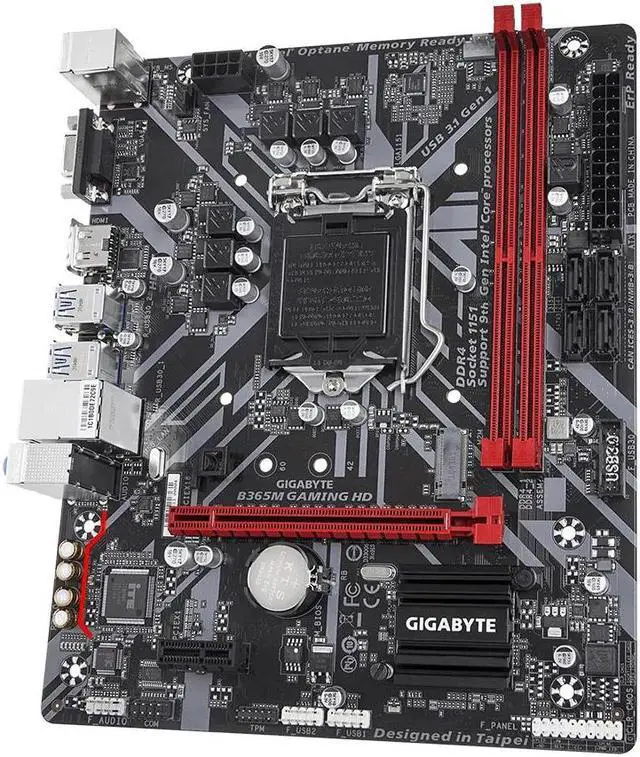

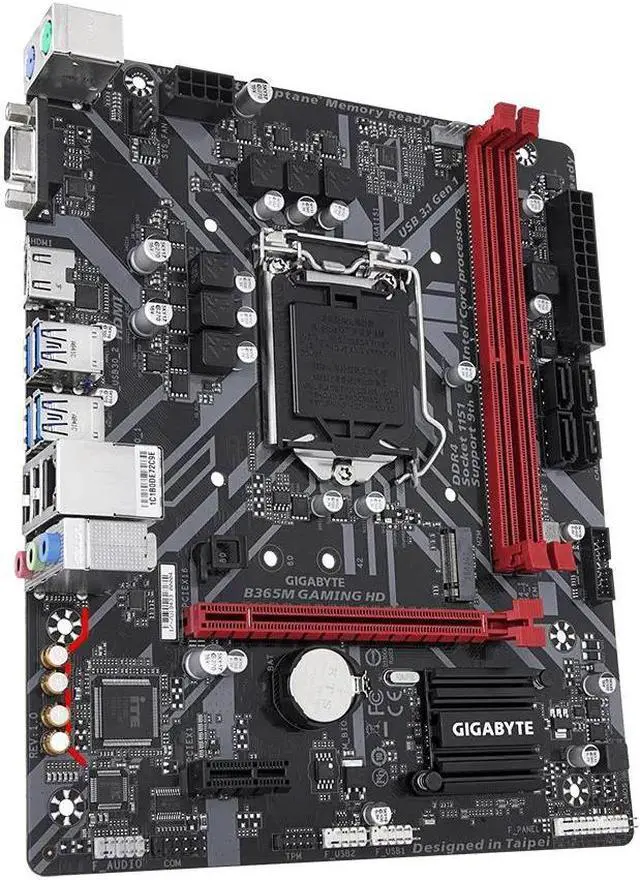

    GIGABYTE B365M GAMING HD motherboard with GIGABYTE 8118 Gaming LAN, PCIe Gen3 x4 M.2, Anti-Sulfur Resistor, Smart Fan 5, CEC 2019 ready

    REFURBISHED Product Type
    • Supports 9th and 8th Gen Intel® Core Processors
    • Dual Channel Non-ECC Unbuffered DDR4
    • New Hybrid Digital PWM Design
    • High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting
    • Ultra-Fast M.2 with PCIe Gen3 X4 & SATA interface
    • GIGABYTE Exclusive 8118 Gaming LAN with Bandwidth Management
    • CEC 2019 Ready, Save the Power as Easy as One Click
    • Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP
    • Anti-Sulfur Resistors Design
    • Ultra Durable 15KV Surge LAN Protection
    • Intel® Optane Memory Ready
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available
    +
    +
    Overview
    Specs
    Reviews
    avatar

    Any questions? Our AI beta will help you find out quickly.

    Support for 9th and 8th Generation Intel® Core i9 processors/Intel® Core i7 processors/Intel® Core i5 processors/Intel® Core i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1151 package
    L3 cache varies with CPU
    (Please refer "CPU Support List" for more information. )
    Chipset
    Intel® B365 Express Chipset
    Memory
    2 x DDR4 DIMM sockets supporting up to 32 GB of system memory
    Dual channel memory architecture
    Support for DDR4 2666/2400/2133 MHz memory modules
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules
    * To support 2666 MHz or XMP memory, you must install a 9th or 8th Generation Intel® Core i9/i7/i5 processor.
    (Please refer "Memory Support List" for more information. )
    Onboard Graphics
    Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz
    * Support for HDMI 1.4 version and HDCP 2.2.
    Maximum shared memory of 1 GB
    Actual support may vary by CPU
    Audio
    Realtek® ALC887 codec
    High Definition Audio
    2/4/ 5.1 / 7.1 -channel
    * To configure 7.1 -channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    LAN
    Realtek® GbE LAN chip (10/100/1000 Mbit)
    Expansion Slots
    1 x PCI Express x16 slot, running at x16
    1 x PCI Express x1 slot
    (All of the PCI Express slots conform to PCI Express 3.0 standard. )
    Storage Interface
    Chipset:
    1 x M. 2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support)
    4 x SATA 6Gb/s connectors
    Support for RAID 0, RAID 1, RAID 5, and RAID 10
    * Refer to "1-7 Internal Connectors, " for the installation notices for the M. 2 and SATA connectors.
    Intel® Optane Memory
    USB
    Chipset:
    6 x USB 3.1 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
    6 x USB 2.0 / 1.1 ports (2 ports on the back panel, 4 ports available through the internal USB headers)
    Internal I/O Connectors
    1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M. 2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.1 Gen 1 header
    2 x USB 2.0 / 1.1 headers
    1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM 2.0 _S module only)
    1 x serial port header
    1 x Clear CMOS jumper

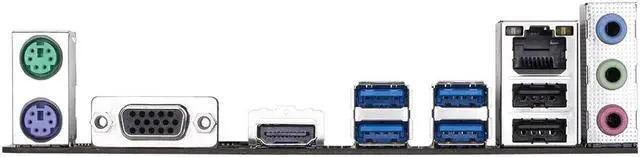

    Back Panel Connectors
    1 x PS/2 mouse port
    1 x PS/2 Keyboard port
    1 x D-Sub port
    1 x HDMI port
    4 x USB 3.1 Gen 1 ports
    2 x USB 2.0 / 1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    I/O Controller
    iTE® I/O Controller Chip
    H/W Monitoring
    Voltage detection
    Temperature detection
    Fan speed detection
    Overheating warning
    Fan fail warning
    Fan speed control
    * Whether the fan speed control function is supported will depend on the cooler you install.
    BIOS
    1 x 128 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0 a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
