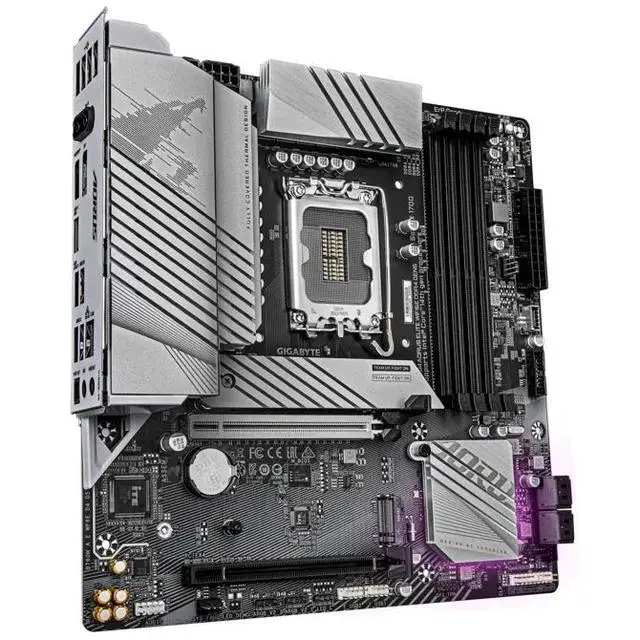

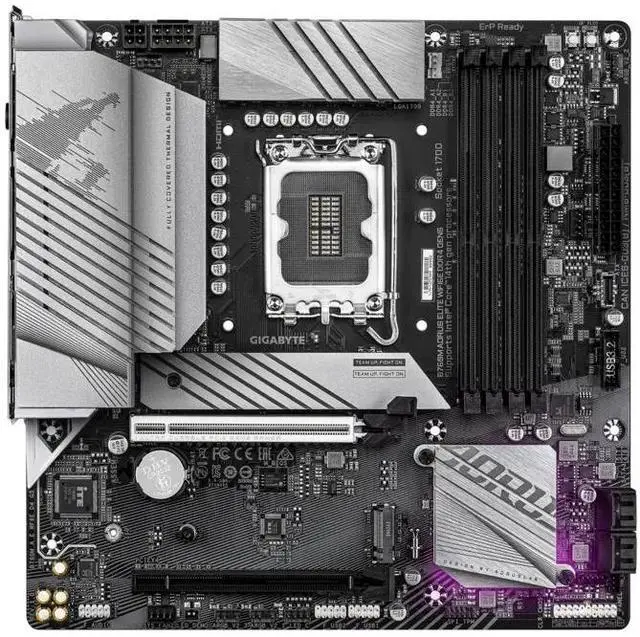

GIGABYTE B760M AORUS ELITE WIFI6E DDR4 GEN5 LGA 1700 Intel B760 M-ATX Motherboard with DDR4, Dual M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, PCIe EZ-Latch

Central Processing Unit (CPU)

LGA1700 socket, supports 14th, 13th, and 12th generation Intel® Core, Pentium® Gold, and Celeron® processors

(Please refer to the Gigabyte website for a list of supported processors)

L3 cache depends on the CPU

Chipset

Intel® B760 High-Speed Chipset

Memory

Supports DDR4 5333(O.C.) / 5133(O.C.) / 5000(O.C.) / 4933(O.C.) / 4800(O.C.) / 4700(O.C.) / 4600(O.C.) / 4500(O.C.) / 4400(O.C.) / 4300(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3800(O.C.) / 3733(O.C.) / 3666(O.C.) / 3600(O.C.) / 3466(O.C.) / 3400(O.C.) / 3333(O.C.) / 3300(O.C.) / 3200 / 3000 / 2933 / 2666 / 2400 / 2133 MT/s

4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity)

Supports dual-channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operates in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) Memory

(CPU and memory configuration may affect the supported memory type, speed, and number of DRAM modules. Please check the memory module support list on the Gigabyte website.)

Display Function

Integrated into the processor with display capabilities - Supports Intel® HD Graphics:

- 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Supports HDMI 2.1 and HDCP 2.3.

** Only supports interfaces compatible with the native HDMI 2.1 TMDS specification.

- 1 x DisplayPort port, supporting a maximum resolution of 4096x2304@60 Hz

* Supports DisplayPort 1.2 and HDCP 2.3.

(The specifications supported by the display function will vary depending on the CPU used.)

Audio

Built-in Realtek® ALC1220 chip

* The audio output ports provided by the rear audio jacks support DSD audio.

Supports High Definition Audio

Supports 2/4/5.1/7.1 channels

* The functions of the audio jacks can be redefined through the audio software. To enable 7.1-channel audio output, please enter the audio software settings. Supports S/PDIF output

Networking

Built-in Realtek® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Intel® Wi-Fi 6E AX210

- WIFI a, b, g, n, ac, ax, supports 2.4/5/6 GHz wireless bands

- BLUETOOTH 5.3

- Supports 11ax 160MHz wireless communication standard

(Actual transmission speed may vary depending on the usage environment and equipment.)

Expansion Slots

Built into the CPU:

- 1 x PCI Express x16 slot, supporting PCIe 5.0 and x16 operation (PCIEX16)

* The PCIEX16 slot only supports graphics cards or NVMe SSDs. If only one graphics card is installed, it must be installed in the PCIEX16 slot.

Built into the Chipset:

- 1 x PCI Express x16 slot, supporting PCIe 4.0 and x4 operation (PCIEX4)

Storage Interface

Built into the CPU:

- 1 x M.2 socket (supports Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD) (M2A_CPU)

Built into the Chipset:

- 1 x M.2 socket (supports Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD) (M2P_SB)

- 4 x SATA 6Gb/s connectors

SATA hard drives support RAID 0, RAID 1, RAID 5, and RAID 10

USB

Built into the Chipset:

- 1 x USB Type-C® port on the rear panel, supporting USB 3.2 Gen 2x2

- 1 x USB Type-C® port, supporting USB 3.2 Gen 2, requires connection via a cable from the USB header on the motherboard

- 1 x USB 3.2 Gen 2 Type-A connector (red) on the rear panel

- 1 x USB 3.2 Gen 1 on the rear panel

- 4 x USB 2.0/1.1 ports, requiring connection via cable from the motherboard's internal USB header

Built into the chipset + USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports (2 on the rear panel, 2 requiring connection via cable from the motherboard's internal USB header)

Built into the chipset + USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the rear panel

Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

3 x Addressable RGB Gen2 LED strip power headers

1 x RGB LED strip power header

2 x M.2 Socket 3 connectors

4 x SATA 6Gb/s connectors

1 x front panel header

1 x front audio header

1 x USB Type-C® header, supporting USB 3.2 Gen 2

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

2 x Thunderbolt add-in card headers

1 x Trusted Platform Module (TPM) header (for use with GC-TPM2.0 SPI V2 only)

1 x Q-Flash Plus button

1 x system reset button

1 x system reset jumper

1 x Clear CMOS jumper

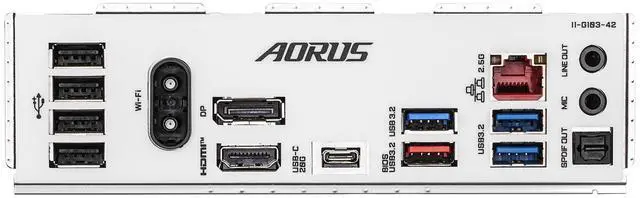

Rear Panel Connectors

2 x Antenna connectors (2T2R)

1 x USB Type-C® port, supporting USB 3.2 Gen 2x2

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 HDMI socket (Note)

1 DisplayPort socket (Note)

1 RJ-45 port

1 S/PDIF optical output socket

2 audio connectors

(Note) Support for this specification depends on the CPU.
