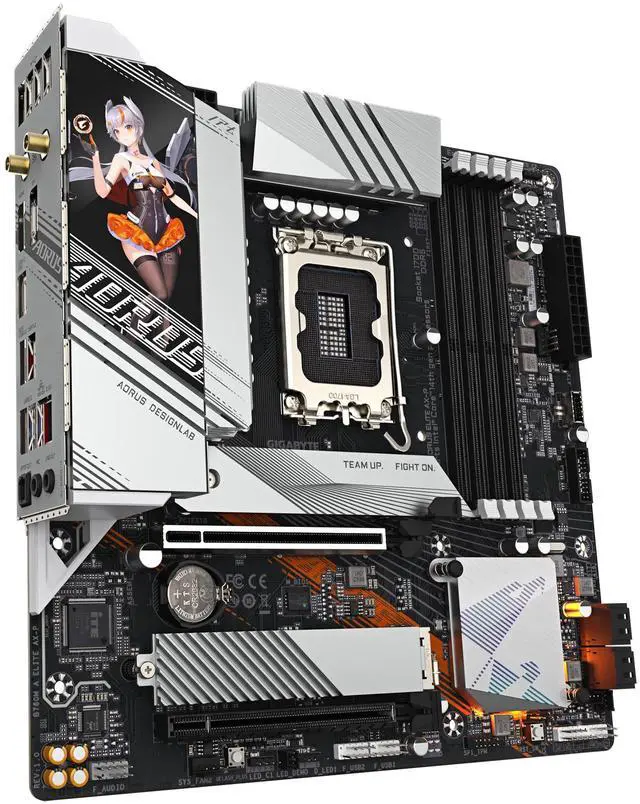

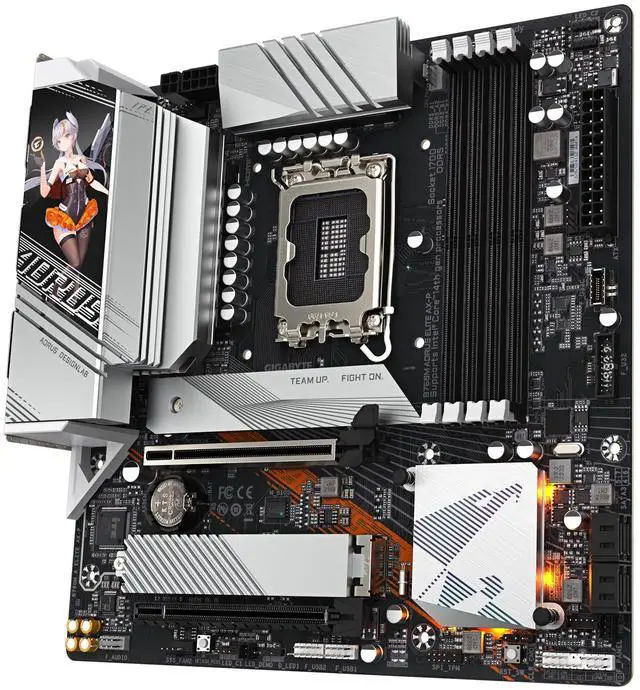

GIGABYTE B760M AORUS ELITE AX-P LGA 1700 Intel B760 M-ATX Motherboard with DDR5, Dual M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus

Central Processing Unit (CPU)

LGA1700 socket, supports 14th, 13th and 12th Generation Intel® Core, Pentium® Gold and Celeron® Processors

L3 Cache depends on CPU

* Please refer to the "CPU Support List" for detailed support information.

Chipset

Intel® B760 High-Speed Chipset

Memory

Supports DDR5 7800(O.C.) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s

4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity)

Supports Dual Channel memory technology

Supports ECC Un-buffered DIMM 1Rx8/2Rx8 memory (operates in non-ECC mode)

Supports non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory

Supports Extreme Memory Profile (XMP) memory

(The CPU and memory configuration may affect the supported memory types, speeds, and number of DRAM modules. Please check the memory support list on the Gigabyte website.)

Graphics

Based on processors with integrated graphics - Supports Intel® HD Graphics:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Supports HDMI 2.0 version and HDCP 2.3.

1 x DP port, supporting a maximum resolution of 4096x2304@60 Hz

* Supports DP 1.2 version and HDCP 2.3. (The specifications supported by the display function may vary depending on the CPU used.)

Audio

Integrated Realtek® audio chip

Supports High Definition Audio

Supports 2/4/5.1/7.1 channels

* Audio software can redefine the audio jack functions. To enable 7.1-channel audio output, please go to the audio software settings.

Supports S/PDIF output

Networking

Integrated Intel® 2.5GbE network chip (2.5 Gbps/1 Gbps/100 Mbps)

Wireless Communication Module

Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)

WIFI a, b, g, n, ac, ax, supports 2.4/5/6 GHz wireless frequency bands

BLUETOOTH 5.3

Supports 11ax 160MHz wireless communication standard

Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)

WIFI a, b, g, n, ac, ax, supports 2.4/5/6 GHz wireless frequency bands

BLUETOOTH 5.3

Supports 11ax 160MHz wireless communication standard

(Actual transmission speed may vary depending on the usage environment and equipment.)

Expansion Slots

Based on CPU:

- 1 x PCI-E x16 slot, supporting PCIe 4.0 and x16 operation specifications (PCIEX16)

* To achieve maximum graphics card performance, when installing a single graphics card, be sure to install it in the PCIEX16 slot. Based on Chipset:

- 1 x PCI-E x16 slot, supporting PCIe 4.0 and x4 operating specifications (PCIEX4)

Storage Interface

Based on CPU:

- 1 x M.2 slot (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Based on Chipset:

- 1 x M.2 slot (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

- 4 x SATA 3.0 interfaces

SATA hard drive support for RAID 0, RAID 1, RAID 5, and RAID 10

USB

Based on Chipset:

- 1 x USB Type-C® port on the rear I/O panel, supporting USB 3.2 Gen 2x2

- 1 x USB Type-C® port, supporting USB 3.2 Gen 2, requires connection via a cable from an internal USB header on the motherboard

- 1 x USB 3.2 Gen 2 Type-A port (red) on the rear I/O panel

- 1 x USB 3.2 Gen 1 on the rear I/O panel

- 4 x USB 2.0/1.1 ports, requires connection via a cable from an internal USB header on the motherboard

Based on Chipset + USB 3.2 Gen 1 Hub:

- 4 x USB 3.2 Gen 1 ports (2 on the rear I/O panel, 2 require connection via a cable from an internal USB header on the motherboard)

Based on Chipset + USB 2.0 Hub:

- 4 x USB 2.0/1.1 ports on the rear I/O panel

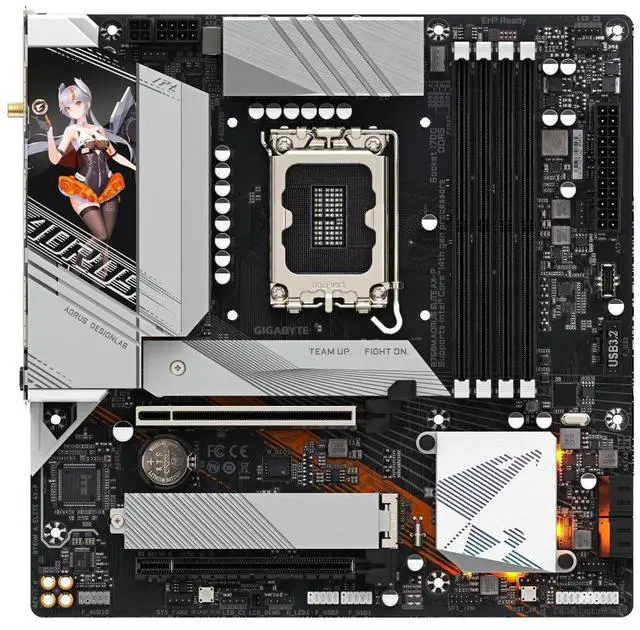

Internal Connectors

1 x 24-pin ATX main power connector

1 x 8-pin ATX 12V power connector

1 x 4-pin ATX 12V power connector

1 x CPU fan header

3 x system fan headers

2 x addressable RGB LED strip power headers

2 x RGB headers LED strip power connector

2 x M.2 SSD slots

4 x SATA 3.0 connectors

1 x Motherboard jumper connector

1 x Front panel audio connector

1 x USB Type-C® connector, supporting USB 3.2 Gen 2

1 x USB 3.2 Gen 1 connector

2 x USB 2.0/1.1 connectors

2 x Thunderbolt expansion card connectors

1 x Security encryption module connector (for use with GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 only)

1 x Q-Flash Plus button

1 x System reset button

1 x System reset jumper

1 x Clear CMOS jumper

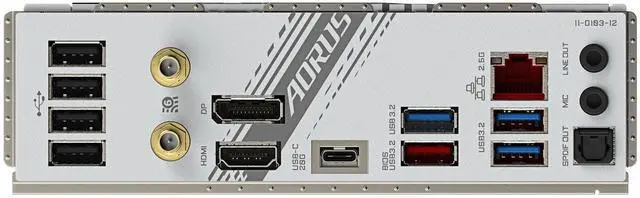

Rear panel device connectors:

2 x SMA antenna connectors (2T2R)

1 x USB Type-C® port, supporting USB 3.2 Gen 2x2

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x HDMI port

1 x DP port

1 x RJ-45 network port

1 x Digital optical output port

2 x Audio jacks
