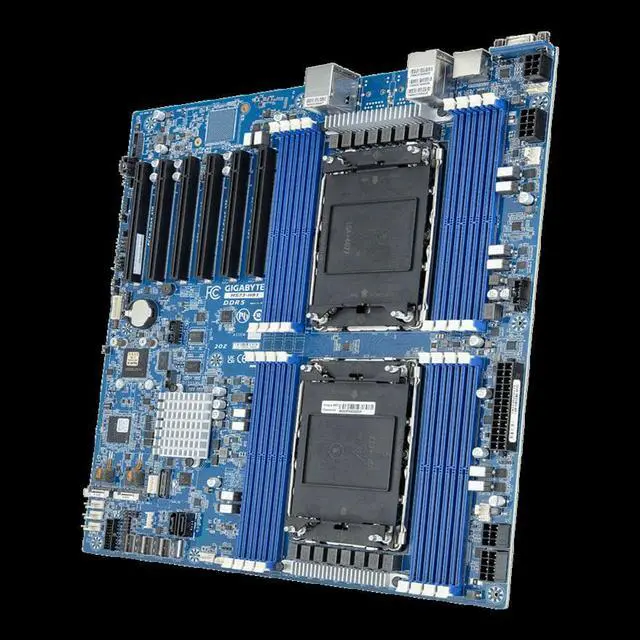

GIGABYTE MS73-HB1 Server Motherboard Socket E LGA 4677 4th Gen. Intel® Xeon® Scalable DP Motherboard
OPEN BOX Product Type
- 4th Gen. Intel® Xeon® Scalable Processors
- Intel® Xeon® CPU Max Series
- Dual processor, LGA 4677
- 8-Channel RDIMM DDR5 per processor, 16 x DIMMs
- Supports Intel® Optane Persistent Memory 300 series
- Intel® C741 Chipset
- 2 x 1Gb/s LAN ports (Intel® I210-AT)
- 1 x Dedicated management port
- 3 x SlimSAS with 12 x SATA 6Gb/s ports
- 2 x 7-pin SATA DOM 6Gb/s ports
- 2 x M.2 slots with PCIe Gen4 x4 interface
- 6 x PCIe Gen5 x16 expansion slots
+
+
Specs
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE MS73-HB1
| Best Seller Ranking | #85 in Server Motherboards |
|---|
| Brand | GIGABYTE |
|---|---|
| Model | MS73-HB1 |
| CPU Socket Type | LGA 4677 |
|---|---|
| CPU Type | 4th Gen Intel Xeon Scalable / 5th Gen Intel Xeon Scalable |
| Number of Processor Support | 2 |
| CPU Features | Dual processor, TDP up to 270W Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable. |
| North Bridge | Intel C741 |
|---|
| Memory Slots | 16 x DDR5 288-pin |
|---|---|
| Memory Standard | DDR5 5600 |
| Maximum Memory Supported | 4TB |
| Channel Supported | Eight Channel |
| Registered | Yes |
| PCI Express 5.0 x16 | Slot_6: PCIe x16 (Gen5 x16) slot, from CPU_0 Slot_5: PCIe x16 (Gen5 x16) slot, from CPU_1 Slot_4: PCIe x16 (Gen5 x16) slot, from CPU_1 Slot_3: PCIe x16 (Gen5 x16) slot, from CPU_0 Slot_2: PCIe x16 (Gen5 x16) slot, from CPU_0 Slot_1: PCIe x16 (Gen5 x16) slot, from CPU_1 |
|---|
| SATA | 2 x SATA 6.0Gb/s |
|---|---|
| SATA RAID | 0/1/5/10 |
| SAS | 3 x SlimSAS connectors for 12 x SATA 6Gb/s |
| M.2 | 2 x M.2 slots: - M-key - PCIe Gen4 x4, from CPU_0 - Support 2280/22110 cards |
| Onboard Video Chipset | Aspeed AST2600 |
|---|
| LAN Chipset | Intel I210-AT |
|---|---|
| LAN Speed | 10/100/1000Mbps |
| Second LAN Chipset | Intel I210-AT |
| Second LAN Speed | 10/100/1000Mbps |
| Max LAN Speed | 2 x 1Gbps |

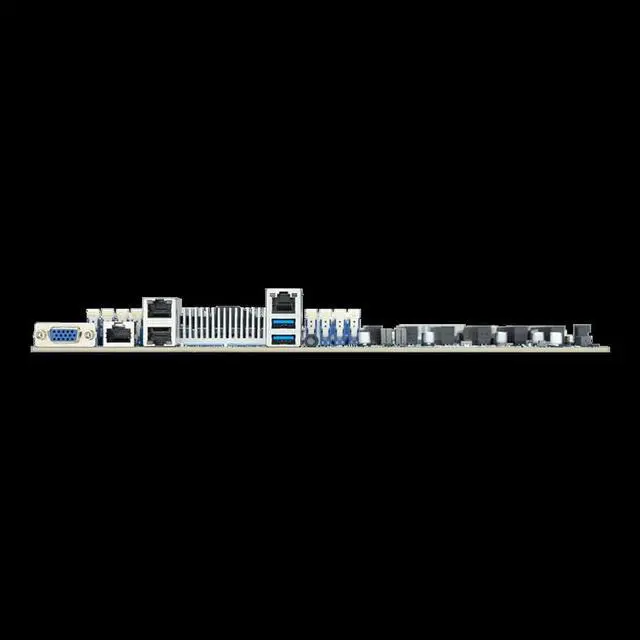

| Back I/O Ports | 2 x USB 3.2 Gen1 1 x VGA 1 x RJ45 serial port 2 x RJ45 1 x MLAN 1 x ID button with LED |
|---|
| Onboard USB | 1 x USB 3.2 Gen1 header |
|---|---|
| Other Connectors | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 2 x 6-pin ATX 12V power connectors 2 x CPU fan headers 4 x System fan headers 2 x M.2 slots 3 x SlimSAS connectors 2 x SATA connectors 1 x VROC connector 1 x Front panel header 1 x Backplane board header 1 x PMBus header 1 x IPMB header 1 x TPM header |
| Form Factor | Extended ATX |
|---|---|
| Dimensions (W x L) | 12" x 13" |

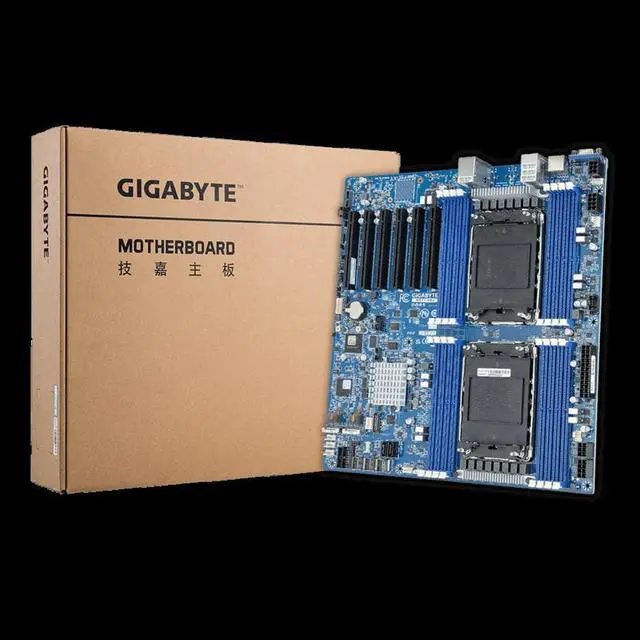

| Package Contents | 1 x MS73-HB1 1 x I/O shield 1 x Quick start guide 6 x Carriers 1 x SlimSAS to 4 x SATA 6Gb/s cable (600mm) |
|---|
| First Listed on Newegg | April 25, 2025 |
|---|
