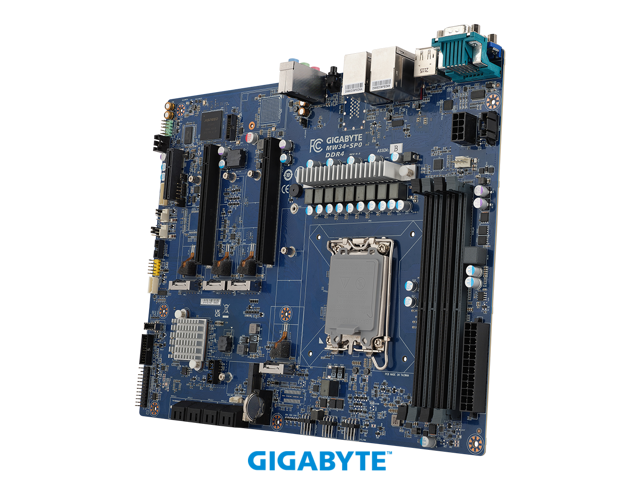

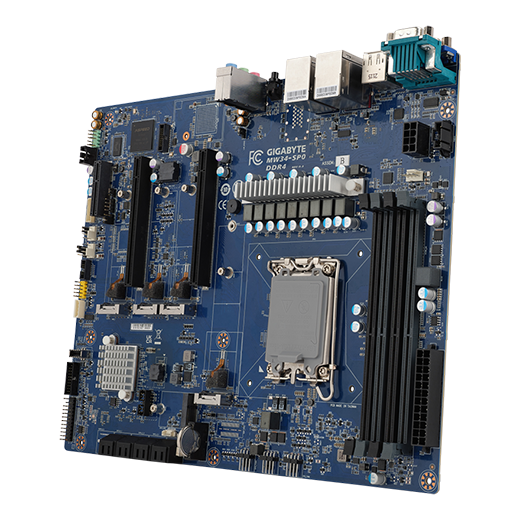

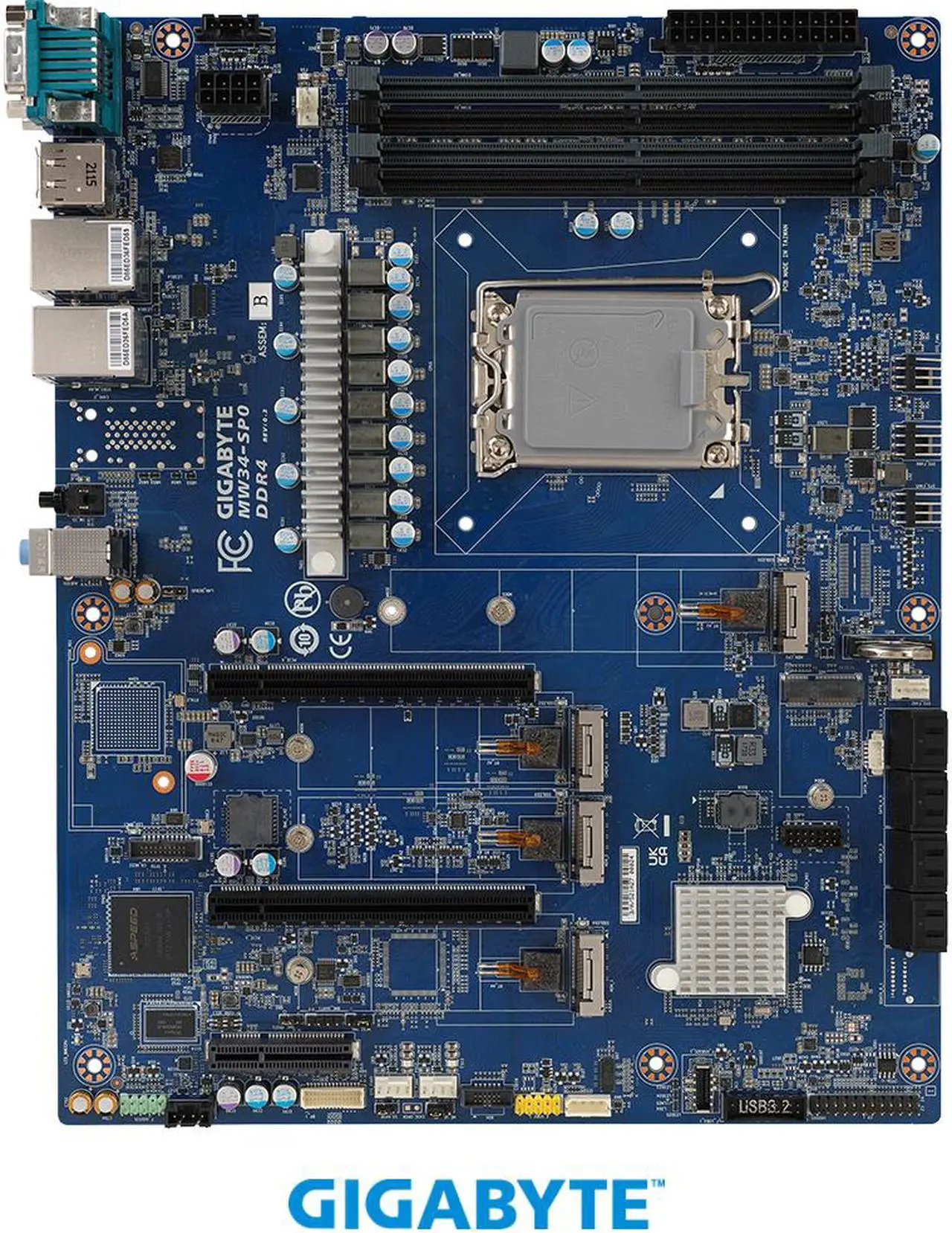

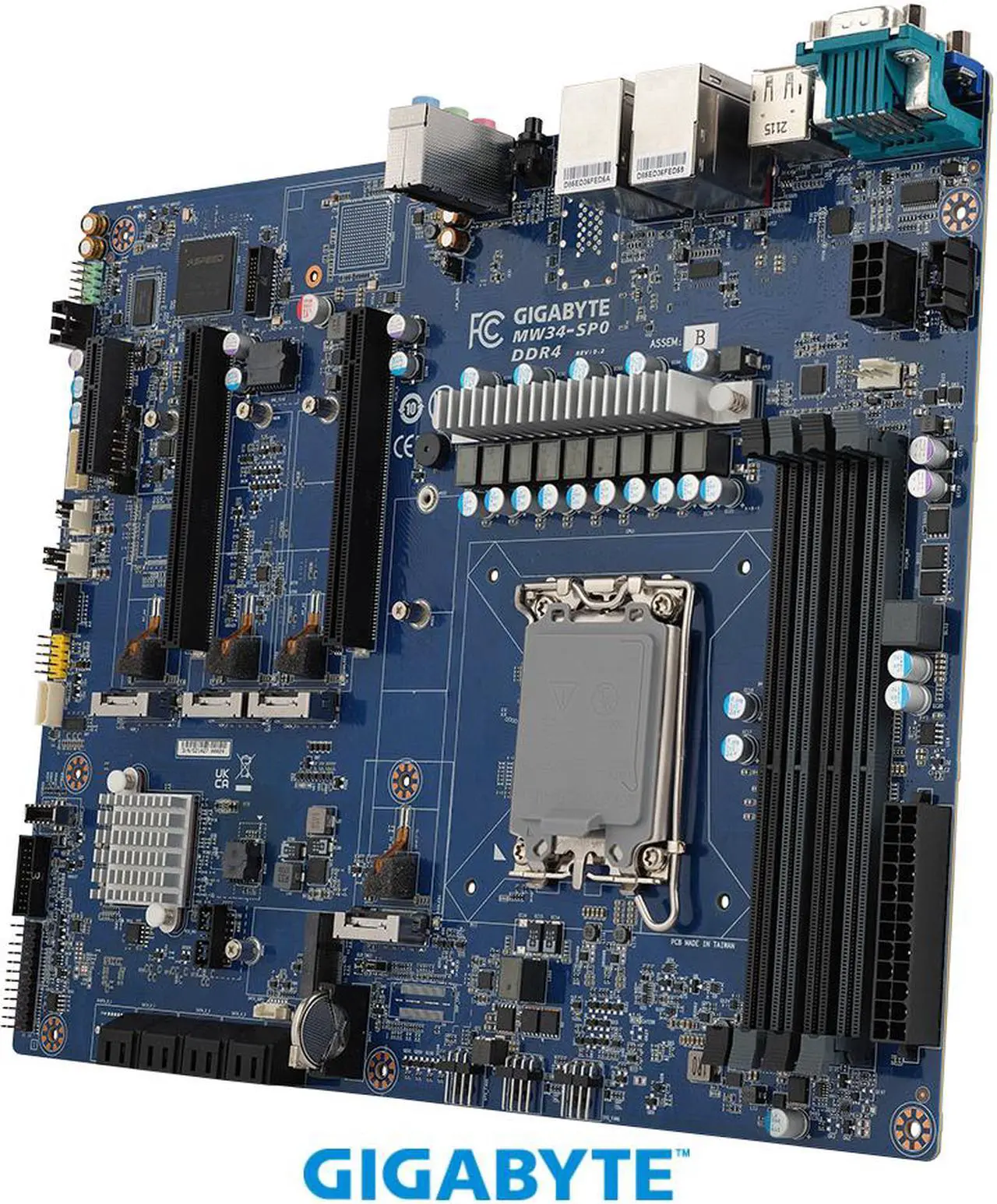

MW34-SP0
12th Gen Intel® Core™ Workstation Board
12th Gen Intel® Core™ Processors
- MW34-SP0 (rev. 1.0) can support all the 12th intel Core i3/i5/i7/i9 SKUs with the latest platform innovations like industry first PCIe 5.0 readiness and DDR5 memory.
- With Intel® UHD graphics immerse yourself in a visually stunning experience with up to 8K HDR support and the ability to view 4 simultaneous 4K displays.
- 12th Gen Intel® Core™ desktop processors are available in a wide range of options for maximum flexibility, so you can choose the performance and thermal characteristics you need to game, work, and create like never before.

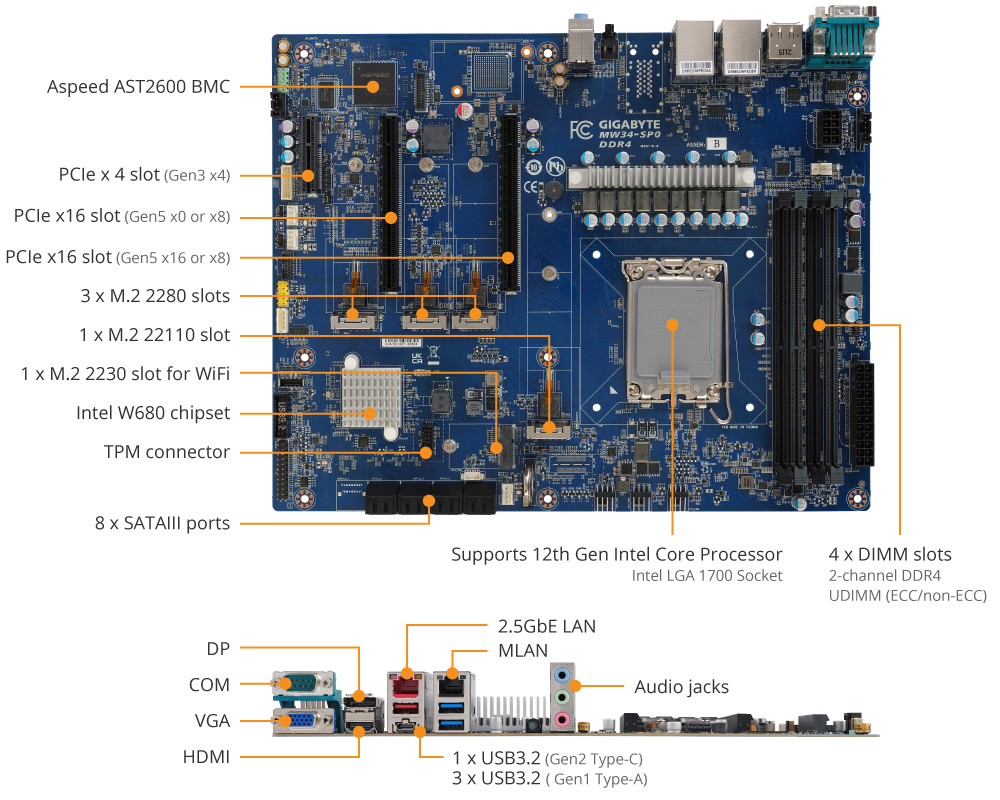

MW34-SP0 Product Overview

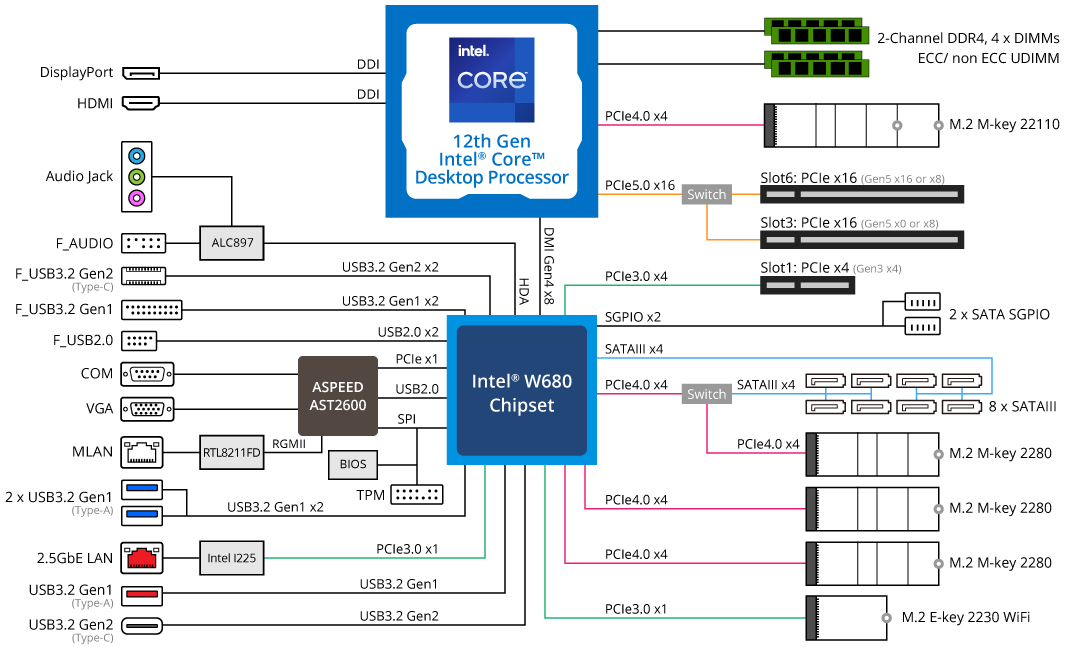

MW34-SP0 Block Diagram

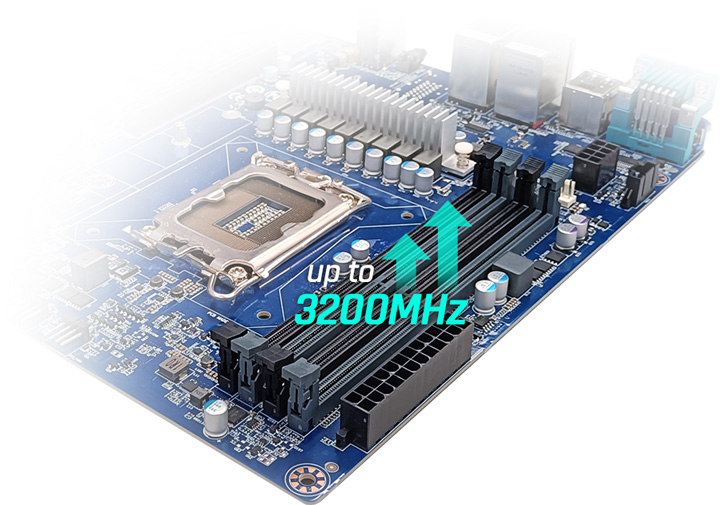

Memory Support
4 x DIMM slots for DDR4-3200 memory
4 unbuffered DIMMs memory socket with dual Channel ECC/Non-ECC DDR4, capacity up to 128GB.
High Performance

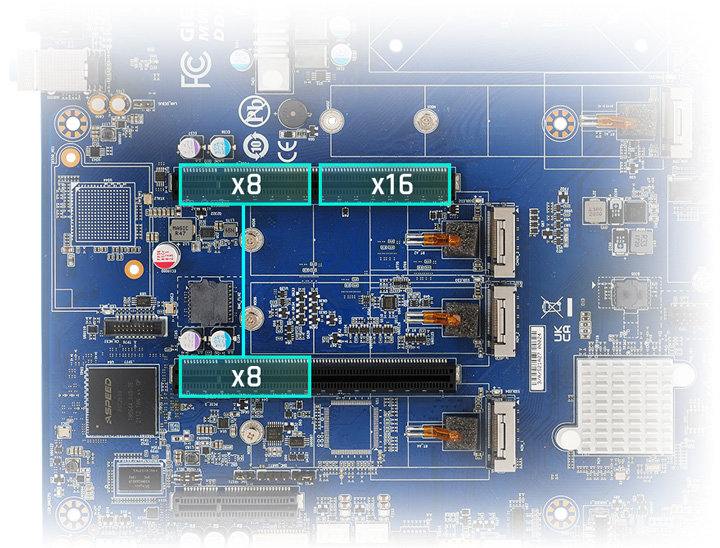

PCIe 5.0 Ready Design
MW34-SP0 equips several new components to ensure the best PCIe 5.0 signal bandwidth and quality, including low-loss PCB, PCIe Slots, Re-drivers, Switches that are specifically designed for PCIe 5.0. There will be no compromised on PCIe 5.0 performance on PCIe interface.
- Slot_6: PCIe x16 slot (Gen5 x16 or x8) from CPU
- Slot_3: PCIe x16 slot (Gen5 x0 or x8), shared with slot_6

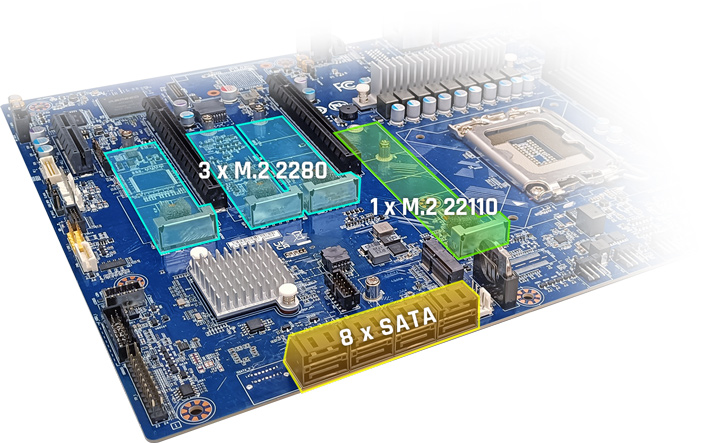

Storage Support
Multiple Storage Interface
Plentiful NVMe and SATA Storage interface can fulfill your hot and cold data processing requirement at once.
- 1 x M.2 22110 slot (PCIe 4.0 x4) from CPU
- 3 x M.2 2280 slots (PCIe 4.0 x4) from W680 chipset
- 8 x SATAIII ports from W680 chipset
Hardware Security
Optional TPM 2.0 Module
For hardware-based authentication, the passwords, encryption keys, and digital certificates are stored in a TPM module to prevent unwanted users from gaining access to your data. GIGABYTE TPM modules come in either a Serial Peripheral Interface or Low Pin Count bus.
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.
GIGABYTE Management Console
For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:
- Support for standard IPMI specifications that allows users to integrate services into a single platform through an open interface
- Automatic event recording, which can record system behavior 30 seconds before an event occurs, making it easier to determine subsequent actions
- Integrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console to monitor and control Broadcom® MegaRAID adapters.

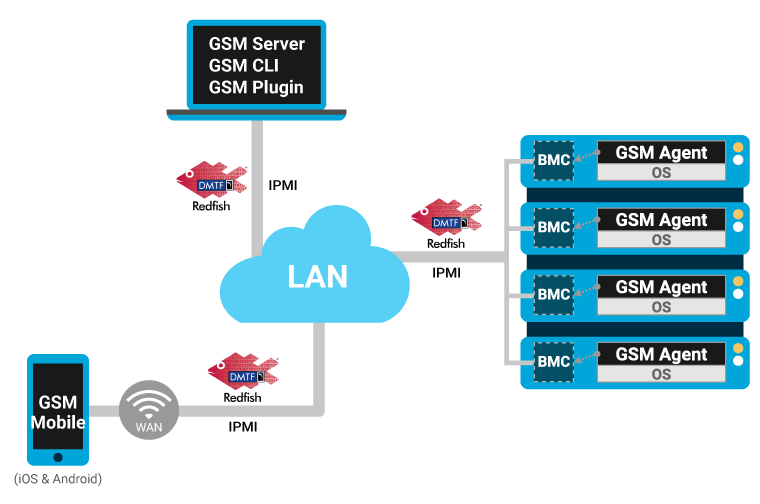

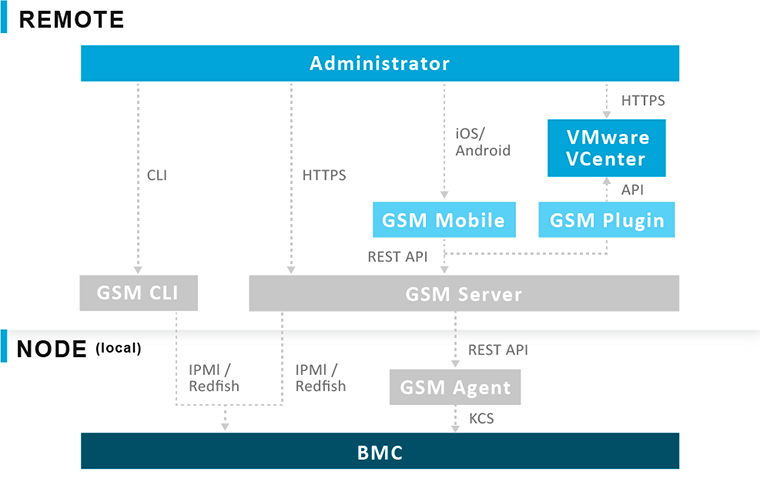

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux. GSM can be downloaded from GIGABYTE website and complies with IPMI and Redfish standards. GSM includes a complete range of system management functions that includes the following utilities:
- GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrator’s computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
- GSM CLI: A command-line interface for monitoring and managing remotely.
- GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
- GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
- GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
Notes:
* All materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at any time without prior notice.
* Advertised performance is based on maximum theoretical values as specified by the respective chipset vendors or standards organizations. Actual performance may vary depending on system configuration.
* All trademarks and logos are the property of their respective owners.
