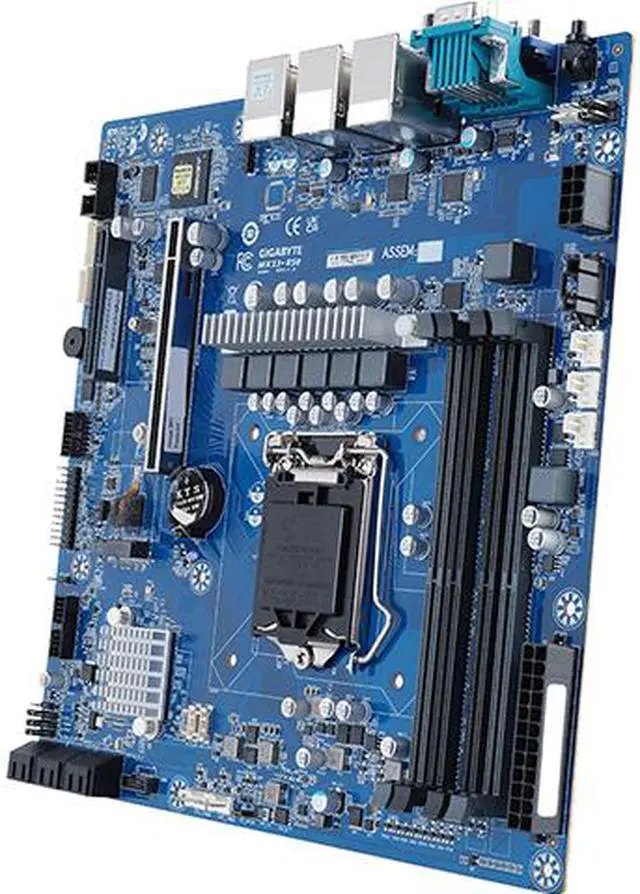

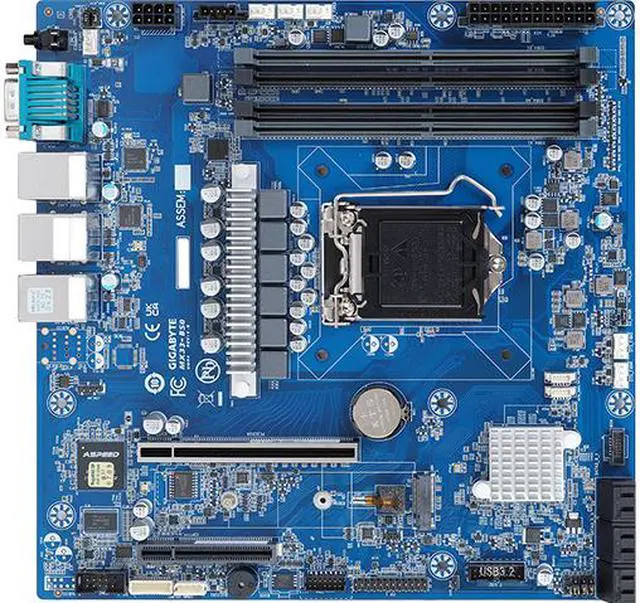

GIGABYTE MX33-BS0 Micro ATX Server Motherboard LGA 1200 Intel C252

  • Entry and small business server board
  • Micro ATX form factor
  • Intel Xeon E-2300 series processors
  • Intel C252 Express Chipset
  • 4 x UDIMM slots, DDR4 3200MHz
  • 2 x GbE LAN ports (Intel I210-AT)
  • 1 x Dedicated management port
  • 6 x 7-pin SATA 6Gb/s ports
  • Ultra-Fast M.2 PCIe Gen3 x4 interface
  • 2 x USB 3.2 Gen2 ports supported
  • 2 x PCIe Gen4 expansion slots
+
+
Overview
Specs
Reviews (1)
See all Q & A

Any questions? Ask CelesteSM will help you find out quickly.

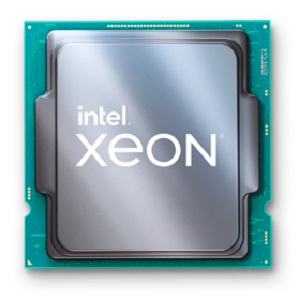

Intel Xeon E-2300 Processors
Intel Xeon E-2300 Processors

The Intel Xeon E-2300 processors offer 10 new processor varieties, including options with 4, 6, or 8 cores, and thermal design points (TDPs) ranging from 65W up to 95W. With Intel Turbo Boost Technology frequencies as high as 5.1 GHz, and memory speeds up to 23 percent faster than the prior generation, these new processors outperform the prior Intel Xeon E processor by up to 17 percent. And when coupled with Intel C250 Series Chipsets, this platform offers more I/O bandwidth and speed across options including new PCIe 4.0, more lanes of PCIe 3.0, USB 3.2 with new 2x2 (20 Gb), and SATA 3.0 support.

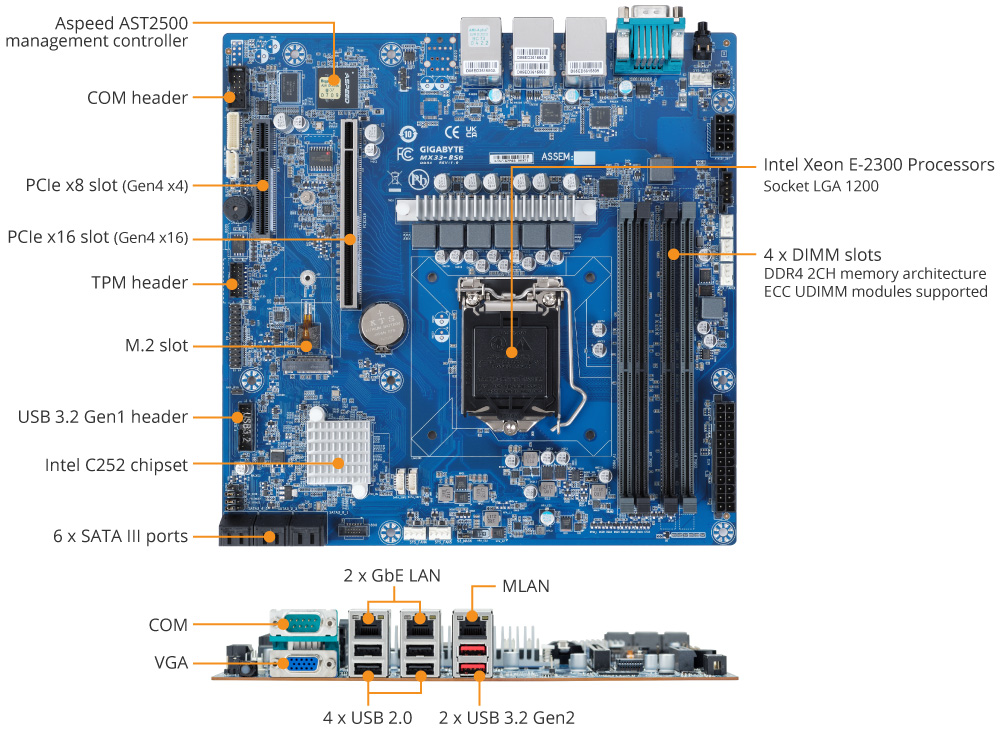

MX33-BS0 Product Overview
MX33-BS0 Product Overview

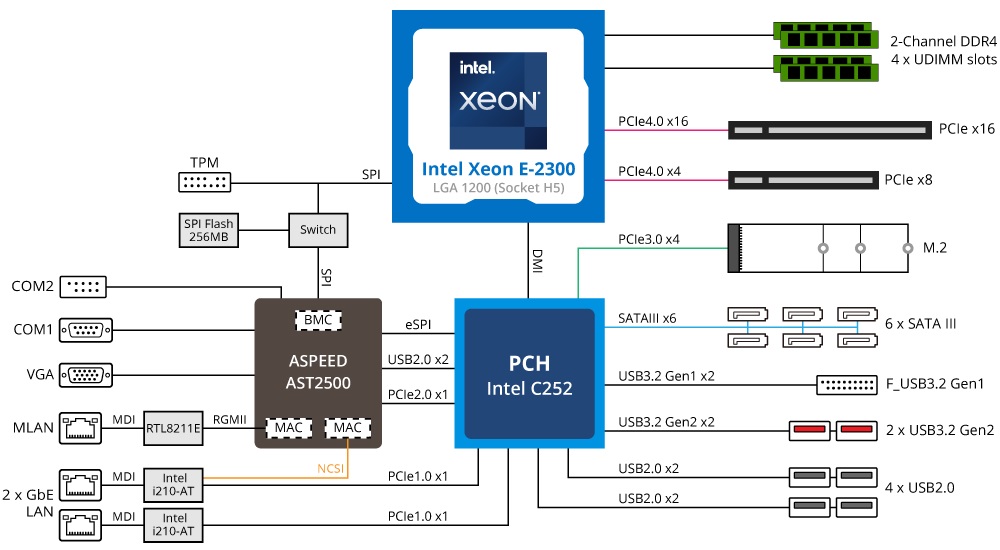

MX33-BS0 Block Diagram
MX33-BS0 Block Diagram
GIGABYTE Management Console
Value-added Management
GIGABYTE offers free-of-charge management applications via a specialized small processor built on the server.

For management and maintenance of a server or a small cluster, users can use the GIGABYTE Management Console, which is pre-installed on each server. Once the servers are running, IT staff can perform real-time health monitoring and management on each server through the browser-based graphical user interface. In addition, the GIGABYTE Management Console also provides:

GIGABYTE Management Console
  • Support for standard IPMI specifications that allows users to integrate services

  • Automatic event recording, which can record system behavior 30 seconds before an event occurs

  • ntegrate SAS/SATA/NVMe devices and RAID controller firmware into GIGABYTE Management Console

GIGABYTE Server Management (GSM)
GSM is a software suite that can manage clusters of servers simultaneously over the internet. GSM can be run on all GIGABYTE servers and has support for Windows and Linux.
  • GSM Server: A software program that provides real-time, remote control using a graphical user interface through an administrators computer or through a server in the cluster. The software allows ease of maintenance for large clusters of servers.
  • GSM CLI: A command-line interface for monitoring and managing remotely.
  • GSM Agent: A software program installed on each GIGABYTE server node that retrieves information from each system and devices through the OS, and this software integrates with GSM Server or GSM CLI.
  • GSM Mobile: A mobile app for both Android and iOS that provides admins with real-time system information.
  • GSM Plugin: An application program interface that allows users to use VMware vCenter for real-time monitoring and management of server clusters.
GIGABYTE Server Management

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

  • Limited Warranty period (parts): 3 years
  • Limited Warranty period (labor): 3 years
  • Read full details

Return Policies

    We want to ensure your holiday shopping this year is hassle-free. That’s why we’re automatically extending our return policies on almost every product! For purchases placed between November 1st, 2026 and December 31, 2026 you will have until January 31, 2027 to return your product.

  • Return for refund until: January 31, 2027
  • Return for replacement until: January 31, 2027
  • This item is covered by Newegg.com's Extended Holiday Return Policy.
  • Read full return policy for details.
LOADING...
LOADING...

The GIGABYTE MX33-BS0 is a Micro ATX server motherboard for Intel Xeon E-2300 or 11th Gen Pentium processors, with ECC memory support, dual Gigabit LAN, and a dedicated management port. It suits entry-level and small-business servers that need server-focused connectivity in a compact build.

Recommended For

  • Small businesses building a compact, single-socket server for routine office services can use its Xeon E-2300 support, ECC UDIMM memory, dual 1GbE ports, and browser-based remote management.
  • Home-lab and edge-server builders who want ECC memory and remote administration in a microATX system can use the board for a compact, single-CPU server; it includes a dedicated management port and GIGABYTE Management Console support.
  • Small file, backup, or storage-server builders who need several direct-attached SATA drives can use its six SATA ports and RAID support, with one PCIe Gen3 x4 M.2 slot for an additional drive.
  • Workstation builders needing a server-oriented microATX platform for one Xeon E-2300 CPU and a limited number of add-in cards can use its PCIe Gen4 x16 slot and second Gen4 slot wired for x4.

Spec Summary

AttributeValue
Best ForSingle-processor entry or small-business server builds using supported Intel Xeon E-2300 series or 11th Gen Intel Pentium processors
Processor And PlatformLGA 1200 socket with Intel C252 chipset; supports one processor and CPUs with TDP up to 95W
Memory ConfigurationFour 288-pin DDR4 DIMM slots support up to 128GB in dual-channel, with ECC support and speeds up to DDR4 3200
Expansion SlotsTwo CPU-connected PCIe Gen4 slots: one x16 slot and one x8-size slot operating at x4; with an Intel Pentium processor, the x16 slot drops to Gen3 and the x8-size slot is unavailable
Storage And RAIDSix SATA 6Gb/s ports support RAID 0, 1, 5, and 10; one M-key M.2 slot supports PCIe Gen3 x4 2242 or 2280 cards
Networking And ManagementTwo Intel I210-AT Gigabit Ethernet ports support 10/100/1000Mbps, alongside a dedicated MLAN management port
Rear I/O And DisplayRear connections include two USB 3.2 Gen2 ports, four USB 2.0 ports, VGA, COM, two RJ45 ports, a dedicated MLAN port, and an ID button with LED
Onboard VideoAspeed AST2500 onboard video chipset with VGA output
Internal Headers And PowerIncludes a USB 3.2 Gen1 x2 header; CPU and system fan headers; front-panel, backplane, COM, PMBus, IPMB, and TPM headers; and 24-pin ATX and 8-pin ATX 12V power connectors
Form Factor And DimensionsMicro ATX motherboard measuring 9.6 × 9.6 inches
Model IdentifiersGIGABYTE MX33-BS0
