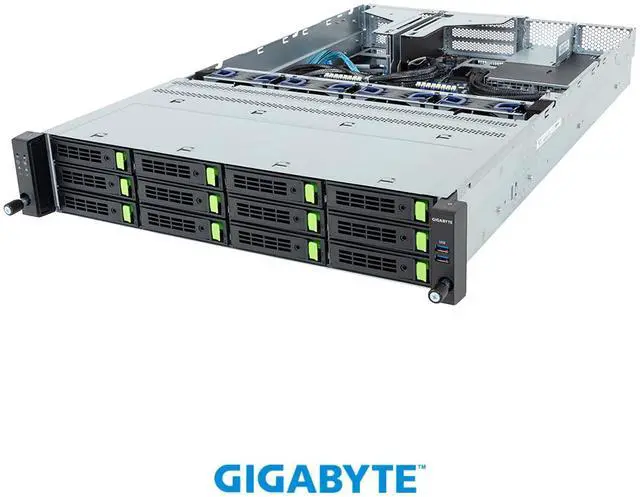

GIGABYTE R264-S30-AAV1 Rack Server - Intel® Xeon® 6 Processors - 2U UP 12-Bay Gen5 NVMe/SATA/SAS-4 (12 x NVMe)
- Single Intel® Xeon® 6 Processors, LGA 4710
- 8-Channel DDR5 RDIMM / MRDIMM, 16 x DIMMs
- Dual ROM Architecture
- 1 x 1Gb/s LAN port via Intel® I210-AT
- 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swap bays
- 1 x M.2 slot with PCIe Gen5 x2 interface
- 1 x M.2 slot with PCIe Gen5 x2 interface, shared with SATA
- 1 x FHHL PCIe Gen5 x16 slot
- 1 x OCP NIC 3.0 PCIe Gen5 x16 slot
- 1+1 1600W 80 PLUS Titanium redundant power supplies
+
+
Specs
Reviews
Any questions? Our AI beta will help you find out quickly.
Try me now
Learn more about the GIGABYTE R264-S30-AAV1
| Brand | GIGABYTE |
|---|---|
| Model | R264-S30-AAV1 |
| Form Factor | 2U Rackmount |
| Workload | General Purpose Server |
| CPU Type | Intel Xeon 6 Processors - Intel Xeon 6700-Series Processors - Intel Xeon 6500-Series Processors |
|---|---|
| CPU Socket | LGA 4710 |
| Installed CPU | No CPU Installed |
| Max Processors | 1 |
| CPU Features | Single processor, TDP up to 350W |
| Memory Slots | 16 x 288Pin |
|---|---|
| Installed Memory Size | No Memory Installed |
| Memory Type Supported | MRDIMM supported RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC) MRDIMM: Up to 8000 MT/s |
| Channel Supported | 8 Channel |
| Registered | Yes |
| Installed HDD | No Storage Installed |
|---|---|
| M.2 | 1 x M.2 (2280/22110), PCIe Gen5 x2 1 x M.2 (2280/22110), PCIe Gen5 x2, shared with SATA |
| GPU/VPU | Aspeed AST2600 |
|---|
| PCI Express | 1 x FHHL PCIe Gen5 x16 slot 1 x OCP NIC 3.0 PCIe Gen5 x16 slot |
|---|
| First LAN | Intel I210-AT |
|---|---|
| Max. LAN Speed | 1 Gigabit |
| Hot-Swap Bays | Front side: 12 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 |
|---|
| Buttons | 1 x NMI button 1 x Reset button |
|---|---|
| LEDs | 1 x Power button with LED 1 x ID button with LED 2 x LAN activity LEDs (1 x LED disabled) 1 x Storage activity LED 1 x System status LED |
| Front USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| DisplayPort | 1 x Mini DisplayPort |
| Rear USB | 2 x USB 3.2 Gen1 ports (Type-A) |
| RJ45 | 1 |
| Other Ports | 1 x MLAN |
| Max. Power | 1+1 1600W 80 PLUS Titanium redundant power supplies |
|---|
| Fans | 4 x 80x80x38mm (18,300rpm) |
|---|
| Temperature | Operating temperature: 10°C to 35°C Non-operating temperature: -40°C to 60°C |
|---|---|
| Humidity | Operating humidity: 8%-80% (non-condensing) Non-operating humidity: 20%-95% (non-condensing) |
| Dimensions | 3.44" x 17.24" x 27.95" |
|---|
| Package Contents | 1 x R264-S30-AAV1 1 x CPU heatsink 1 x Mini-DP to D-Sub cable 2 x Carriers 1 x 2-Section Rail kit |
|---|
| First Listed on Newegg | February 10, 2025 |
|---|
