Brand | GIGABYTE |
---|---|
Series | AORUS |
Model | GV-RX580XTRAORUS-8GD |
Interface | PCI Express 3.0 x16 |
---|
Chipset Manufacturer | AMD |
---|---|
GPU Series | AMD Radeon RX 500 Series |
GPU | Radeon RX 580 |
Core Clock | 1439 MHz (OC Mode) / 1425 MHz (Gaming Mode) |
Stream Processors | 2304 Stream Processors |
Effective Memory Clock | 8000 MHz |
---|---|
Memory Size | 8GB |
Memory Interface | 256-Bit |
Memory Type | GDDR5 |
DirectX | DirectX 12 |
---|---|
OpenGL | OpenGL 4.5 |
Multi-Monitor Support | 5 |
---|---|

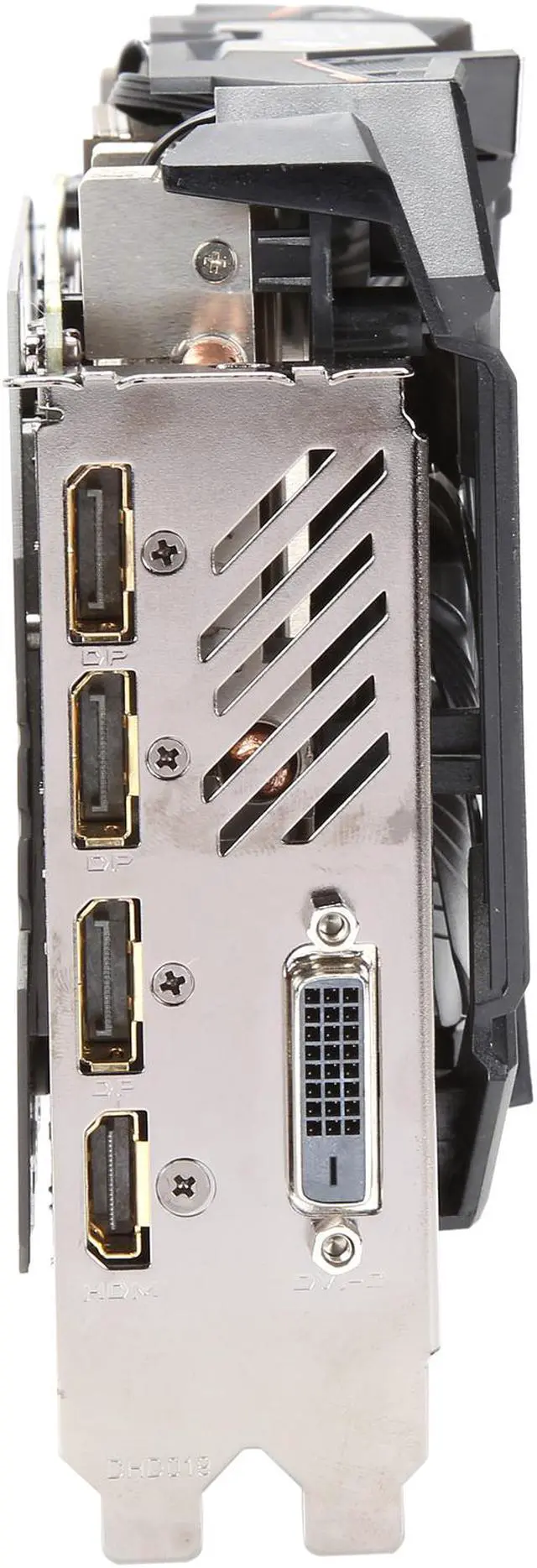

HDMI | 1 x HDMI 2.0 |
DisplayPort | 3 x DisplayPort 1.4 |
DVI | 1 x Dual-Link DVI-D |
Max Resolution | 7680 x 4320 |
---|---|
Eyefinity Support | Yes |
CrossFireX Support | Yes |
Virtual Reality Ready | Yes |

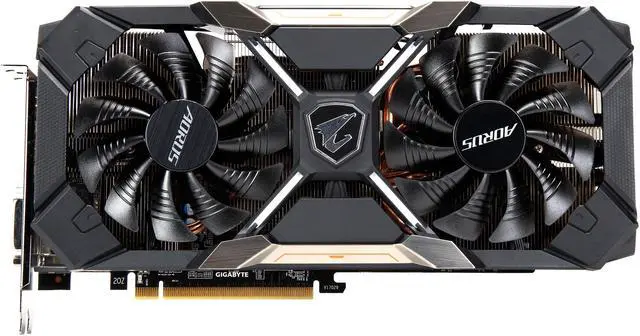

Cooler | WINDFORCE 2X |
Thermal Design Power | 300W |
System Requirements | System PSU Limitation: 500W |
Power Connector | 1 x 8-pin + 1 x 6-pin |
Dual-Link DVI Supported | Yes |

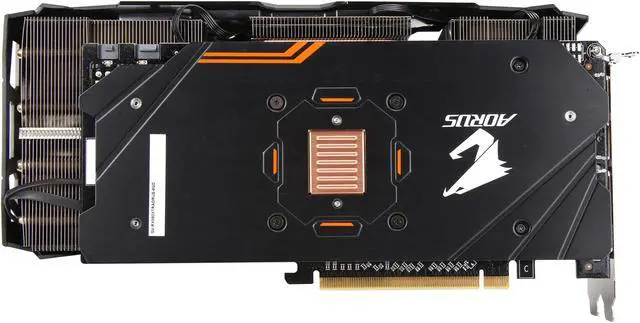

Features | Powered by Radeon RX 580 XTR WINDFORCE 2X with 100mm Blade Fan Design Advanced Copper Back Plate Cooling RGB fusion - 16.7M customizable color lighting Stylish Metal Back Plate Intuitive AORUS Graphics Engine |
---|
Form Factor | ATX |
---|---|
Max GPU Length | 276 mm |
Card Dimensions (L x H) | 10.85" x 5.25" |
Slot Width | 2.5 slot |
Date First Available | June 07, 2018 |
---|
