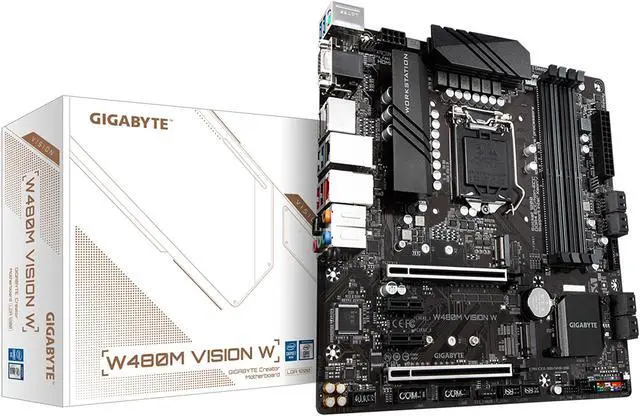

Main image of GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 2 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 3 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 4 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 5 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 6 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 7 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Alt view image 8 of 8 - GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Shop All GIGABYTE Products | Visit Speed Electronics Store

GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Name: GIGABYTE W480M VISION W LGA 1200 Micro ATX Intel Motherboard
Brand: GIGABYTE
SKU: N82E16813145224
Price: 244.91 USD
Availability: InStock
Rating: 1 (1 reviews)

(1) Write a Review

Intel W480
Intel Xeon W series processors
10th Generation Intel Core processors / Intel Pentium processors/Intel Celeron processors
Intel Xeon W-1290/W-1270 series processors / Intel Core i9/i7 processors:
Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules
Intel Xeon W-1250 series processors / Intel Core i5/i3/Pentium/Celeron processors:
Support for DDR4 2666/ 2400/ 2133 MHz memory modules
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (1)

See all Q & A

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by Speed Electronics Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	LGA 1200
CPU Type	Intel Xeon W series processors 10th Generation Intel Core processors / Intel Pentium processors/Intel Celeron processors

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	Intel Xeon W-1290/W-1270 series processors / Intel Core i9/i7 processors: Support for DDR4 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Xeon W-1250 series processors / Intel Core i5/i3/Pentium/Celeron processors: Support for DDR4 2666/ 2400/ 2133 MHz memory modules Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules * To support ECC, you must install an Intel Xeon processor. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. 1 x PCI Express x16 slot, running at x8 (PCIEX8) * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When the PCIEX8 slot is populated, the PCIEX16 slot operates at up to x8 mode.
PCI Express x1	2 x PCI Express x1 slots (All of the PCI Express slots conform to PCI Express 3.0 standard.)
Other Slots	1 x M.2 Socket 1 connector for an Intel CNVi wireless module only (CNVI)

Serial ATA (SATA)	8 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q_CPU) 1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2A_SB)
Intel Optane Ready	Yes
SATA RAID	0/1/5/10

Audio Chipset	Realtek ALC1200
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

Best Sellers

Meet Your Seller

GIGABYTE W480M VISION W LGA 1200 Intel W480 Micro ATX Intel Motherboard

Learn more about the GIGABYTE W480M VISION W

Customer Reviews of the GIGABYTE W480M VISION W

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

LAN Chipset	Intel 2.5GbE LAN chip
Second LAN Chipset	Intel GbE LAN chip
Max LAN Speed	2.5Gbps + 1Gbps

Onboard USB	1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 3 x system fan headers 2 x SATA detection headers 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 2 x serial port headers 1 x Clear CMOS jumper 1 x Q-Flash Plus button

Form Factor	Micro ATX
Dimensions (W x L)	9.6" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
