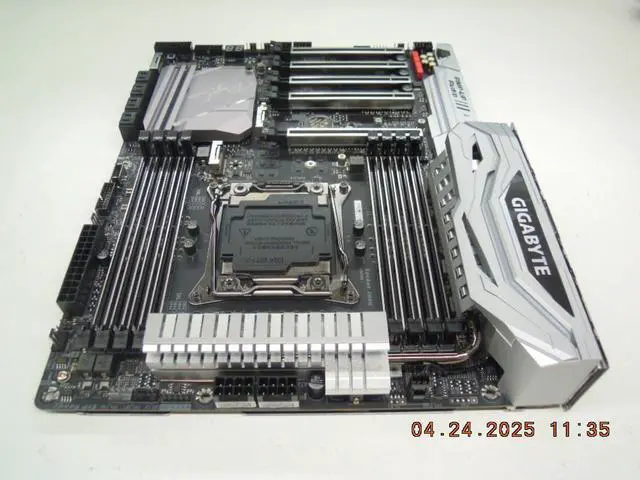

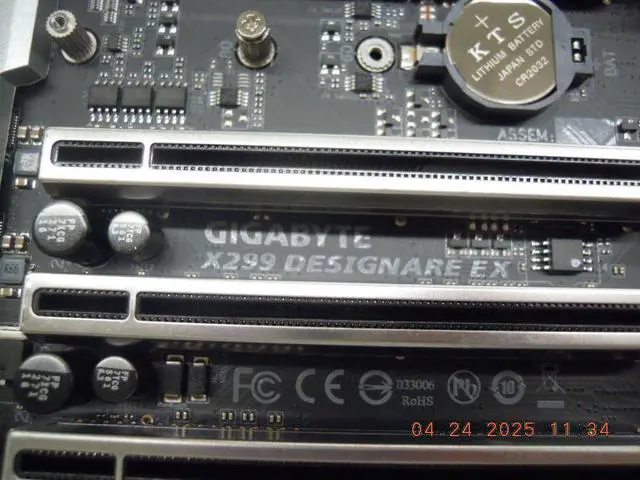

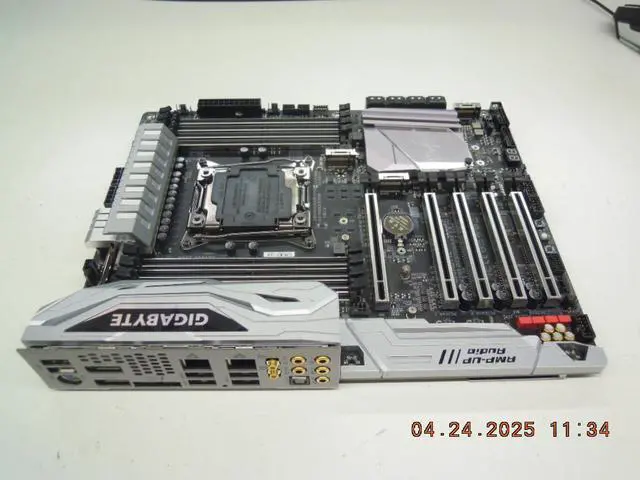

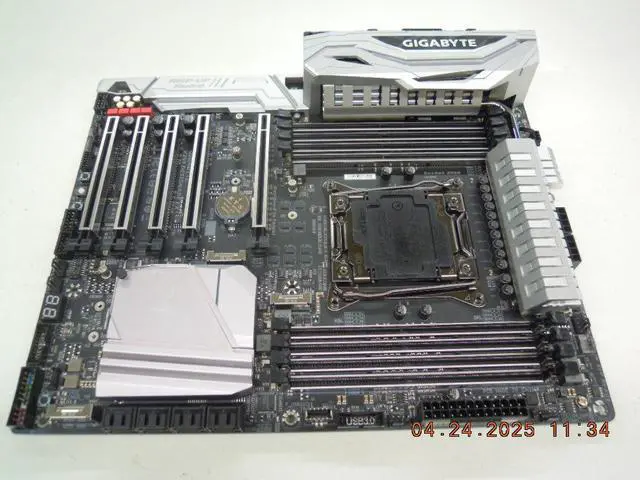

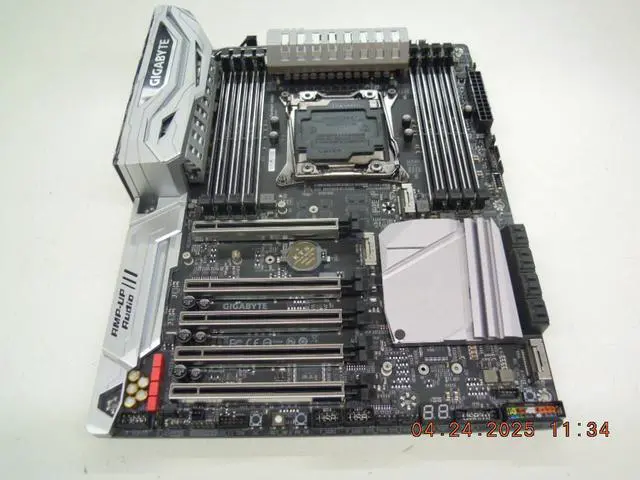

The item is in very good condition. The BIOS has been upgraded to the latest version. Tested, only the motherboard and I/O shield are included in the package. please leave a message if you need screws.

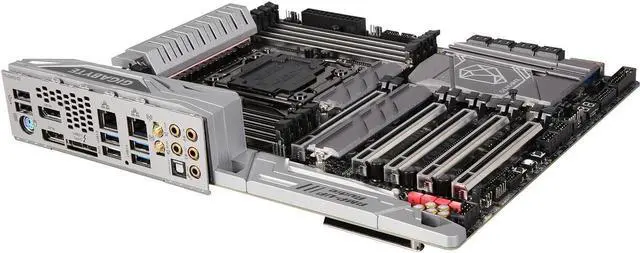

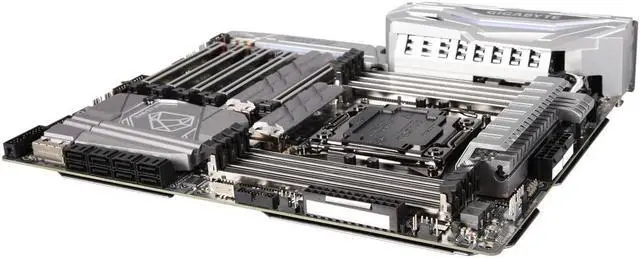

Learn more about the GIGABYTE X299 DESIGNARE EX (rev. 1.0)
Model
Brand
GIGABYTE
Series
X299
Model
X299 DESIGNARE EX (rev. 1.0)
Supported CPU
CPU Socket Type
LGA 2066
CPU Type
Core X series (LGA2066)
Chipsets
Chipset
Intel X299
Onboard Video
Onboard Video Chipset
Integrated Graphics Processor+Intel Thunderbolt 3 Controller: 2 x Intel Thunderbolt 3 connectors, supporting DisplayPort and Thunderbolt video outputs and a maximum resolution of 4096x2304@60Hz * Because of the limited I/O resources of the PC architecture, the number of Thunderbolt devices that can be used is dependent on the number of the PCI Express devices being installed. * Support for DisplayPort 1.2 version.
8 x DDR4 DIMM sockets supporting up to 128GB of system memory. * Support for up to 512GB of system memory when using Registered DIMMs. * Supported when using a 44-lane or 28-lane CPU (6-core or above).
4 x DDR4 DIMM sockets supporting up to 64GB of system memory. * Supported when using a 16-lane CPU (4-core).
Channel Supported
4 channel memory architecture. * Supported when using a 44-lane or 28-lane CPU (6-core or above).
Dual channel memory architecture. Supported when using a 16-lane CPU (4-core).
Expansion Slots
PCI Express 3.0 x16
2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8) 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2) (All of the PCI Express slots conform to PCI Express 3.0 standard.) * The PCIEX4_1 slot shares bandwidth with the M2M_32G connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2M_32G connector.
Storage Devices

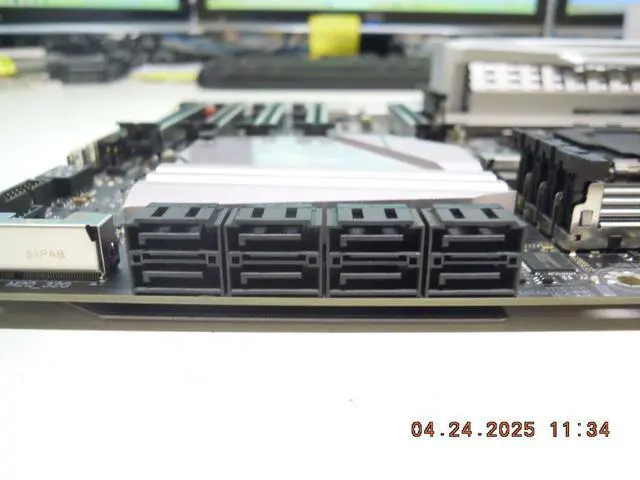

Serial ATA (SATA)
Chipset: 6 x SATA 6Gb/s connectors (SATA3 0, 1, 4, 5, 6, 7)
ASMedia ASM1061 chip: 2 x SATA 6Gb/s connectors (SATA3 2, 3), supporting AHCI mode only
M.2
1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe x4/x2 SSD support) (M2P_32G) 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M_32G) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe x4/x2 SSD support) (M2Q_32G) * The M2M_32G connector must work with an Intel VROC Upgrade Key to support RAID configuration.
SATA RAID
0/1/5/10
Onboard Audio
Audio Chipset
Realtek ALC1220
Audio Channels
2/4/5.1/7.1-channel Support for S/PDIF Out
Onboard LAN
LAN Chipset
2 x Intel GbE LAN chips
Max LAN Speed
2 x 1Gbps
Wireless LAN
Intel Wi-Fi 802.11 a/b/g/n/ac, supporting 2.4/5 GHz Dual-Band Support for 11 ac wireless standard and up to 867 Mbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth
BLUETOOTH 4.2, 4.1, BLE, 4.0, 3.0, 2.1+EDR

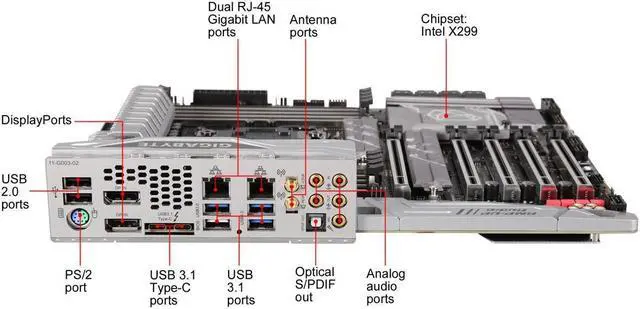

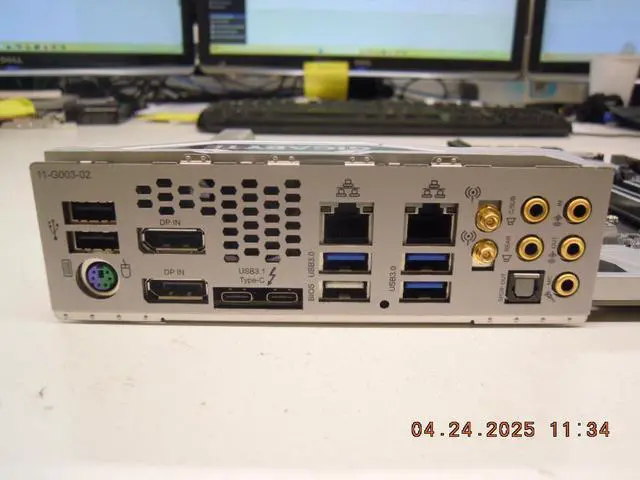

Rear Panel Ports
PS/2
1 x PS/2 keyboard/mouse port
RJ45
2 x RJ45
DisplayPort
2 x DisplayPort
USB 3.1
2 x Thunderbolt 3 connectors (USB Type-C ports, with USB 3.1 Gen 2 support) 4 x USB 3.1 Gen 1 ports
USB 1.1/2.0
2 x USB 2.0
S/PDIF Out
1 x Optical
Audio Ports
5 x audio jacks (Center/Subwoofer Speaker Out, Rear Speaker Out, Line In, Line Out, Mic In)
Antenna Connectors
2 x MMCX antenna connectors (2T2R)
Internal I/O Connectors
Onboard USB
1 x USB Type-C port, with USB 3.1 Gen 2 support 2 x USB 3.1 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors
1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 1 x digital LED strip header 1 x digital LED strip power select jumper 2 x RGB (RGBW) LED strip headers 1 x Intel VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 1 x Clear CMOS button 1 x OC button 2 x temperature sensor headers
Physical Spec
Form Factor
ATX
LED Lighting
RGB
Dimensions (W x L)
12.0" x 9.6"
Power Pin
1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
Features
Features
Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 3-Way*/2-Way NVIDIA SLI technologies * Supported when using a 44-lane or 28-lane CPU (6-core or above). Support for AMD Quad-GPU CrossFire and 3-Way*/2-Way AMD CrossFire technologies * Supported when using a 44-lane or 28-lane CPU (6-core or above).
I/O Controller: iTEI/O Controller Chip
H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install
BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS Support for Q-Flash Plus * The USB flash drive used must be a USB 2.0 flash drive. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. 3D OSD @BIOS AutoGreen BIOS Setup Color Temperature Cloud Station EasyTune Easy RAID Fast Boot Game Boost GIGABYTE HW OC APP ON/OFF Charge Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart TimeLock Smart HUD System Information Viewer USB Blocker V-Tuner Support for Q-Flash Support for Xpress Install
