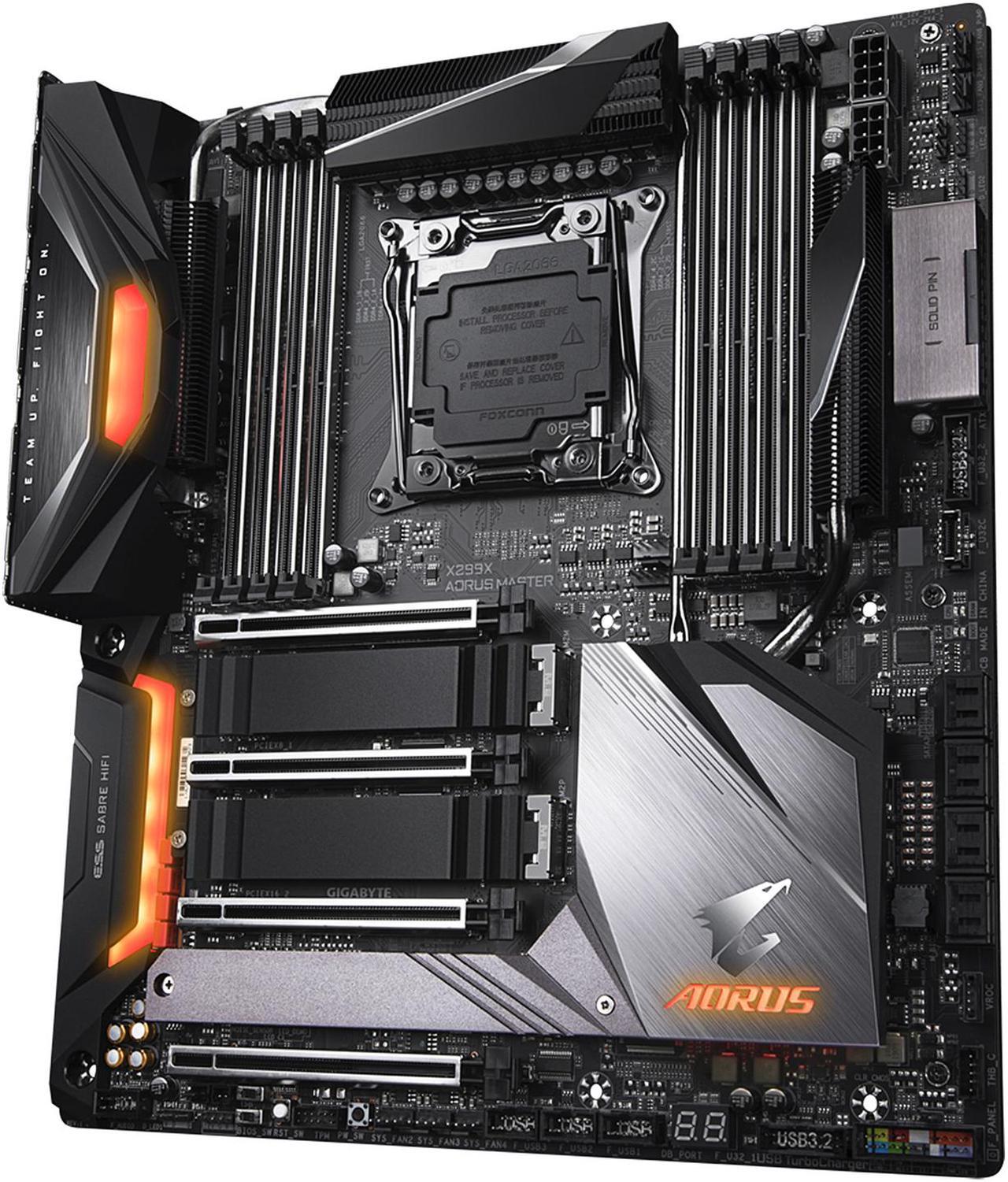

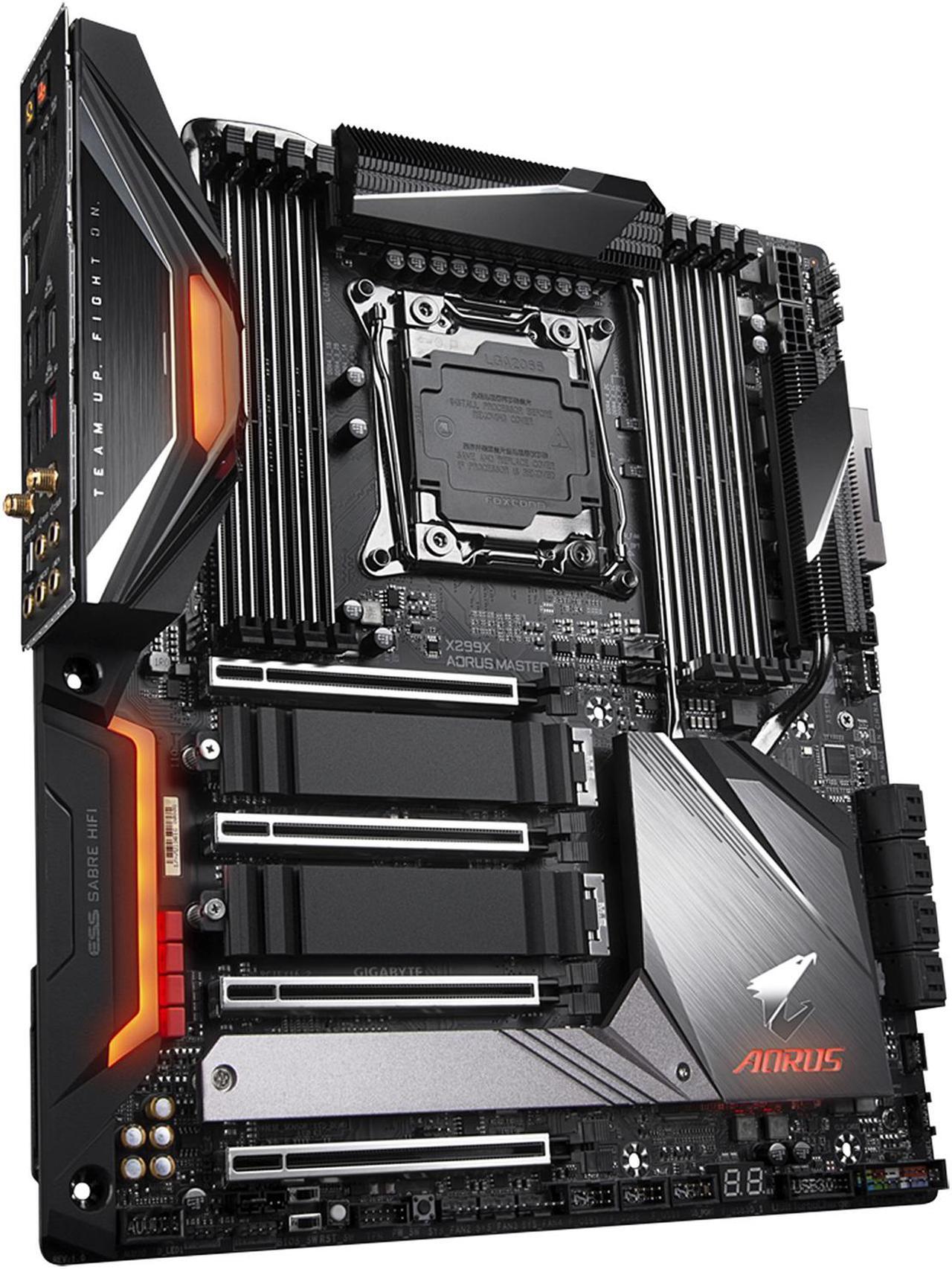

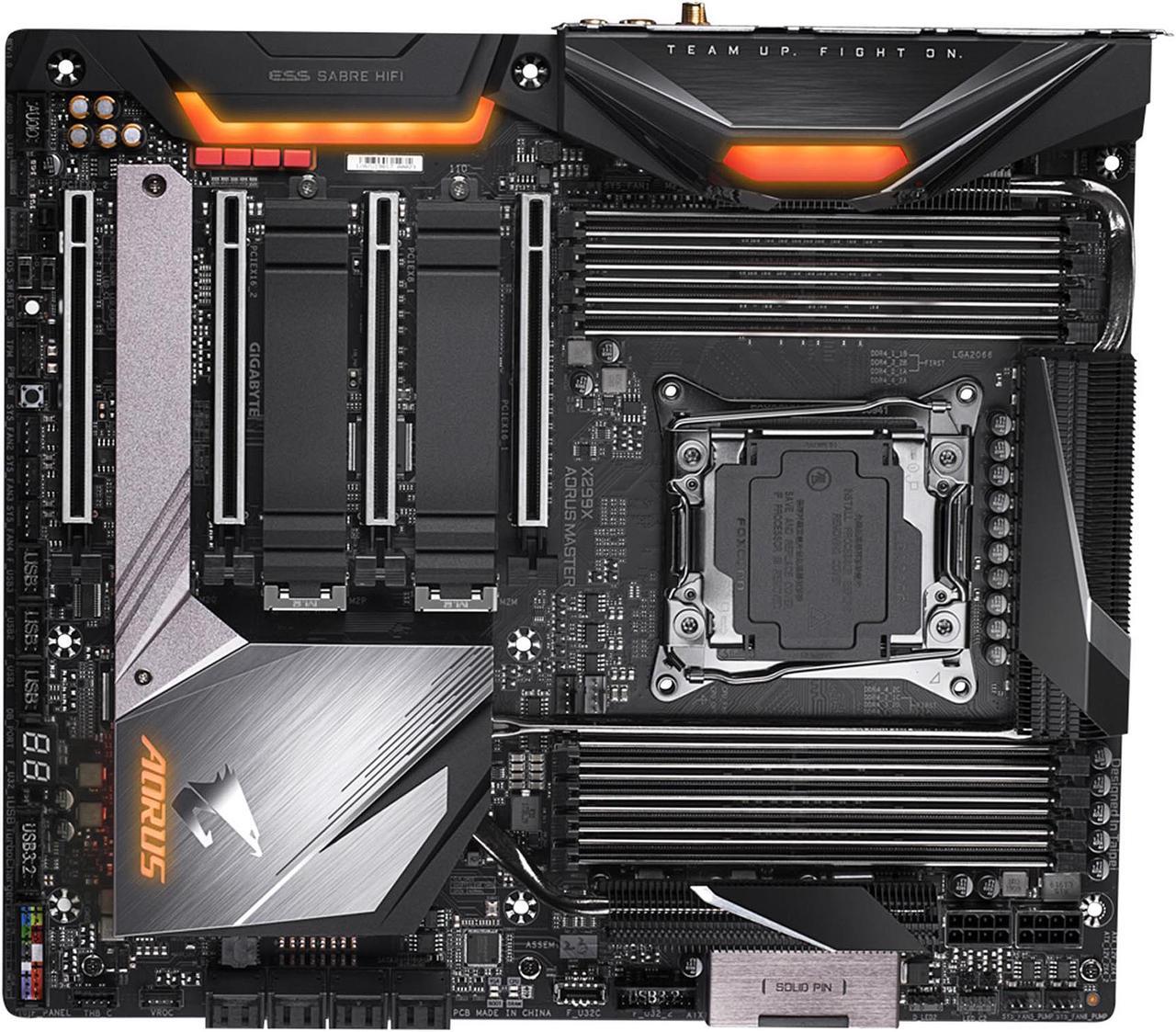

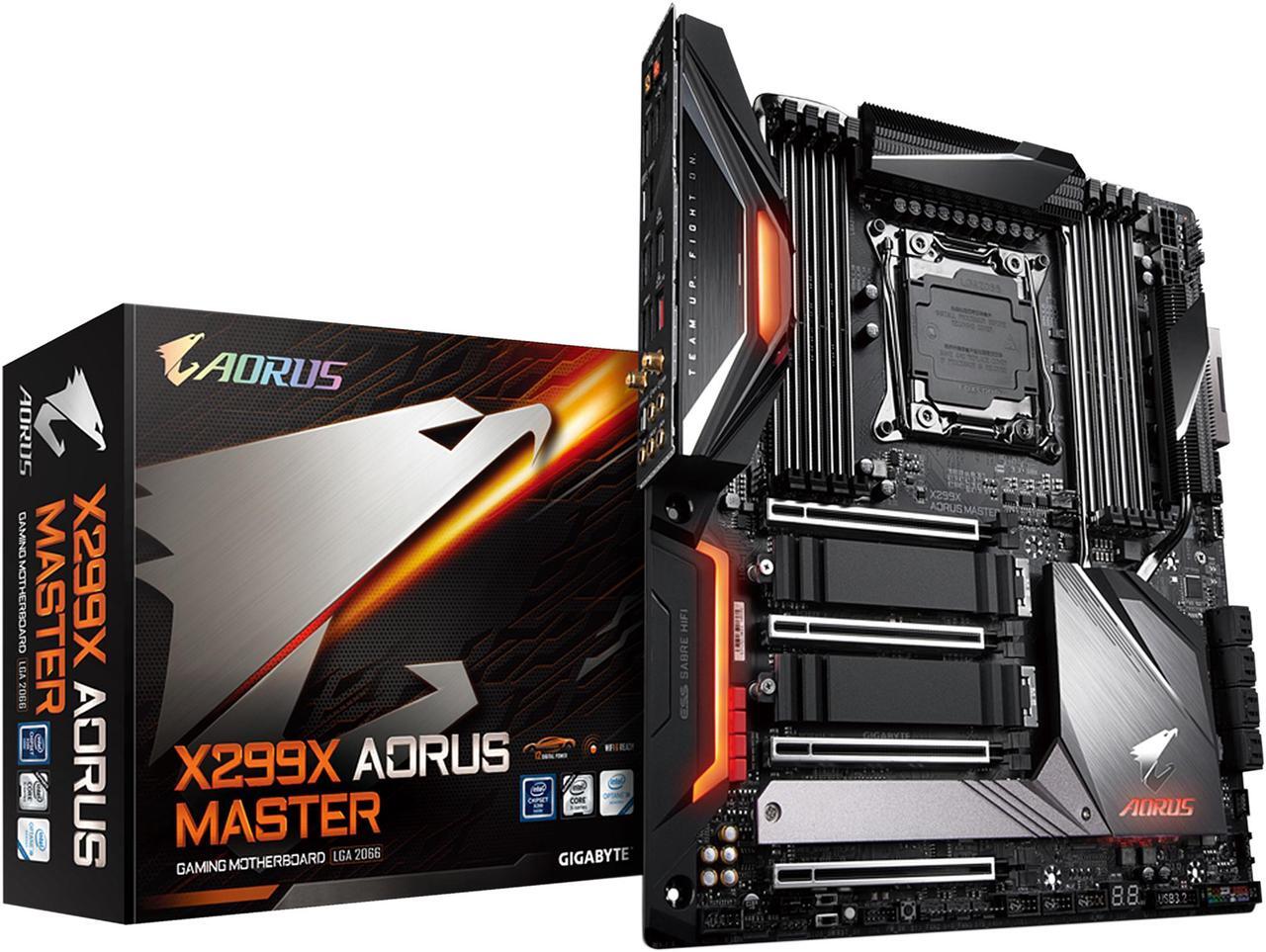

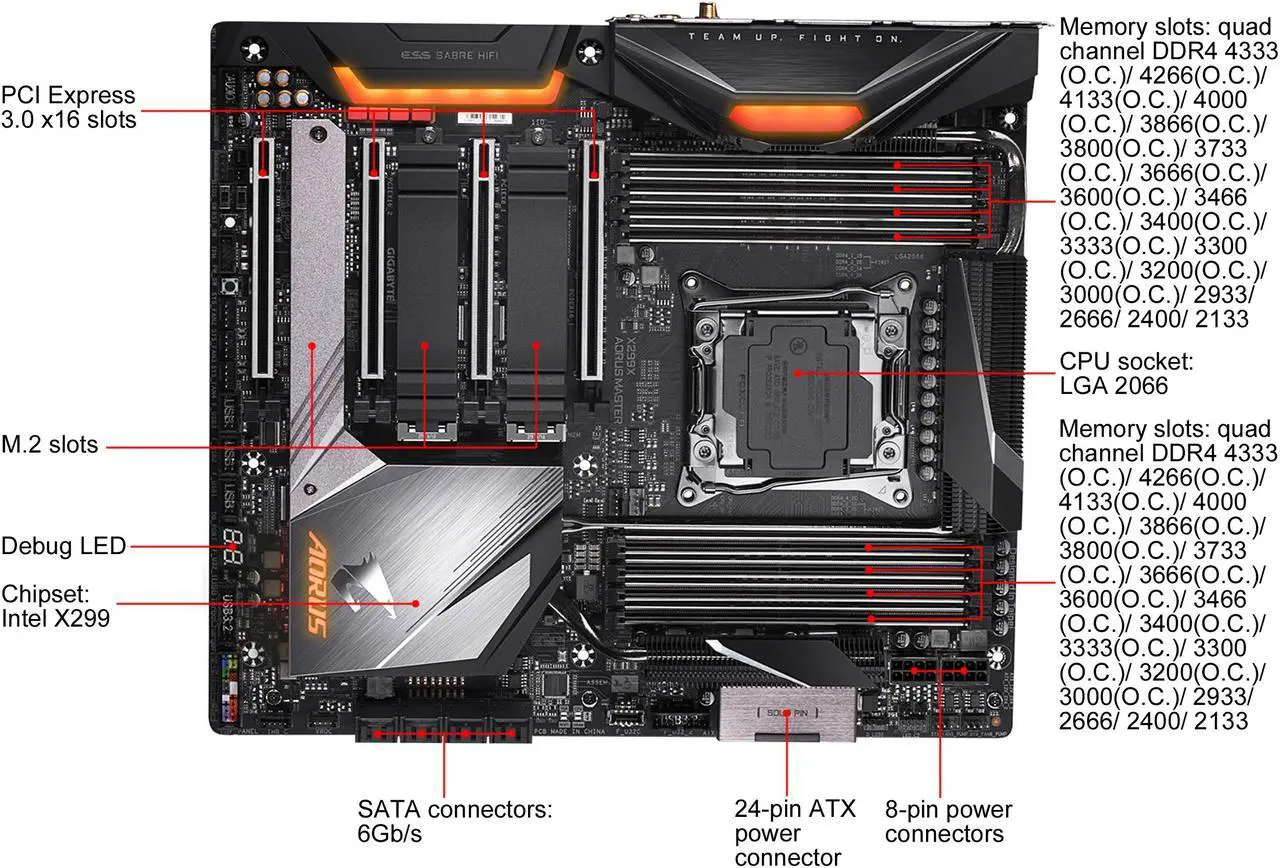

GIGABYTE X299X AORUS MASTER LGA 2066 Intel X299 Extended ATX Intel Motherboard
- Intel X299
- Support for Intel Core i7-7800X and above X series processors / Intel Core i9 X series processors in the LGA2066 package
- Intel Core X series 48-lane processors:
- 8 x DDR4 DIMM sockets supporting up to 256GB (32GB single DIMM capacity) of system memory
- Support for DDR4 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2666/ 2400/ 2133 MHz memory modules
- Intel Core X series 44-lane/28-lane processors:
- 8 x DDR4 DIMM sockets supporting up to 128GB (16GB single DIMM capacity) of system memory
- Support for DDR4 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules
+
+
Specs
Reviews (19)
Learn more about the GIGABYTE X299X AORUS MASTER
| Brand | GIGABYTE |
|---|---|
| Model | X299X AORUS MASTER |
| CPU Socket Type | LGA 2066 |
|---|---|
| CPU Type | Support for Intel Core i7-7800X and above X series processors / Intel Core i9 X series processors in the LGA2066 package |
| Chipset | Intel X299 |
|---|
| Number of Memory Slots | 8x288pin (DDR4) |
|---|---|
| Memory Standard | Intel Core X series 48-lane processors: 8 x DDR4 DIMM sockets supporting up to 256GB (32GB single DIMM capacity) of system memory Support for DDR4 4333(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2933/ 2666/ 2400/ 2133 MHz memory modules Intel Core X series 44-lane/28-lane processors: 8 x DDR4 DIMM sockets supporting up to 128GB (16GB single DIMM capacity) of system memory Support for DDR4 4200(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2666/ 2400/ 2133 MHz memory modules |
| Maximum Memory Supported | 256GB |
| Channel Supported | Quad Channel |
| PCI Express 3.0 x16 | Intel Core X series 48-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 2 x PCI Express x16 slots, running at x8 (PCIEX8_1, PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel Core X series 44-lane processors: 2 x PCI Express x16 slots, running at x16 (PCIEX16_1, PCIEX16_2) 1 x PCI Express x16 slot, running at x8 (PCIEX8_1) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * The PCIEX16_2 slot shares bandwidth with the PCIEX8_1 slot. When the PCIEX8_1 slot is populated, the PCIEX16_2 slot operates at up to x8 mode. Intel Core X series 28-lane processors: 1 x PCI Express x16 slot, running at x16 (PCIEX16_1) 1 x PCI Express x16 slot, running at x8 (PCIEX16_2) 1 x PCI Express x16 slot, running at x4 (PCIEX8_2) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16_1 slot. (All of the PCI Express x16 slots conform to PCI Express 3.0 standard.) |
|---|
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe x4/x2 SSD support) (M2M) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 PCIe x4/x2 SSD support) (M2Q) * The M2M and M2Q connectors become unavailable when an Intel Core X series 28-lane processor is used. Chipset: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support) (M2P) |
| Intel Optane Ready | Intel Optane Memory Ready * Only Intel Core X series 48-lane processors support Intel Optane Memory. |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB codec * The front panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 4.2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Aquantia 5GbE LAN chip |
|---|---|
| Second LAN Chipset | Intel GbE LAN chip |
| Max LAN Speed | 5Gbps + 1Gbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | BLUETOOTH 5.0 |

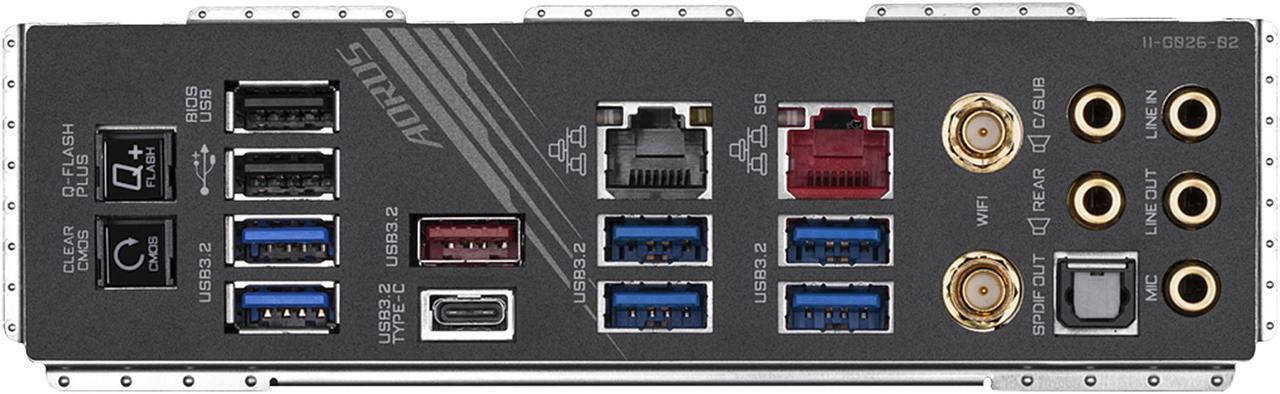

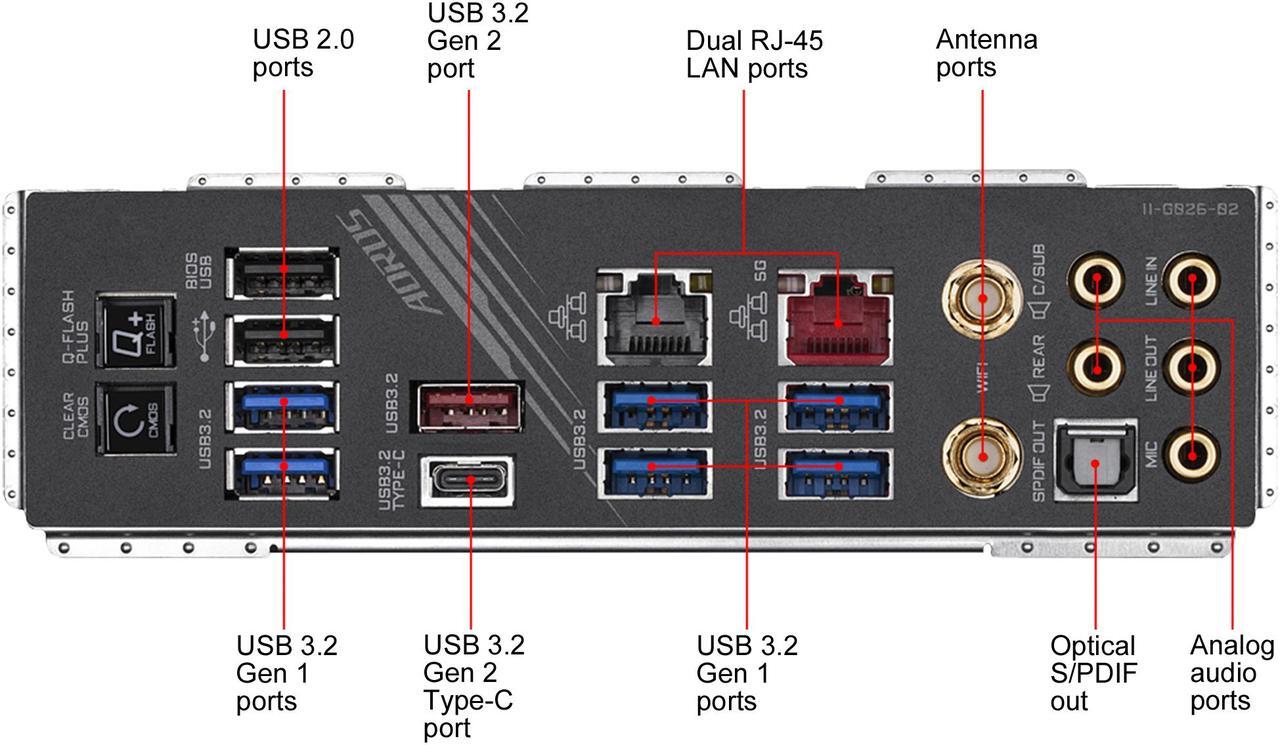

| Back I/O Ports | 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 6 x USB 3.2 Gen 1 ports 2 x USB 2.0/1.1 ports 2 x RJ-45 ports 2 x SMA antenna connectors (2T2R) 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 3 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x Intel VROC Upgrade Key header 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Thunderbolt add-in card connector 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x power button 1 x reset button 2 x temperature sensor headers 1 x Clear CMOS jumper 2 x BIOS switches |
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |

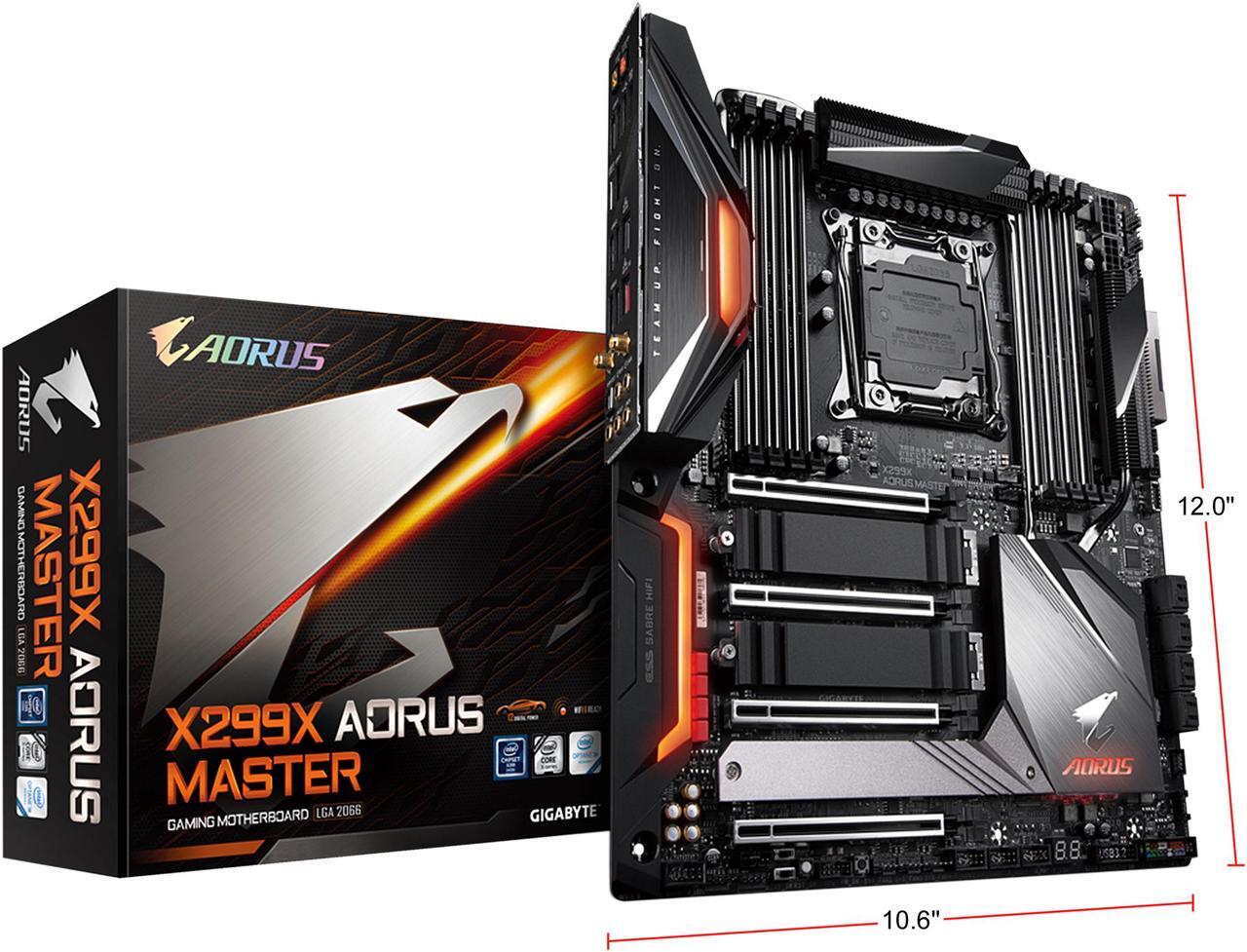

| Dimensions (W x L) | 12.0" x 10.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise Detection BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Easy RAID Fast Boot Game Boost Platform Power Management RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker USB TurboCharger Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | September 03, 2024 |
|---|
