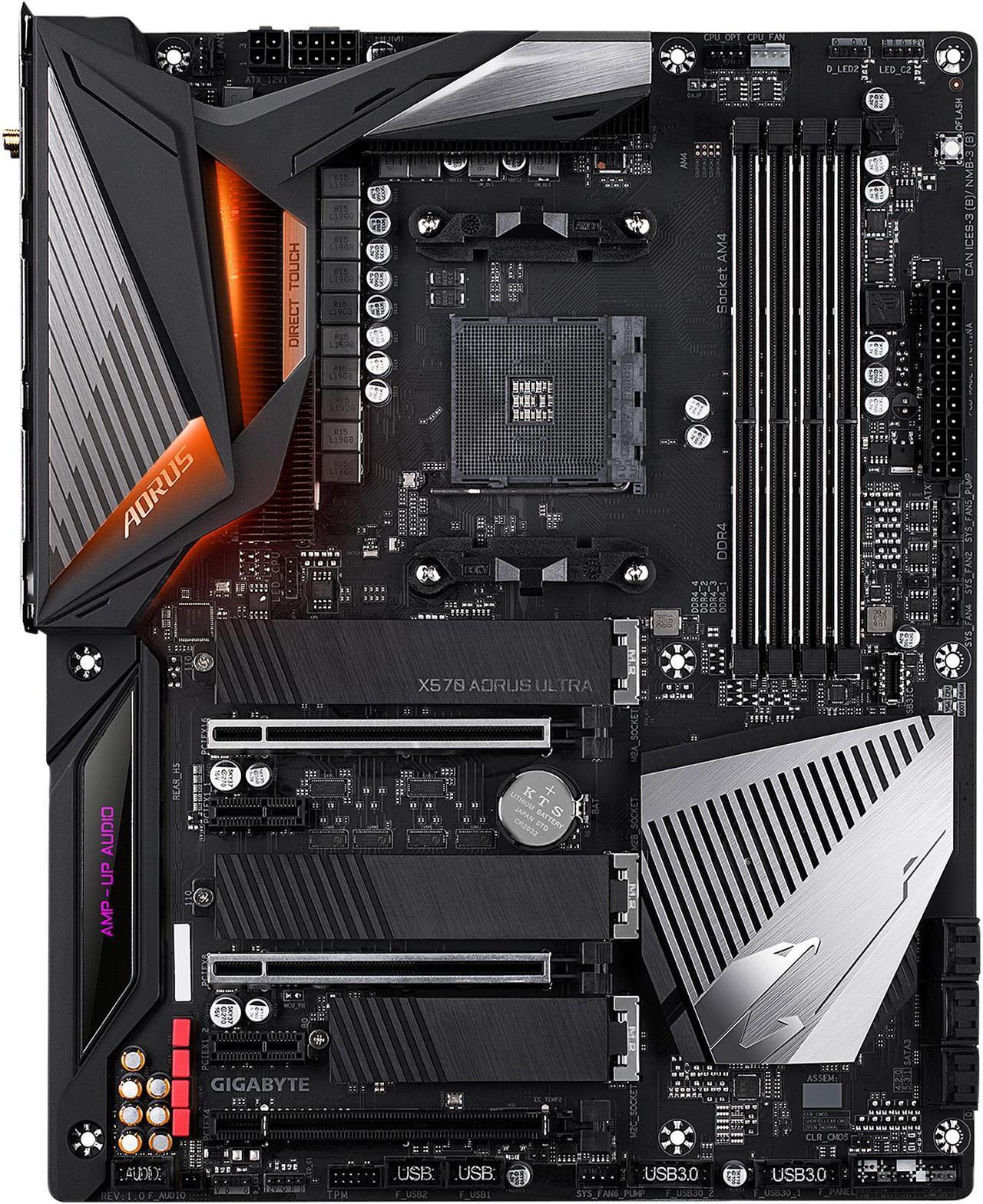

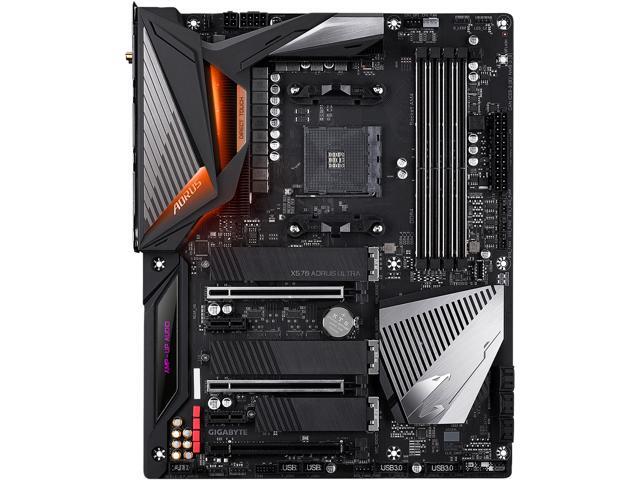

GIGABYTE X570 AORUS ULTRA AM4 AMD X570 SATA 6Gb/s ATX AMD Motherboard
REFURBISHED Product Type
- AMD X570
- AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors
- 3rd Generation AMD Ryzen processors:
- Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules
- 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors:
- Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
+
+
Specs
Reviews (1)
Learn more about the GIGABYTE X570 AORUS ULTRA
| Brand | GIGABYTE |
|---|---|
| Model | X570 AORUS ULTRA |
| CPU Socket Type | AM4 |
|---|---|
| CPU Type | AMD Socket AM4, support for: 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors |
| Chipset | AMD X570 |
|---|
| Number of Memory Slots | 4x288pin (DDR4) |
|---|---|
| Memory Standard | 3rd Generation AMD Ryzen processors: Support for DDR4 4400(O.C.)/ 4300(O.C.)/ 4266(O.C.)/ 4133(O.C.)/ 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3600(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules |
| Maximum Memory Supported | 128GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | Integrated in the CPU (PCIEX16/PCIEX8): 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x8 (PCIEX8) 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 (PCIEX16) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX8) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. * The PCIEX8 slot shares bandwidth with the PCIEX16 slot. When using the 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors, the PCIEX16 slot operates at up to x8 mode. 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 (PCIEX16) Integrated in the Chipset (PCIEX4/PCIEX1): 1 x PCI Express x16 slot, supporting PCIe 4.0*/3.0 and running at x4 (PCIEX4) * For 3rd Generation AMD Ryzen processors only. |
|---|---|
| PCI Express x1 | 2 x PCI Express x1 slots, supporting PCIe 4.0*/3.0 * For 3rd Generation AMD Ryzen processors only. |
| SATA 6Gb/s | 6 x SATA 6Gb/s |
|---|---|
| M.2 | Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0*/3.0 x4/x2 SSD support) (M2B_SOCKET) * For 3rd Generation AMD Ryzen processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0*/3.0 x2 SSD support) (M2C_SOCKET) * For 3rd Generation AMD Ryzen processors only. |
| SATA RAID | 0/1/10 |
| Onboard Video Chipset | Integrated Graphics Processor: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60Hz * Support for HDMI 2.0 version, HDCP 2.2, and HDR. Maximum shared memory of 16GB * For 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors only. |
|---|
| Audio Chipset | Realtek ALC1220-VB * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 2/4/5.1/7.1-channel Support for S/PDIF Out |
| LAN Chipset | Intel GbE LAN chip |
|---|---|
| Max LAN Speed | 1Gbps |
| Wireless LAN | Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
| Bluetooth | BLUETOOTH 5.0 |
| Back I/O Ports | 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2*/Gen 1 Type-A port (red) * For 3rd Generation AMD Ryzen processors only. 1 x USB 3.2 Gen 2 Type-A port (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x CPU cooler LED strip/RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper 2 x temperature sensor headers 1 x Q-Flash Plus button |
| Form Factor | ATX |
|---|---|
| LED Lighting | RGB |
| Dimensions (W x L) | 12.0" x 9.6" |
| Power Pin | 1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector |
| Features | Multi-Graphics Technology: Support for NVIDIA Quad-GPU SLI and 2-Way NVIDIA SLI technologies Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies * For 3rd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen processors only. I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Overheating warning Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 2 x 128 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS AutoGreen Cloud Station EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup Smart Keyboard Smart Survey System Information Viewer USB Blocker Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed XSplit Gamecaster + Broadcaster (12 months license) Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | June 02, 2025 |
|---|
