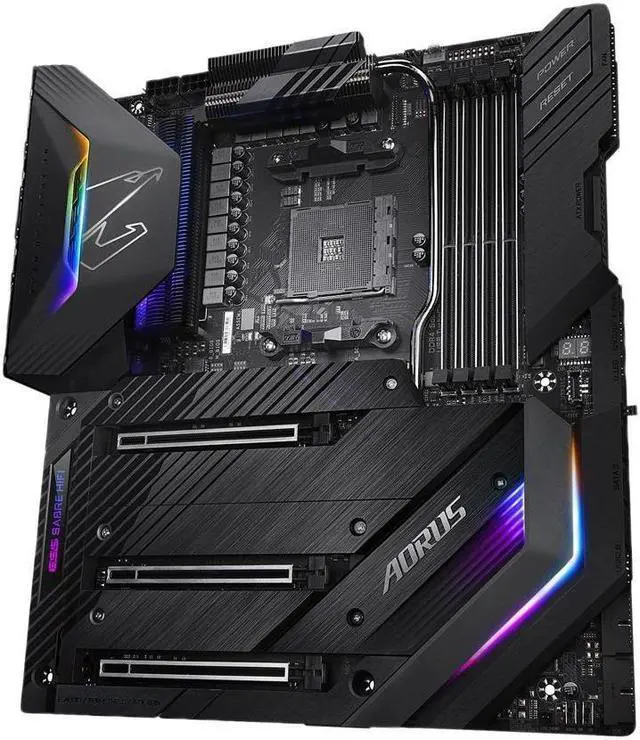

GIGABYTE X570 AORUS Xtreme (AMD Ryzen 5000/X570/E-ATX/PCIe4.0/DDR4/Aqantia 10GbE LAN/RGB Fusion 2.0/Fins-Array Heatsink/3xM.2 Thermal Guard/USB3.1/Gaming Motherboard)

REFURBISHED

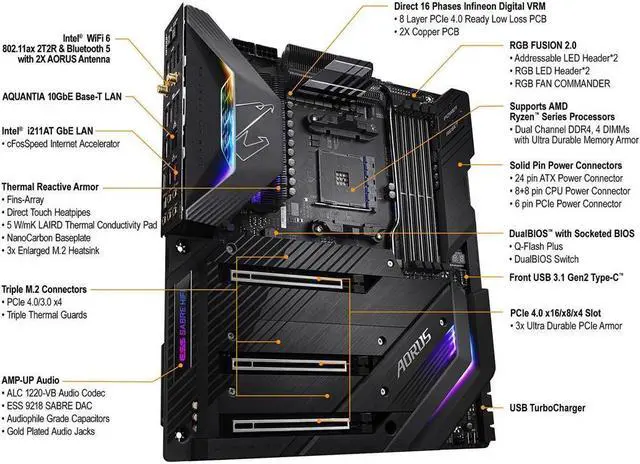

Support for Ryzen 5000 Series with BIOS UPDATE
Supports AMD Ryzen 5000 Series / 3rd Gen Ryzen/2nd Gen Ryzen / 2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
Dual Channel ECC / Non-ECC Unbuffered DDR4, 4 DIMMs
Direct 16 Phases Infineon Digital VRM Solution with 70A PowIRstage
Thermal Reactive Armor - Fins-Array Heatsink, Direct Touch Heatpipe & NanoCarbon Baseplate
Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Triple Thermal Guards
Intel Wi-Fi 6 802.11 ax & BT 5 with 2X AORUS Antenna
ALC1220-VB & ESS SABRE 9218 DAC, 130dB Rear
AQUANTIA 10GbE + Intel Gigabit LAN
Exclusive RGB FAN COMMANDER for Professional Casemoders
USB TurboCharger for Mobile Device Fast Charge Support
RGB FUSION with Multi-Zone Addressable LED Light Show Design
Smart Fan 5 - Hybrid Fan Headers with FAN STOP and Noise Detection

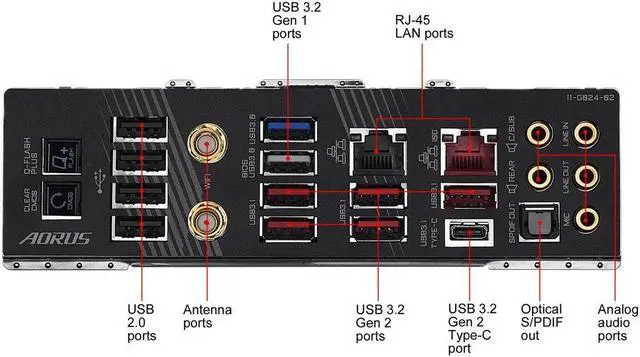

1 x Front Panel & 1 x Rear USB 3.2 Gen 2 Type-C
Integrated I/O Shield & Armor
Q-Flash Plus Update BIOS Without Installing CPU, Memory, GPU

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by UltraParts Renewed Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

CPU Socket Type	AM4
CPU Type	AMD Socket AM4, support for: Ryzen 5000 Series / 3rd Generation AMD Ryzen processors/2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors/AMD Ryzen with Radeon Vega Graphics processors * Support for Ryzen 5000 Series with BIOS UPDATE. Refer to GIGABYTE website for CPU support list.

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Generation AMD Ryzen processors: Support for DDR4 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Integrated in the CPU (M2A_SOCKET): 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) Integrated in the Chipset (M2B_SOCKET/M2C_SOCKET): 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) (M2B_SOCKET) For 3rd Generation AMD Ryzen processors only. 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0/3.0 x4/x2 SSD support) (M2C_SOCKET) For 3rd Generation AMD Ryzen processors only.
SATA RAID	0/1/10

Audio Chipset	Realtek ALC1220-VB codec * The front panel line out jack supports DSD audio.
Audio Channels	2/4/5.1/7.1-channel Support for S/PDIF Out

LAN Chipset	1 x Aquantia GbE LAN chip
Second LAN Chipset	1 x Intel GbE LAN phy
Max LAN Speed	10Gbps + 1Gbps
Wireless LAN	Wi-Fi 802.11 a/b/g/n/ac/ax, supporting 2.4/5 GHz Dual-Band Support for 11 ax 160 MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	BLUETOOTH 5.0

Meet Your Seller

GIGABYTE X570 AORUS Xtreme (AMD Ryzen 5000/X570/E-ATX/PCIe4.0/DDR4/Aqantia 10GbE LAN/RGB Fusion 2.0/Fins-Array Heatsink/3xM.2 Thermal Guard/USB3.1/Gaming Motherboard)

Refurbished

Learn more about the GIGABYTE X570 AORUS XTREME (rev. 1.0)

Customer Reviews of the GIGABYTE X570 AORUS XTREME (rev. 1.0)

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C port, with USB 3.2 Gen 2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header
Other Connectors	1 x OC PEG power connector 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 2 x temperature sensor headers 1 x power button 1 x reset button 2 x BIOS switches Voltage Measurement Points

Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 10.6"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors
