$573^.63

Free 30-day Returns

Limit 99999 per customer.

Ships from Canada.

Price alert

Add to wish list

Sold by BTE Outlet

3.5 (1,429 seller ratings)

Shipped by BTE Outlet

Meet Your Seller

BTE Outlet

See Seller Store

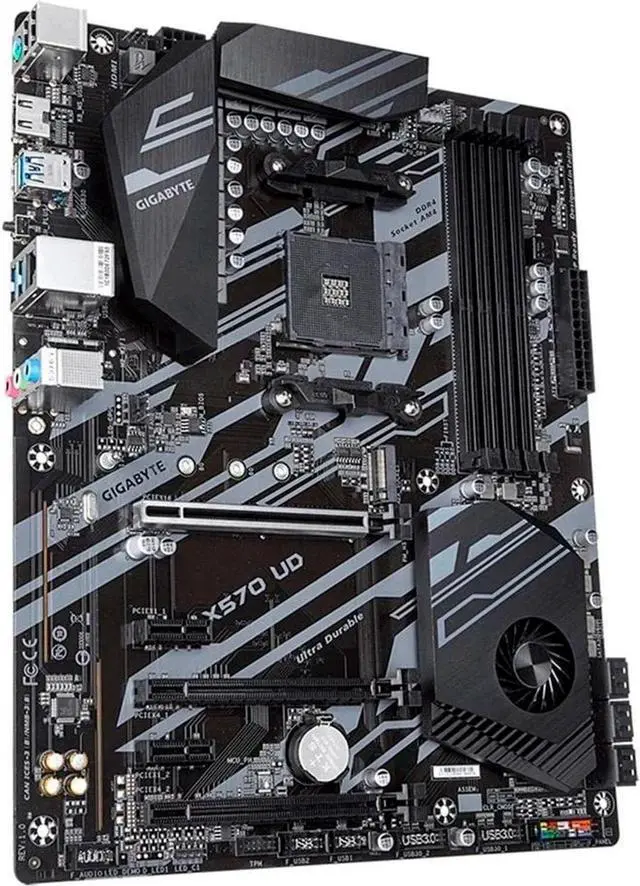

Main image of GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

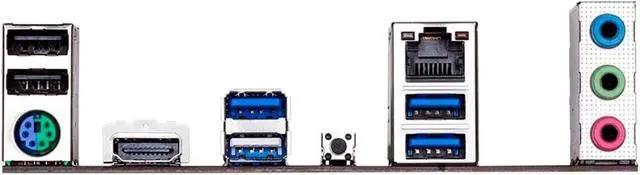

Alt view image 2 of 5 - GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

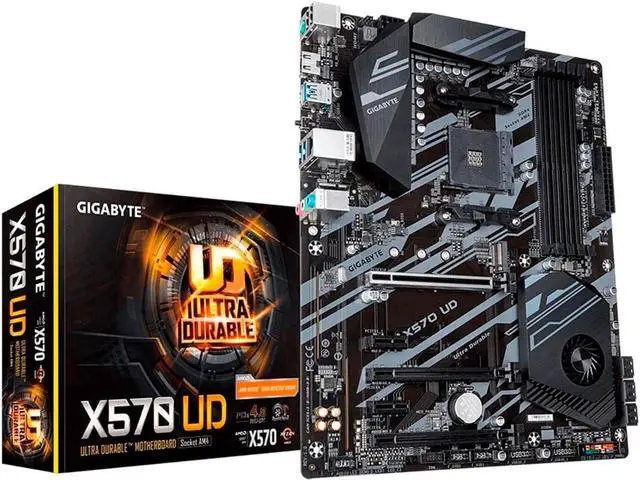

Alt view image 3 of 5 - GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

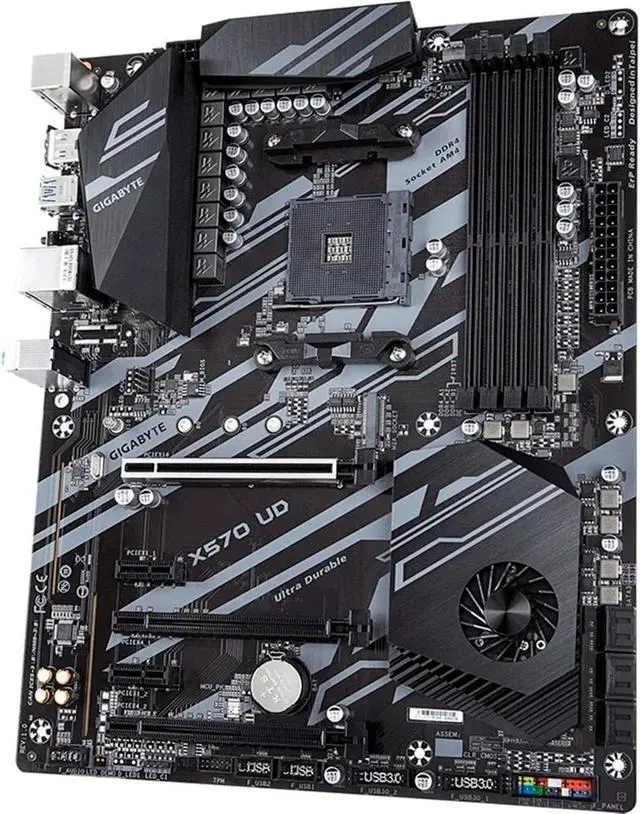

Alt view image 4 of 5 - GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

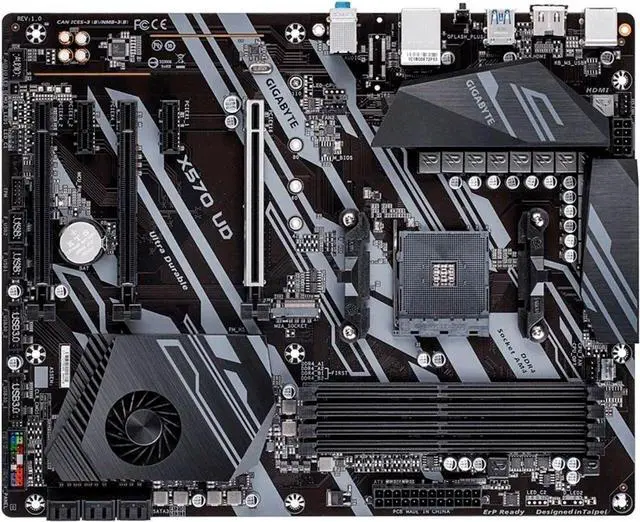

Alt view image 5 of 5 - GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

Shop All GIGABYTE Products | Visit BTE Outlet Store

GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

GIGABYTE X570 UD
Support for Ryzen 5000 Series with BIOS UPDATE
Supports AMD Ryzen 5000 Series/ 3rd Gen Ryzen/2nd Gen Ryzen / 3nd Gen Ryzen with Radeon Vega Graphics/2nd Gen Ryzen with Radeon Vega Graphics/Ryzen with Radeon Vega Graphics Processors
Dual Channel ECC/Non-ECC Unbuffered DDR4, 4 DIMMs
10+2 Phases Digital VRM Solution
Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 Connector

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Brand: GIGABYTE
CPU Socket: Socket AM4
Compatible Devices: Gaming Console
RAM Memory Technology DDR4
Compatible Processors AMD 3rd Generation Ryzen, AMD 2nd Gerenration Ryzen
Chipset Type AMD 570X
Memory Clock Speed: 2666 MHz
Platform: Windows 8.1, Windows 8, Windows 10
Model Name: X570 UD
CPU Model: AMD R Series
Dimensions LxWxH: 13.18 x 10.62 x 3.14 inches
Weight: 2.2 pounds

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
Read full details
CONTACT

Return Policies

Return for refund within: 30 days
This item is covered by BTE Outlet Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	3rd Generation AMD Ryzen processors: Support for DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200/ 2933/ 2667/ 2400/ 2133 MHz memory modules 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: Support for DDR4 3200(O.C.)/ 2933/ 2667/ 2400/ 2133 MHz memory modules
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

PCI Express 4.0 x16	Integrated in the CPU (PCIEX16): - 3rd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 - 2nd Generation AMD Ryzen processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. - 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x8 Integrated in the Chipset (PCIEX4/PCIEX1) 2 x PCI Express x16 slots, supporting PCIe 4.0/3.0 and running at x4 (PCIEX4) For 3rd Generation AMD Ryzen processors only.
PCI Express x1	2 x PCI Express x1 slots, supporting PCIe 4.0/3.0 For 3rd Generation AMD Ryzen processors only.

Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	Integrated in the CPU: - 3rd Generation AMD Ryzen processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) - 2nd Generation AMD Ryzen processors / 2nd Generation AMD Ryzen with Radeon Vega Graphics processors / AMD Ryzen with Radeon Vega Graphics processors: 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe 3.0 x4/x2 SSD support)
SATA RAID	0/1/10

Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1-channel

LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Meet Your Seller

GIGABYTE X570 UD (AMD Ryzen 5000/X570/ATX/PCIe4.0/DDR4/USB3.2 Gen 1/Realtek ALC887/M.2/Realtek GbE LAN/Gaming Motherboard)

Learn more about the GIGABYTE X570 UD

Customer Reviews of the GIGABYTE X570 UD

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 2 x system fan headers 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Model
Brand	GIGABYTE
Model	X570 UD

Item#: 9SIAD6HKH70209
