Are wifi antennas included?

Yes, it is. It's magnetic too so it sits nicely at the top of your case. The wifi driver had to be downloaded to work. Keep that in mind.

Are any wifi antennas included?

Yes. I single antenna stand with a magnetic base connects to both SMA antenna connectors.

do i need update the bios for ryzen 7 5700x for the 1.1v motherboard?

I stuck an AMD Ryzen 9 5900X in mine and didn't need to update the firmware/bios before hand. I think there are definitely some other boards in this form factor that have this problem, and it's a legitimate concern whether modern chips are going to work out of the box.

I only see one fan header, is that all that's offered?

There are a total of 3 fan headers: 1 x 4-pin CPU 2 x JST with 4-pin adapters All 3 headers are rated at 2A and 24 watts.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 22 wish lists)

Sold by Newegg

Shipped by Newegg

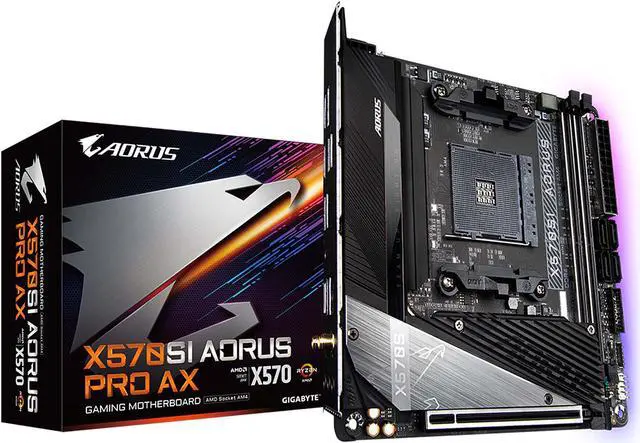

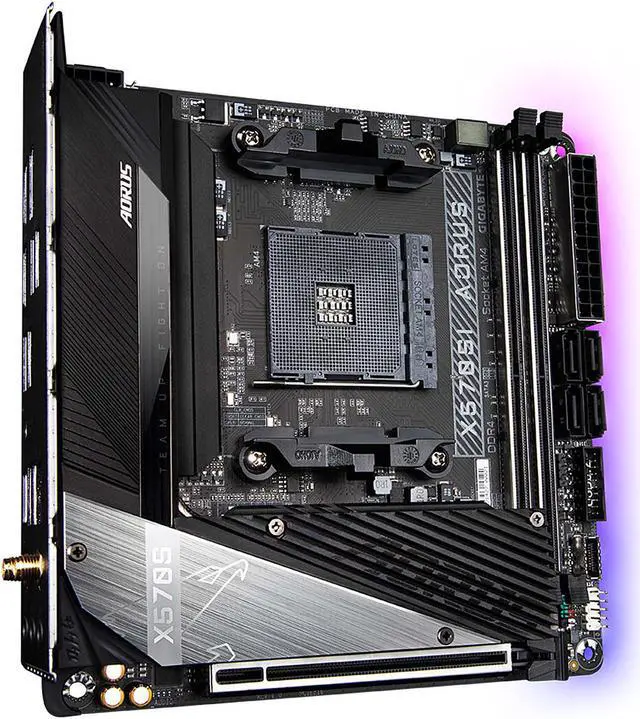

Main image of GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 2 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 3 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 4 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 5 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 6 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Alt view image 7 of 7 - GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

Customer images

Shop All GIGABYTE Products

GIGABYTE X570SI AORUS PRO AX AMD Ryzen 3000 PCIe 4.0 SATA 6Gb/s USB 3.2 AMD X570S Mini-ITX Motherboard

(22)(5) Write a Review

Supports AMD Ryzen 5th Gen/ 4th Gen/ 3rd Gen/ 2nd Gen
Dual Channel ECC/ Non-ECC Unbuffered DDR4, 2 DIMMs
Twin 8+2 Phases Digital VRM Solution with 90A Smart Power Stage
Groove Designed and Multi-layered Heatsinks for Chipset and M.2 Thermal Guard III with Heatpipe
AMD WiFi 6E 802.11ax & BT 5.2
Dual Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guard
Blazing Fast Intel 2.5GbE LAN with cFosSpeed
Rear and Front USB3.2 Type-C for Fast and Versatile Connections
AMP-UP Audio with ALC1220-VB and Nichicon Audio Capacitors
Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP
RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips
Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Specs

Reviews (22)

Any questions? Our AI beta will help you find out quickly.

Try me now

Learn more about the GIGABYTE X570SI AORUS PRO AX (rev. 1.1)

Model
Brand	GIGABYTE
Model	X570SI AORUS PRO AX (rev. 1.1)

Supported CPU
CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 Series / 5000 G-Series / 4000 G-Series / 3000 Series / 3000 G-Series / 2000 Series / 2000 G-Series Processors

Chipsets
Chipset	AMD X570

Memory
Number of Memory Slots	2x288pin (DDR4)
Memory Standard	DDR4 5300(OC) / 5200(OC) / 5100(OC) / 4800(OC) / 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(O.C) / 3400(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel
ECC Supported	ECC memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered

Expansion Slots
PCI Express 4.0 x16	1 x PCI Express 4.0 x16* * Actual support may vary by CPU.
Other Slots	1 x M.2 Socket 1 connector, integrated in the CPU, for the wireless communication module (M2_WIFI)

Storage Devices
Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	1 x M.2 connector (M2A_SOCKET), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 5000 Series/3000 Series Processors: support SATA and PCIe 4.0 x4/x2 SSDs AMD Ryzen 5000 G-Series/4000 G-Series/3000 G-Series/2000 Series/ 2000 G-Series Processors: support SATA and PCIe 3.0 x4/x2 SSDs 1 x M.2 connector (M2B_SOCKET), integrated in the Chipset, supporting Socket 3, M key, type 2280 SSDs: Supporting SATA and PCIe 4.0(Note)/3.0 x4/x2 SSDs (Note) For AMD Ryzen 5000 Series/3000 Series Processors only.
SATA RAID	0/1/10

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio
Audio Chipset	Realtek ALC1220-VB
Audio Channels	7.1 Channels * To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	AMD Wi-Fi 6E RZ608 (MT7921K) (For PCB rev. 1.1) WIFI a,b,g,n,ac,ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

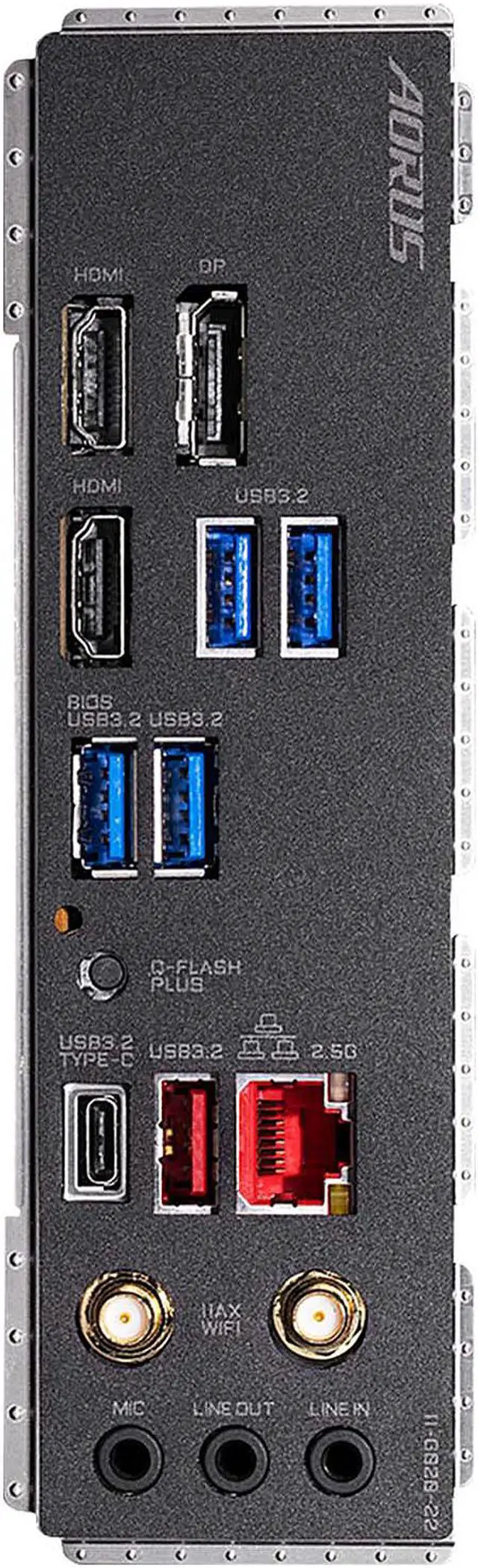

Back I/O Ports	1 x DisplayPort 2 x HDMI ports 1 x USB 3.2 Gen 2 Type-A port (red) 4 x USB 3.2 Gen 1 ports 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x Q-Flash Plus button 1 x RJ-45 port 2 x SMA antenna connectors (2T2R) 3 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 1 support 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header
Other Connectors	1 x CPU fan header 2 x system fan headers 1 x addressable LED strip header 1 x RGB LED strip header 1 x front panel header 1 x front panel audio header 1 x speaker header 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only) 1 x Clear CMOS jumper * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W.

Physical Spec
Form Factor	Mini ITX
LED Lighting	RGB

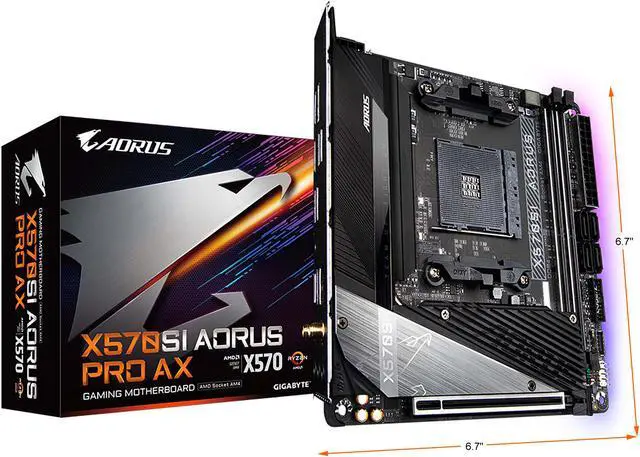

Dimensions (W x L)	6.7" x 6.7"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector

Additional Information
Date First Available	February 08, 2022
