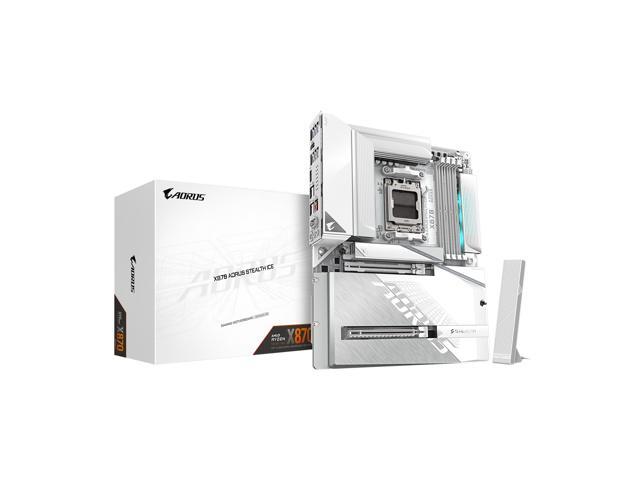

    GIGABYTE X870 A STEALTH ICE AM5 AMD X870 ATX Motherboard

    Be the first to review this product...
    • AMD X870
    • Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    • DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
    🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

    Combo Up Savings Up To $340+

    The more you add, the more you'll save!
    +
    +
    Specs
    Reviews

    Learn more about the GIGABYTE X870 A STEALTH ICE

    Model
    Brand GIGABYTE
    Model X870 A STEALTH ICE
    Supported CPU
    CPU Socket Type AM5
    CPU Type Ryzen 7000 Series / Ryzen 8000 Series / Ryzen 9000 Series
    Chipsets
    Chipset AMD X870
    Memory
    Number of Memory Slots 4x288pin (DDR5)
    Memory Standard DDR5 4400 / DDR5 4800 / DDR5 5200 / DDR5 5600 / DDR5 5800 / DDR5 6000 / DDR5 6200 / DDR5 6400 / DDR5 6600 / DDR5 6800 / DDR5 7000 / DDR5 7200 / DDR5 7400 / DDR5 7600 / DDR5 7800 / DDR5 7900 / DDR5 7950 / DDR5 8000 / DDR5 8200
    Maximum Memory Supported 256GB
    Channel Supported Dual Channel
    ECC Supported Non-ECC
    Buffer Supported Un-buffered
    Memory Feature Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Expansion Slots
    PCI Express 5.0 x16 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode
    PCI Express x4 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
    Storage Devices
    M.2 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs

    1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 22110/2280 SSDs:
    AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs
    AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs
    * The M2B_CPU connector becomes unavailable when an AMD Ryzen 8000 Series Phoenix 2 processor is used.

    2 x M.2 connectors (M2C_SB, M2D_SB), integrated in the Chipset, supporting Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSDs
    2 x SATA 6Gb/s connectors
    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    Onboard Audio
    Audio Channels 7.1 Channels
    Onboard LAN
    Max LAN Speed 5Gbps
    Wireless LAN Wi-Fi 802.11 ax
    Bluetooth BLUETOOTH 5.3
    Rear Panel Ports
    Back I/O Ports 1 x HDMI port (Note)
    2 x antenna connectors (2T2R)
    2 x USB4 USB Type-C ports (DisplayPort (Note))
    1 x USB Type-C header, with USB 3.2 Gen 2 support
    2 x USB 3.2 Gen 2 Type-A ports (red)
    4 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    1 x optical S/PDIF Out connector
    2 x audio jacks
    Internal I/O Connectors
    Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 2x2 support
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    Other Connectors 1 x CPU fan header
    1 x CPU fan/water cooling pump header
    4 x system fan headers
    2 x system fan/water cooling pump headers
    3 x addressable RGB Gen2 LED strip headers
    1 x RGB LED strip header
    4 x M.2 Socket 3 connectors
    2 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x noise detection header
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)
    1 x Q-Flash Plus button
    1 x power button
    1 x reset button
    1 x reset jumper
    2 x temperature sensor headers
    1 x Clear CMOS jumper
    Physical Spec
    Form Factor ATX
    Dimensions (W x L) 12.0" x 9.6"
    Power Pin 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x 4-pin ATX 12V power connector
    Software Feature
    BIOS Feature 1 x 512 Mbit flash
    Use of licensed AMI UEFI BIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
    Windows 11 Supported
    Features
    Features Support for GIGABYTE Control Center (GCC)
    Support for Q-Flash
    Support for Q-Flash Plus
    Support for Smart Backup
    Additional Information
    Date First Available June 23, 2025

    Warranty & Returns

    Warranty, Returns, And Additional Information

    Warranty

    • Limited Warranty period (parts): 3 years
    • Limited Warranty period (labor): 3 years
