Will a 9th gen core i5 cpu work with this motherboard?

This motherboard may require a BIOS update to be compatible with that CPU. I would advise checking the support tab on the manufacturer website.

$85^.59

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by C.N.E Technology

Top Rated

3.8 (12 seller ratings)

Shipped by C.N.E Technology

Best Sellers

Smith's Computer Market

Top Rated

3.9 (138 total ratings)

$98^.36
+ $10.00 Shipping

Corn Electronics

Top Rated

4.2 (14,613 total ratings)

$120^.99
+ FREE SHIPPING

Meet Your Seller

C.N.E Technology

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

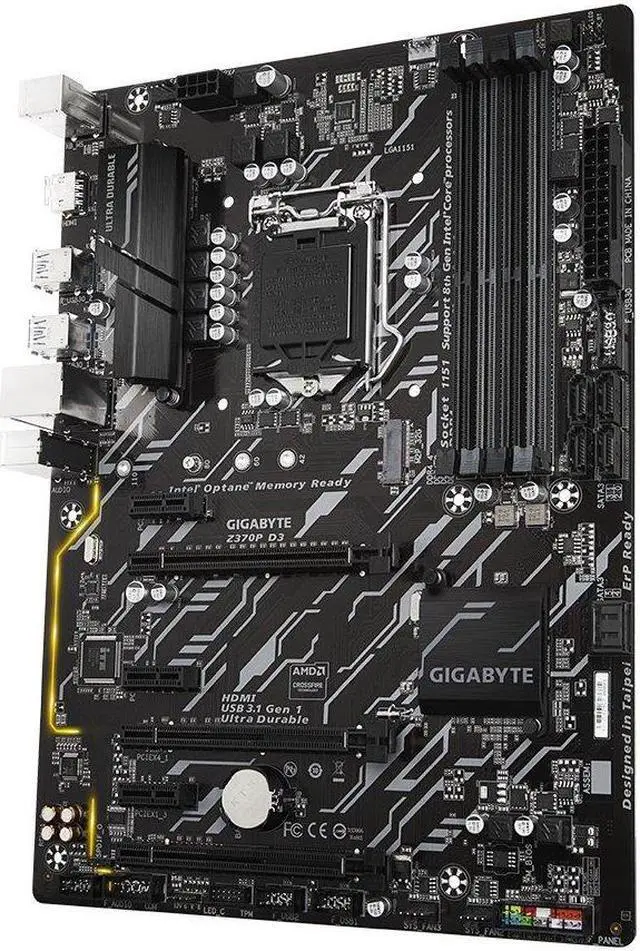

Main image of GIGABYTE Z370P D3 (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Motherboard

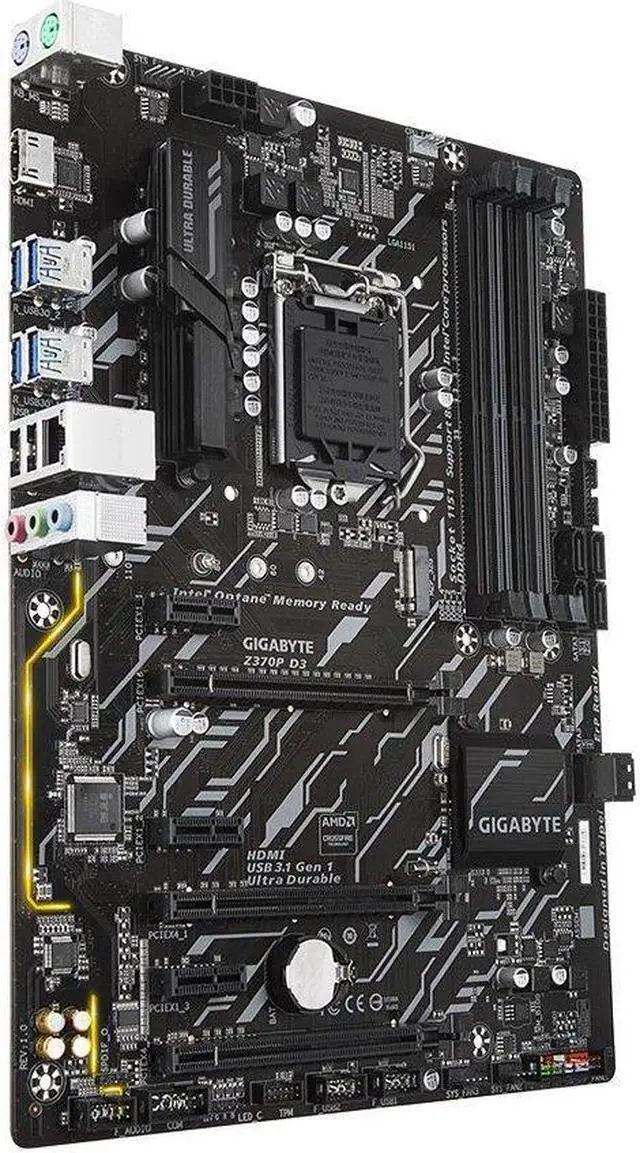

Alt view image 2 of 4 - GIGABYTE Z370P D3 (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Motherboard

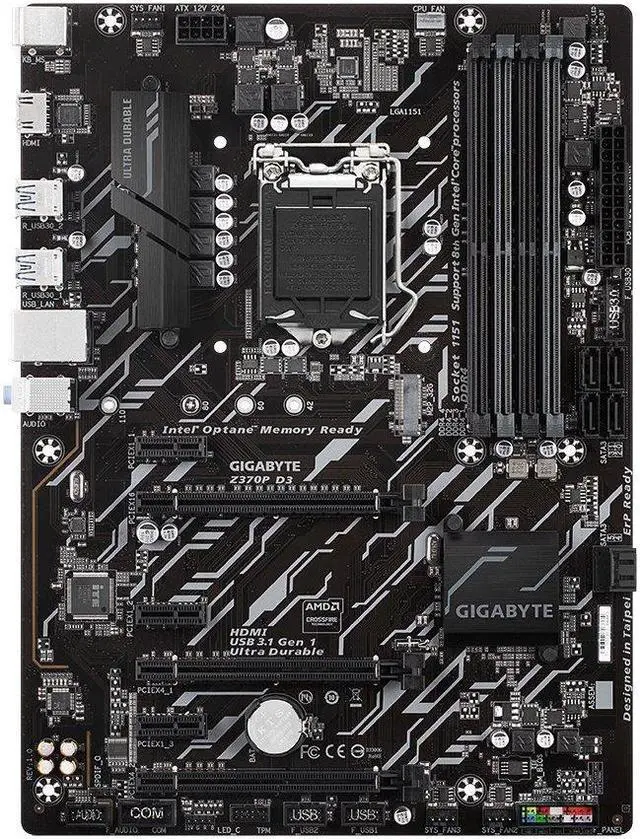

Alt view image 3 of 4 - GIGABYTE Z370P D3 (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Motherboard

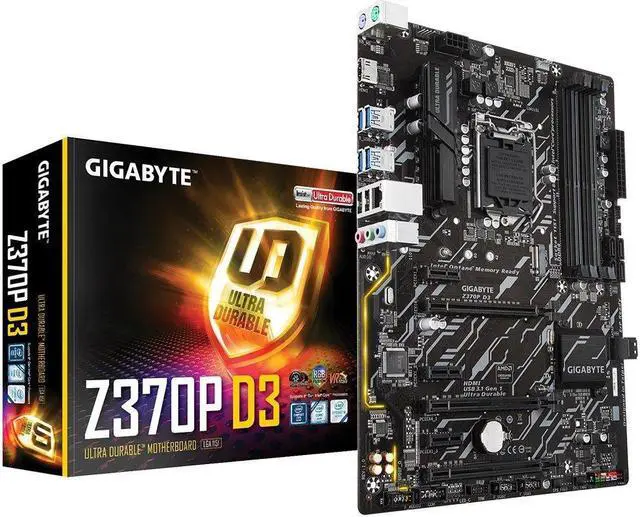

Alt view image 4 of 4 - GIGABYTE Z370P D3 (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Motherboard

Shop All GIGABYTE Products | Visit C.N.E Technology Store

GIGABYTE Z370P D3 (rev. 1.0) LGA 1151 (300 Series) Intel Z370 HDMI SATA 6Gb/s USB 3.1 Motherboard

REFURBISHED

Be the first to review this product...

Supports 8th Gen Intel Core Processors
Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs
Intel Optane Memory Ready
2-Way Crossfire Multi-Graphics Support
Gigabit LAN with cFosSpeed Internet Accelerat

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Supports 8th Gen Intel Core Processors Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs Intel Optane Memory Ready 2-Way CrossFire Multi-Graphics Support Gigabit LAN with cFosSpeed Internet Accelerator Software Ultra Durable 25KV ESD and 15KV Surge LAN Protection High Quality Audio Capacitors and Audio Noise Guard with LED Trace Path Lighting Ultra-Fast M.2 with PCIe Gen3 x4 & SATA interface RGB FUSION supports RGB LED strips in 7 colors Smart Fan 5 features Multiple Temperature Sensors and Hybrid Fan Headers with FAN STOP Anti-Sulfur Resistors Design APP Center Including EasyTune and Cloud Station Utilities.

Model
Brand	GIGABYTE
Model	Z370P D3 (rev. 1.0)

Supported CPU
CPU Socket Type	LGA 1151 (300 Series)
CPU Type	Support for 8th Generation Intel Core i7 processors/Intel Core i5 processors/Intel Core i3 processors in the LGA1151 package* Not backward compatible with older generation of LGA 1151 CPUs

Chipsets
Chipset	Intel Z370

Onboard Video
Onboard Video Chipset	Integrated Graphics Processor - Intel HD Graphics support:1 x HDMI port, supporting a maximum resolution of 4096x2160@30Hz* Support for HDMI 1.4 version and HDCP 2.2.Maximum shared memory of 1GB

Memory
Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 4000(O.C.)/ 3866(O.C.)/ 3800(O.C.)/ 3733(O.C.)/ 3666(O.C.)/ 3600(O.C.)/ 3466(O.C.)/ 3400(O.C.)/ 3333(O.C.)/ 3300(O.C.)/ 3200(O.C.)/ 3000(O.C.)/ 2800(O.C.)/ 2666/ 2400/ 2133
Maximum Memory Supported	64GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 3.0 x16	1 x PCI Express x16 slot, running at x16 (PCIEX16)* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.2 x PCI Express x16 slots, running at x4 (PCIEX4_1/PCIEX4_2)
PCI Express x1	3 x PCI Express x1 slots(All of the PCI Express slots conform to PCI Express 3.0 standard.)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	1 x M.2 connector (Socket 3, M key, type 2242/2260/2280/22110 SATA and PCIe x4/x2 SSD support)
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC887
Audio Channels	2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.Support for S/PDIF Out

Onboard LAN
LAN Chipset	Realtek GbE LAN chip
Max LAN Speed	1Gbps

Rear Panel Ports
Back I/O Ports	1 x HDMI / 2 x PS/2 / 2 x USB 2.0/1.1 / 4 x USB 3.1 Gen 2 Type-A
PS/2	1 x PS/2 mouse port1 x PS/2 Keyboard port
HDMI	1 x HDMI
RJ45	1 x RJ45
USB 3.1	4 x USB 3.1 Gen 1 ports
USB 1.1/2.0	2 x USB 2.0
Audio Ports	3 x audio jacks (Line In, Line Out, Mic In)

Internal I/O Connectors
Onboard USB	1 x USB 3.1 Gen 1 header2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header3 x system fan headers1 x RGB LED strip header1 x front panel header1 x front panel audio header1 x S/PDIF Out header1 x Trusted Platform Module (TPM) header (2x6-pin, for the GC-TPM2.0_S module only)1 x serial port header1 x Clear CMOS jumper

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 8.9"
Power Pin	1 x 24-pin ATX main power connector1 x 8-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology:Support for AMD Quad-GPU CrossFireX and 2-Way AMD CrossFire technologiesI/O Controller:iTE I/O Controller ChipH/W Monitoring:Voltage detectionTemperature detectionFan speed detectionOverheating warningFan fail warningFan speed control* Whether the fan speed control function is supported will depend on the cooler you install.BIOS:1 x 128 Mbit flashUse of licensed AMI UEFI BIOSPnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0Unique Features:Support for APP Center* Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.3D OSD@BIOSAutoGreenBIOS SetupColor TemperatureCloud StationEasyTuneEasy RAIDFast BootGame BoostON/OFF ChargePlatform Power ManagementRGB FusionSmart BackupSmart KeyboardSmart TimeLockSmart HUDSystem Information ViewerUSB BlockerV-TunerSupport for Q-FlashSupport for Xpress InstallBundle Software:Norton Internet Security (OEM version)cFosSpeedOperating System:Support for Windows 10 64-bit

Additional Information
First Listed on Newegg	June 02, 2025
