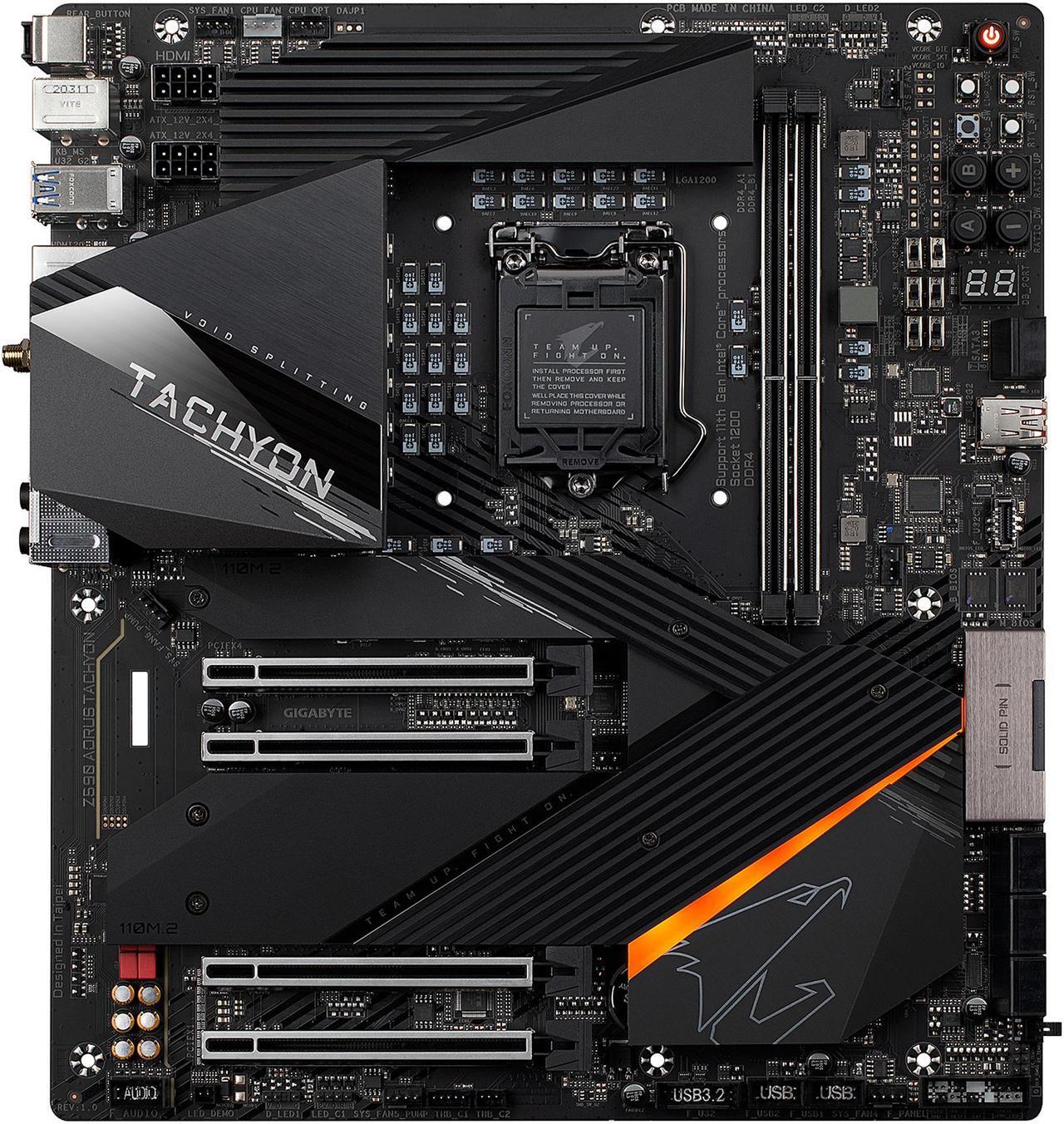

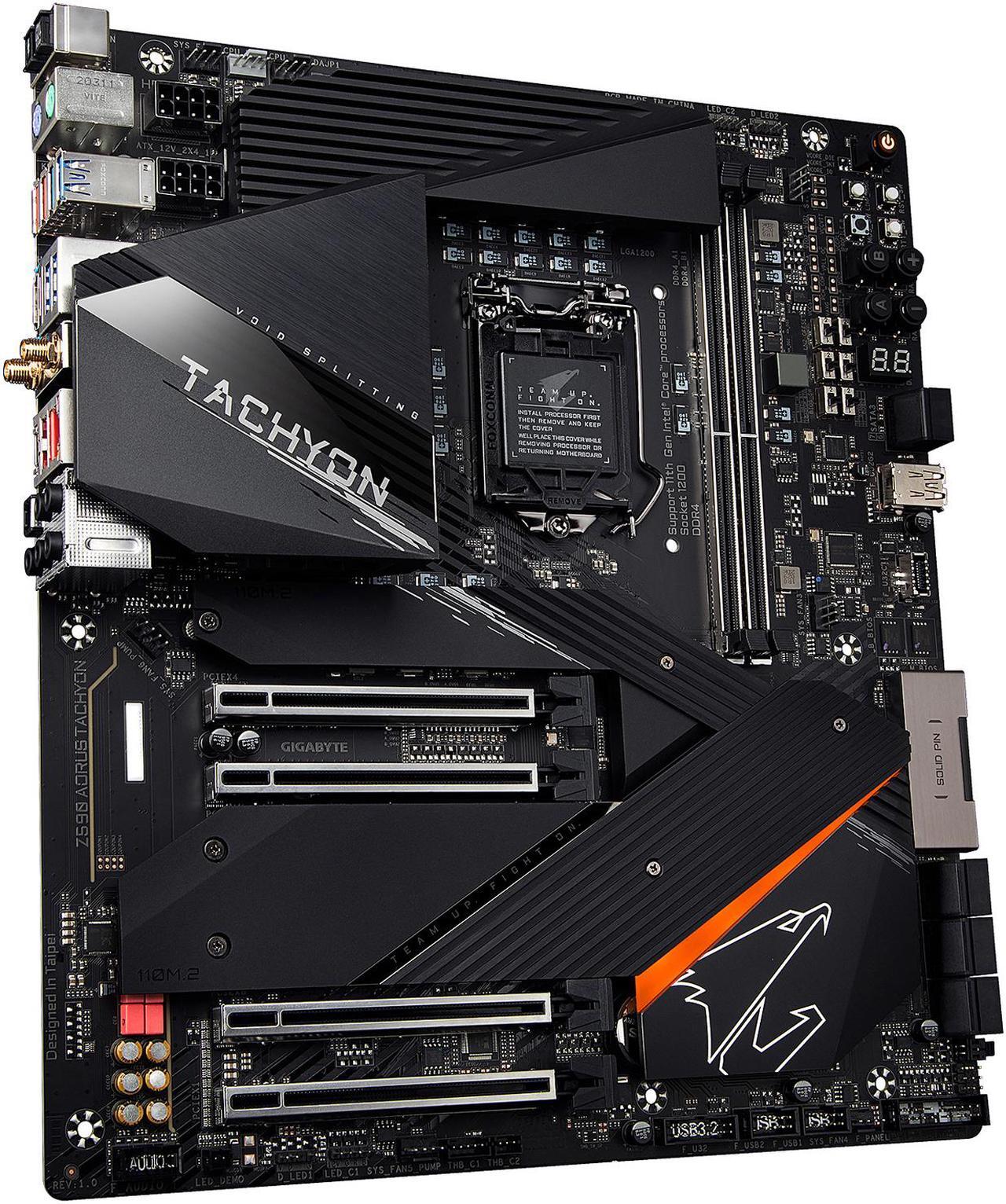

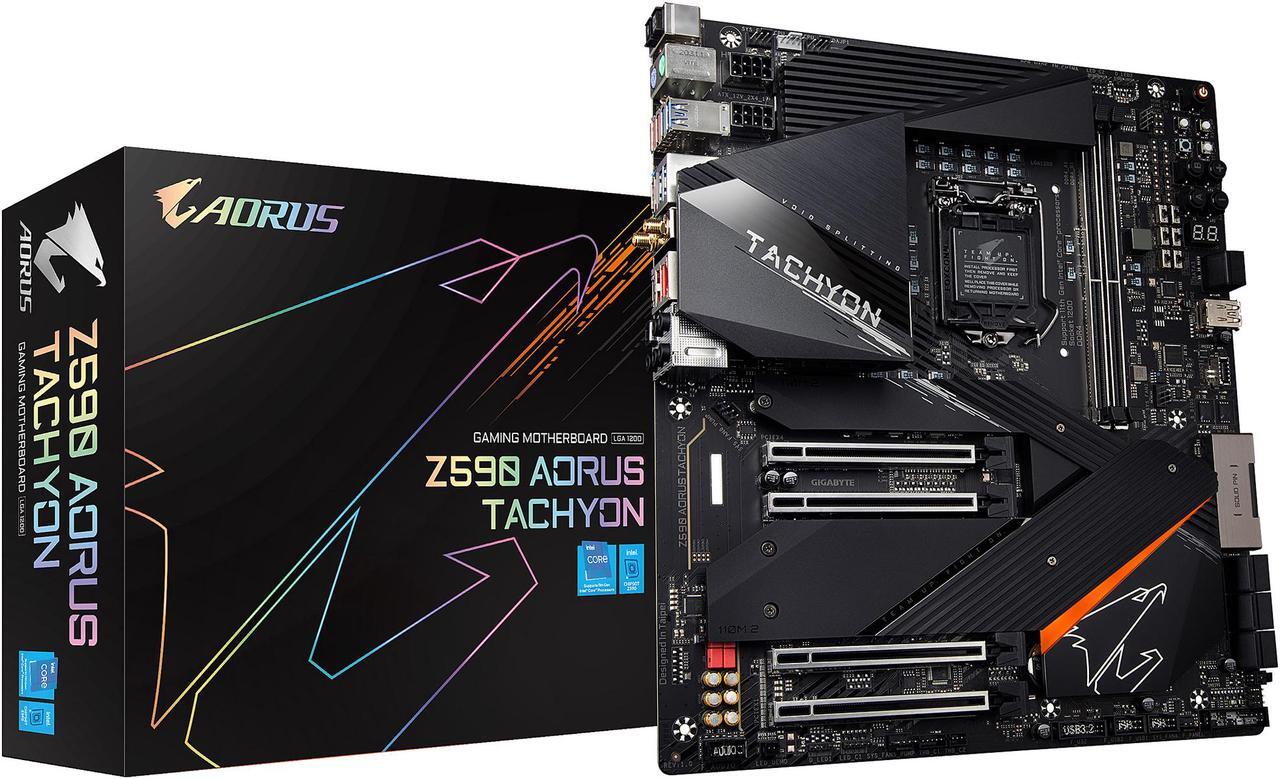

GIGABYTE Z590 AORUS TACHYON LGA 1200 Intel Z590 E-ATX Motherboard with Triple M.2, PCIe 4.0, USB 3.2 Gen2X2 Type-C, Intel WIFI 6E, 2.5GbE LAN, Onboard Overclocking Kit
- Supports 11th and 10th Gen Intel Core Series Processors
- Dual Channel Non-ECC Unbuffered DDR4, 2 DIMMs
- Direct 12 Phases Digital VRM Solution with 100A DrMOS and Tantalum Polymer Capacitors Matrix
- XTREME MEMORY with 2-DIMM Design and Shielded Memory Routing
- Exclusive onboard Overclocking Kit for extreme overclocking
- Onboard Intel WiFi 6E 802.11ax 2T2R & BT 5 with AORUS Antenna
- Amp-Up Audio with ALC1220 and WIMA Audio Capacitors
- Blazing Fast Intel 2.5GbE LAN with cFosSpeed
- Triple Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
- SuperSpeed USB 3.2 Gen2x2 TYPE-C delivers up to 20Gb/s transfer speeds
- RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design
- Smart Fan 6 Features Multiple Temperature Sensors
- Hybrid Fan Headers with FAN STOP and Noise Detection
- Q-Flash Plus Update BIOS without Installing the CPU, RAM, GPU
+
+
Specs
Reviews (390)
Learn more about the GIGABYTE Z590 AORUS TACHYON
| Brand | GIGABYTE |
|---|---|
| Model | Z590 AORUS TACHYON |
| CPU Socket Type | LGA 1200 |
|---|---|
| CPU Type | Supports 11th / 10th Gen Intel Core processors Supports Intel Pentium / Celeron processors* * Limited to with 4MB Intel Smart Cache, Intel Celeron G5xx5 family. |
| Chipset | Intel Z590 |
|---|
| Onboard Video Chipset | Supported only by CPU with integrated graphic |
|---|
| Number of Memory Slots | 2x288pin (DDR4) |
|---|---|
| Memory Standard | DDR4 3200 / 3000 / 2933 / 2666 / 2400 / 2133 (11th Generation Intel Core i9 / i7 / i5 processors) DDR4 2933 / 2666 / 2400 / 2133 (10th Generation Intel Core i9 / i7 processors) DDR4 2666 / 2400 / 2133 (10th Generation Intel Core i5 / i3 / Pentium / Celeron processors) |
| Maximum Memory Supported | 64GB |
| Channel Supported | Dual Channel |
| PCI Express 4.0 x16 | 2 x PCI Express 4.0 x16* * Actual support may vary by CPU. |
|---|---|
| PCI Express 3.0 x16 | 2 x PCI Express 3.0 x16 |
| Serial ATA (SATA) | 8 x SATA 6Gb/s |
|---|---|
| M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)* Chipset: 2 x M.2 connectors (Socket 3, M key, type 2280/22110 SATA and PCIe 3.0 x4/x2 SSD support) (M2P_SB) (M2M_SB) * Supported by 11th Generation processors only. |
| Intel Optane Ready | Yes |
| SATA RAID | 0/1/5/10 |
| Audio Chipset | Realtek ALC1220-VB codec * The back panel line out jack supports DSD audio. |
|---|---|
| Audio Channels | 7.1 Channels |
| LAN Chipset | Intel 2.5GbE LAN chip |
|---|---|
| Max LAN Speed | 2.5Gbps |
| Wireless LAN | Intel Wi-Fi 6E AX210 WIFIa/b/g/n/ac/ax |
| Bluetooth | Bluetooth 5.2 |

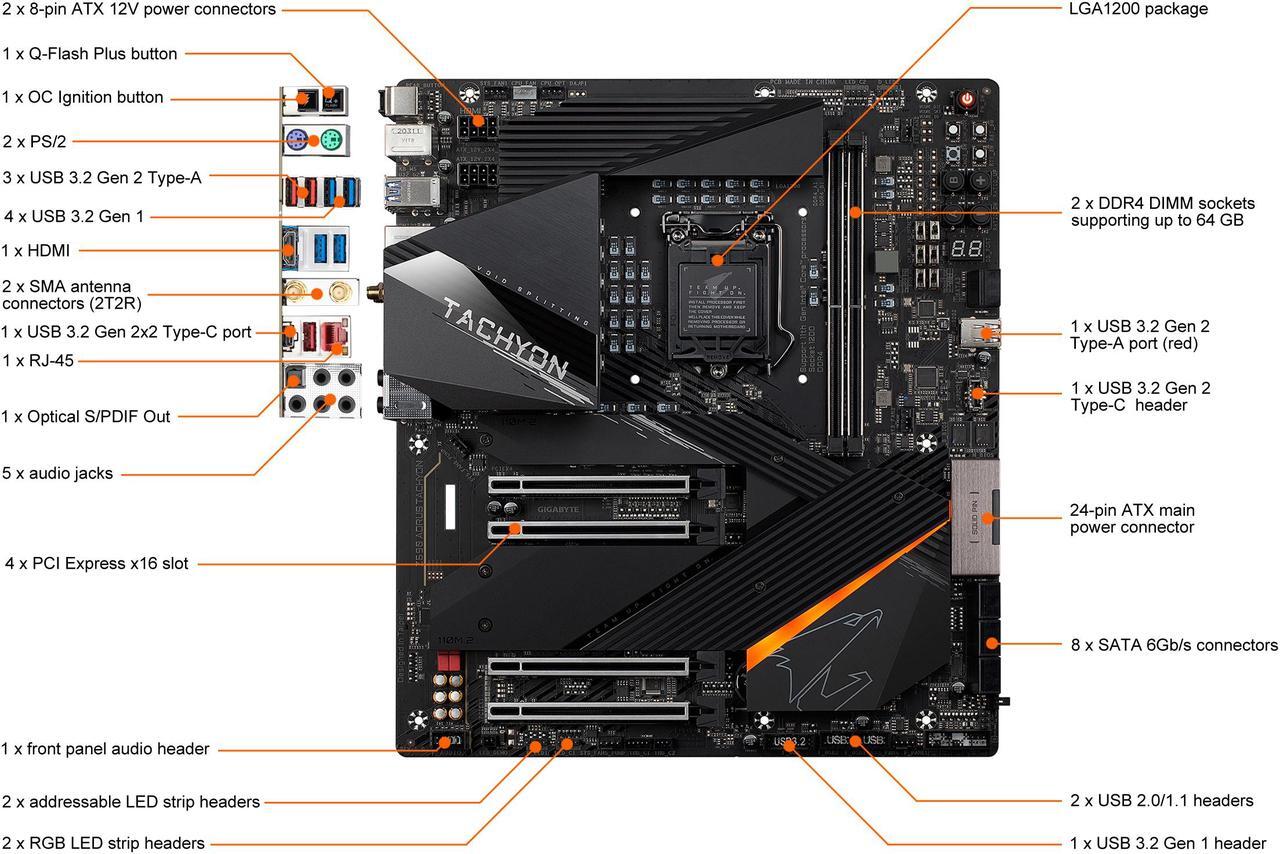

| Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 1 x PS/2 keyboard port 1 x PS/2 mouse port 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 3 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks |
|---|
| Onboard USB | 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 2 Type-A port (red) 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers |
|---|---|
| Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Clear CMOS jumper 1 x power button (PW_SW) 1 x reset button (RST_SW) 1 x Clear CMOS button (CMOS_SW) 2 x BIOS switches (BIOS_SW) (SB) 1 x Cold Reset button (RTY_SW) 1 x Protection Mode button (LIMP_MODE) 1 x CPU Ratio up button (RATIO_UP) 1 x CPU Ratio down button (RATIO_DW) 1 x Profile A button (PROFILE_A) 1 x Profile B button (PROFILE_B) 1 x OC Trigger switch (TGR) 1 x LN2 Mode switch (LN2_SW) 1 x Enhanced LN2 Mode switch (LN2_OFFSET) 1 x Reserved switch (RSV_SW) * All fan headers are subject to support AIO_Pump, Pump and high performance fan with the capability of delivering up to 2A/12V @ 24W. |
| Windows 11 | Supported |
|---|
| Form Factor | Extended ATX |
|---|---|
| LED Lighting | RGB |

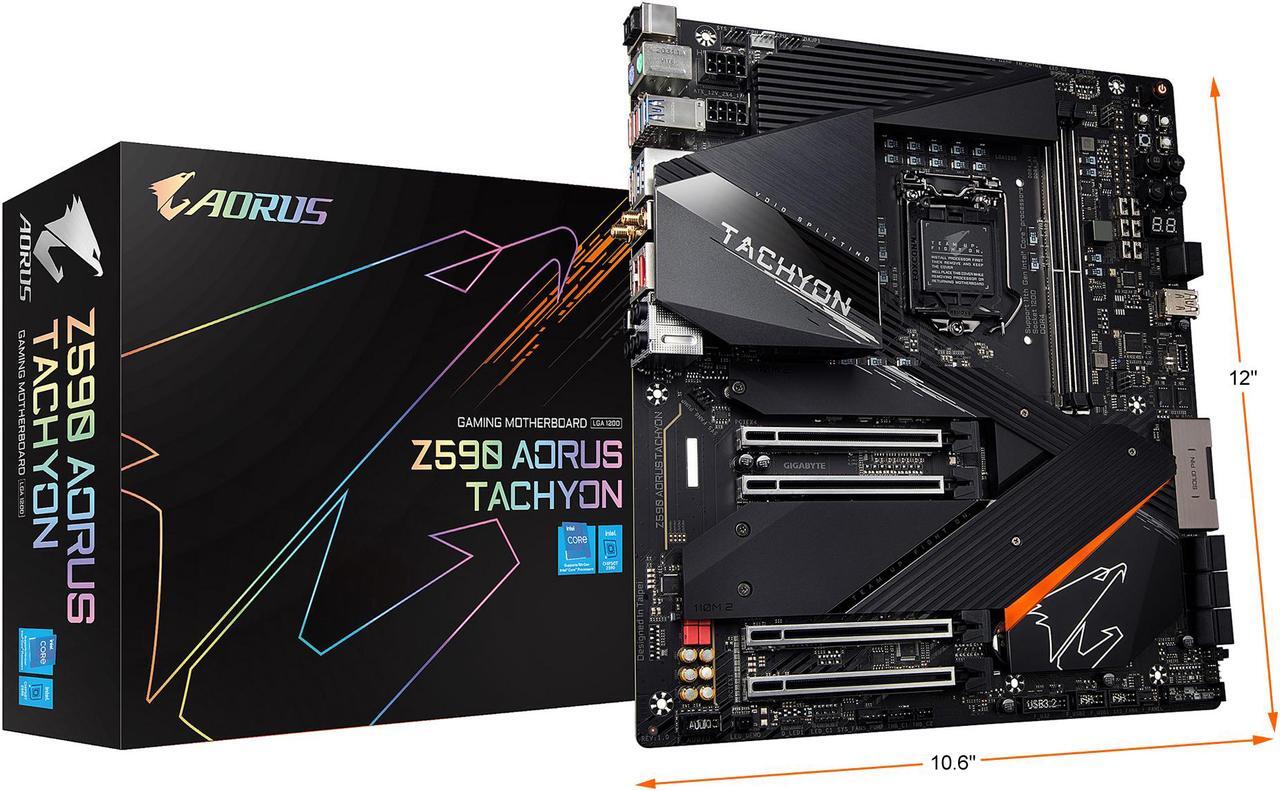

| Dimensions (W x L) | 12.0" x 10.6" |
| Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
| Features | Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 2 x 256 Mbit flash Use of licensed AMI UEFI BIOS Support for DualBIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit |
|---|
| Date First Available | July 10, 2024 |
|---|
