Are issues with flashing the bios still a thing? Reviews from March still said it was an issue but want to confirm before buying

I would assume yes. Mine this year needed it. It was a learning experience for me (first time), but it was pretty quick and straightforward after a short Youtube tutorial, and it has worked flawlessly since the first time for 10 months now.

Can I install this in my ATX case? Just wondering EATX

Depends on the case. It easily fits my Corsair 7000X case but that is a full tower.

what does this mean?> LGA 1700 * Dedicated LGA1700 mounting bracket is required.

It means you need a cooler with a mounting bracket made specifically for LGA 1700.

is this gonna support raptor lake?

Yes, it might need a Bios update though.

Does this version have a thunderbolt 4 header?

No, this version does not have a Thunderbolt 4 header. It has 2 Thunderbolt add-in card connectors.

Can I fill all 4 ram slots or is that not recommended? I will be using Corsair Vengeance 64 GB (4 X 16GB) CMK32GX5M2B5600C36.

No the other two RAM slots are just there for decoration. They're not meant to be used.

Can I fill all 4 ram slots or is that not recommended? I will be using Corsair Vengeance 64 GB (4 X 16GB) CMK32GX5M2B5600C36

Yes, you can fill all 4 RAM slots, and the motherboard supports up to 128GB of DDR5 memory. Your Corsair Vengeance 64GB (4 x 16GB) CMK32GX5M2B5600C36 will be compatible as it fits within the supported memory standards of DDR5 5600(OC).

Is this motherboard Windows 11 compatible? I D/L the manual and saw there is a TPM header.

Yes. Any Z690 motherboards including this one is Windows 11 ready as 12th gen CPUs would take advantage of it.

$368^.55

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Price alert

Add to wish list

Sold by Speed Electronics

4.2 (34 seller ratings)

Shipped by Speed Electronics

Best Sellers

ZunTuUa

5 (1 total rating)

$350^.12
+ $29.99 Shipping

Meet Your Seller

Speed Electronics

See Seller Store

Get Educated

Make informed decisions with expert advice. Learn More

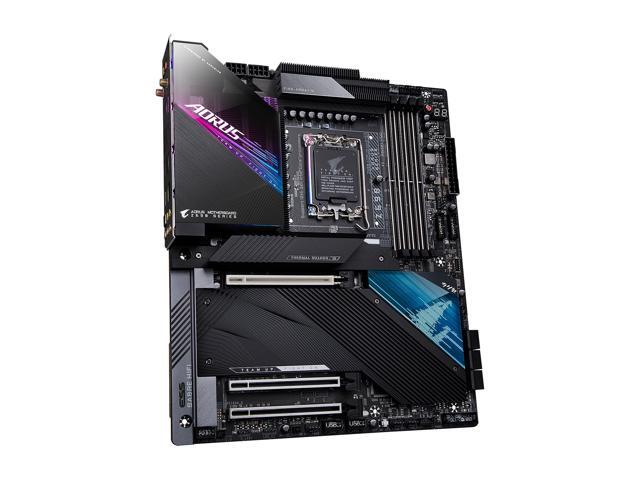

Main image of GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 2 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 3 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 4 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 5 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 6 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 7 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Alt view image 8 of 8 - GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Customer images

Shop All GIGABYTE Products | Visit Speed Electronics Store

GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

Name: GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN
Uploaded: 2026-01-07
Description: GIGABYTE Z690 AORUS MASTER LGA 1700 Intel Z690 EATX Motherboard with DDR5, 5x M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel WiFi 6E, AQUANTIA 10GbE LAN

(423)(45) Write a Review

Option: Z690 AORUS MASTER

Z690 AERO G
Z690 AERO G DDR4
Z690 AORUS ELITE AX
Z690 AORUS ELITE AX DDR4
Z690 AORUS MASTER
Z690 AORUS PRO
Z690 AORUS TACHYON
Z690 AORUS ULTRA
Z690 AORUS XTREME
Z690 GAMING X
Z690 GAMING X DDR4
Z690 UD DDR4
Z690 UD AX DDR4
Z690I AORUS ULTRA LITE
Z690I AORUS ULTRA LITE DDR4

Intel Z690
Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Commanding Power Design: 19+1+2 Phases Direct VRM Design with 105A Power Stage with Tantalum Polymer Capacitors
Cutting-Edge Thermal Design: Thermal Reactive Armor with NanoCarbon Fins-Array III, Heatsink
Direct Touch Heatpipe II, NanoCarbon Baseplate, Thermal Guards XTREME
5 x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Thermal Guards
AQUANTIA 10GbE BASE-T LAN
Intel WIFI 6E 802.11ax 2T2R & BT5 with AORUS Antenna
Audio Solution with ESS Sabre ES9118 125dB on Rear Audio?
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU
Dedicated LGA1700 mounting bracket is required

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (423)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Series	AORUS
Model	Z690 AORUS MASTER

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6400(OC) / 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2) * The PCIEX4_1 slot shares bandwidth with the M2C_SB connector. The PCIEX4_1 slot becomes unavailable when a device is installed in the M2C_SB connector.

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 PCIe 3.0 x4/x2 SSD support) (M2C_SB) 1 x M.2 connector (Socket 3, M key, type 2242/2260/2280 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
Intel Optane Ready	Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The front panel line out jack supports DSD audio.
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Marvell AQtion AQC113C 10GbE LAN chip
Max LAN Speed	10Gbps
Wireless LAN	Intel Wi-Fi 6E AX210 WIFI a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports
Back I/O Ports	1 x Q-Flash Plus button 1 x Clear CMOS button 2 x SMA antenna connectors (2T2R) 1 x DisplayPort 1 x USB Type-C port, with USB 3.2 Gen 2 support 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 5 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 1 x RJ-45 port 1 x optical S/PDIF Out connector 5 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers Voltage Measurement Points

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	Extended ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 10.2"
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit
