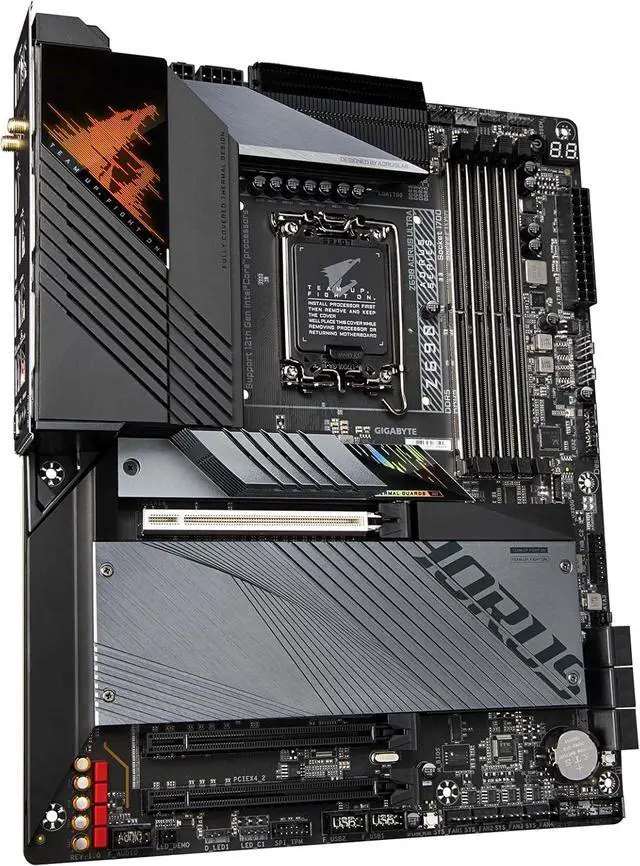

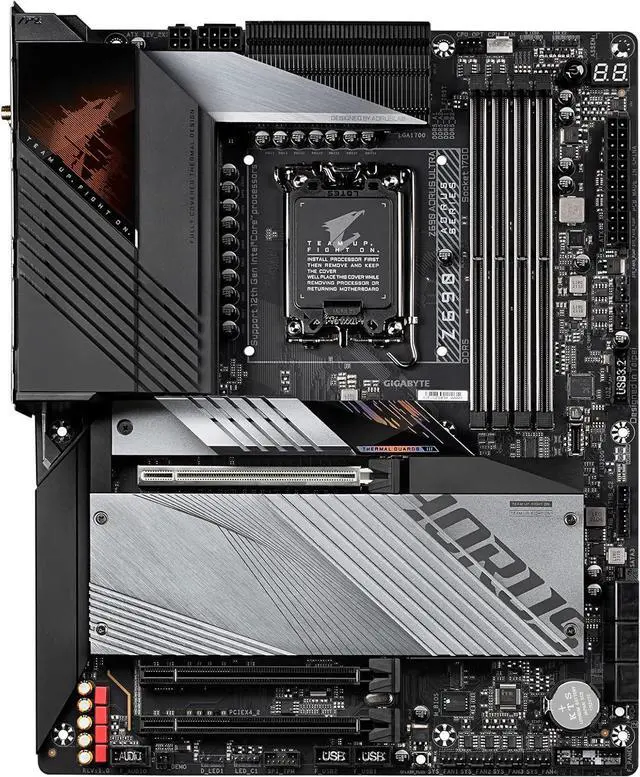

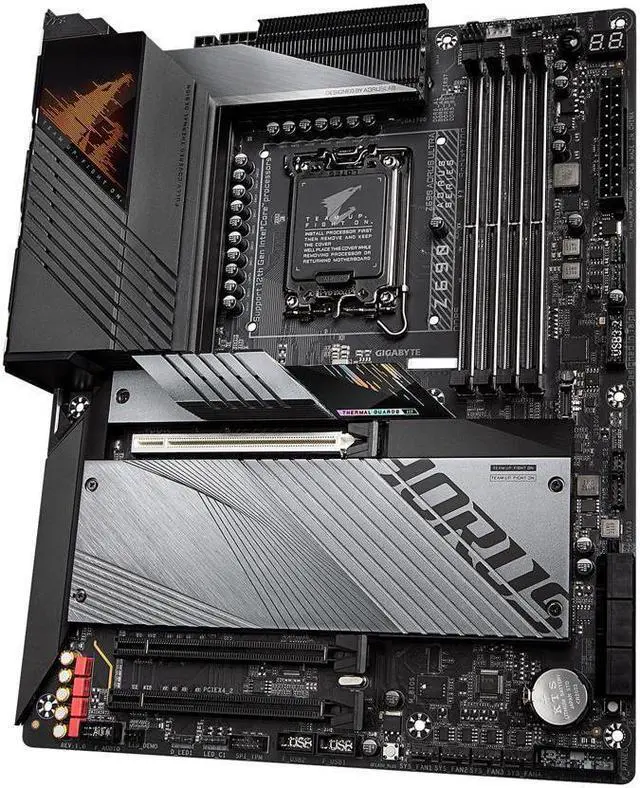

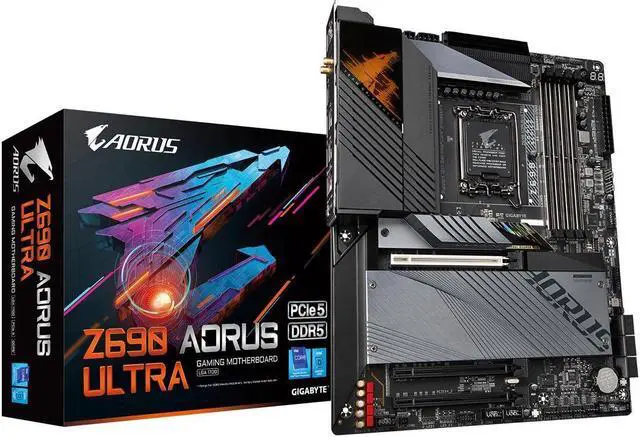

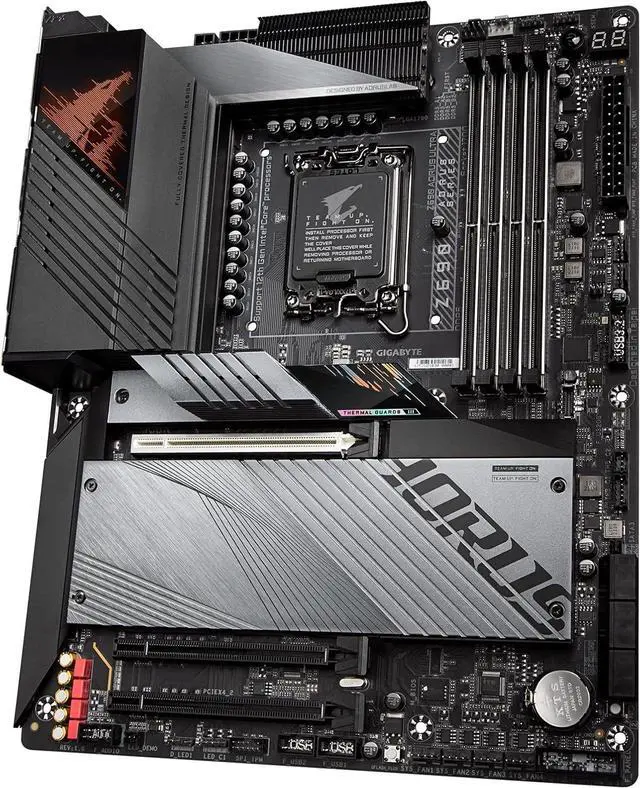

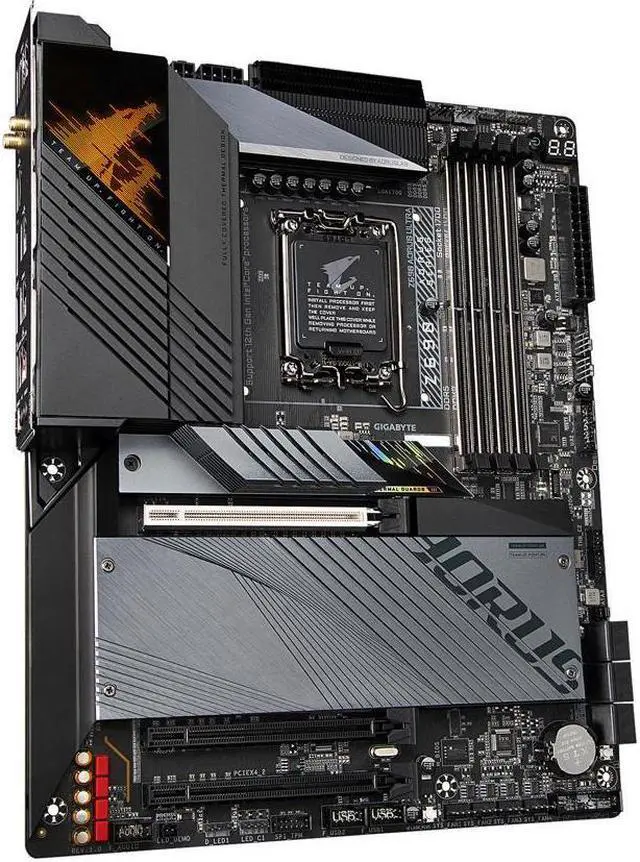

Main image of GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 2 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 3 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 4 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 5 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 6 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 7 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 8 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 9 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Alt view image 10 of 10 - GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

Shop All GIGABYTE Products | Visit UltraParts Renewed Store

GIGABYTE Z690 AORUS ULTRA LGA 1700 Intel Z690 ATX Motherboard with DDR5, Quad M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, WiFi 6, 2.5GbE LAN

REFURBISHED

Be the first to review this product...

Intel LGA 1700 Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Commanding Power Design: 16+1+2 Phases Direct VRM Design with 105A Power Stage with Tantalum Polymer Capacitors
Cutting-Edge Thermal Design: Advanced Thermal Solution with Fully Covered Thermal Design and Fins Array II, Thermal Guards III
Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M.2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: WiFi 6 802.11ax, 2.5GbE LAN
Dynamic Audio: Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Dedicated LGA1700 mounting bracket is required

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel LGA 1700
Socket: Supports 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel Non-ECC Unbuffered DDR5
Commanding Power Design: 16+1+2 Phases Direct VRM Design with 105A Power Stage with Tantalum Polymer Capacitors
Cutting-Edge Thermal Design: Advanced Thermal Solution with Fully Covered Thermal Design and Fins Array II, Thermal Guards III
Next Gen Connectivity: PCIe 5.0, Quad NVMe PCIe 4.0 x4 M. 2, SuperSpeed USB 3.2 Gen 2x2 Type-C
Fast Networking: WiFi 6 802.11 ax, 2.5G bE LAN
Dynamic Audio: Hi-Fi Audio with ALC4080 and WIMA Audio Capacitors
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU
Dedicated LGA1700 mounting bracket is required

Model
Brand	GIGABYTE
Series	AORUS
Model	Z690 AORUS ULTRA

Supported CPU
CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors

Chipsets
Chipset	Intel Z690

Onboard Video
Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 6200(OC) / 6000(OC) / 5800(OC) / 5600(OC) / 5400(OC) / 5200(OC) / 4800 / 4000
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16, running at x4 (PCIEX4_1, PCIEX4_2)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2C_SB) 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)
Intel Optane Ready	Yes * System acceleration with Intel Optane Memory can only be enabled on the M.2 connectors supported by the Chipset.
SATA RAID	0/1/5/10

Onboard Audio
Audio Chipset	Realtek ALC4080
Audio Channels	2-channel analog output 7.1-channel digital signals * Actual output of digital signals may vary depending on the playback content and software used, and an external DAC is required.

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip
Max LAN Speed	2.5Gbps
Wireless LAN	Intel Wi-Fi 6 AX200 WIFI a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

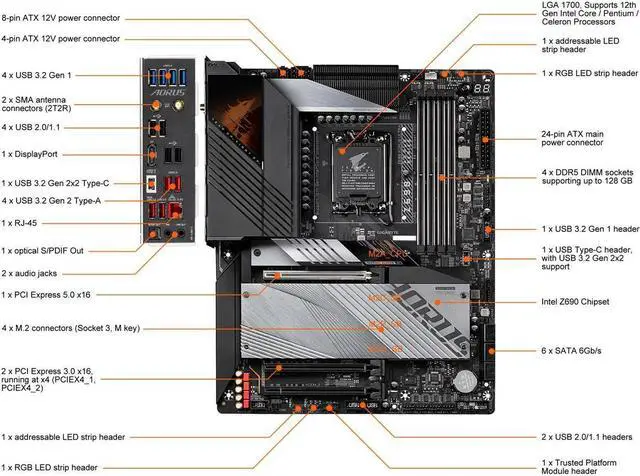

Rear Panel Ports

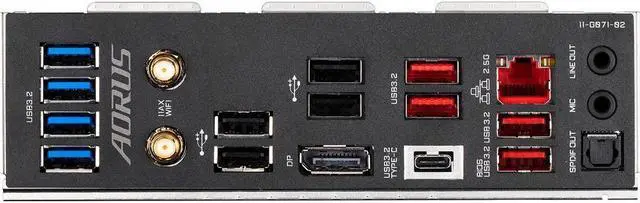

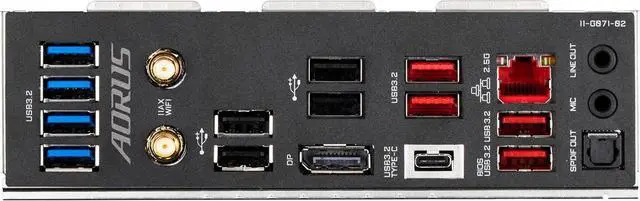

Back I/O Ports	2 x SMA antenna connectors (2T2R) 1 x USB Type-C port, with USB 3.2 Gen 2x2 support 4 x USB 3.2 Gen 2 Type-A ports (red) 4 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2x2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 2 x system fan/water cooling pump headers 2 x addressable LED strip headers 2 x RGB LED strip headers 1 x front panel header 1 x front panel audio header 1 x noise detection header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x power button 1 x Q-Flash Plus button 1 x reset button 1 x reset jumper 1 x Clear CMOS jumper 2 x temperature sensor headers

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector 1 x 4-pin ATX 12V power connector

Features
Features	Multi-Graphics Technology: Support for AMD Quad-GPU CrossFire and 2-Way AMD CrossFire technologies I/O Controller: iTE I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. Noise detection BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for APP Center * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. @BIOS EasyTune Fast Boot Game Boost ON/OFF Charge RGB Fusion Smart Backup System Information Viewer Support for Q-Flash Plus Support for Q-Flash Support for Xpress Install Bundled Software: Norton Internet Security (OEM version) cFosSpeed Operating System: Support for Windows 10 64-bit
