can I use the intel Core I7-14700K with this motherboard and have no issues with compatibility?

Yes, this CPU is listed on their compatibility list (see other previously answered question)

Does this support Intel 14th Gen Processors?

According to their website, the answer is yes. Make sure to check their CPU support list from gigabyte to make sure the CPU you choose is on that list. I am currently looking at the Intel Core i9-14900K - Core i9 14th Gen 24-Core cpu for this board and it is on the support list.

Out of stock

This item is currently out of stock and it may or may not be restocked.

Out of Stock

Add to wish list(Found on 56 wish lists)

Sold by Newegg

Shipped by Newegg

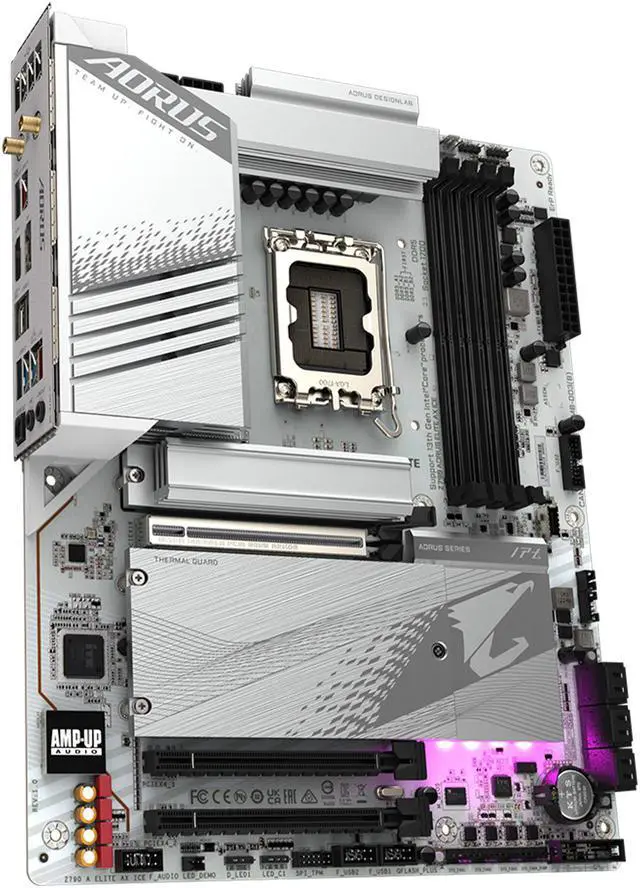

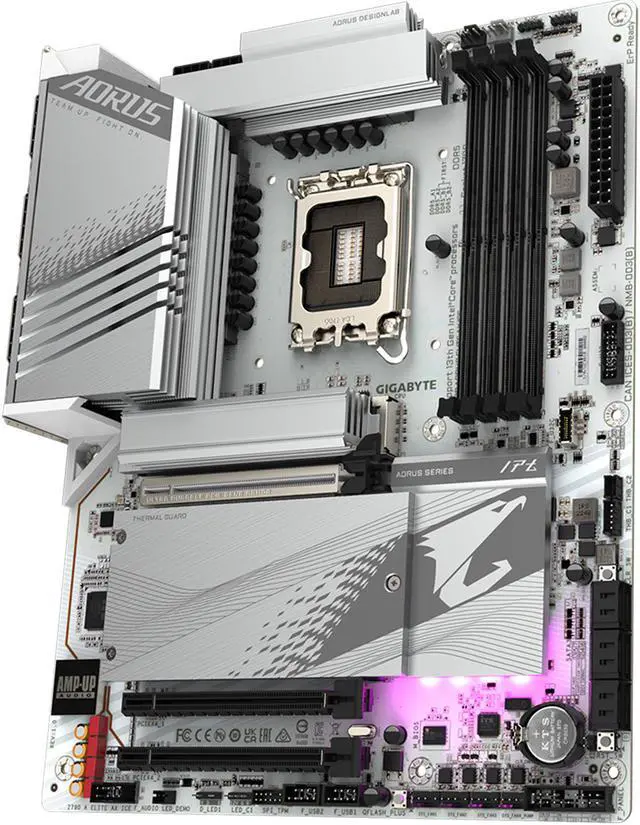

Main image of GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 2 of 6 - GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 3 of 6 - GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 4 of 6 - GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 5 of 6 - GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 6 of 6 - GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Customer images

Shop All GIGABYTE Products

GIGABYTE Z790 AORUS ELITE AX ICE LGA 1700 Intel Z790 X ATX Motherboard with DDR5, 4* M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

(710)(93) Write a Review

Intel LGA 1700 Socket: Support 13th and 12th Gen Series Processors
Dual Channel DDR5: 4*DIMMs with XMP 3.0 memory module support
Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution
Cutting-Edge Thermal Design: VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultra-Fast Storage: 4*PCIe 4.0 x4 M.2 Connectors
Fast Networks: 2.5GbE LAN & Wi-Fi 6E 802.11ax
Extended Connectivity: PCIe 5.0, DP, HDMI, Front & Rear USB-C 20Gb/s
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews (710)

See all Q & A

Any questions? Our AI beta will help you find out quickly.

Try me now

Model
Brand	GIGABYTE
Series	AORUS
Model	Z790 AORUS ELITE AX ICE

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors L3 cache varies with CPU

Chipsets
Chipset	Intel Z790 Express Chipset

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)
Maximum Memory Supported	192GB

Expansion Slots
PCI Express 5.0 x16	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4_1)
PCI Express 3.0 x16	1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4_2)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices * Refer to "2-8 Internal Connectors," for the installation notices for the M.2 and SATA connectors.

Onboard Audio
Audio Chipset	Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Realtek
Max LAN Speed	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless LAN	Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands BLUETOOTH 5.3 Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment.
Bluetooth	BLUETOOTH 5.3

Rear Panel Ports

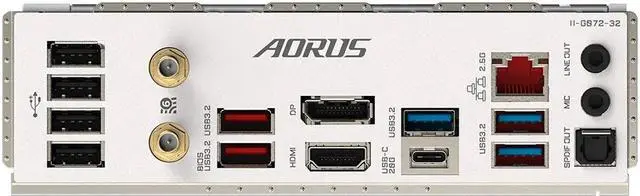

Back I/O Ports	1 x DisplayPort / 1 x HDMI / 1 x LAN (RJ45) / 1 x Optical S/PDIF Out / 1 x USB 3.2 Gen 2x2 Type-C / 2 x Antenna Bracket / 2 x Audio Jacks / 2 x USB 3.2 Gen 2 Type-A / 3 x USB 3.2 Gen 1 Type-A / 4 x USB 2.0/1.1

Internal I/O Connectors
Other Connectors	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors 1 x CPU fan header 1 x water cooling CPU fan header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x USB Type-C® header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers 2 x Thunderbolt™ add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Ready

Physical Spec
Form Factor	ATX

Features
Features	I/O Controller: iTE® I/O Controller Chip H/W Monitoring: Voltage detection Temperature detection Fan speed detection Water cooling flow rate detection Fan fail warning Fan speed control * Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install. BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 Unique Features: Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup Bundled Software: Norton® Internet Security (OEM version) LAN bandwidth management software

Additional Information
First Listed on Newegg	October 11, 2023

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Limited Warranty period (parts): 3 years
Limited Warranty period (labor): 3 years
Read full details

Return Policies

Return for refund within: 30 days

Return for replacement within: 30 days

This item is covered by Newegg.com's 30-Day Return Policy.
Read full return policy for details.
