GIGABYTE Z790 EAGLE AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, M.2, PCIe 5.0, USB 3.2 Gen2X2 Type-C, Intel Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch

$169^.99 –
Save: 19%

$249^.00

Free 30-day Returns

Limit 99999 per customer.

Ships from Hong Kong.

Sold by C.N.E Technology

Top Rated

4.5 (109 seller ratings)

Shipped by C.N.E Technology

Price alert

Add to Wish List

Meet Your Seller

C.N.E Technology

See Seller Store

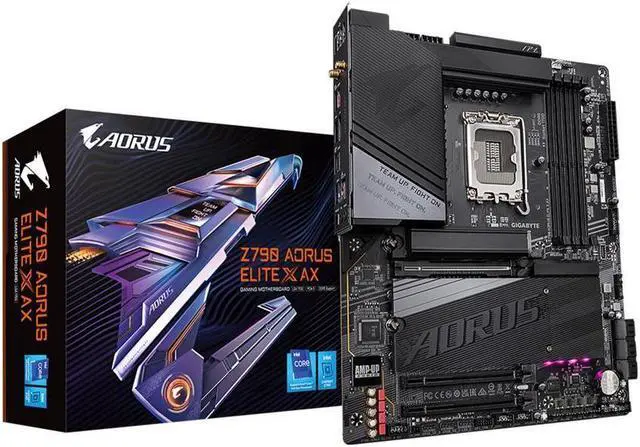

Main image of GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

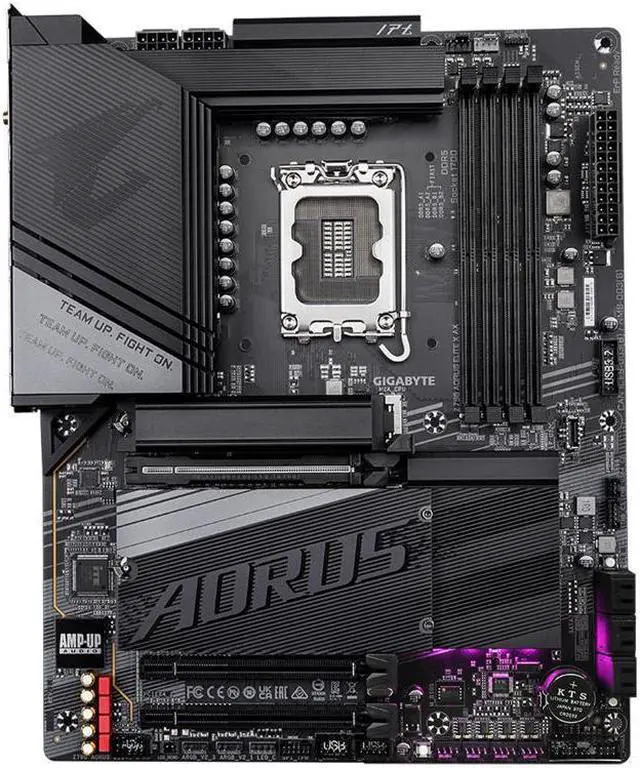

Alt view image 2 of 5 - GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

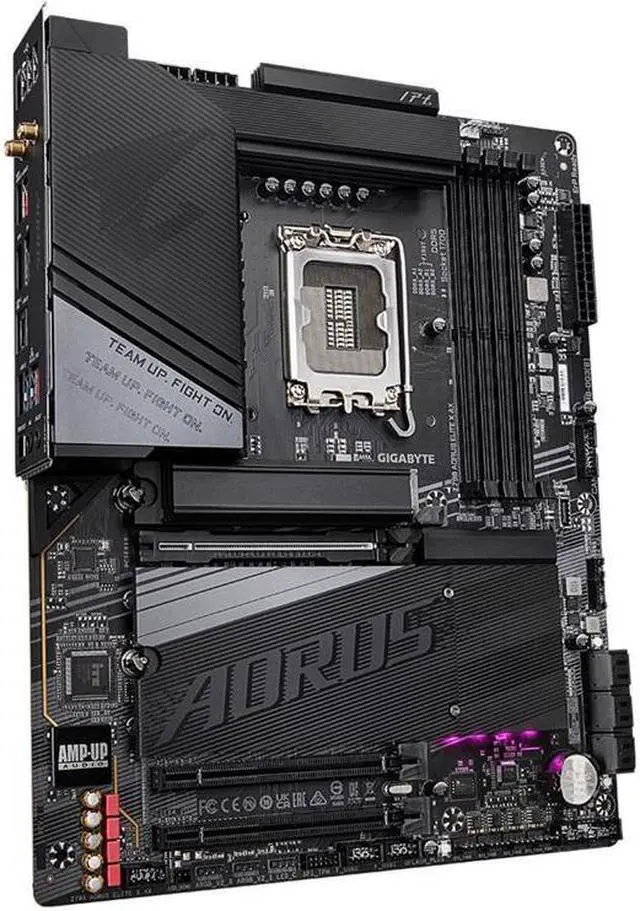

Alt view image 3 of 5 - GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Alt view image 4 of 5 - GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

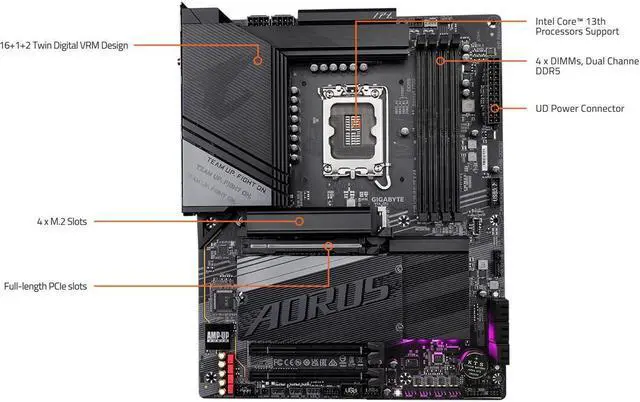

Alt view image 5 of 5 - GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

Shop All GIGABYTE Products | Visit C.N.E Technology Store

GIGABYTE Z790 AORUS ELITE X AX Intel LGA 1700 Socket supports 13th , 14th gen Intel Z790 X ATX Motherboard with DDR5, 4 M.2, PCIe 5.0, USB 3.2 Type-C, Wi-Fi 6E, 2.5GbE LAN, Q-Flash Plus, EZ-Latch Plus

REFURBISHED

Be the first to review this product...

Intel LGA 1700 Socket: Supports 13th and next-gen processors
Dual Channel DDR5: 4*SMD DIMMs with XMP 3.0 memory module support
Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution
Cutting-Edge Thermal Design: VRM Thermal Armor Advanced & M.2 Thermal Guard
Ultra-Fast Storage: 4*PCIe 4.0 x4 M.2 slots
Fast Networks: 2.5GbE LAN & Wi-Fi 6E
Extended Connectivity: PCIe 5.0, DP, HDMI, Front & Rear USB-C 20Gb/s
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU"

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI mode will help you find out quickly.

Try me now

Intel LGA 1700
Socket: Supports 13th and next-gen processors
Dual Channel DDR 5: 4 *SMD DIM
Ms with XMP 3.0 memory module support
Commanding Power Design: Twin 16+1+2 Phases Digital VRM Solution
Cutting-Edge Thermal Design: VRM Thermal Armor Advanced & M. 2 Thermal Guard
Ultra-Fast Storage: 4*PCIe 4.0 x4 M. 2 slots
Fast Networks: 2.5G bE LAN & Wi-Fi 6E
Extended Connectivity: PCIe 5.0, DP, HDMI, Front & Rear USB-C 20Gb/s
Fine Tuning Features: RGB FUSION 2.0, Supports Addressable LED & RGB LED Strips, Smart Fan 6, Q-Flash Plus Update BIOS without installing CPU, Memory, and GPU"

Model
Brand	GIGABYTE
Model	Z790 AORUS ELITE X AX

Supported CPU
CPU Socket Type	LGA 1700
CPU Type	Intel LGA 1700 Socket: Supports 13th and next-gen processors

Chipsets
Chipset	Intel Z790 Express Chipset

Memory
Number of Memory Slots	4x288pin (DDR5)
Memory Standard	Support for DDR5 8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

Expansion Slots
PCI Express 5.0 x16	CPU: - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16	Chipset: - 2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1/PCIEX4_2)

Storage Devices
Serial ATA (SATA)	6 x SATA 6Gb/s
M.2	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) - 1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

Onboard Audio
Audio Chipset	Realtek ALC1220-VB CODEC * The back panel line out jack supports DSD audio. High Definition Audio 2/4/5.1/7.1-channel * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings. Support for S/PDIF Out
Audio Channels	7.1 Channels

Onboard LAN
LAN Chipset	Intel 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 6E - WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands - BLUETOOTH 5.3 - Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment.)
Bluetooth	Yes

Rear Panel Ports

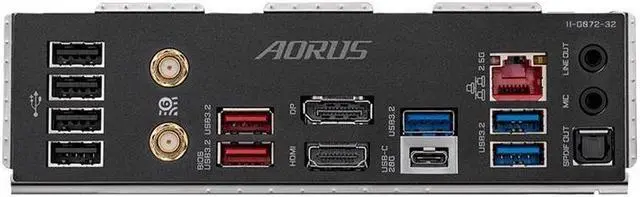

Back I/O Ports	1 x USB Type-C port, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 2 Type-A ports (red) 3 x USB 3.2 Gen 1 ports 4 x USB 2.0/1.1 ports 2 x SMA antenna connectors (2T2R) 1 x HDMI port 1 x DisplayPort 1 x RJ-45 port 1 x optical S/PDIF Out connector 2 x audio jacks

Internal I/O Connectors
Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 3 x addressable RGB Gen2 LED strip headers 1 x RGB LED strip header 4 x M.2 Socket 3 connectors 6 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 2 x Thunderbolt add-in card connectors 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only) 1 x reset button 1 x Q-Flash Plus button 1 x Clear CMOS button 1 x reset jumper 1 x Clear CMOS jumper

Software Feature
Windows 11	Supported

Physical Spec
Form Factor	ATX
Dimensions (W x L)	30.5cm x 24.4cm
Power Pin	1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors

Features
Features	Support for GIGABYTE Control Center (GCC) * Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications. Support for Q-Flash Support for Q-Flash Plus Support for Smart Backup

Additional Information
First Listed on Newegg	September 15, 2025
