Brand | GIGABYTE |
---|---|

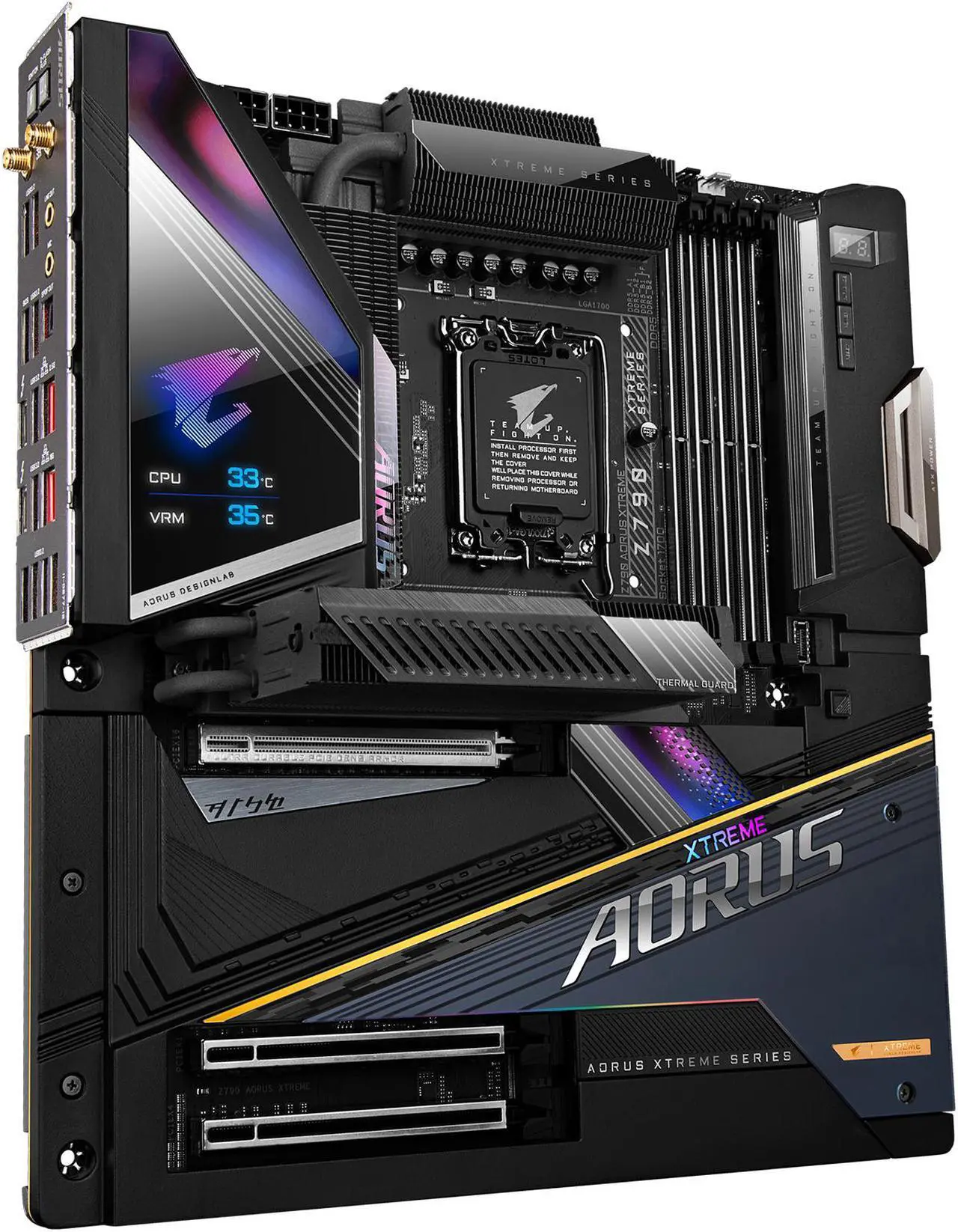

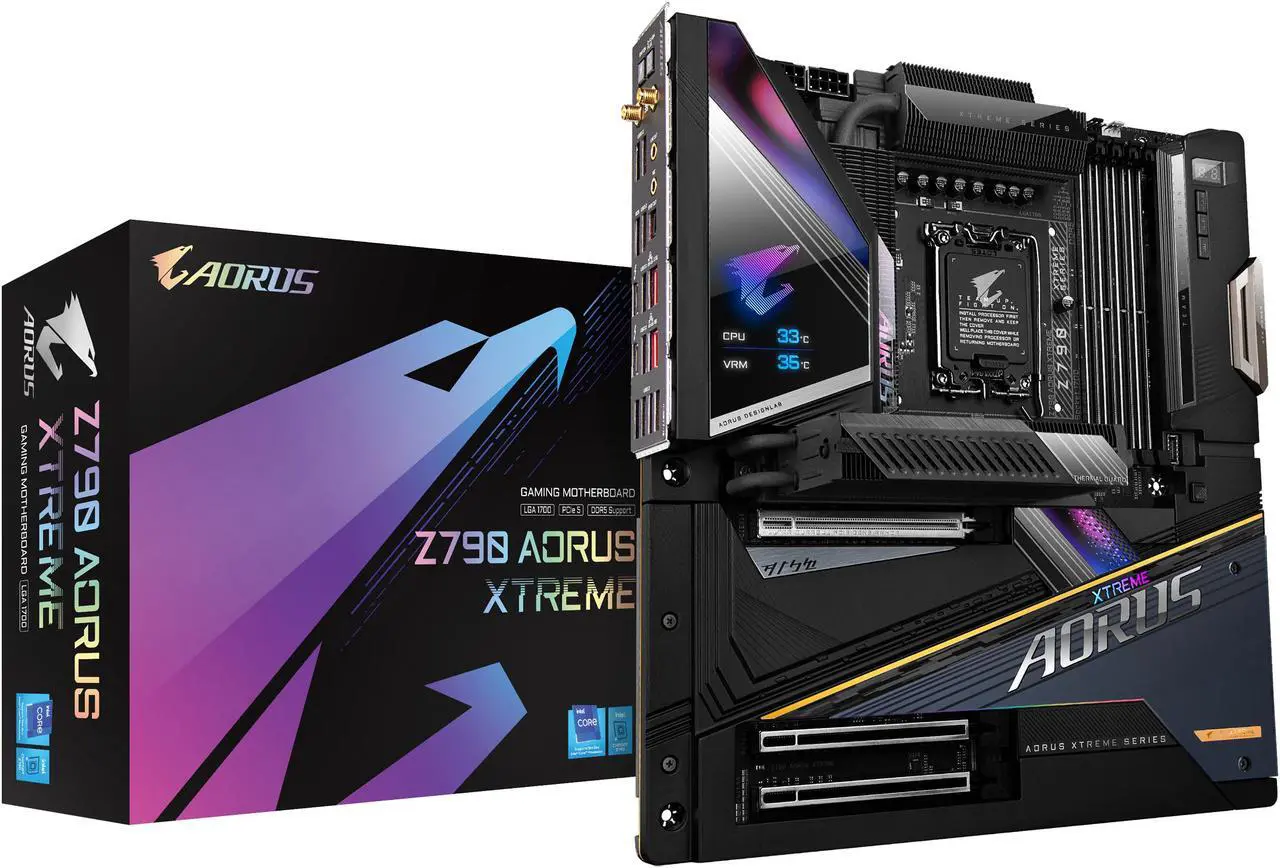

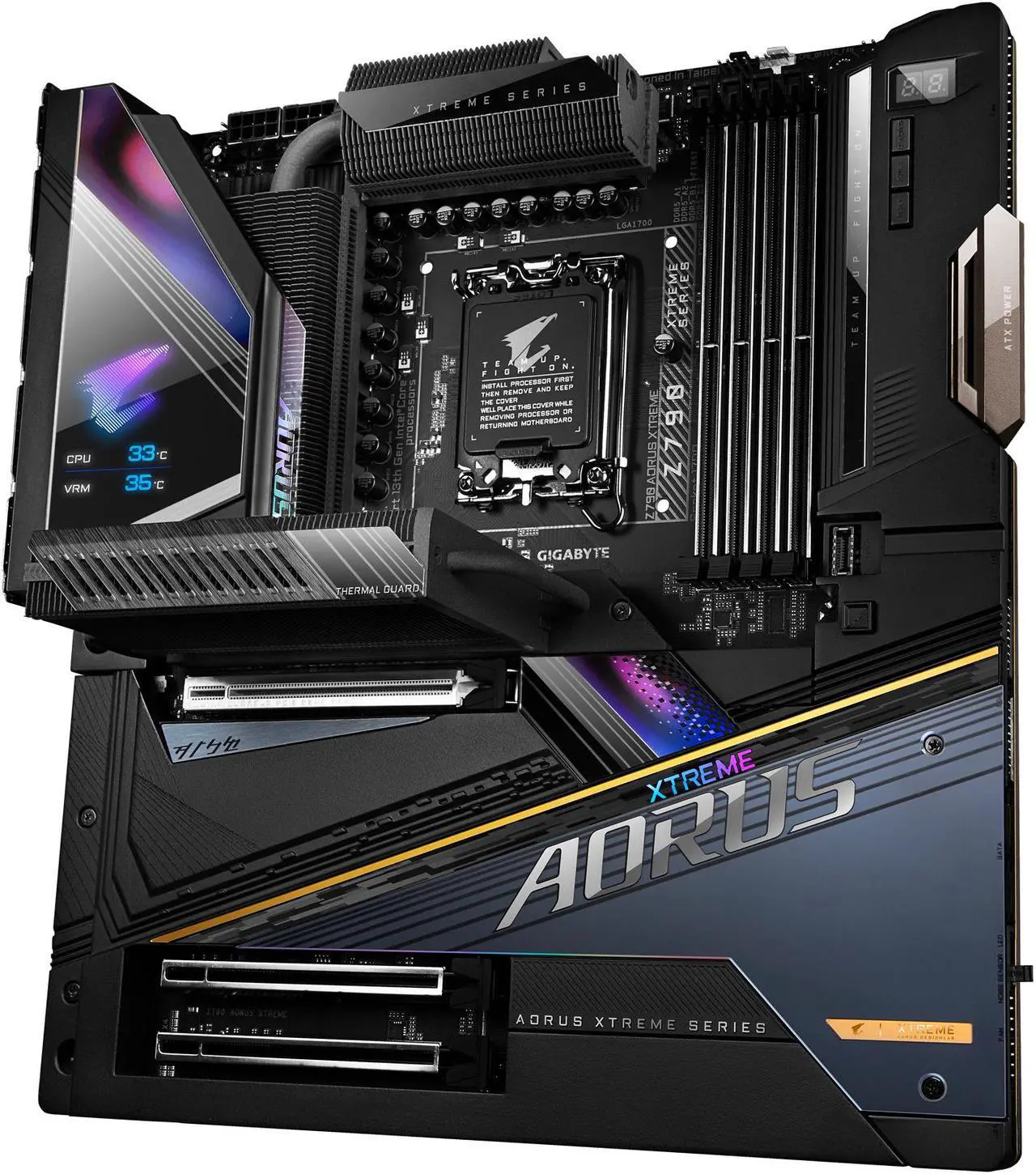

Model | Z790 AORUS XTREME |
Part Number | Z790 AORUS XTREME (rev. 1.0) |
CPU Socket Type | LGA 1700 |
---|---|
CPU Type | LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors* L3 cache varies with CPU * Please refer to "CPU Support List" for more information. |
Chipset | Intel Z790 |
---|
Number of Memory Slots | 4x288pin (DDR5) |
---|---|
Memory Standard | Support for DDR5 8000(O.C) / 7950(O.C) / 7900(O.C) / 7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules |
Maximum Memory Supported | 128GB |
Channel Supported | Dual Channel |
PCI Express 5.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * The PCIEX16 slot shares bandwidth with the M2C_CPU connector. The PCIEX16 slot operates at up to x8 mode when a device is installed in the M2C_CPU connector. * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. |
---|---|
PCI Express 3.0 x16 | 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x4 (PCIEX4) 1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1) Support for AMD CrossFire technology (PCIEX16 and PCIEX4) |
Serial ATA (SATA) | 4 x SATA 6Gb/s |
---|---|
M.2 | CPU: 1 x M.2 connector (Socket 3, M key, type 25110/2280 PCIe 5.0 x4/x2 SSD support) (M2C_CPU) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 2280/2260 SATA and PCIe 4.0 x4/ x2 SSD support) (M2M_SB) |
SATA RAID | RAID 0, RAID 1, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
Audio Channels | ESS ES9280AC DAC chip + 2 ESS ES9080 chips DTS® Sound Unbound™ High Definition Audio 2-channel Support for S/PDIF Out * The line out jack and the optical S/PDIF out connector can only be used one at a time. |
---|
LAN Chipset | Marvell AQtion AQC107 10GbE LAN chip (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps) (LAN1) Intel 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) (LAN2) |
---|---|
Max LAN Speed | 10Gbps + 2.5Gbps |
Wireless LAN | Intel Killer Wi-Fi 6E AX1690 WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate * Actual data rate may vary depending on environment and equipment. |
Bluetooth | BLUETOOTH 5.3 |

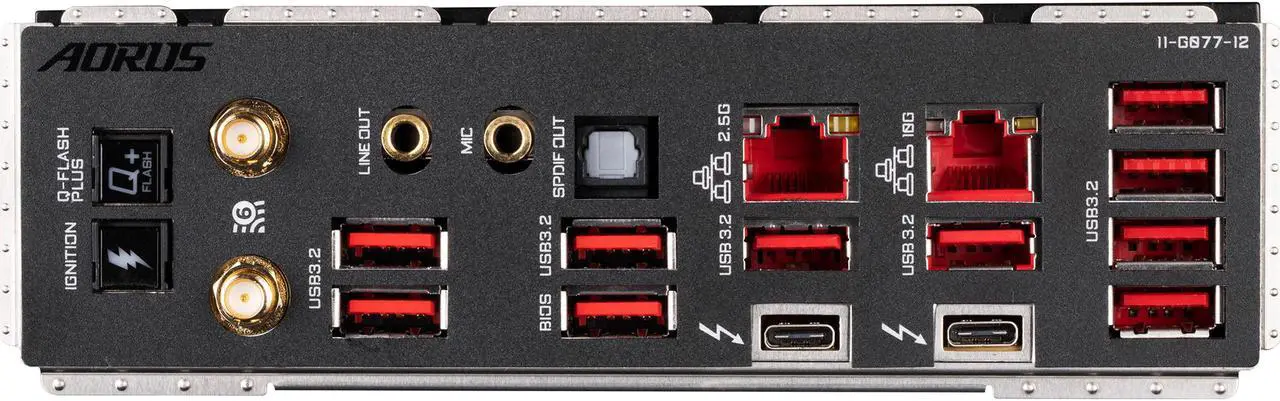

Back I/O Ports | 1 x Q-Flash Plus button 1 x OC Ignition button 2 x SMA antenna connectors (2T2R) 2 x Thunderbolt 4 connectors (USB Type-C ports, with USB 3.2 Gen 2 support) 10 x USB 3.2 Gen 2 Type-A ports (red) 2 x RJ-45 ports 1 x optical S/PDIF Out connector 2 x audio jacks * The mic in jack supports only mono microphone input |
---|
Onboard USB | 1 x USB Type-C header, with USB 3.2 Gen 2x2 support 2 x USB 3.2 Gen 1 headers 1 x USB 2.0/1.1 header |
---|---|
Other Connectors | 1 x CPU fan header 1 x water cooling CPU fan header 4 x system fan headers 4 x system fan/water cooling pump headers 1 x noise detection header 2 x integrated extension cable headers for addressable and RGB LED strips 4 x SATA 6Gb/s connectors 5 x M.2 Socket 3 connectors 1 x front panel header 2 x temperature sensor headers 1 x power button 1 x reset button 1 x Clear CMOS button |
Windows 11 | Support for Windows 11 64-bit Support for Windows 10 64-bit |
---|
Form Factor | E-ATX Form Factor |
---|---|
LED Lighting | RGB |
Dimensions (W x L) | 30.5cm x 28.5cm |
Power Pin | 1 x 24-pin ATX main power connector 2 x 8-pin ATX 12V power connectors |
Features | Intel® Socket LGA 1700:Support 13th and 12th Gen Series Processors Unparalleled Performance:Direct 20+1+2 Phases Digital VRM Solution Dual Channel DDR5:4*SMD DIMMs with XMP 3.0 Memory Module Support Next Generation Storage:1*PCIe 5.0 x4 and 4*PCIe 4.0 x4 M.2 Connectors Fins-Array III & M.2 Thermal Guard Xtreme II:To Ensure VRM Power Stability & 25110 PCIe 5.0 M.2 SSD Performance EZ-Latch Plus:SMD PCIe 5.0 x16 Slot & M.2 Connectors with Quick Release & Screwless Design Hi-Fi Audio with DTS:X® Ultra:ALC1220 CODEC and Rear ESS SABRE Hi-Fi 9118 DAC with Front ESSential USB DAC Bundled Fast Networks:Marvell® AQtion 10GbE LAN & Intel® Wi-Fi 6E 802.11ax with DCT Extended Connectivity:Intel® Thunderbolt 4 onboard Smart Fan 6:Features Multiple Temperature Sensors, Hybrid Fan Headers with FAN STOP and Noise Detection |
---|
Date First Available | July 31, 2024 |
---|
