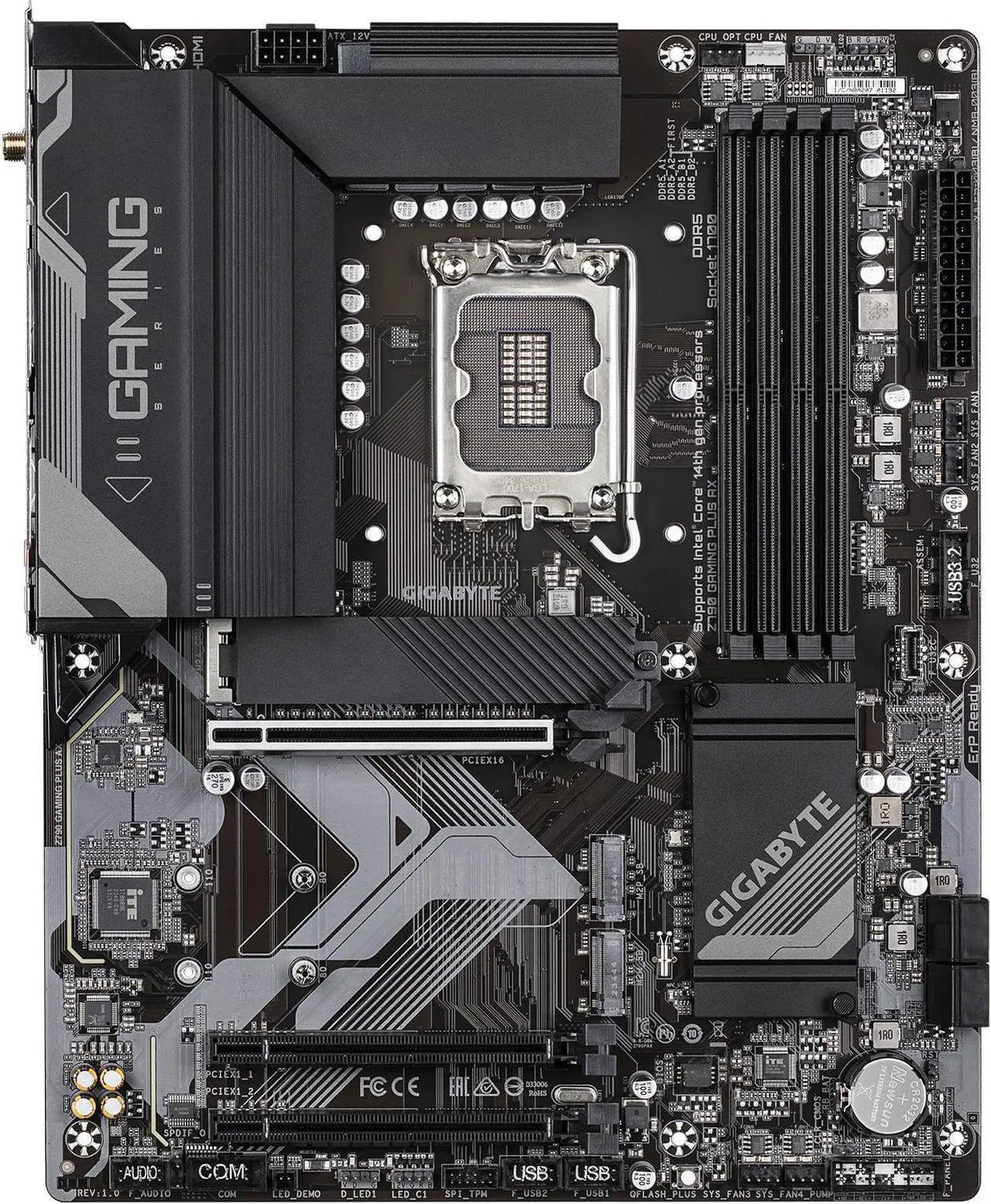

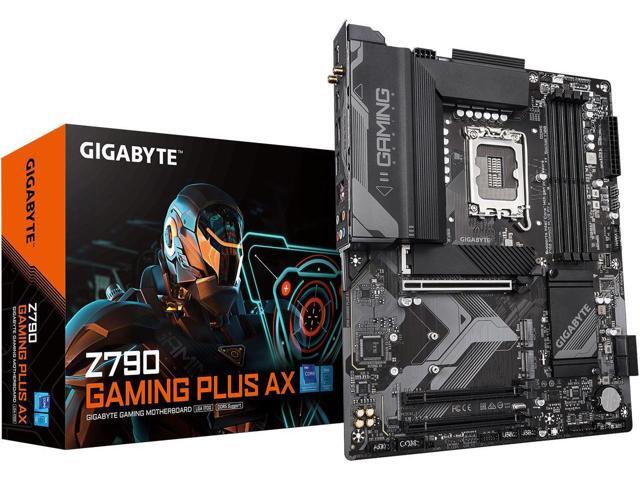

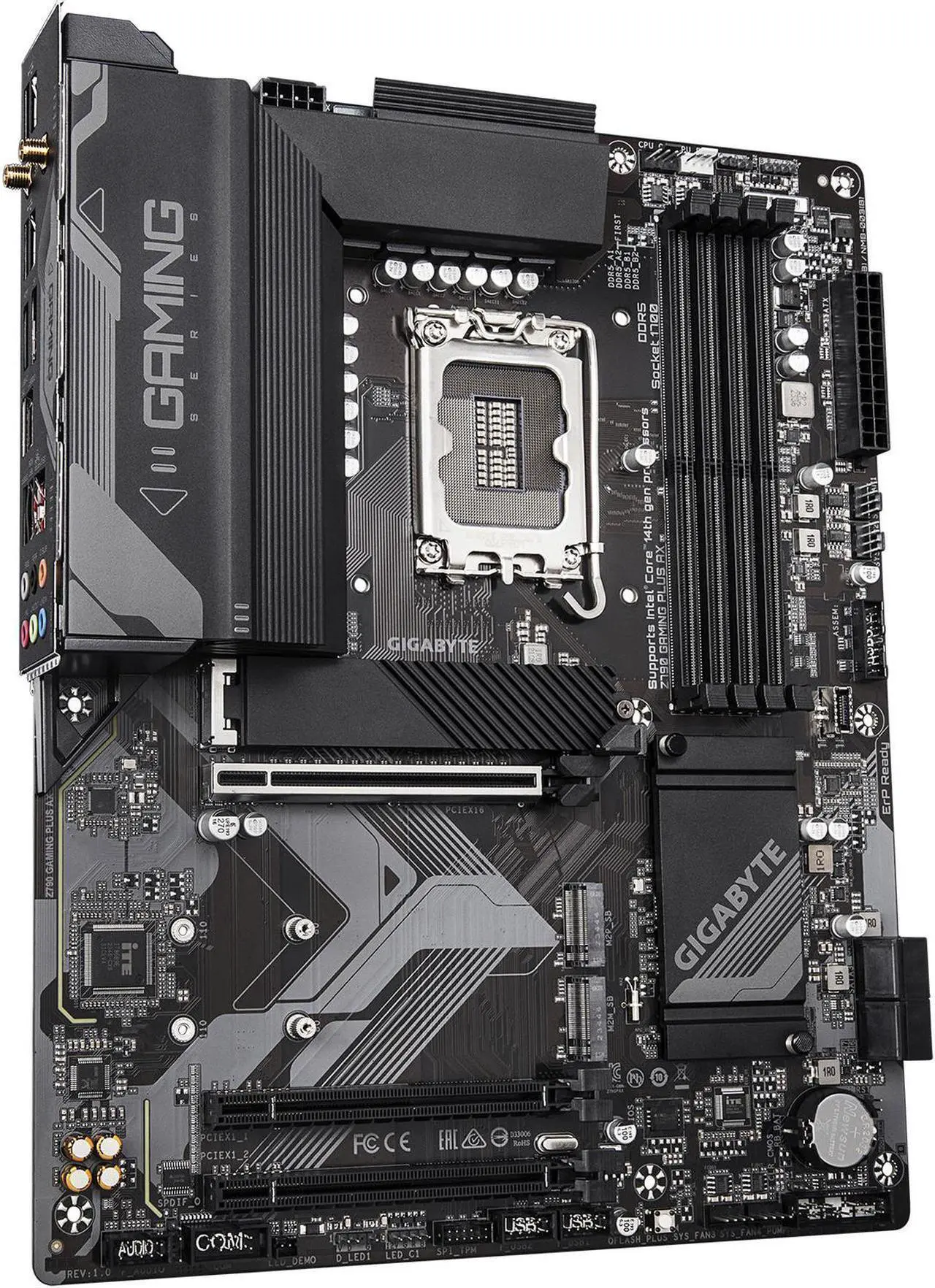

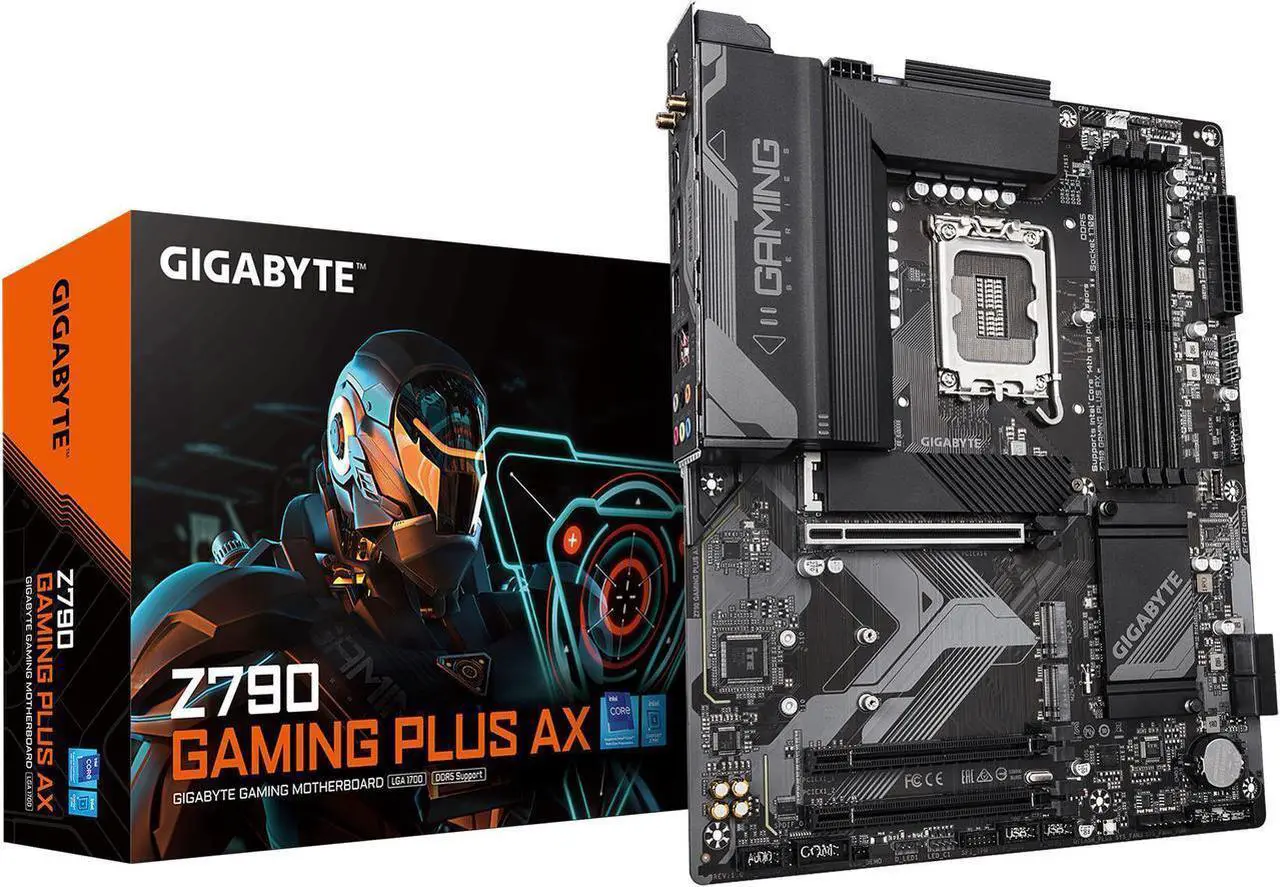

GIGABYTE Z790 GAMING PLUS AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, Realtek Wi-Fi 6, Realtek LAN, Q-Flash Plus, EZ-Latch

REFURBISHED

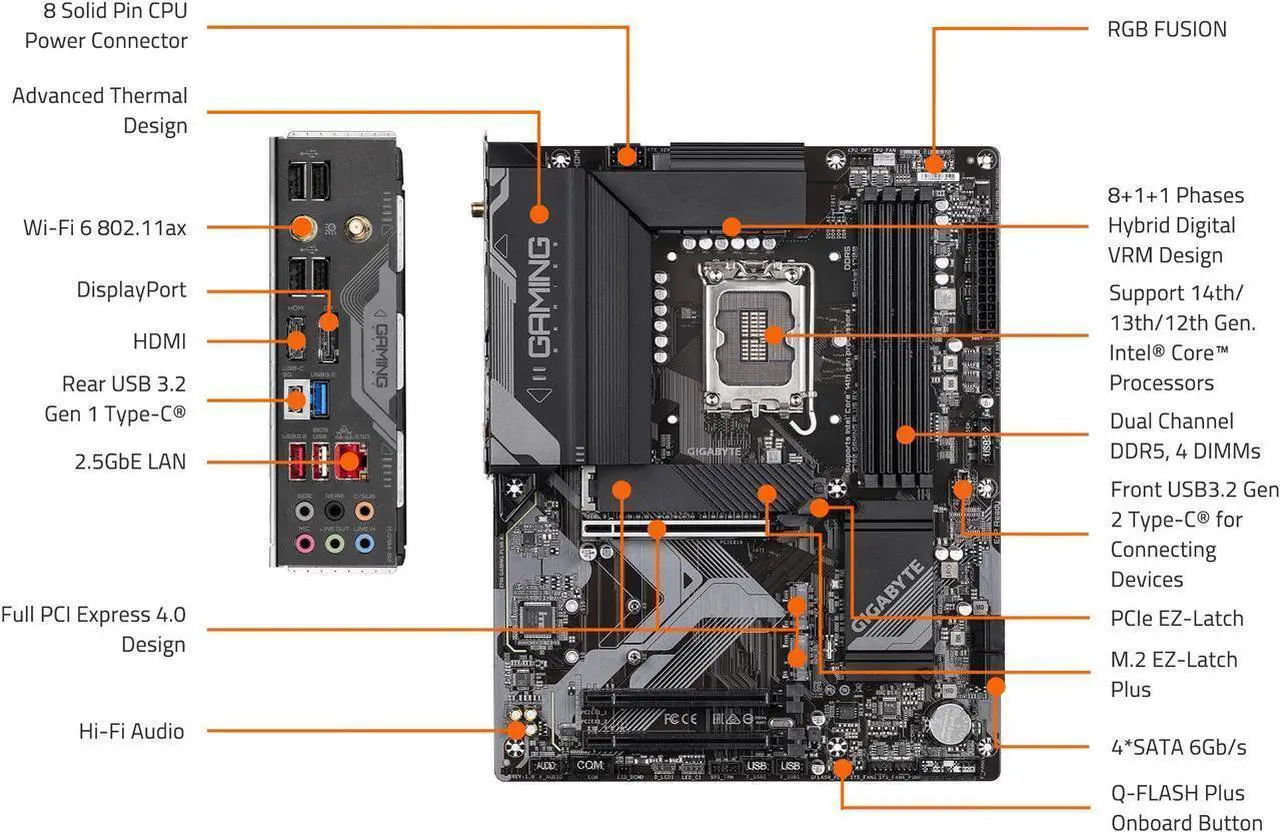

Intel LGA 1700 Socket: Supports 14th, 13th, and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIMMs
Sturdy Power Design: Hybrid 8+1+1 Phases Digital VRM Solution
Comprehensive Thermal Design: Advanced Thermal Design, Fully Covered MOSFET Heatsinks, M.2 Thermal Guard
Next Gen Connectivity: PCIe 4.0, NVMe M.2, USB 3.2 Gen 2 Type-C
Fast Networking: 2.5GbE LAN, Realtek Wi-Fi 6
Fine Tuning Features: Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

🔥Don't forget your OS, we have Windows 11 OEM, Download and USB versions available

Overview

Specs

Reviews

Any questions? Our AI beta will help you find out quickly.

Try me now

Intel LGA 1700
Socket: Supports 14th, 13th, and 12th Gen Intel Core Series Processors
DDR5 Compatible: Dual Channel DDR5, 4 DIM
Ms
Sturdy Power Design: Hybrid 8+1+1 Phases Digital VRM Solution
Comprehensive Thermal Design: Advanced Thermal Design, Fully Covered MOSFET Heatsinks, M. 2 Thermal Guard
Next Gen Connectivity: PCIe 4.0, NVMe M. 2, USB 3.2 Gen 2 Type-C
Fast Networking: 2.5G bE LAN, Realtek Wi-Fi 6
Fine Tuning Features: Smart Fan 6, Q-Flash Plus Update BIOS without installing, CPU, Memory, and GPU

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Please contact the Seller directly for warranty information. Warranty information may also be found on the Manufacturer's website.
CONTACT

Return Policies

Return for refund within: 30 days
Return for replacement within: 30 days
This item is covered by UltraParts Renewed Return Policy

Manufacturer Contact Info

For a directory of all our manufacturers, please click below.
Manufacturers Directory

Number of Memory Slots	4x288pin (DDR5)
Memory Standard	DDR5 5600
Maximum Memory Supported	192GB
Channel Supported	Dual Channel
Memory Feature	14th and 13th Generation Intel Core i9/i7 Processors: - Support for DDR5 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600 / 5200 / 4800 / 4400 MT/s memory modules 13th Generation Intel Core i5/i3 and 12th Generation Intel Core, Pentium Gold and Celeron Processors: - Support for DDR5 4800/4400 MT/s memory modules 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory Dual channel memory architecture Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode) Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules Support for Extreme Memory Profile (XMP) memory modules (The CPU and memory configuration may affect the supported memory types, data rate (speed), and number of DRAM modules, please refer to "Memory Support List" on GIGABYTE's website for more information.)

PCI Express 4.0 x16	1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x16 (PCIEX16) * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express x1	2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_2)

Serial ATA (SATA)	4 x SATA 6Gb/s
M.2	CPU: - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: - 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2M_SB)
SATA RAID	RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

Audio Chipset	Realtek Audio CODEC High Definition Audio 2/4/5.1/7.1-channel Support for S/PDIF Out
Audio Channels	7.1-channel audio, access the audio software for audio settings.

Max LAN Speed	2.5Gbps
Wireless LAN	Wi-Fi 802.11 ax
Bluetooth	BLUETOOTH 5.3

Meet Your Seller

GIGABYTE Z790 GAMING PLUS AX LGA 1700 Intel Z790 ATX Motherboard with DDR5, Triple M.2, PCIe 4.0, USB 3.2 Gen2 Type-C, Realtek Wi-Fi 6, Realtek LAN, Q-Flash Plus, EZ-Latch

Refurbished

Learn more about the GIGABYTE Z790 GAMING PLUS AX

Customer Reviews of the GIGABYTE Z790 GAMING PLUS AX

Warranty & Returns

Warranty, Returns, And Additional Information

Warranty

Return Policies

Manufacturer Contact Info

Onboard USB	1 x USB Type-C header, with USB 3.2 Gen 2 support 1 x USB 3.2 Gen 1 header 2 x USB 2.0/1.1 headers
Other Connectors	1 x CPU fan header 1 x CPU fan/water cooling pump header 3 x system fan headers 1 x system fan/water cooling pump header 2 x addressable LED strip headers 2 x RGB LED strip headers 3 x M.2 Socket 3 connectors 4 x SATA 6Gb/s connectors 1 x front panel header 1 x front panel audio header 1 x S/PDIF Out header 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/ GC-TPM2.0 SPI V2 module only) 1 x serial port header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper

Form Factor	ATX
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connector 1 x 8-pin ATX 12V power connector
