GLOTRENDS PA21 Dual M.2 NVMe to PCIe X8 4.0 Adapter Card without PCIe Bifurcation Function, Support 22110/2280/2260/2242/2230 Size

(1) Write a Review
  • 1) Dual M.2 PCIe NVMe Adapter Without PCIe Splitter Function
  • 2) Soft RAID Configuration in Windows or Linux (Intel and AMD Platform)
  • 3) Not support Mac Pro 5.1
  • 4) Setup pcie splitter in BIOS/UEFI into X4X4X4X4 or X4X4X8 or Hyper M.2 X16 mode (Note: can not work with X8X4X4 mode)
  • 5) ASM1182e chipset
  • 6) PCI-Express 4.0 X8 bandwidth
  • 7) Compatible with PCIe 4.0/3.0/2.0 motherboards
Overview
Specs
Reviews (1)
Model: PA21
Interface to PC PCI-Express 4.0/3.0 X8
Interface to SSD 2 x Key M/B+M (Note: some M.2 SATA SSDs are also Key B+M)
Max Bandwidth (GBbps) ~16GBbps (PCIe 4.0 X8); ~8GBbps (PCIe 3.0 X8)
Chip ASM1182E
Form Factor 2230/2242/2260/2280/22110
OS Compatibility Windows and Linux (Note: can not work with windows 7 and Mac Pro 5.1)
PCIe Bifurcation Not support
dual m.2 nvme adapter
Dual M.2 PCIe SSD Host Adapter
  • Add 2 x M.2 PCIe (NVMe/AHCI) SSD (M-Key) onto a single PCIe X8 host adapter, so you can access 2 x M.2 NVMe SSD at the same time
  • Support soft RAID in Windows/Linux/3rd party software
  • Support M.2 NVMe SSD RAID-on-CPU (VROC) in the Intel Platform, but you need to purchase an Intel VROC license by yourself
  • Support M.2 NVMe RAID in AMD Platform
  • Not compatible with Mac Pro 5.1
  • The gap between the two NVMe slot is 3mm
dual m.2 nvme adapter

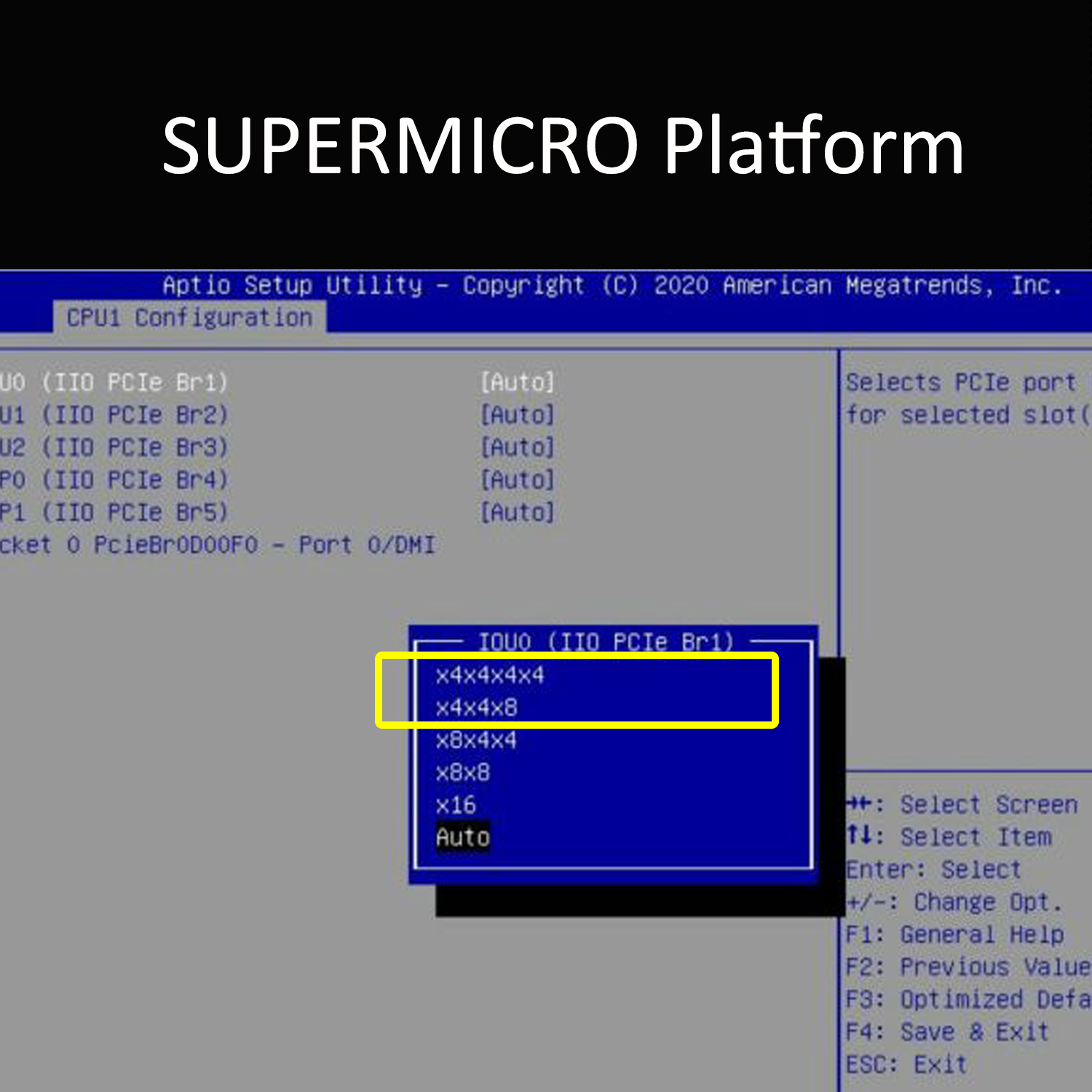

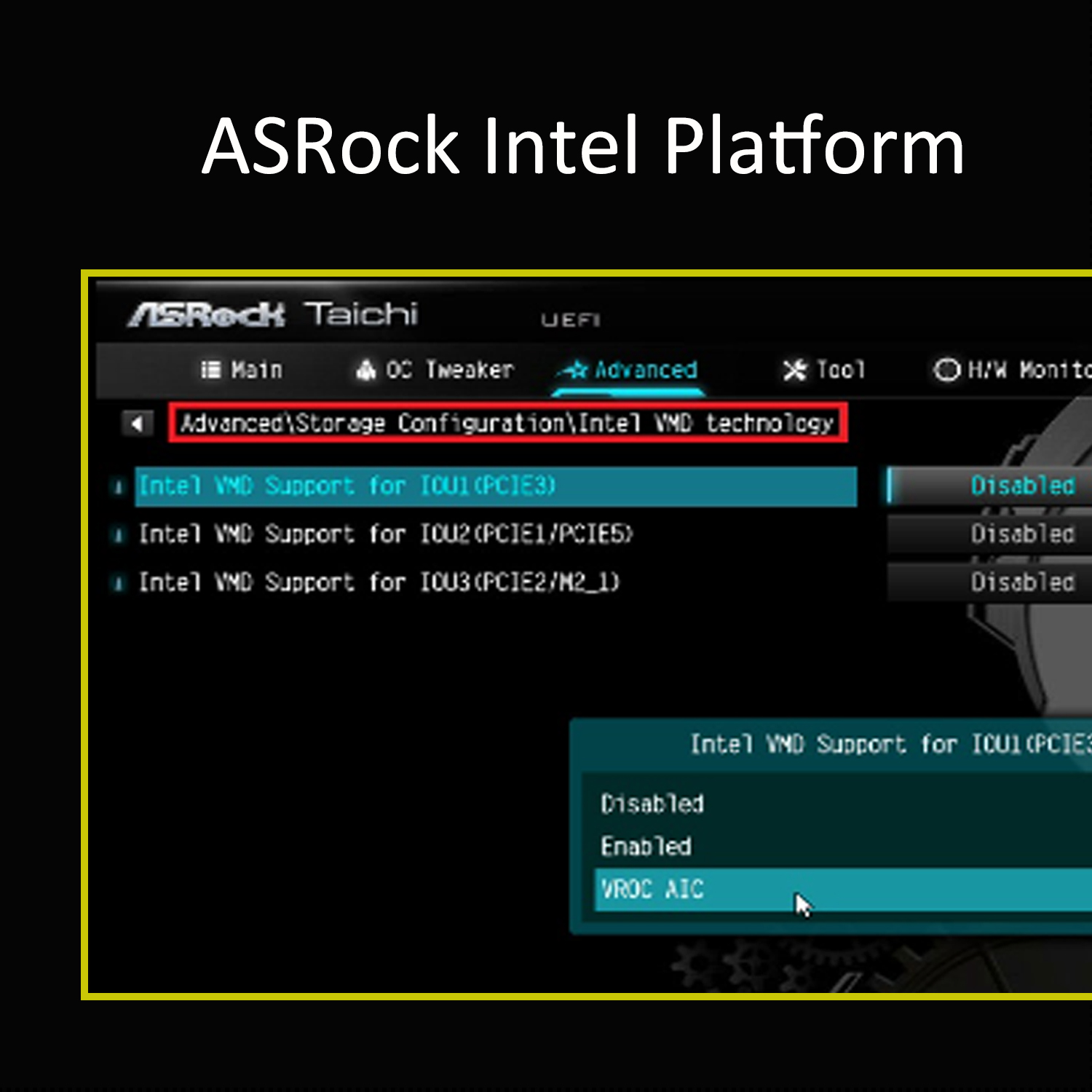

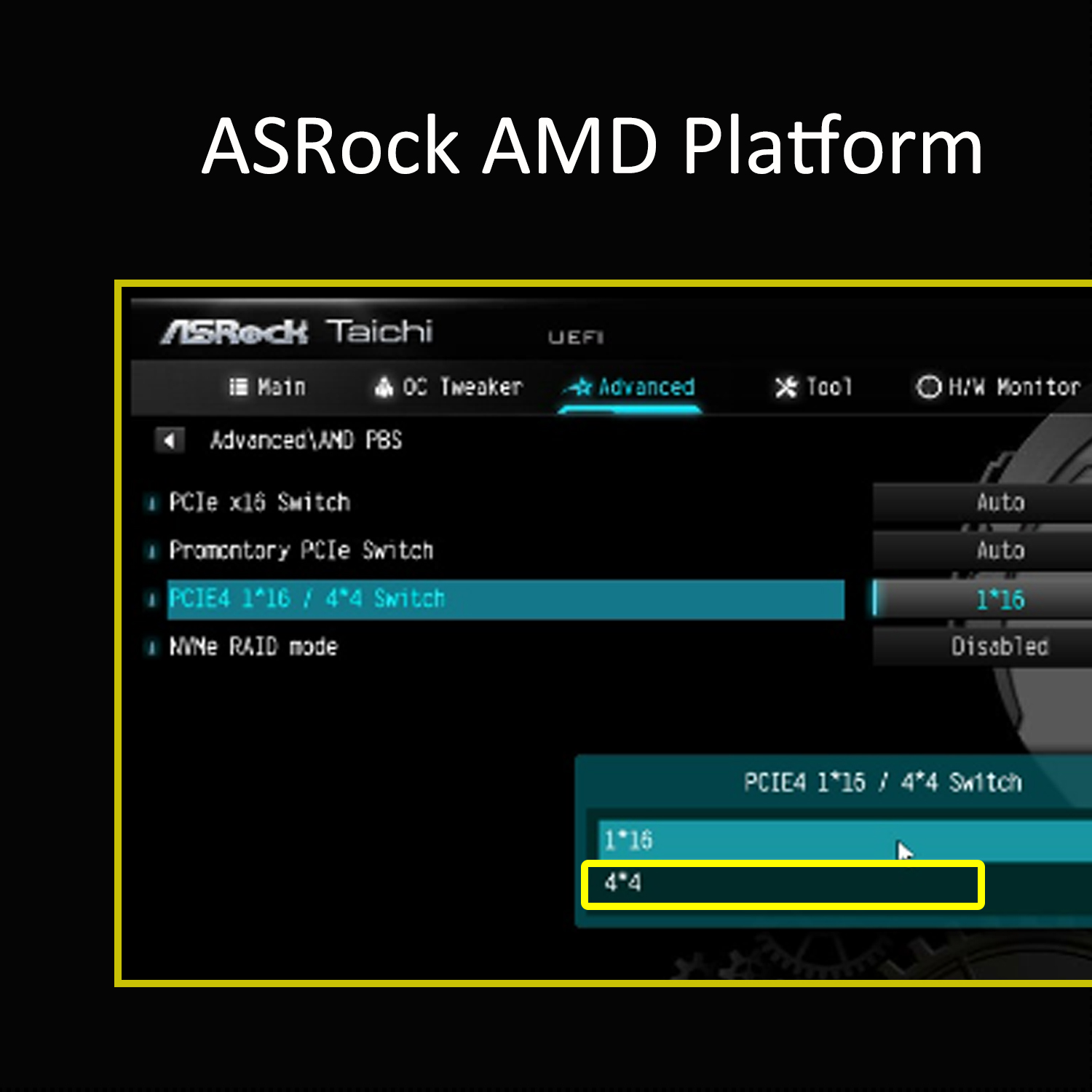

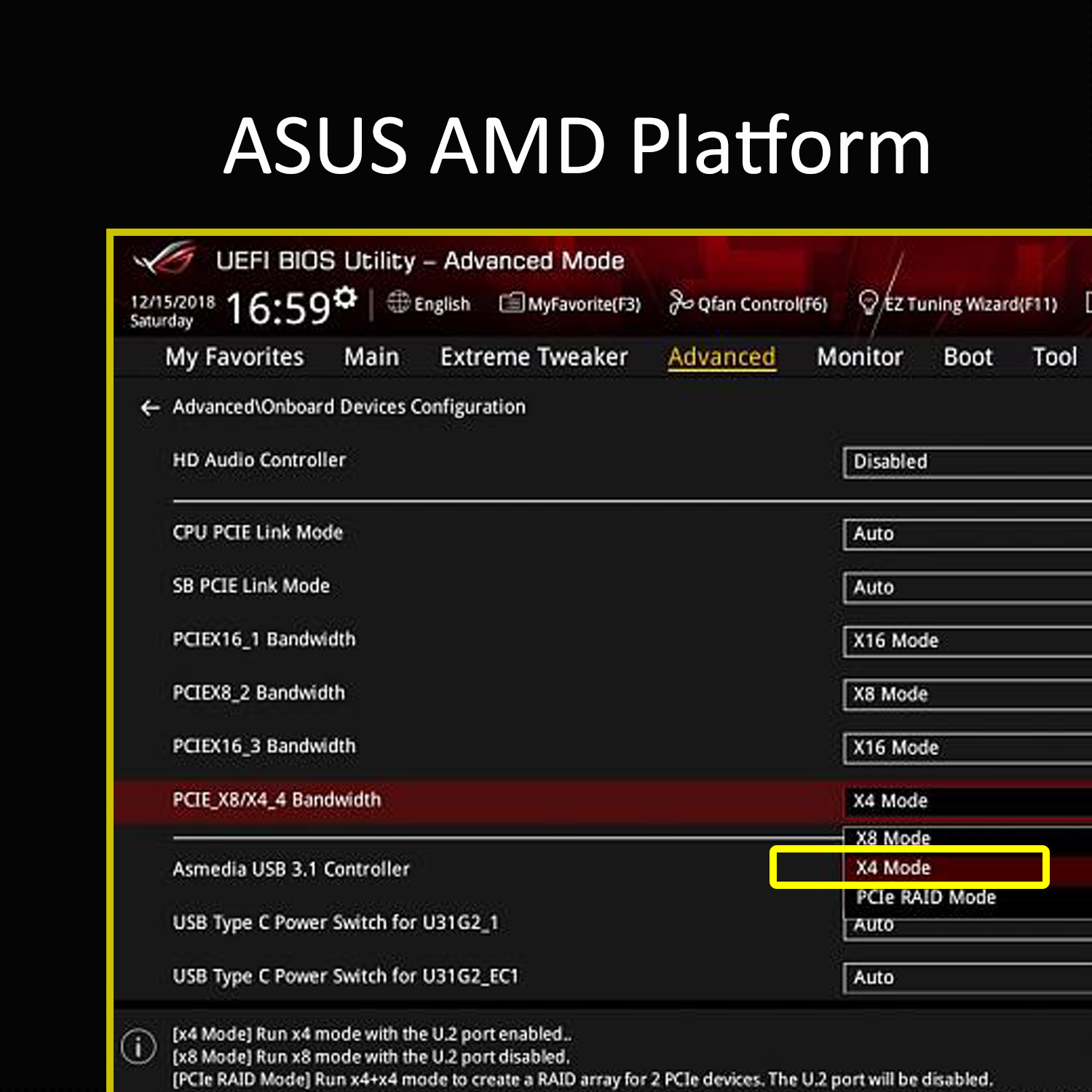

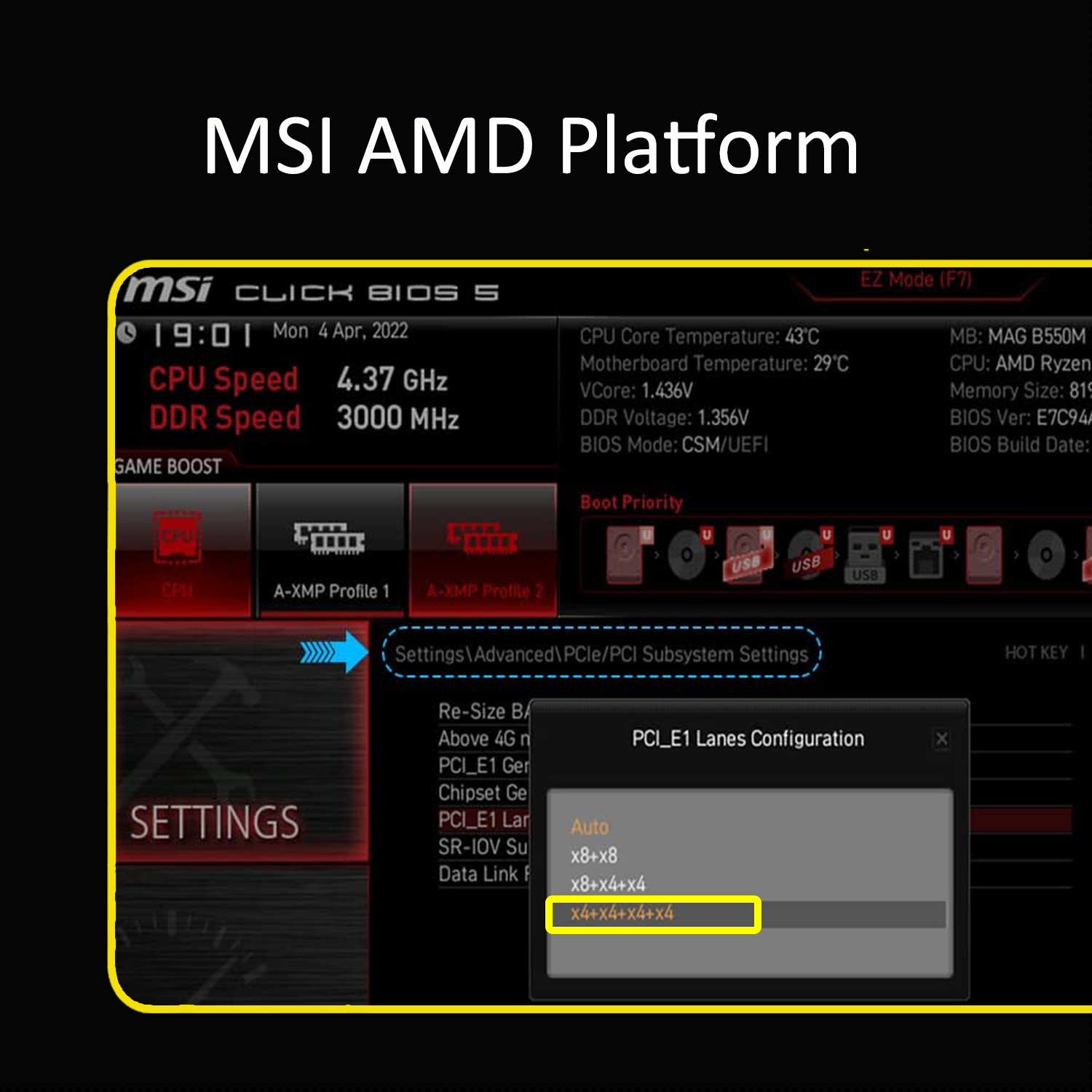

PCIE Bifurcation Setup in BIOS/UEFI
  • Noted: This Dual M.2 PCIe SSD Host Adapter can not splitter PCIE X8 to PCIe X4X4, so your motherboard must support PCIE Bifurcation function. Otherwise, only one M.2 PCIe SSD will be recognized. If you are not sure PCIe Bifurcation of your motherboard, please provide the motherboard information, and we will reply within 24 hours.

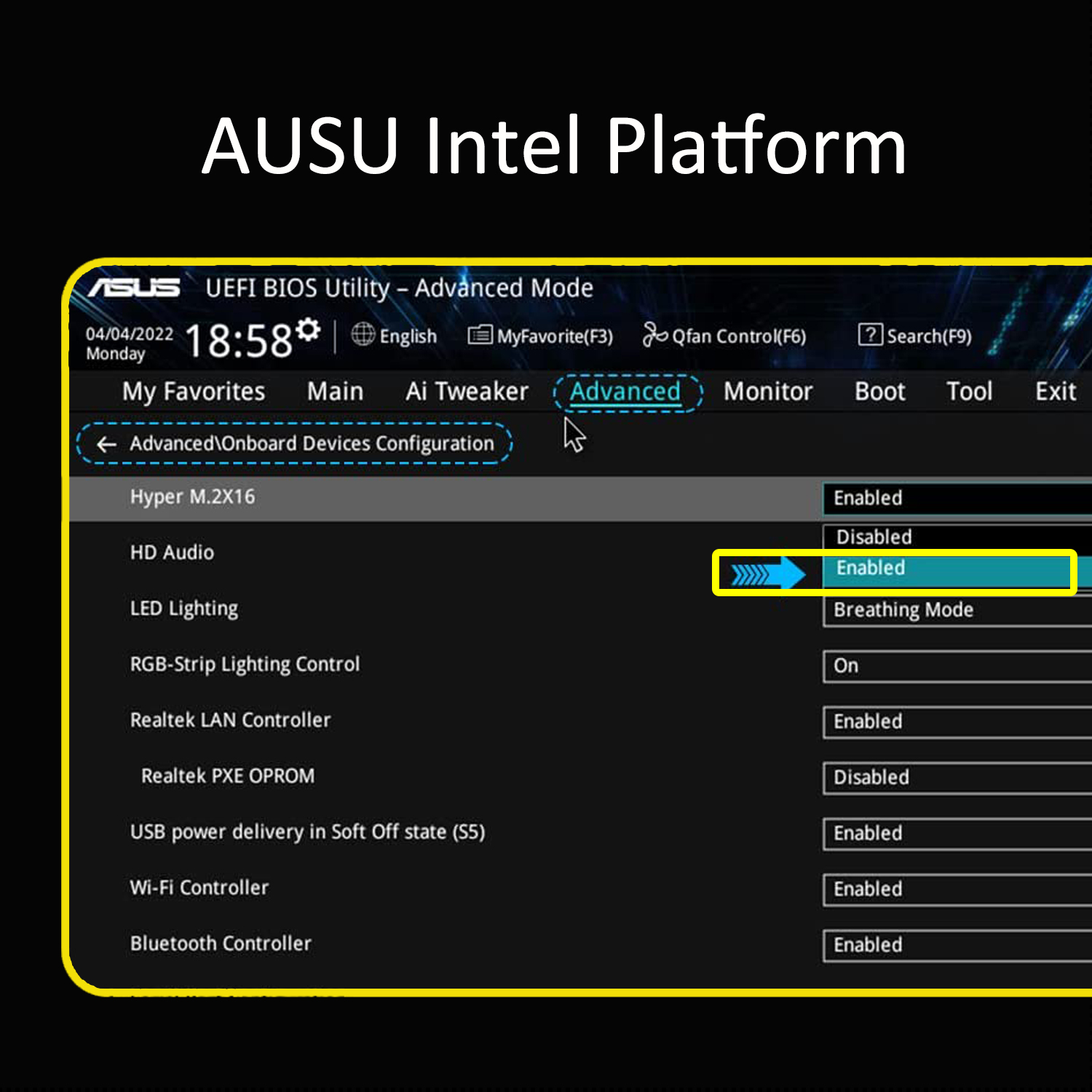

  • Setup PCIE splitter in BIOS/UEFI into X4X4X4X4 or X4X4 (Compatible with Hyper M.2 X16 mode in ASUS).
  • Note: In mode X8X4X4, only one M.2 NVMe SSD will be recognized.
dual m.2 nvme adapter
Soft RAID in Window 10
  • When you find 2 separate M.2 NVMe SSD in Disk Management of Windows 10
  • Right click the disk volume, which you want to setup soft RAID
  • A pop-up window appears, click the option (Spanned/Striped/Mirrored)
  • Noted: You can setup soft RAID in Linux/Mac/3rd party software also.
image for this item
PCIE X8 Full Speed
  • Compatible with PCIe 4.0/3.0/2.0 motherboards, and install into PCI-Express X8 lane.
  • To reach PCIe 4.0 speed, make sure your CPU and motherboard and PCIe SSDs are all PCIe 4.0 enabled.
  • To reach PCIe X8 full bandwidth, setup 2 x M.2 PCIe SSD into RAID 0 mode.
dual m.2 nvme adapter
M.2 SSDs Installation
  • M.2 SSD head tilted at 30 degree angle, inserted into Key M interface
  • The brass standoff snaps into the semi-circular position at the end of the M.2 SSD
  • Secure the brass standoff from the back with screw
image for this item
Packaging includes
  1. PA21
  2. 2 x M.2 screw and copper stand
  3. 8cm low-profile bracket
  4. Screws for bracket mounting to PC
  5. Screwdriver

Note: If the M.2 screw and copper stand are pre-installed in position 22110, you can remove it and install them in position 2280.

Products
M.2 PCIE Adapter PA09-HS
M.2 PCIE Adapter PA09-X1
M.2 PCIE Adapter PA09-SA
M.2 PCIE Adapter PA12-HS
M.2 PCIE Adapter PA20
M.2 PCIE Adapter PA40
Internal Interface PCI-Express 4.0 X4 PCI-Express 4.0 X1 SATA III PCI-Express 4.0 X4 + SATA III PCI-Express 3.0 X4 PCI-Express 3.0 X8
External Interface Key M Key M Key B Key M + Key B 2 x Key M 4 x Key M
1)Dual M. 2 PCIe 4.0 / 3.0
SSDAdapter: add 2 x M. 2 PCIe 4.0 / 3.0 SSD (NVMe/AHCI Key M) onto a single PCIe X8 add-on card, you can use 2 separate M. 2 PCIe SSD at the same time. Support Intel VROC and AMD Ryzen Threadripper NVMe RAID under PCIe Bifurcation Enabled Motherboard. 2)ASM1182e solution allow 2 x M. 2 PCIe 4.0 / 3.0 SSD obtain PCIE X8 bandwidth (8GB/s with PCIe 3.0 or 16GB/s with PCIe 4.0 ), but only under PCIe Bifurcation enabled motherboard.
Note: To reach PCIe 4.0 speed, make sure your CPU and motherboard and PCIe SSD are all PCIe 4.0 enabled. Otherwise, it would not be PCIe 4.0 speed. 3)Compatible with PCIe 4.0 / 3.0 / 2.0 motherboards, and install on PCIe X8/X16 slot. Low-profile bracket and regular-profile bracket are included, so work with 2U high workstations or servers with Windows, Linux, and mac OS. No driver installation is required.

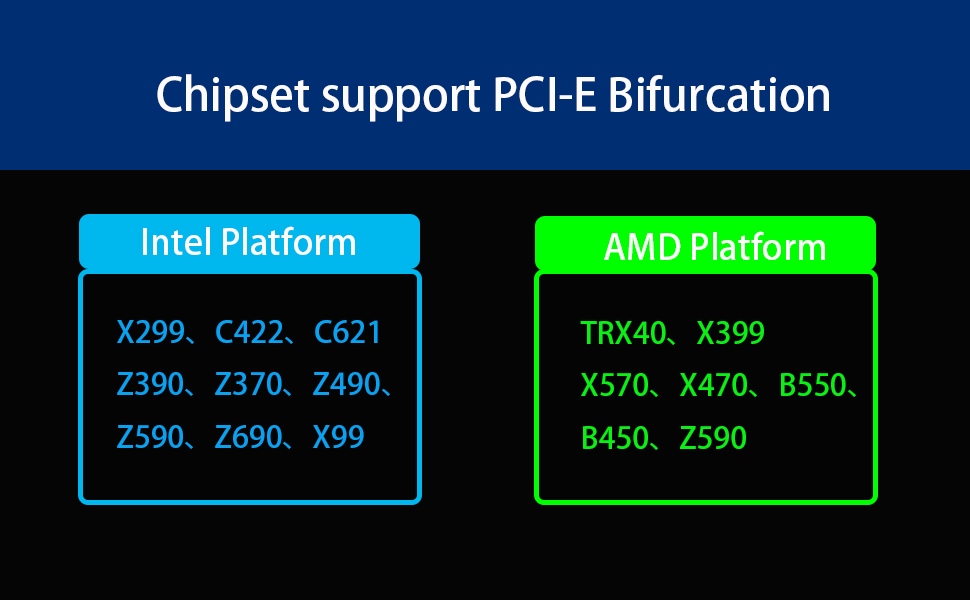

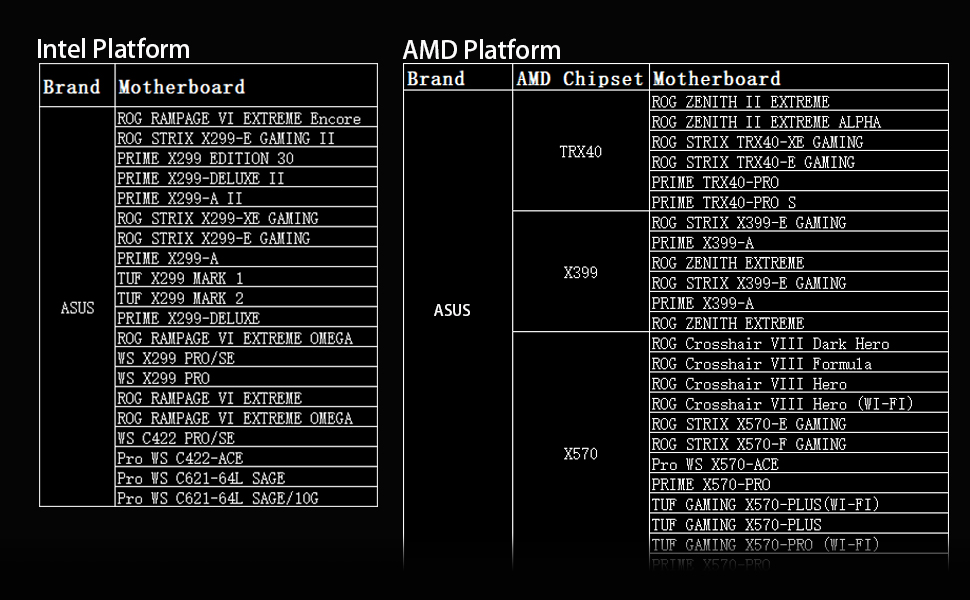

4)ChipsetsupportPCIeBifurcation: Intel Platform X299, C422, C621, Z390, Z370, Z490, Z590, Z690, X99;
AMDPlatform: TRX40, X399, X570, X470, B550, B450, Z590, etc. 5)To splitter PCIe in BIOS, setup X4X4 mode for X8 bandwidth allocation lane, or setup X4X4X4X4 or X4X4X8 mode for X16 bandwidth allocation lane.
Note: X8X4X4 mode will not work. 6)Applicable with 2230/2242/2260/2280/22110 size M. 2 PCIe SSD (Key-M), such us
Samsung: 980/ 970 PRO/ 970 EVO Plus/ 970 EVO; Intel Optane SSD P1600X Series, Intel SSD 6 Series;
WesternDigital: WD_BLACK SN750 SE, WD Blue SN550, WD Green SN350, etc.
Note: not support M. 2 SATA SSD (Key-B).
7)Note: Your motherboard BIOS must support M. 2 NVMe SSD, and support booting from PCIe in order to boot from M. 2 NVMe SSD on this M. 2 PCIe adapter.
