ASUS Hyper M.2 x16 Gen5 Card (PCIe 5.0/4.0) supports four NVMe M.2 (2242/2260/2280/22110) devices up to 512 Gbps for AMD and Intel® platform RAID functions.

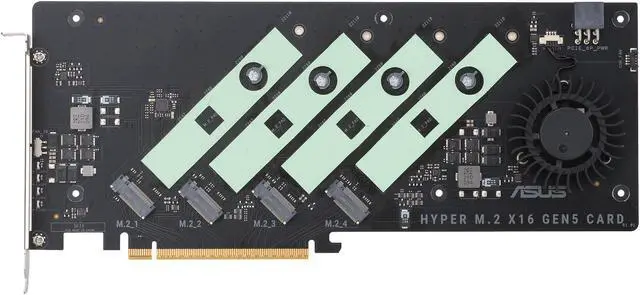

- Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers
- 1 x 6-pin PCIe Power connector and Two-phase power solution up to 14-watt output support the latest NVMe drives

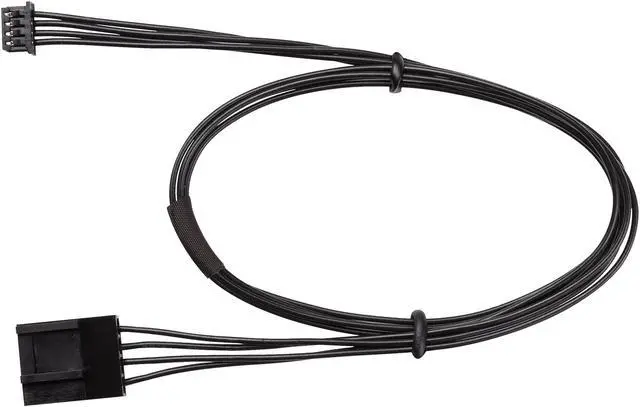

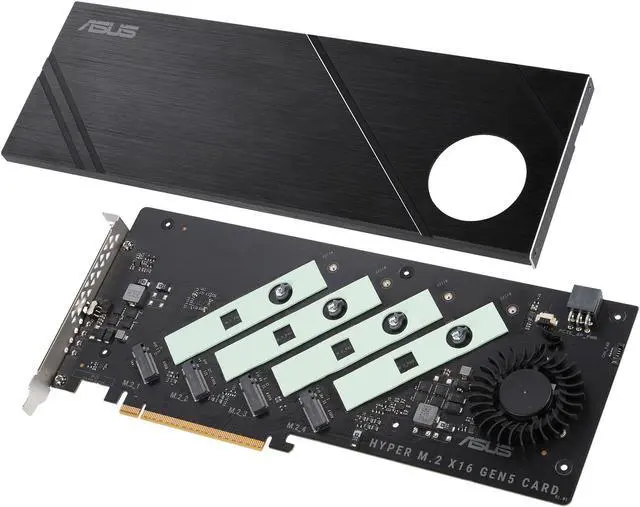

- Large heatsink, top and bottom thermal pad, and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability, extra fan cable support fan control from MB chassis fan header
- Support Raid functions across different platforms to create a bootable RAID array with up to four M.2 SSDs.
+
+
Specs
Reviews
Learn more about the ASUS Hyper M.2 x16 Gen5 Card
| Brand | Asus |
|---|---|
| Model | Hyper M.2 x16 Gen5 Card |
| Part Number | 90MC0CY0-M0AAY0 |
| Type | PCI Express to M.2 Card |
|---|---|
| Compatibility | Compatible Models: Visit www.asus.com for latest compatible model lists. Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information: https://www.asus.com/support/FAQ/1037507 |

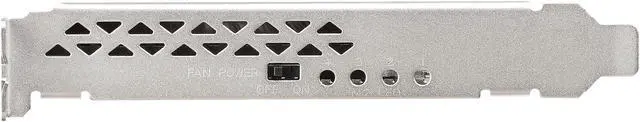

| Specifications | Interface: PCIe 5.0 x16 interface, support data transfer rates up to 512 Gbps. External Connectors: 4 x M.2 slots (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0)* * Supports PCIe M.2 storage devices only. LED & Switch: 1 x M.2 FAN Power Switch 4 x M.2 access LEDs Thermal Solution : Active fan with heatsink, support fan control from MB chassis fan header Dimensions: 29(L)*12.2(W) *1.5(H)cm Compatible Models: Visit www.asus.com for latest compatible model lists. Maximum numbers of M.2 SSD support will vary, depending on different CPU specs and PCIe bifurcation settings in different ASUS motherboards. Please see the FAQ link for further information: https://www.asus.com/support/FAQ/1037507 |

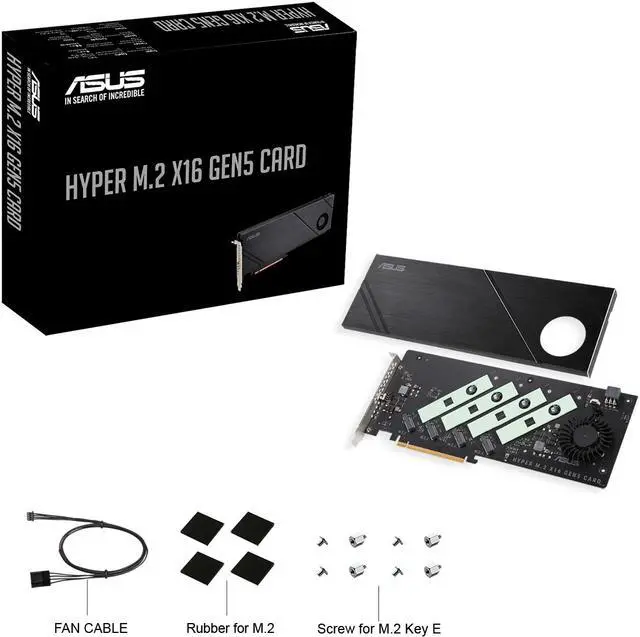

| Features | Adapted server-grade PCB supports up to four PCIe 5.0/4.0 M.2 drives, with up to 512 Gbps bandwidth for smooth data transfers 1 x 6-pin PCIe Power connector and Two-phase power solution up to 14-watt output support the latest NVMe drives Large heatsink, top and bottom thermal pad, and active fan reduces M.2 SSD temperatures for unthrottled transfer speeds and enhanced reliability, extra fan cable support fan control from MB chassis fan header Support Raid functions across different platforms to create a bootable RAID array with up to four M.2 SSDs. * M.2 SSDs are not in the package |
|---|
| Date First Available | April 04, 2025 |
|---|
