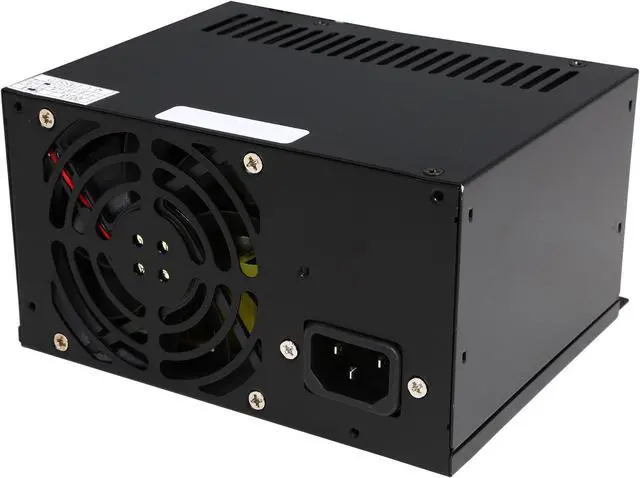

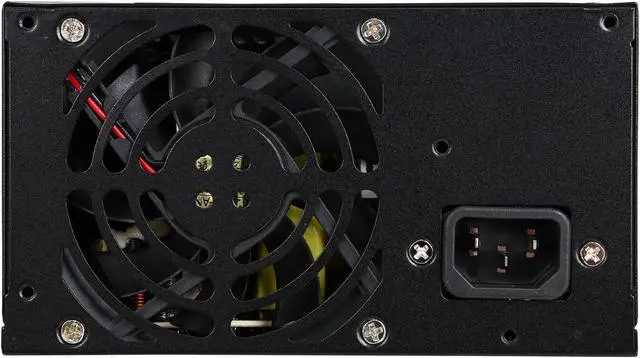

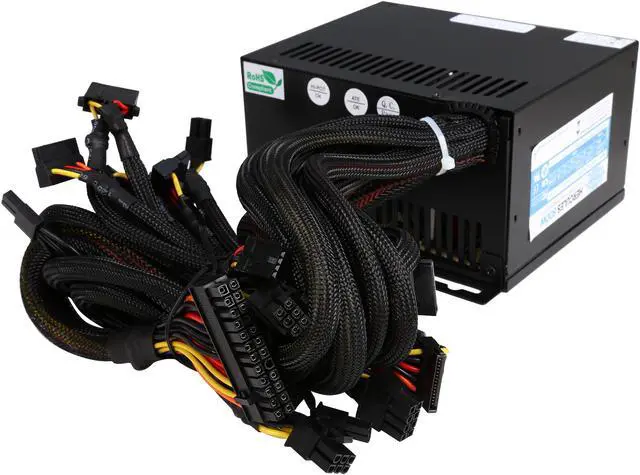

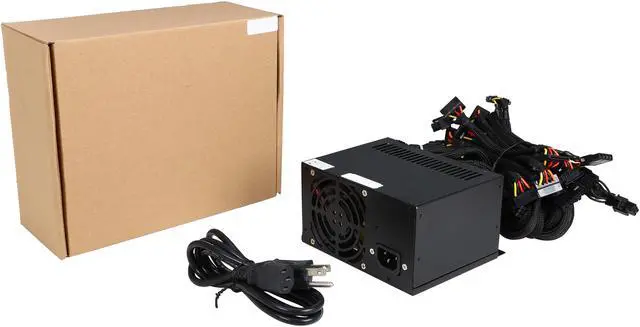

Athena Power AP-MPS3ATX80EP8 800W MicroPS3 (118mm Length)/PS2 Single EPS12V/ATX12V IPC Server Power Supply - 80PLUS Bronze - ActivePFC - OEM
- 800W

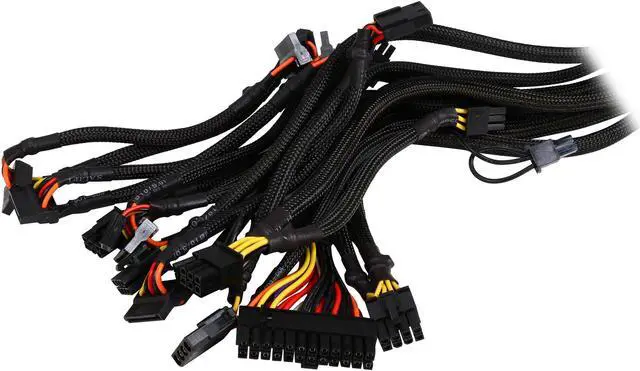

- ATX 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS12V 8 Pin x 2 PCIE 6 Pin x 2 PCIE 6+2 Pin x 2 SATA 15 Pin x 8 Molex 4 Pin x 2 Floppy 4 Pin x 1
- 80mm Exhaust x 1 Fans
+
+
Specs
Reviews (5)
Learn more about the Athena Power AP-MPS3ATX80EP8
| Brand | Athena Power |
|---|---|
| Series | Hercules Series |
| Model | AP-MPS3ATX80EP8 |
| Type | Micro PS3 |
|---|---|
| Maximum Power | 800W |
| Main Connector | ATX 24 (20+4) Pin x 1 P4-12V 4 Pin x 1 EPS12V 8 Pin x 2 PCIE 6 Pin x 2 PCIE 6+2 Pin x 2 SATA 15 Pin x 8 Molex 4 Pin x 2 Floppy 4 Pin x 1 |

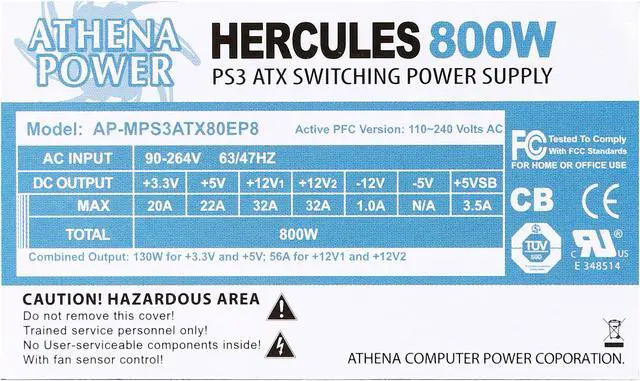

| Output | +3.3V@20A +5V@22A +12V1@32A +12V2@32A -5V@N/A [email protected] [email protected] |
| Input Voltage | 88 - 264 V |
| Input Frequency Range | 47 - 63 Hz |
| Fans | 80mm Exhaust x 1 |
| MTBF | 100,000 Hours on Maximum Load at +25 degree C |
| Hold-up Time | 17ms min. |
| Features | Rise time: Less than 20 ms |
|---|
| Dimensions | 3.30" x 5.90" x 4.65" (H x W x L) |
|---|---|
| Weight | 6.50 lbs. |
| Temperature | Operating: 0 degree C ~ +50 degree C on Full Load; Storage & Shipping: -20 degree C ~ +80 degree C |
|---|
| First Listed on Newegg | August 25, 2025 |
|---|
Warranty & Returns
Warranty, Returns, And Additional Information
Return Policies*
- Return for refund within: 30 days
- Return for replacement within: non-replaceable
- This item is covered by BTE Outlet Return Policy
- *Subject to applicable law
Warranty Notice:
This product does not include manufacturer warranty when purchased or used outside of its designated sales region. By purchasing internationally, you acknowledge that warranty support from the manufacturer will not be available.
