Main image of Brocade ICX7450-48P Managed Switch

Shop All Brocade Products | Visit Tech Trends Store

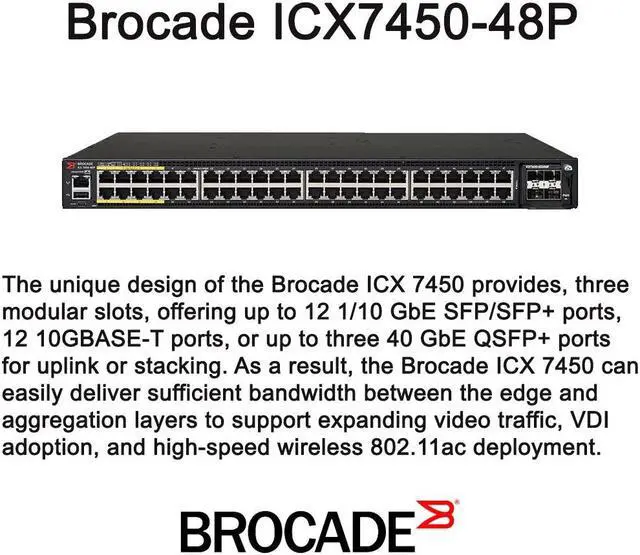

Brocade ICX7450-48P Managed Switch

32K MAC Address Table
Managed
PoE

Specs

Reviews

Learn more about the Brocade ICX7450-48P

Model
Brand	Brocade
Model	ICX7450-48P

Format & Standards
Format	Stackable
Standards	IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1v, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Network Management Type	Managed

Ports & Interface
Uplink Ports	auto-uplink
Primary Ports	48 x RJ45
Primary Port Speed	10/100/1000Mbps

Data Transmission
MAC Address Table	32K
VLAN Support	Yes
Jumbo Frames	9216 bytes

Details
Protocols	Routing Protocol: IGMPv2, IGMP, IGMPv3, static IPv4 routing, static IPv6 routing, ECMP, MLDv2, MLD Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 3, SNMP 2c, HTTPS, TFTP, CLI
Security	Encryption Algorithm: AES
PoE	Yes
Stackable	Yes
SNMP	SNMP 1, SNMP 3, SNMP 2c
QoS	Yes
LACP	Yes
Port Mirroring	Yes
Power	Installed Qty: 0 (installed) / 2 (max) Power Consumption: 106 Watt (operational) Power Device: Internal power supply - hot-plug Power Redundancy: Optional Power Redundancy Scheme: 1+1 (with optional power supply)

Features
Features	Flow control, BOOTP support, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, MAC address filtering, IPv6 support, High Availability, Link Fault Signaling (LFS), Metro Ring Protocol (MRP) support, sFlow, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Per-VLAN Spanning Tree (PVST), Remote Fault Notification (RFN), Virtual Switch Redundancy Protocol (VSRP) support, VLAN Stacking, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), Digital Optical Monitoring (DOM) support, DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), Per-VLAN Spanning Tree Plus (PVST+), STP Root Guard, Uni-Directional Link Detection (UDLD), IPv4 support, LACP support, DHCP relay, Port Security, Per-VLAN Rapid Spanning Tree (PVRST), port based access control, Energy Efficient Ethernet, Management Information Base (MIB), hot swappable fan, Strict Priority (SP), tagged VLAN, IGMP proxy, GARP VLAN Registration Protocol (GVRP), Type of Service (ToS), DiffServ Code Point (DSCP) support, MACsec support, power over HDBaseT (PoH) Performance Switching capacity: 336 Gbps Forwarding performance: 250 Mpps Stacking bandwidth: 160 Gbps Capacity Virtual interfaces (VLANs): 4096 Spanning Tree Protocol instances: 254 IPv4 routes: 16000 IPv6 routes: 3000 Expansion Slots: 3 (total) / 3 (free) x Expansion Slot Interfaces: 48 x 1000Base-T - RJ-45 - PoE+ - 30 W 1 x USB - Type A 1 x 1000Base-T - RJ-45 - management 1 x mini-USB - management

Dimensions & Weight
Dimensions	1.72" x 17.32" x 15.50"
Weight	15.87 lbs.

Environmental
Temperature	Operating temperature: -5 °C to 50 °C Storage temperature: -25 °C to 70 °C
Humidity	Operating: 5 - 95% (non-condensing) Storage: 0 - 95% (non-condensing)

Additional Information
First Listed on Newegg	July 26, 2021
