ETCR9100B Wireless H/L Voltage Clamp Current Meter AC 0.00mA~600A

ETCR9100B Wireless H/L Voltage Clamp Current Meter AC 0.00mA~600A
Notice:
  The standard package don't include batteries.Because,the international air shipping forbid to ship liquid,powder and batteries,we can not put them in the package box.Hope you can understand buy them in your local store or supermarket.
At the same time, please forgive us that we are unable to provide the English user manual. If you need it, please contact the customer service after purchase.
Thanks for your support!
Product Main Function
1. Measurement of H/L Voltage AC leakage curren, current.
2. Range:AC 0.00mA~600A
3. Wireless transmission: 30M
4. Data Storage: 99 Groups
5. Line voltage: below 60kV
6. CT size: F33mm
ETCR9100B wireless H/L voltage clamp current meter suitable for measuring H/L leakage current and current below 60KV, range: 0.00mA~600A, resolution: 0.01mA, CT size: F33mm, the current clamp adopts special alloy and magnetic shielding technology, with strong anti-interference ability, ensure the accuracy and stability of measurement. The meter with wireless transformission ( transformission distance 30M), data hold and data storage(99 groups) and other functions. It also can be used as the H/L voltage transformation ratio tester, to measure the high and low voltage current of the primary circuit and the secondary circuit respectively, and then manually calculate the the transformation ratio of high and low voltage.

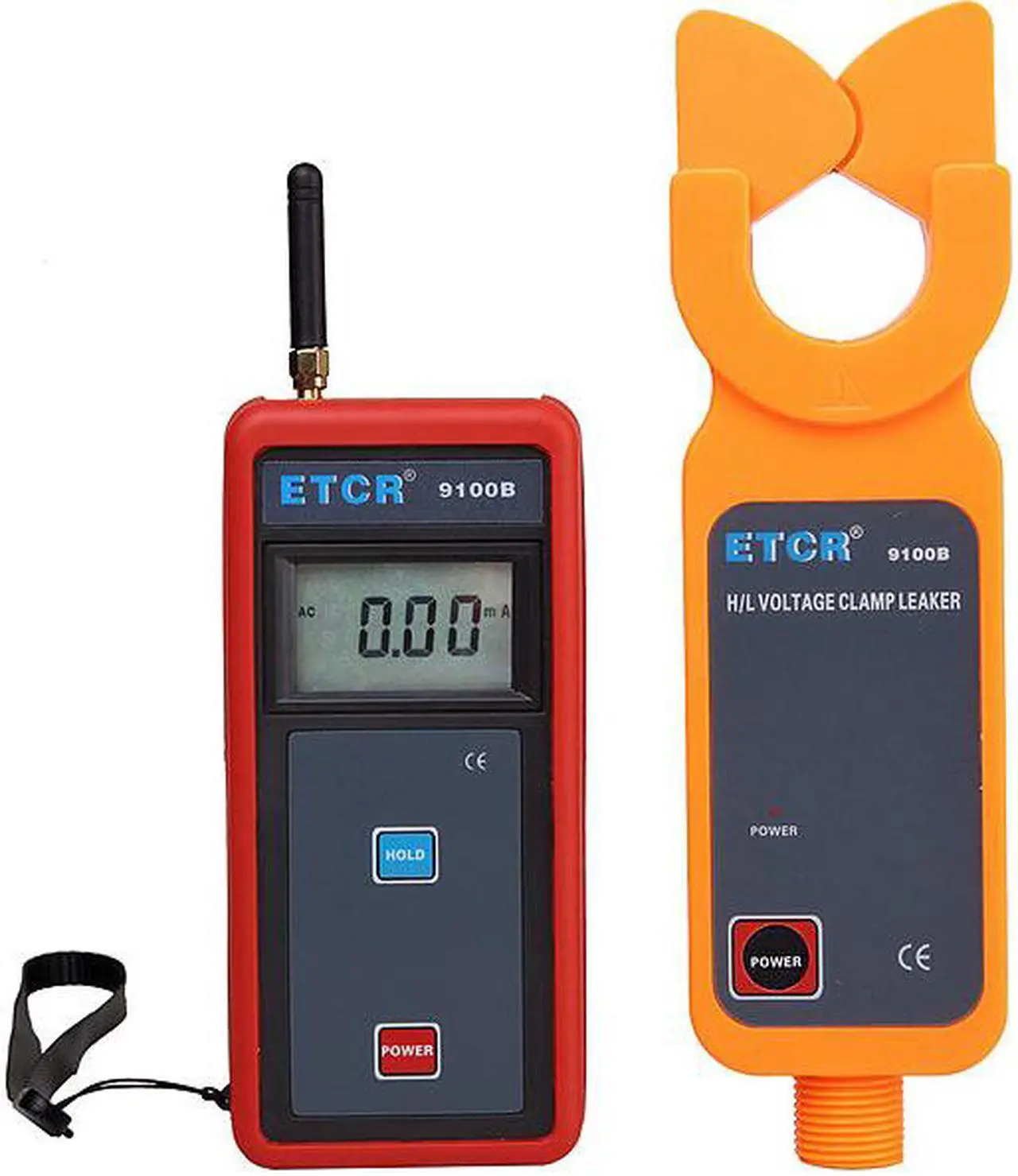

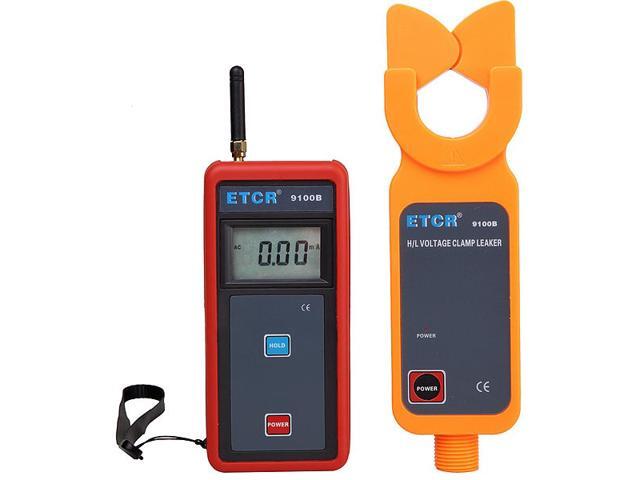

The Meter is composed of high voltage detector, wireless receiver and 5pcs high voltage insulation rods. The insulation rod is handiness, with moisture resistance, high temperature resistance, impact resistance, bending resistance, high insulation, and detachable and other features.
Technical Parameters
Function Description
 Function  H/L voltage AC leakage current, current online test, Zinc oxide arrester damp or aging online judgment, Indirect test of current transducer, load current test

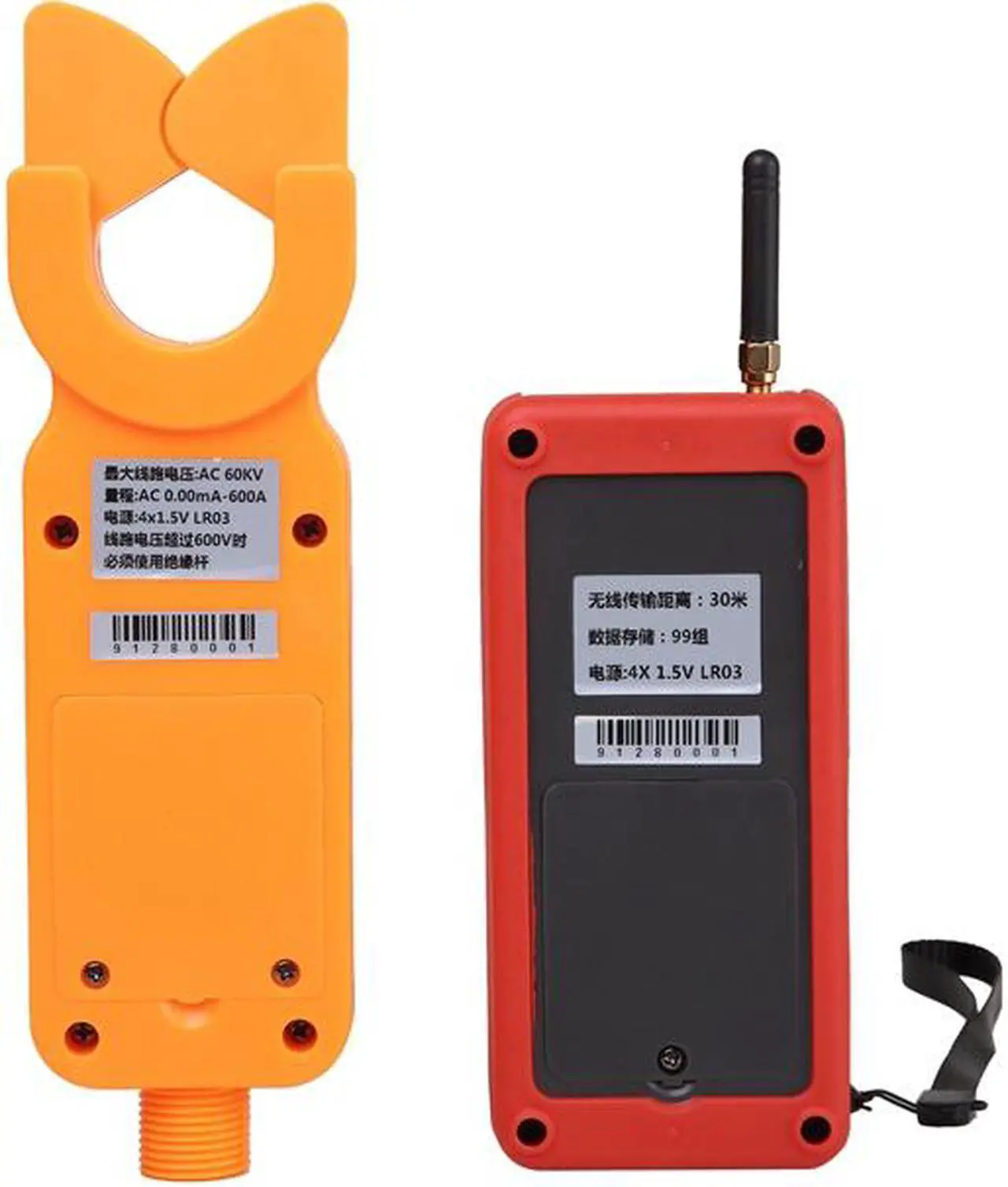

 Power Supply  DC 6V(1.5V AAAx4)
Test Mode  Clamp CT, integration method
Transmission Mode  433Hz wireless transmission, transmission distance 30M
Display Mode  4 digital LCD display, backlight function, suitable for dark place
LCD Size  47mm×28.5mm

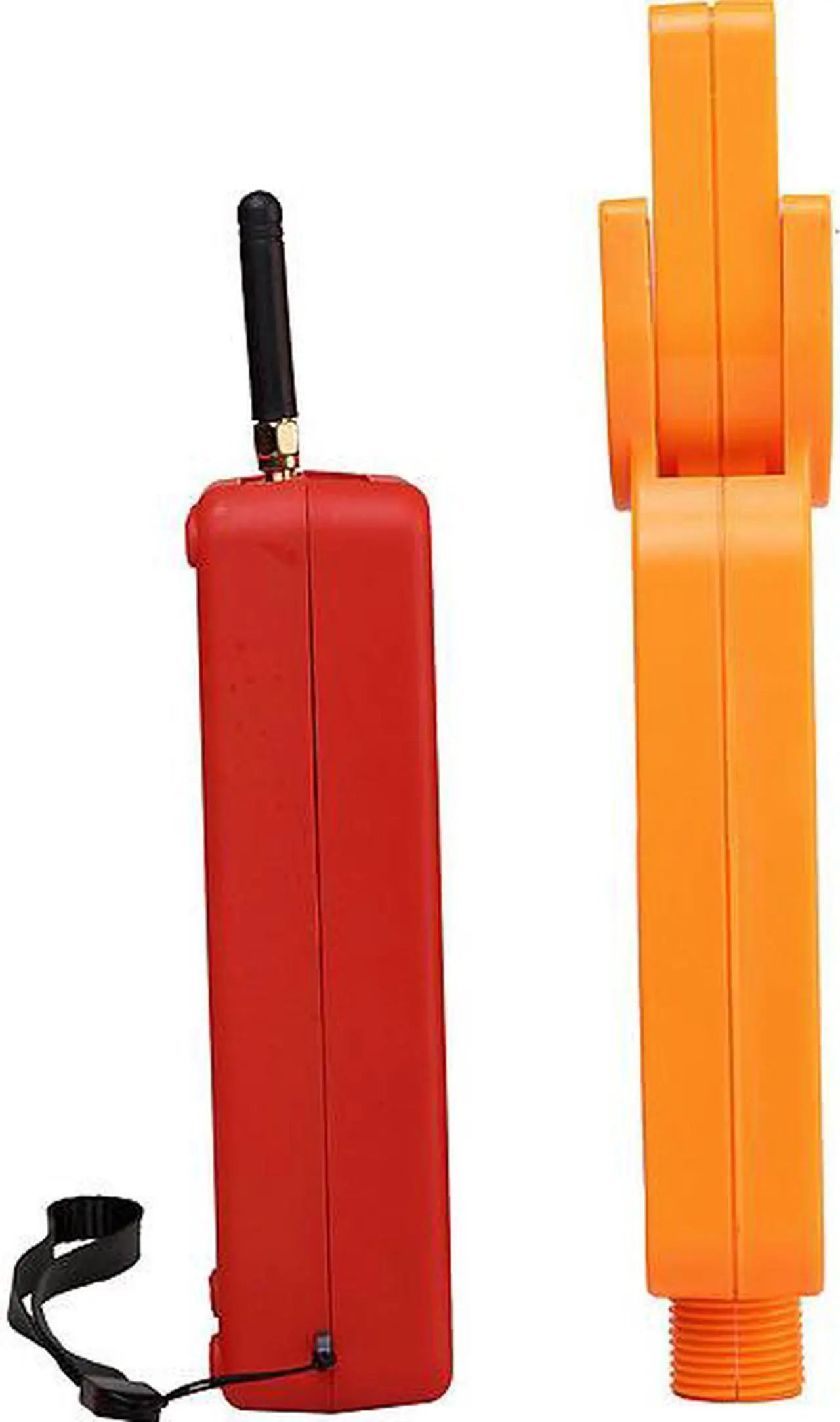

Meter Size  Detector: 68mm×245mm×40mm; Receiver: 78mm×165mm×42mm
CT Size  f33mm
Sampling Rate  2 times/second
Measurement Range  AC 0.00mA~600.0A
Current Frequency  50/60Hz automatic
Resolution  0.01mA
Shift  0.00mA~600.0A automatic
Test Accuracy
(23?±5?,below80%RH)  0.00mA~100A:    ±1%±5dgt
 101A~600A:        ±2%±5dgt
 Data Storage  99 groups, in storage process "MEM" symbol display, "FULL" symbol flashes display indicate storage full
 Line Voltage  Suitable for testing of the wire with insulation skin below 60kV, test of  bare wire below 35kV (operate with insulation rod)
 Data Hold  Press HOLD key to hold data in test mode, “HOLD” symbol display, press HOLD key once again cancel this function
 Data Access  "MR" symbol display, can look up all storage data
 Overflow Display  Exceed measure range overflow function: "OL A" symbol display
 No Signal Indication  When the receiver has not received transmit signal, dynamic display “no- -”symbol
 Auto Shut Down  15 minutes after boot up, the meter shuts down automatically without any operation, to reduce battery consumption
 Battery Voltage  When battery voltage is lower than 4.8V, low battery voltage symbol will display and remind to replace battery.
 Meter Weight  3630g (include insulation rod)
 Working Environment  -20?~40?;below 80%rh
 Store Environment  -20?~60?;below 70%rh
 Interference  No interference of 315MHz and 433MHz same frequency signals
 Insulation Rod Size  F32mm,1m/pcs(5pcs)
 Insulation Strength  AC110kV/rms(all 5PCS insulation rod connect, between the two ends)
 Structure Drip-proof II type
Related Series Model
Model Description Range Resolution Clamp Note
ETCR9000 H/L Voltage Clamp Current Meter 0mA~1200A 1mA F48mm Base type
ETCR9000B Wireless H/L Voltage Clamp Current Meter Wireless type
ETCR9020 H/L Clamp Leakage Current Meter 0.00mA~60.0A 0.01mA F48mm Base type
ETCR9020B Wireless H/L Clamp Leakage Current Meter Wireless type
ETCR9100 H/L Voltage Clamp Current Meter 0.00mA~600A 0.01mA F33mm Base type
ETCR9100B Wireless H/L Voltage Clamp Current Meter Wireless type

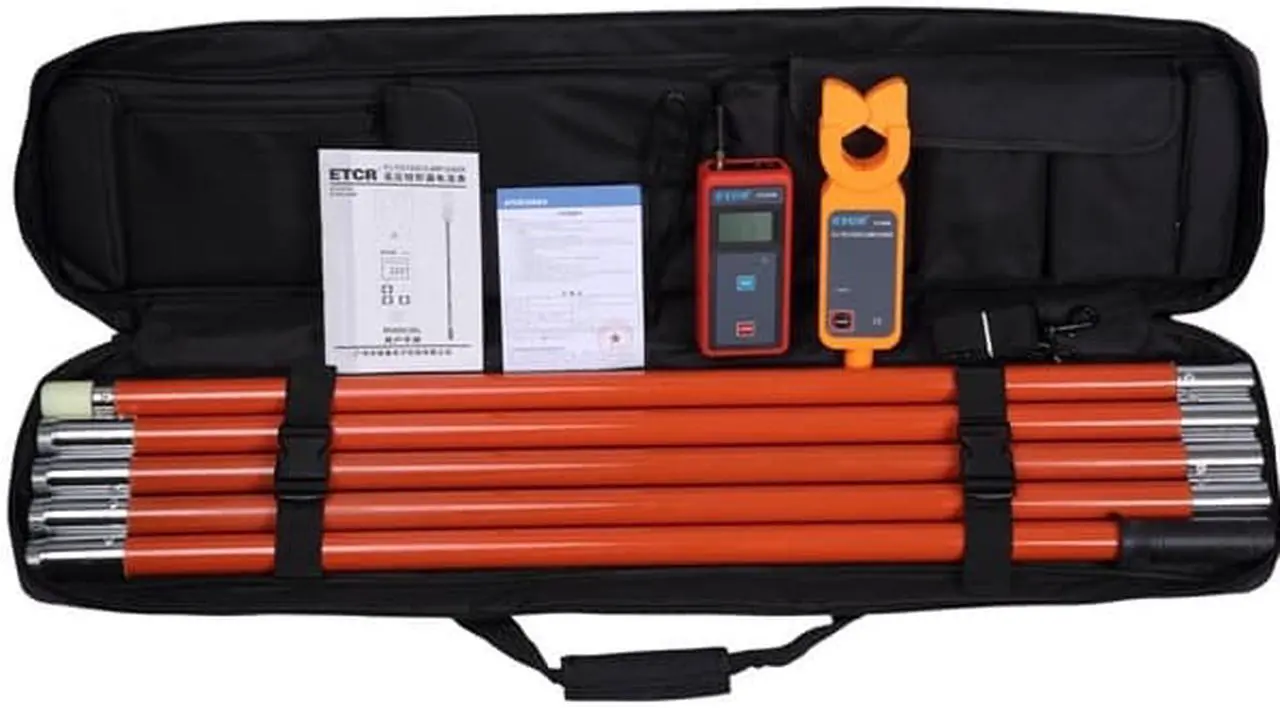

 Package  outer packing  Carton
 inner packing  Cloth bag
 Accessory  Meter  1 PCS
 Receiver  1 PCS
 Insulation rod(1M)  5 PCS
 Cloth bag  1 PCS
 Manual  1 PCS
 Certificate  1 PCS
 Warranty Card  1 PCS
