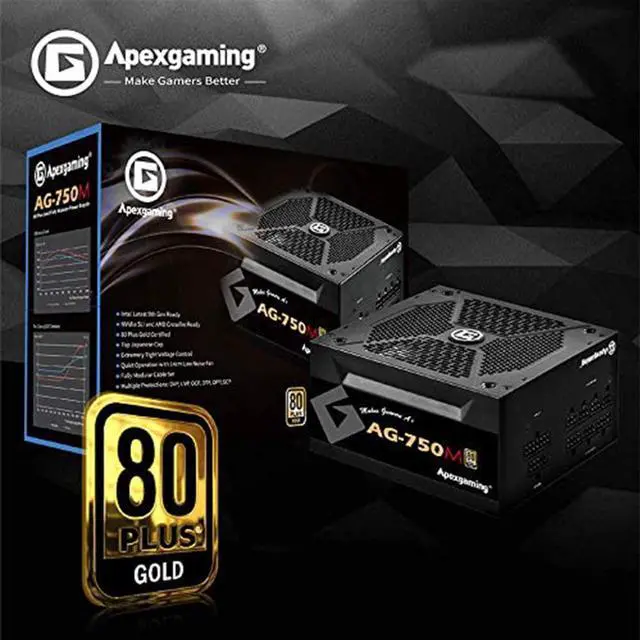

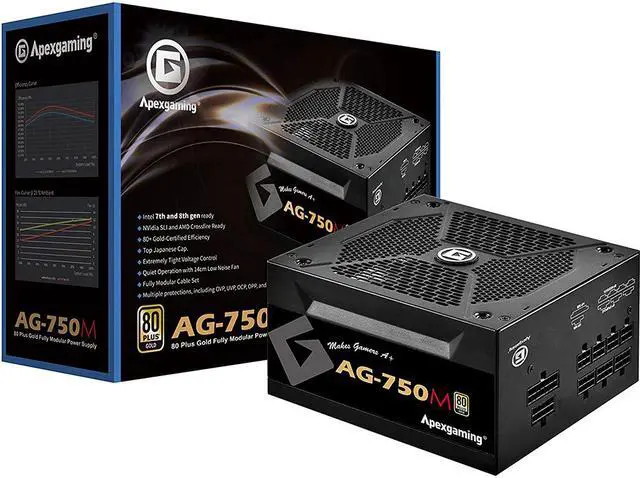

APEXGAMING Gaming Power Supply 80 Plus Certified, Active PFC, Ultra Silent Anti-Vibrating Fan (80 Plus Gold Certified, 750W Fully Modular PSU)
- 80 plus Gold certified- high efficiency operation and low operation cost

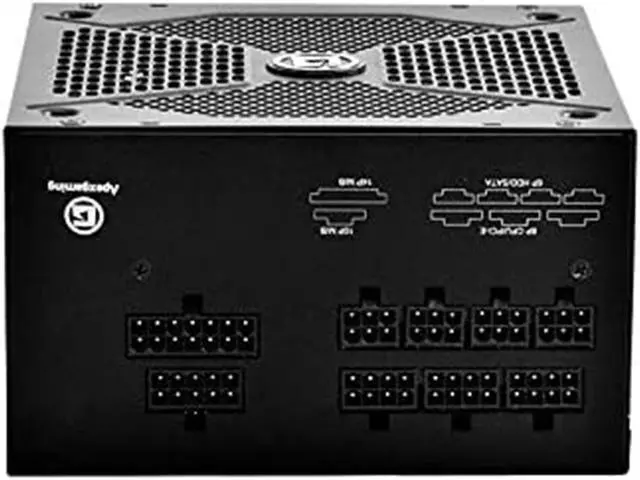

- Modular design- easy upgrade, clean look, better cooling
- Continuous power 750W/ peak power 950W- ultimate game performance
- Complete protection-ovp, OCP, OPP, UVP, SCP, OTP
- Please note This PSU is designed to only work while connected to a motherboard
- Connectors: 1 x (20+4) Pin ATX, 1 x 8pin(4+4) + 1x 4pin EPS (CPU), 4 x 8pin(6+2)PCIE, 8 x SATA, 4 x Four-Pin Peripheral, 1 x Floppy
+
+
Overview
Specs
Reviews
AG-750M
Continuous Power (W): 750
80 Plus Certification: Gold
ATX12V Version: 2.4
PES12V Version: 2.92
Technology: LLC+D2D
MTBF: 100,000 Hours
Fan Size: 140mm
Fan Type: Sleeve
Energy Star: Yes

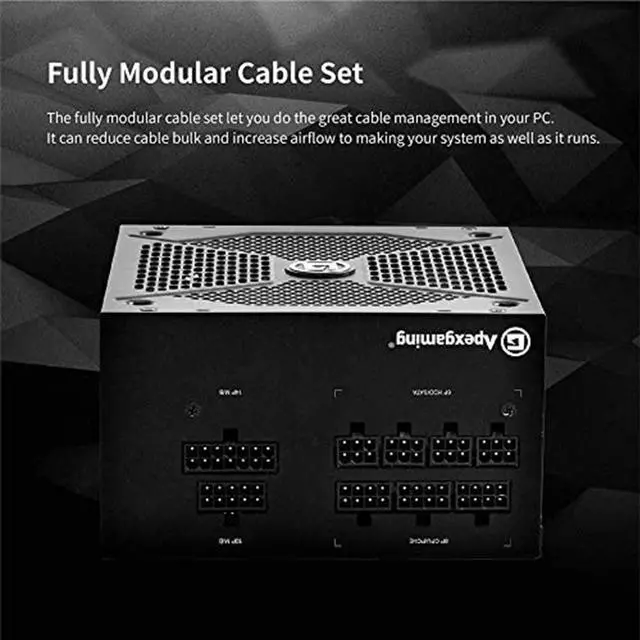

Fully Modular Cable Management
Multi-GPU Ready
Dimensions: 160x150x86mm
N.W.: 2.3kg / G.W.: 2.6kg
AC Input Specification
Input Voltage: 100 - 240V
Input Frequency: 47 - 63Hz
Input Current: 10 - 5A
PFC: Active PFC ( >0.95 typical )
Power Factor at 100% Load: 0.99
Intel C6/C7 Sleep State Compatible
Hold-up Time: 16ms 80% load
DC Output Specification
Ability to Toggle Single/Multiple +12V: Single
+12V (A): 62A
+12V (W): 744W
+3.3V (A): 25A
+5V (A): 25A
Max. Combined Power 3.3V + 5V (W): 150W
+5Vsb (A): 3A
-12V (A): 0.5A
Continuous Power (W): 750
80 Plus Certification: Gold
ATX12V Version: 2.4
PES12V Version: 2.92
Technology: LLC+D2D
MTBF: 100,000 Hours
Fan Size: 140mm
Fan Type: Sleeve
Energy Star: Yes
Fully Modular Cable Management
Multi-GPU Ready
Dimensions: 160x150x86mm
N.W.: 2.3kg / G.W.: 2.6kg
AC Input Specification
Input Voltage: 100 - 240V
Input Frequency: 47 - 63Hz
Input Current: 10 - 5A
PFC: Active PFC ( >0.95 typical )
Power Factor at 100% Load: 0.99
Intel C6/C7 Sleep State Compatible
Hold-up Time: 16ms 80% load
DC Output Specification
Ability to Toggle Single/Multiple +12V: Single
+12V (A): 62A
+12V (W): 744W
+3.3V (A): 25A
+5V (A): 25A
Max. Combined Power 3.3V + 5V (W): 150W
+5Vsb (A): 3A
-12V (A): 0.5A
