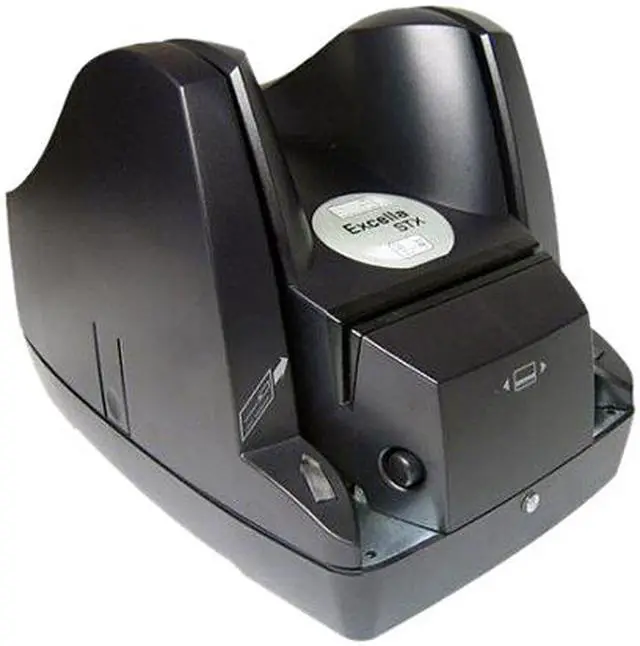

MagTek STX MICR/Magnetic Card Reader/Image Scanner (Front Printing and Color Images)

3-track integrated SCRA

Integrated MagneSafe™ secure card reader authenticator for magstripe cards.

Single feed

The Excella STX leads the industry in reliability and ease-of-use.

Single pass front and back

Featuring a front and back printer for franking and endorsing, Excella STX scans front and back images in a quick, single pass.

Small footprint

Also offers single-side scanning for standard ID cards and offers an optional color scanning feature.

Secured by the MagneSafe Security Architecture

MagneSafe™ is a digital identification and authentication architecture that safeguards consumers and their personal data. Designed to exceed PCI regulations, MagneSafe leverages strong encryption, secure tokenization, counterfeit detection, tamper recognition, data relevance and integrity, and dynamic digital transaction signatures, which together validate and protect the entire transaction and each of its components.

Standard Configurations

Interface	Front PRN	Back PRN	3 Track MSR MagnePrint®	Color Images	P/N
USB/Ethernet	Yes	Yes	Yes	Yes	22350001
USB/Ethernet	Yes	Yes	Yes	No	22350005
USB/Ethernet	No	Yes	Yes	No	22350009

General Information

Interface	USB 2.0 (USB 1.1 compatible) Ethernet 100Base-T Interfaces and API compatible with Excella
Color	Black
Dimensions	Height: 6.3 in Width: 6.3 in Length: 9.4 in
Weight	4.3 lb
Reference Standards	ANSI X9.100-120 (formerly known as X9.27) ANSI X9-100-160-1 & 2 (formerly known as X9.13)
Power Input	24 VDC, 2.5 Amps
Document Size	4"x 8.5" maximum
Check Scanning	Dual-sided
ID Card Scanning	Single-sided
Image Resolution	200 dpi (scaling to 100 dpi); Black/white and grayscale images (color images are offered as an option)
Image compression	CCITT G4 or JPEG
Printers (optional)	Front and Back
Printer Ink Cartridge	HP C6602A
Check Feed	Single-feed input
MICR fonts supported	E13-B CMC-7

Magnetic Stripe Reader

Reference Standards	ISO 7810 and ISO 7811/ AAMVA*
Message Format	ASCII
Card Speed	4 to 60 ips (10.1 to 152.4 cm/s)
