Werleo Thermal Imaging Camera Handheld Infrared Camera with Real-Time Thermal Image Infrared Image Resolution 60 x 60 - Temperature Measurement Range -20°C-300°C IR Infrared Thermal Imager

Highlights:

Widely used in many fields: This handheld thermal imaging camera is widely used in the medical, archaelogical, transport,agriculture and so on.

Surface temperature measuring and real time imaging funtions: This is thermal imager combines the functions of surface temperature measurement and real time thermal imaging,the traditional thermal imaging camera shall measure each component one by one,but this instrument does not need to, therefore,it helps to save your time,even the potential problems can be clearly displayed on the color screen which helps you quickly locate the central point to measure cursor and temperature.

Turning thermal image into visional image: To improve recognition, this product is equiped with a vision camera, based on practical requirements, it can turn thermal image into visional image, thermal image and visional image can be stored in dismountable memory card, adjust the images and store them in PC which are used to generate report for printing.

Portable design and easy to operate: It is easy to operate, after senconds it can be tested. is the optimun product for electrician and maintainers, it can quickly find out the problem area.




The following functions help to improve the accuracy and usability of product:
1. Adjustable radiation coefficient and reflection background compensation help to improve the accurancy of the measurement of semi-reflective surface.
2. The marking of hot spot and cold spot can help user to locate the hottest and coldest area of thermal imaging temperature.

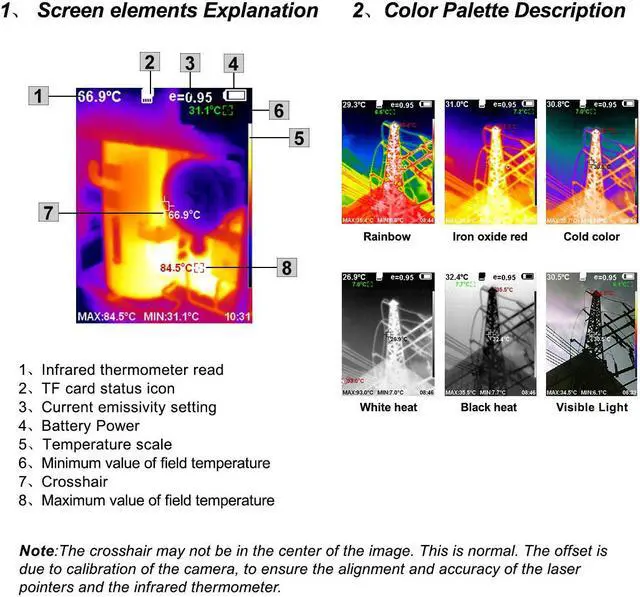

3. Options of color palette





Specifications:
Display: 2.4 inch color display thermal imaging camera
Resolution: 60 x 60
Total pixel: 3600
FOV/Shortest focal length:20°× 20°
Thermal sensitivity: 0.15 C
Measuring mode: Infrared focal plane measuring temperature
Temperature range: -20 C-300 C(-40 F-572 F)
Measuring accuracy: ±2 C
Wavelength range: 8-14µm
Image frequency: 8HZ
Emissivity: 0.1-1.0/Adjustable
Focus' mode: Fixed
Image storage: 4G SD card
File format: JPG
Palette: iron red, rainbow, rainbow high contrast, gray(white glow), gray(black glow)
Set control: Unit Adjustment/Language/Date Time Format/automatic shut down
Adapter voltage: DV 5V output
Operating temperature: 0 C-50 C
Storage temperature: -40 C-70 C
Humidity: <90%RH
Vibration: 2G, IEC60068-2-6
Drop resistance: 2m
Size: 230 × 80 × 52mm
Weight: 410g

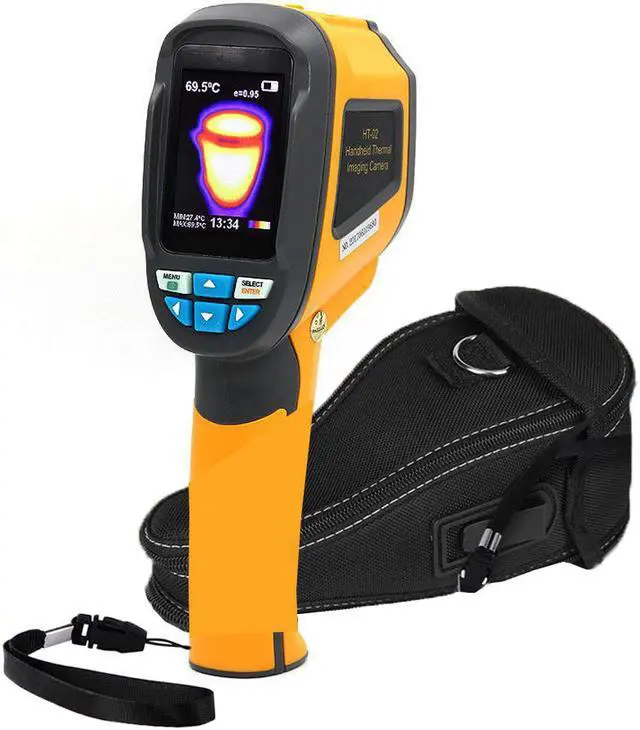

Package included:
1 x Handheld Thermograph Camera
1 x Portable Bag
4 x AA batteries
1 x English User Manual
1 x Gift Box
