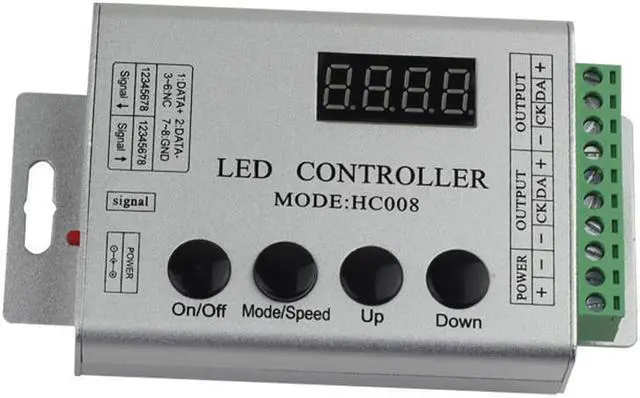

DC12V LED Strip Pixel Bar HC008 RF Controller For WS2812 WS2811 WS2801 LPD6803

Features:

Product Description Support IC type : TM16726,TM2801,TM8806,WS2811, WS2812
Supply voltage:DC5V , 12-24V available

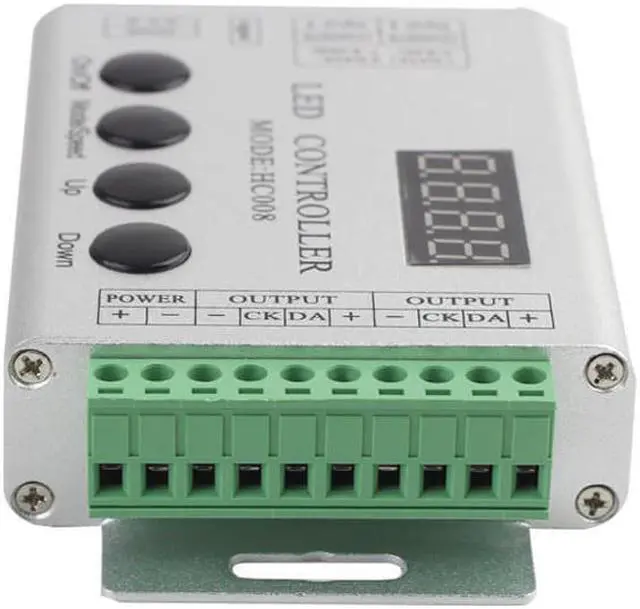

Output :Two group of SPI signal
Received frequency :433.92Mhz Rated power :2.2W Current:<60mA Effects model :133
Maximum control points :1024(Low-speed)points ,2048(High-speed) points
External dimension:L122*W71*H24mm
Working temperature :-20-60degree
Package include : 1PC controller +1PC remote controller+1PC user manual
Feature: It is widely used in advertising, stage sets, home decorations, etc. It has many advantages such as low price, easy connection and simplicity to use. It has a memory function. Meanwhile, you could adjust brightness, static color choices and various dynamic changes in lighting effects through wireless remote control. It can also be used as a synchronous controller. You can synchronously control numbers of decoders and LED lights.

product video please click link : youtu.be/fAGO_ULGC84 ( Copy the link to the browser)

??1

Specifications

1. Work temperature: -20~60 degree celsius

2. Product size: L130xW70xH25mm

3. Work voltage: DC5V / DC12~24V

4. Current: <60mA

5. Light Effects mode: 133kinds

6. Maximum load pixel: 1024 (Low-speed) pixels, 2048 (High-speed) pixels

7. The distance of the first lamp to controller: Low-speed mode<40m, High-speed mode<20m.

(When more than 5 meters,you should use the shielded to connect)

If it is more than the distance,you must add a 'TTL level to 485 level' module

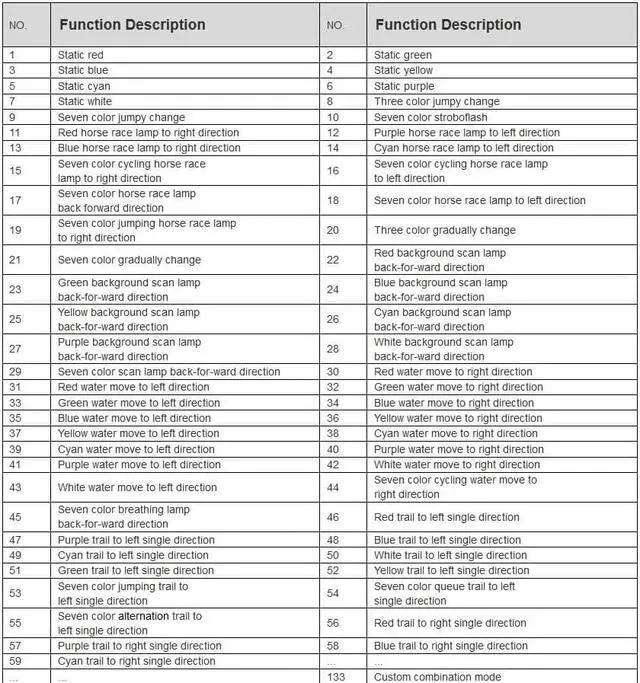

Program Mode (133modes select light effect)

Connection diagram

1. Single controller work connection mode

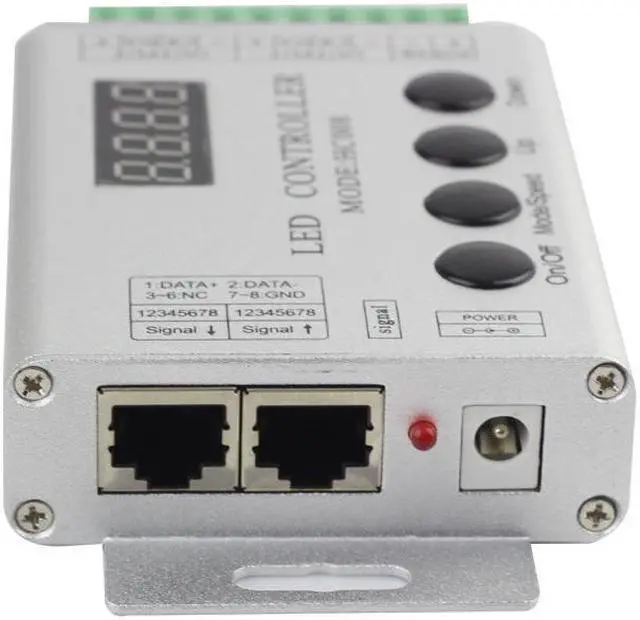

2. Many controllers synchronous work connection mode

Synchronous control system can be made of any number of controller connections.Each of the

sub-controller would follow to the first master controller to achieve a permanent synchronous.

Series Connection


Parellel Connection



Function of Button

1. ON/OFF: open or close work

2. UP: Mode + /Speed +

3. DOWN: Mode- /Speed-

4. Mode/Speed: Mode adjustment / speed adjustment

The first LED displays H for model adjustment,shows S for the speed adjustment
