Noctua NH-U9 DX-4189, Premium CPU Cooler for Intel Xeon LGA4189 (Brown)

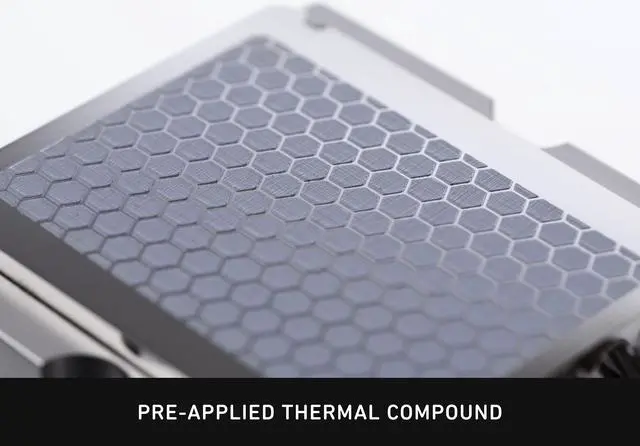

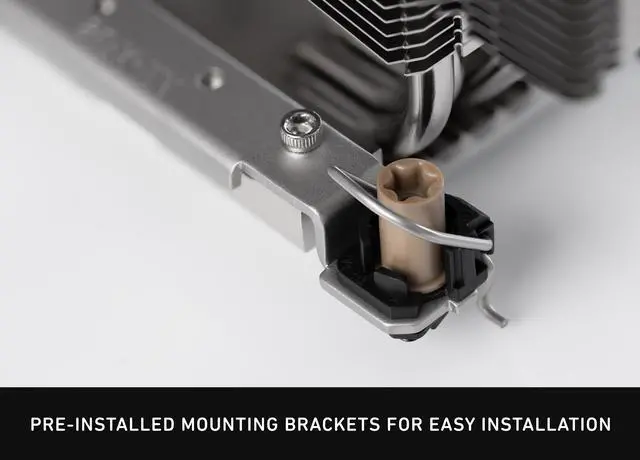

Noctuas DX line CPU coolers have become a default choice in premium grade quiet cooling solutions for Intel Xeon processors. The NH-U9 DX-4189 features a larger, custom-designed contact surface for LGA4189 platforms. Based on the proven, 92mm size NH-U9 heatsink and equipped with two of Noctuas award-winning, PWM controlled NF-A9 92mm fans, it combines strong performance with excellent compatibility for 4U systems and other space-restricted applications. The NH-U9s direction of airflow is perpendicular to the long axis of the LGA4189 socket, so it is ideal for workstation builds where the top PCIe slot must not be blocked and this orientation is required for having the cooler exhausts towards the I/O panel. Topped off with the professional SecuFirm2 mounting system and pre-applied NT-H1 thermal compound, the NH-U9 DX-4189 forms a complete premium quality package for quietly cooling LGA4189 based Xeon workstations and servers.


Please note that the NH-U9 DX-4189 4U is a dedicated version for the Intel LGA4189 socket. Due to its customised larger base, it cannot be used on most other sockets and is incompatible with Noctuas standard mounting kits.


The plastic CPU carrier frame supplied with the cooler is for LGA4189-4 (P4) only. LGA4189-5 (P5) systems use the same mounting mechanism systems but require a different CPU carrier frame. Please contact Noctua support if you would like to use the cooler on a LGA4189-5 (P5) type system.
