  5. Item#: N82E16833947089

UNAVAILABLE FOR AE Shipping Limitations
This item is currently out of stock and it may or may not be restocked.
UNAVAILABLE
Add to wish list
Sold by Newegg

Shipped by Newegg

Shop it at NeweggBusiness.
Shop All SonicWall Products

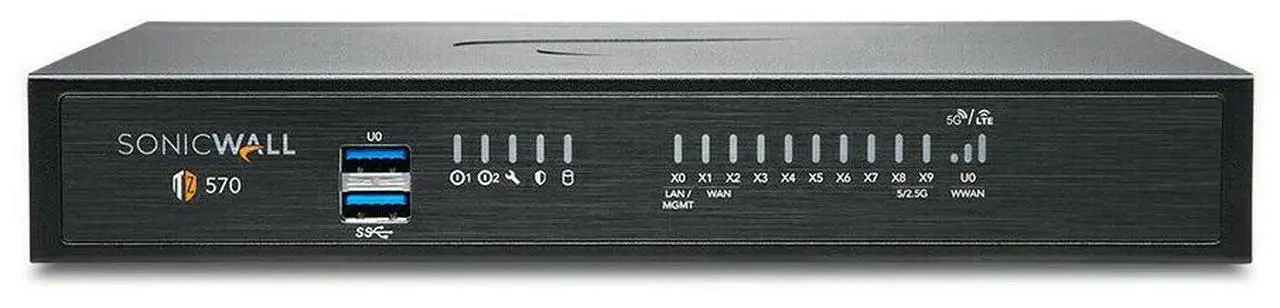

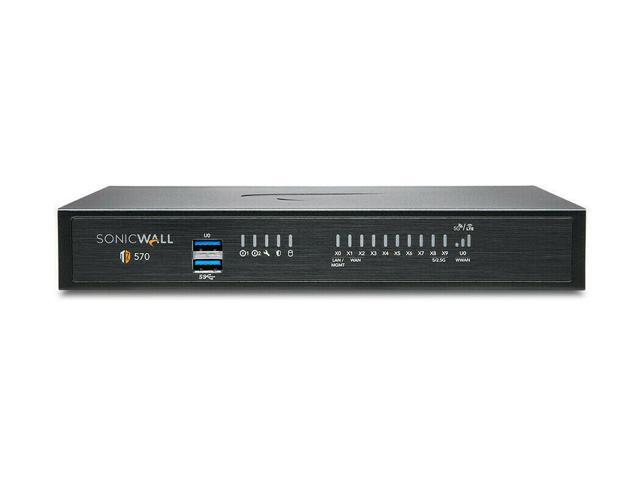

SonicWall TZ570 Firewall (Gen 7) w/ Secure Upgrade Plus (3-Year Advanced Protection Security Suite) and 1 Year CSE | 03-SSC-3018

Be the first to review this product...
  • Designed for small to mid-sized organizations and distributed enterprise with SD-Branch locations, the TZ570 series deliver industry-validated security effectiveness with best-in-class price-performance.
  • 3 Years of Advanced Protection Security Suite + 1 Year CSE included
  • Maximum Connections (SPI): 1,250,000
  • VPN Throughput: 1.8 Gbps
Specs
Reviews

Learn more about the Detailed Specifications

Model
Brand SonicWall
Series TZ 570
Part Number 02-SSC-5687
Details
Firewall Type Desktop Type
Type Others
Standard TCP/IP, UDP, ICMP, HTTP, HTTPS, IPSec, ISAKMP/IKE, SNMP, DHCP, PPPoE, L2TP, PPTP, RADIUS, IEEE 802.3
Simultaneous Sessions 125000
Throughput Firewall inspection throughput: 4.0 Gbps
Threat prevention throughput: 2.0 Gbps
Application inspection throughput: 2.5 Gbps
IPS throughput: 2.5 Gbps
Anti-malware inspection throughput: 2.0 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL): 875 Mbps
IPSec VPN throughput: 1.8 Gbps
Ports 8x1GbE, 2x5GbE, 2 USB 3.0
Security Security Services
Deep Packet Inspection services: Gateway Anti-Virus, Anti-Spyware, Intrusion Prevention, DPI SSL
Content Filtering Service (CFS): HTTP URL, HTTPS IP, keyword and content scanning, Comprehensive filtering based on file types such as ActiveX, Java, Cookies for privacy, allow/forbid lists
Comprehensive Anti-Spam Service
Application Visualization
Application Control
Capture Advanced Threat Protection
VPN Site-to-site VPN tunnels: 200
IPSec VPN clients (maximum:) 10 (500)
SSL VPN licenses (maximum): 2 (200)
Encryption/authentication: DES, 3DES, AES (128, 192, 256-bit)/MD5, SHA-1, Suite B Cryptography
Key exchange: Diffie Hellman Groups 1, 2, 5, 14v
Route-based VPN: RIP, OSPF, BGP
Certificate support: Verisign, Thawte, Cybertrust, RSA Keon, Entrust and Microsoft CA for SonicWall-to- SonicWall VPN, SCEP
VPN features: Dead Peer Detection, DHCP Over VPN, IPSec NAT Traversal, Redundant VPN Gateway, Route-based VPN
Global VPN client platforms supported: Microsoft®, Windows 10
NetExtender: Microsoft®, Windows 10, Linux
Mobile Connect: Apple® iOS, Mac OS X, Google® Android™, Kindle Fire, Chrome OS, Windows 10

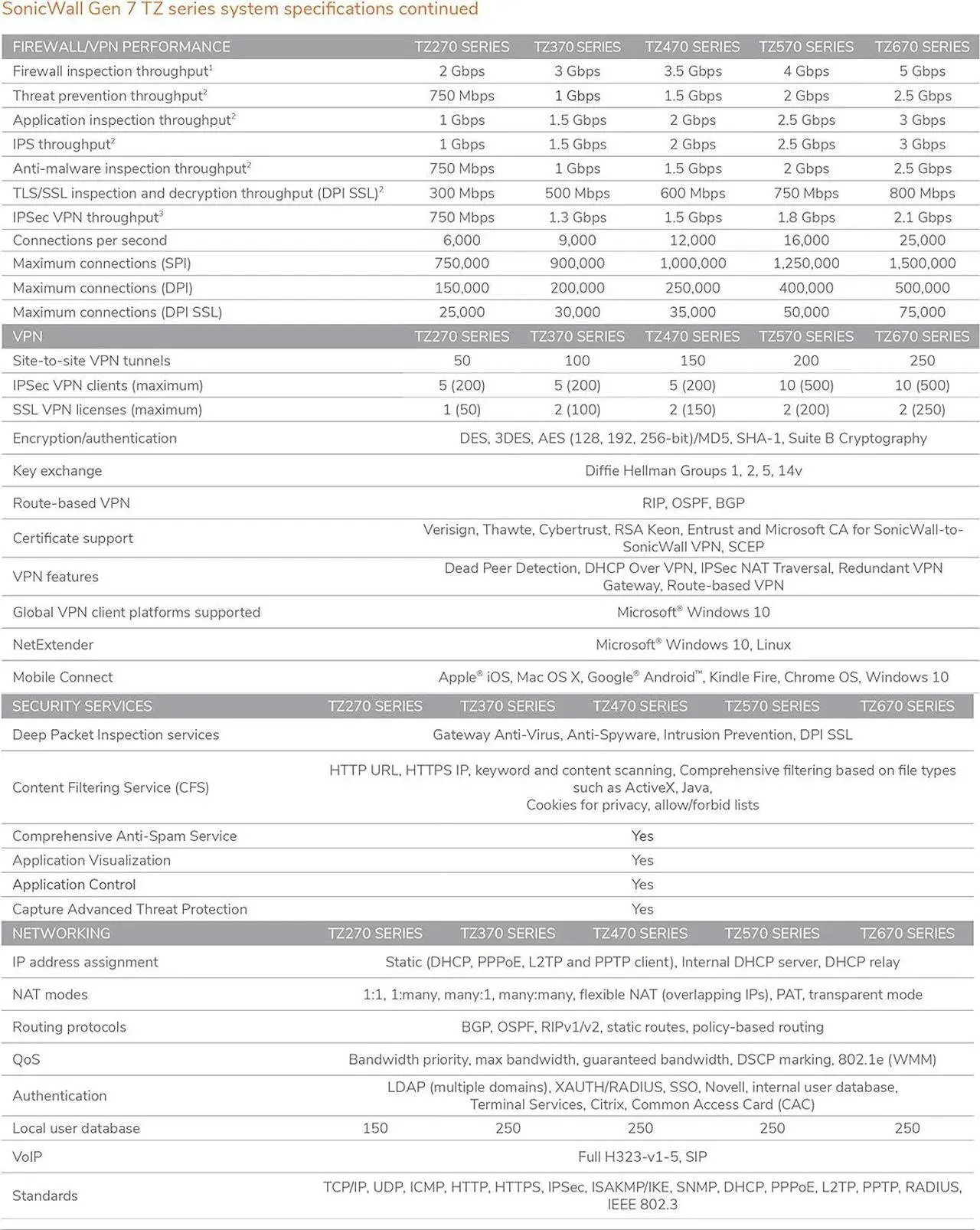

Firewall/VPN Performances
Firewall inspection throughput: 4 Gbps
Threat prevention throughput: 2 Gbps
Application inspection throughput: 2.5 Gbps
IPS throughput: 2.5 Gbps
Anti-malware inspection throughput: 2 Gbps
TLS/SSL inspection and decryption throughput (DPI SSL): 750 Mbps
IPSec VPN throughput: 1.8 Gbps
Connections per second: 16,000
Maximum connections (SPI): 1,250,000
Maximum connections (DPI): 400,000
Maximum connections (DPI SSL): 50,000
Power Input 100-240 VAC,
50-60 Hz

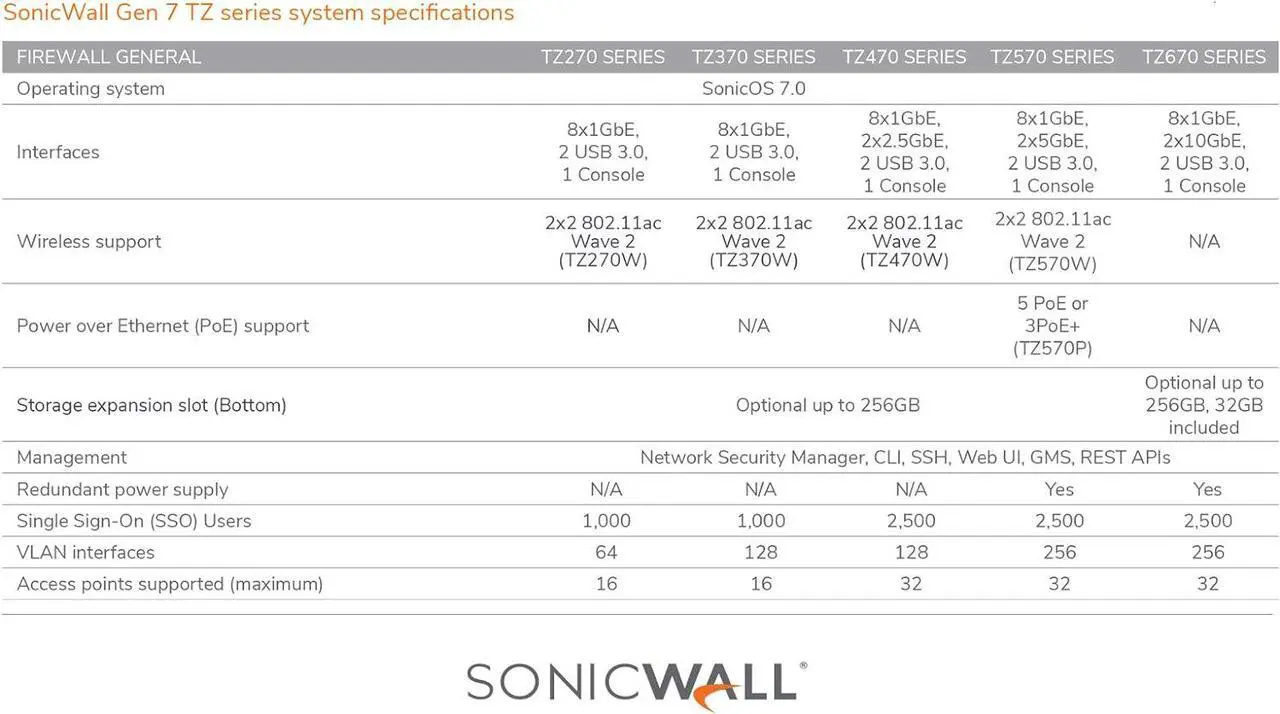

Features
Features Operating system: SonicOS 7.0

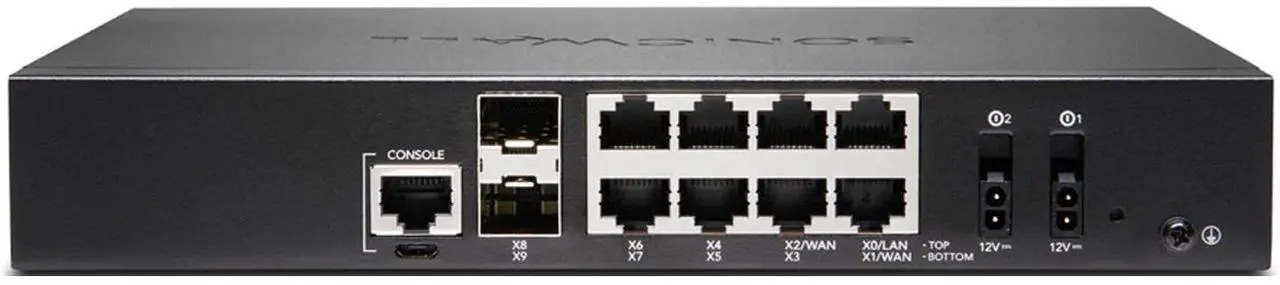

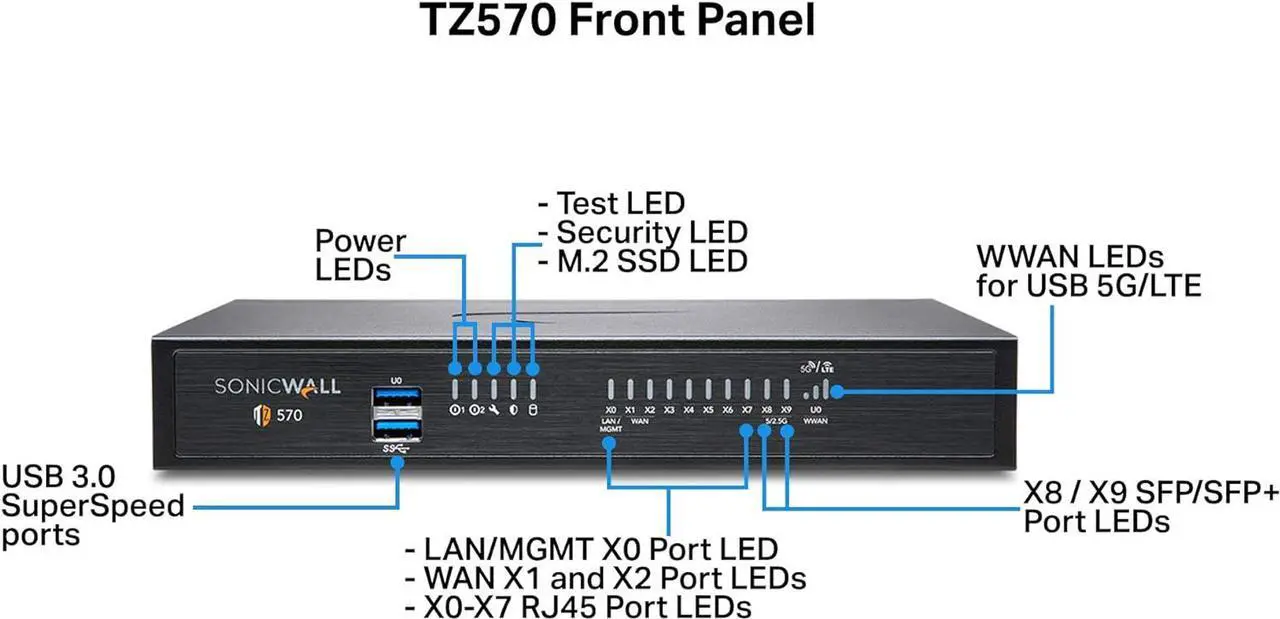

Interfaces 8x1GbE, 2x5GbE, 2 USB 3.0, 1 Console
Storage expansion slot (Bottom): Optional up to 256GB
Redundant power supply
Management: Network Security Manager, CLI, SSH, Web UI, GMS, REST APIs
Single Sign-On (SSO) Users: 2,500
VLAN interfaces: 256
Access points supported (maximum): 32


Networking
IP address assignment: Static (DHCP, PPPoE, L2TP and PPTP client), Internal DHCP server, DHCP relay
NAT modes: 1:1, 1:many, many:1, many:many, flexible NAT (overlapping IPs), PAT, transparent mode
Routing protocols: BGP, OSPF, RIPv1/v2, static routes, policy-based routing
QoS: Bandwidth priority, max bandwidth, guaranteed bandwidth, DSCP marking, 802.1e (WMM)
Authentication LDAP (multiple domains), XAUTH/RADIUS, SSO, Novell, internal user database, Terminal Services, Citrix, Common Access Card (CAC)
Local user database: 250
VoIP: Full H323-v1-5, SIP
High availability Active/Standby with stateful synchronization

Regulatory
FCC Class B, FCC, ICES Class B, CE (EMC, LVD, RoHS), C-Tick, VCCI Class B, UL/cUL, TUV GS, CB, Mexico DGN notice by UL, WEEE, REACH, BSMI, KCC/MSIP, ANATEL
Dimensions & Weight
Dimensions 3.5x15x22.5 (cm)
1.38x5.91x8.85 in
Weight 0.97 kg / 2.14 lbs
Additional Information
Date First Available April 03, 2025
