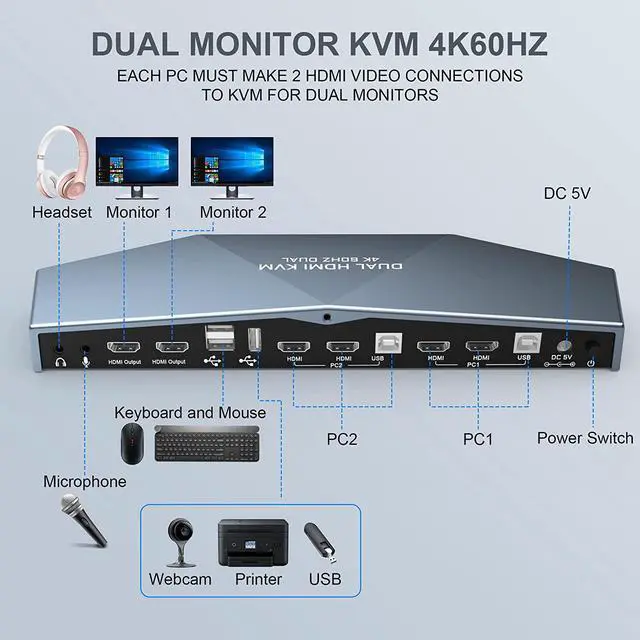

EACH PC MUST MAKE 2 VIDEO CONNECTIONS FOR DUAL MONITORS
- This 2 computer KVM switch allows you to share one set of keyboard, two video monitors, and mouse with two PC's.
- Dual monitors output support extended and mirrored display. The dual monitor displays are from a same input source selected, it does not support computer 1 on monitor A, computer 2 on monitor B.
- Support front panel switch buttons and external remote control switch button to control this Dual Monitor HDMI KVM switch.
- Support wired or wireless keyboard and mouse. Allow you to quickly switch to the mode you need anytime and anywhere during the work, improve your work efficiency.

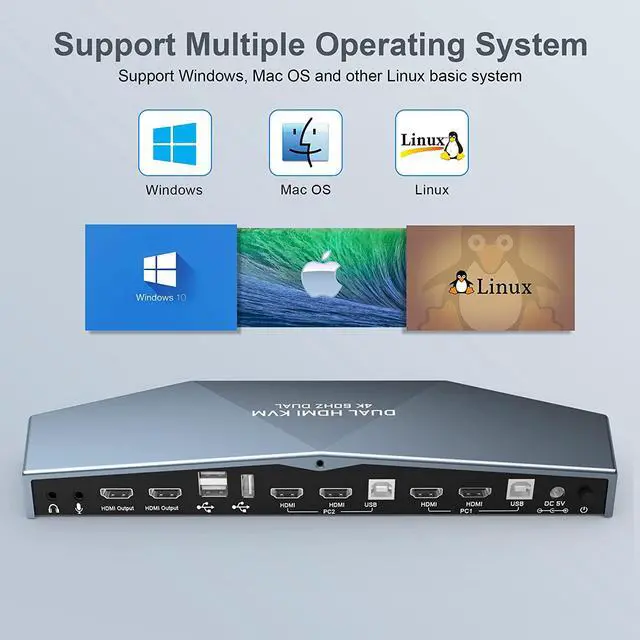

- Does not require software or drivers and works with Windows, MacOS, Linux, etc.
6. With extra 3 USB 2.0 port , by using USB 2.0 hub ports on the KVM, you even can attach USB drive, printer, barcode scanner or other USB devices to the KVM.
7. HDMI 2.0 supports 4K (3840 x 2160 @ 60hz) resolution. downward compatible. If monitor is not displaying properly, try reduce resolution.
8. Automatically adapt to EDID/HDCP, which can keep PCs always having correct display information.
9. Supports separate audio and microphone output.
- Use HDMI cable and USB-B cable to connect the computerand PC1 and PC2 realizes two-in and two-out connection.
- Use DC 5V 2A auxiliary power to connect the switch and turn on the power switch.
- Use the 2 HDMI cables to connect 2 monitors and the 2 HDMI output interface of the switcher.
- Use the switch button to switch the input computer.

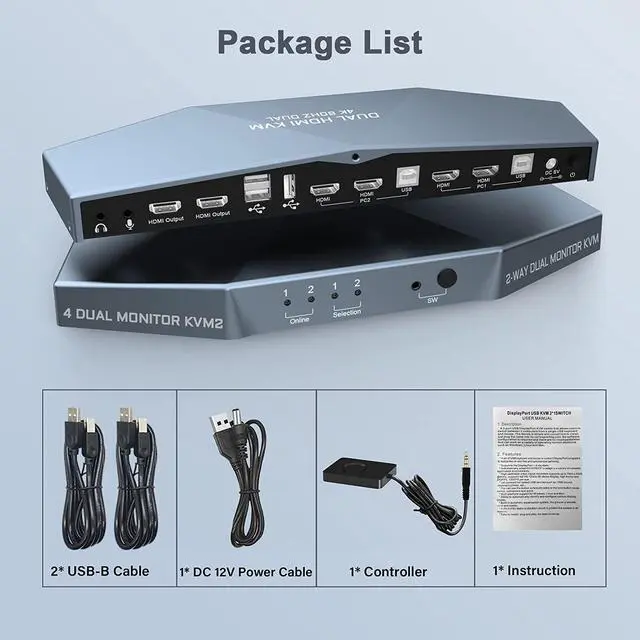

What's in the Package:
- Dual Monitor KVM Switch x1
- USB-B to USB-A Cables x2
- DC Cables x1
- Remote control cable x1
- User Manual x1

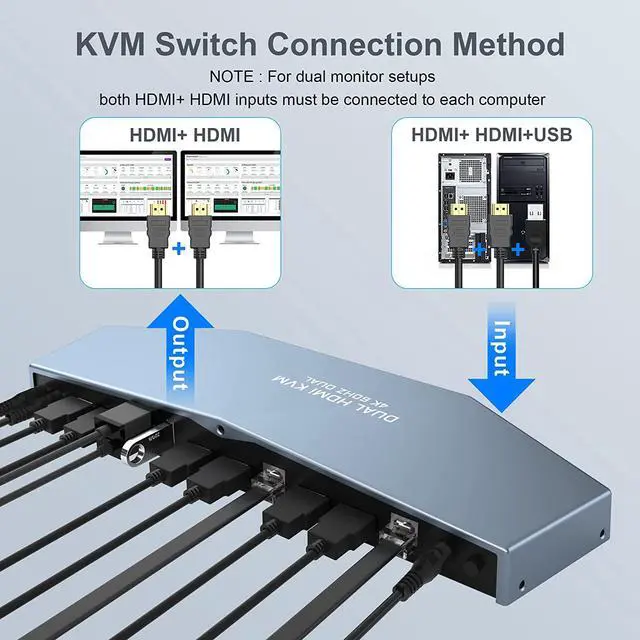

- Each computer must connect 2 HDMI cable and 1 USB A / B cable to ensure keyboard, mouse and monitor to work correctly.
- The 2 HDMI port is used to connect the second video output of the same computer, so that the monitor can display correctly (extended display)
Ultra HD 4K Brings you Better Definition and Clarity, Makes Images that Look Life-like, this KVM Switch is equipped with top grade image sensor
Supports Connecting your USB 2.0 port device such as Mouse/Keyboard/Scanner/USB driver/3D Printer/Monitor Camera.

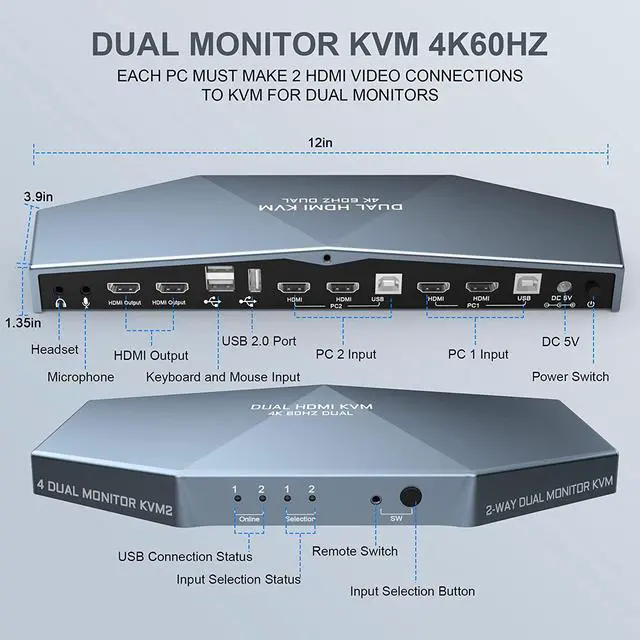

- Front panel buttons
- Button Extension Cable
- Not Support hotkey switching
- This 2 Port Dual Monitor KVM Switch does NOT support hotkey switching.
- Use powered USB hub to expand the USB2.0 port if multiple connections are needed.
- Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 HDMI cables connect to the KVM.
- If dual Monitor KVM Switch is normal working, then thereis a sudden failure, please unplug all the cables and plug again.
- Please feel free to contect us when encountering problems during the usage. We will provid you guidance and assistance as soon as we receive your message.
