Introduction

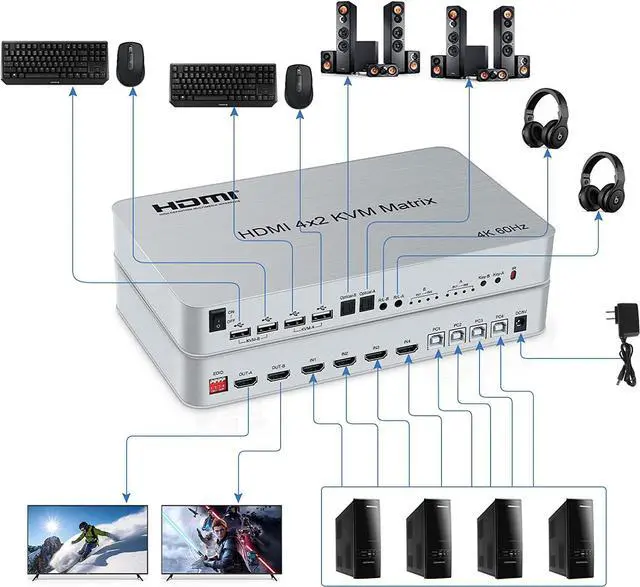

- The HDMI 4x2 KVM matrix can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output.
- Two sets of mouse and keyboard can control devices on 4 PC ports at will.
- The matrix allows four HDMI devices to be switched or split easily to two HDMI compatible monitors or projectors.
- And any output ports can realize independent audio output by optical fiber or stereo headphone.
Application scenarios
- Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

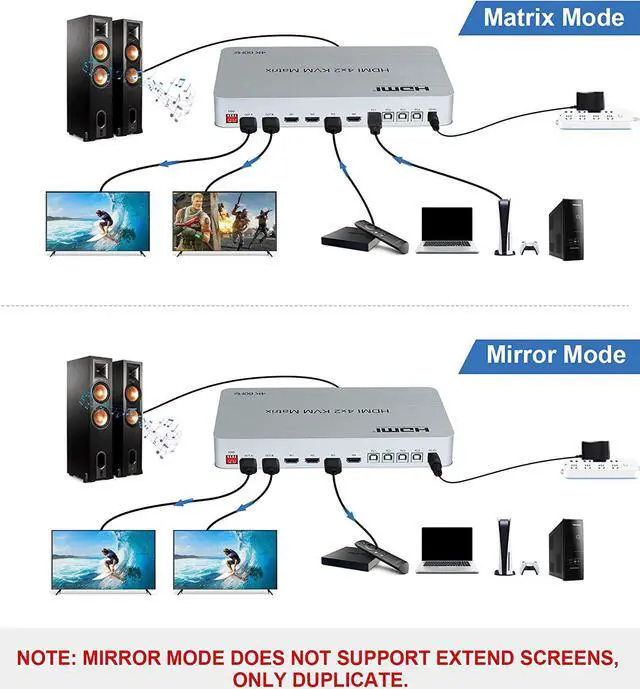

Copy the picture from any of the four input sources to two monitors or TVs
NOTE: MIRROR MODE DOES NOT SUPPORT EXTEND SCREENS, ONLY DUPLICATE.
Choose two of the four input sources to display their own picture
Specifications
| HDMI Version | HDMI 2.0 |
|---|---|
| HDCP Version | HDCP 2.2 |
| INPUT | 4 HDMI Female Port |
| OUTPUT | Two HDMI Female Port |
| Audio Extract Format | LPCM/Dolby/DTS 5.1 channel, optical and L/R audio out. |
| 3 Switching Modes | IR remote control, button, keyboard hotkeys. |
| KVM Port | 4 USB 2.0 port (two sets of keyboard and mouse) |

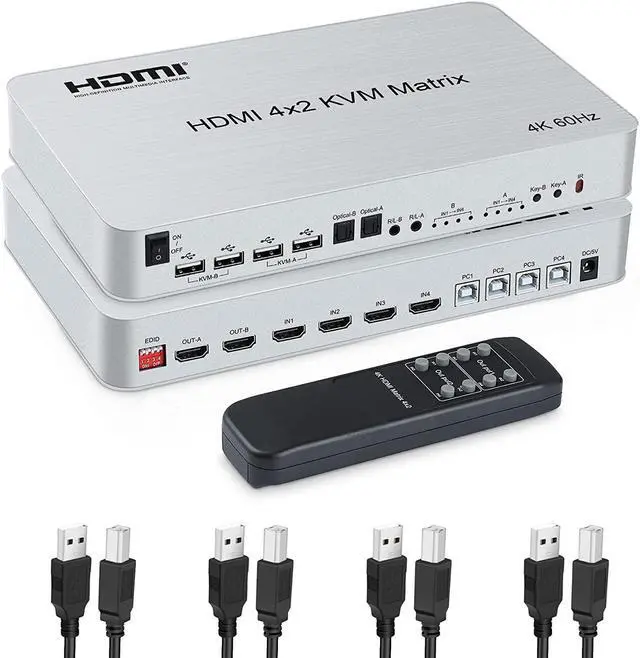

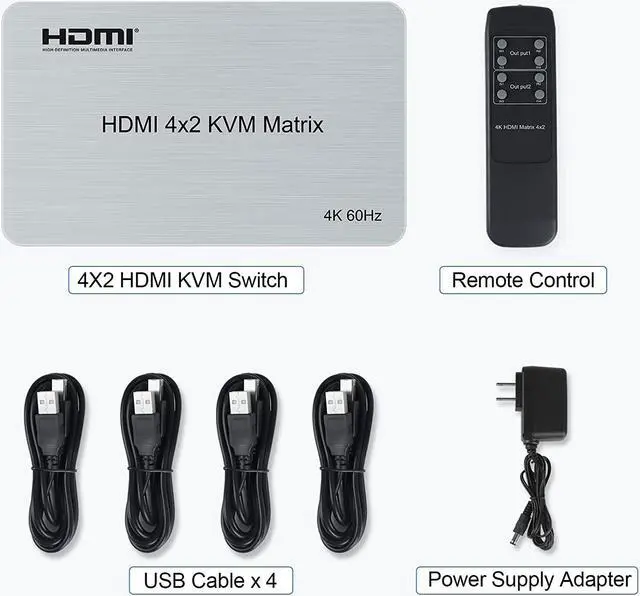

| Package contents: | 1 X HDMI KVM matrix; 1 X Remote control (without battery), 1 X 5V Power Adapter, 4 X USB Cable |

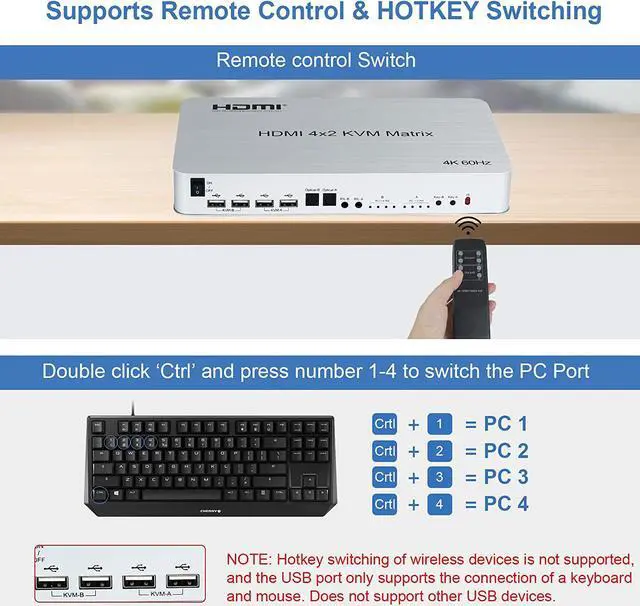

Keyboard Hotkey Switch
- Double click ' Ctrl ' and press number 1-4 to switch the PC Port.
- For example, output PC3 on the HDMI B, operation as follows: keyboard and mouse insert to the B - > double click Ctrl - > press the number 3, then it will switch to the PC3 port.
- NOTE: Hotkey switching of wireless devices is not supported.
IR Remote Control Switch
- The four buttons on Output 1 is the corresponding input source IN1-IN4 which out from Output A,IN1-IN4 can be switched freely.
- The four buttons on Output 2 is the corresponding input source IN1-IN4 which out from Output B, IN1-IN4 can be switched freely.
One Button Switch
- Switch (A or B) button is use for switch the input signal sources.
- Two sets of mouse and keyboard can control devices on 4 PC ports at will.
