- 2 computers share a wired/wireless keyboard, mouse and two monitors.
- Dual monitor output supports extended and mirrored display.
- Switching mode: push-button switch and wired remote control.
- Supports wired or wireless keyboard and mouse.
- Supports USB3.0 devices.

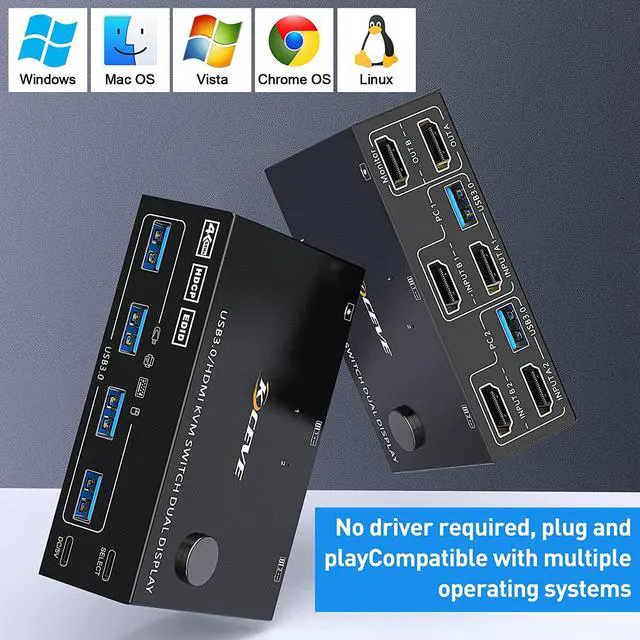

- Cross support for most major operating systems, including Windows, Linux, and Mac
- Four USB 3.0 ports.
- Support the highest resolution 4K@60Hz,1440P@60Hz, downward compatible.
- Supports HDMI 2.0 and is compatible with HDMI 1.4.
- If multiple connections are required, the USB hub can be expanded to a USB3.0 port.
- Support 4K@60Hz, 2K@120Hz,3440x1440@60Hz and backward compatible with lower resolutions.
Installation Guide Precautions (Incorrect connection may cause faults):
Each computer must be connected with 2 HDMI cables and 1 USB A/A cable to keep the keyboard, mouse, and monitor working properly.

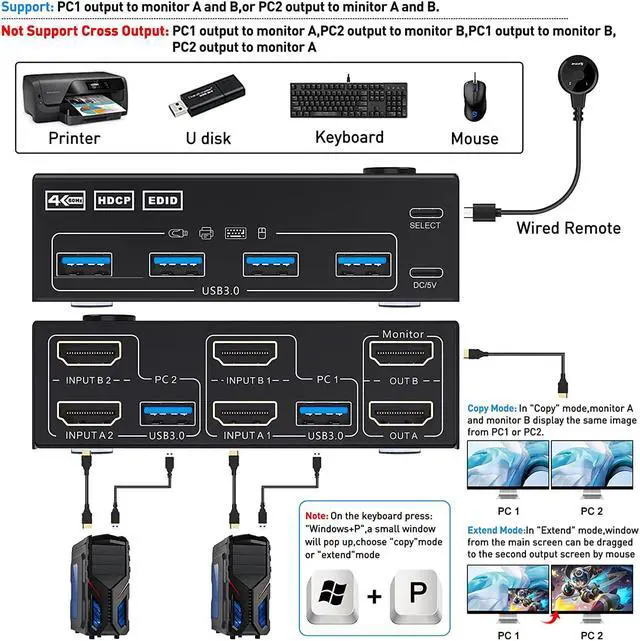

Connection steps:
Step 1. Connect 2 x HD MI cable +1 x USB-A cable to PC 1 and KVM (USB 3.0, INPUT A1, INPUT B1).
Step 2. Connect 2 x HD MI cable +1 x USB-B cable to PC 2 and KVM (USB 3.0, INPUT A2, INPUT B2).
Step 3. Connect A 2 x HD MI cable between the KVM (OUT A, OUT B) and the monitor.
Step 4. Connect the keyboard and mouse to the K/M USB port on the KVM.
Step 5. Insert the USB3.0 device into the USB port on the KVM.
Step 6. Plug the desktop controller into the SELECT port and remotely switch between PC1 and PC2.
***Notice***
- The premise for this KVM to achieve dual-screen display is that each PC connected must support dual or multi-screen display.
- Detection method: Can connect the computer to 2 monitors directly (not via KVM). If both monitors have an on-screen display, the computer supports multi-monitor display.
- Adapters Might Be Needed: This Dual Monitor KVM Switch requires 2* HDMI input for each computer and 2* HDMI output for monitors. However, most computers especially laptops do not have 2 HDMI output, thus reliable adapters will be needed for non-2 HDMI outputs like VGA, DVI, USB C. Please be aware of this before order!

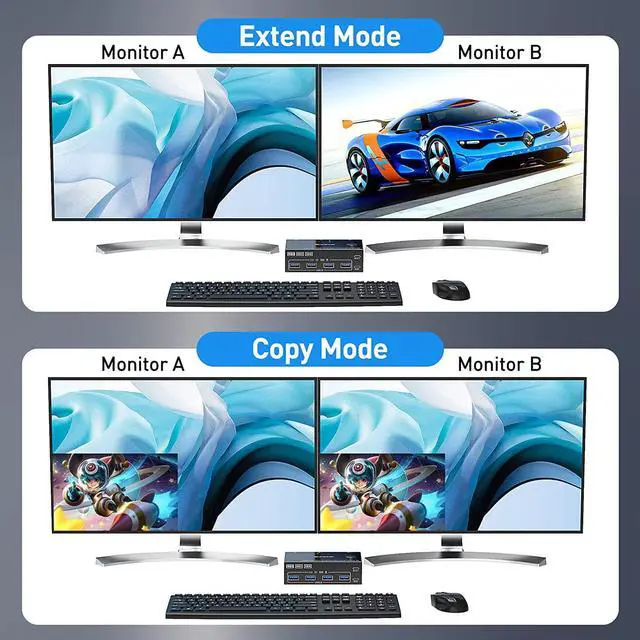

- The two monitors can only output the video source from 1 computer (mirror mode or expansion mode), and cannot output the signal source of PC1 and PC2 at the same time.

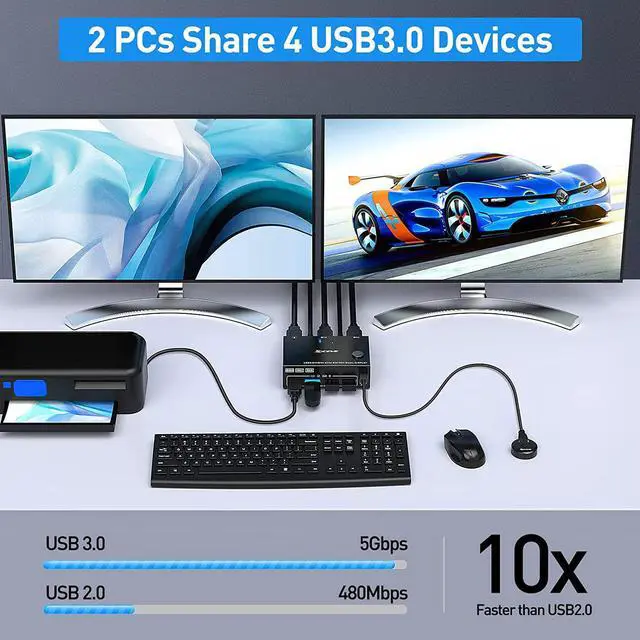

4 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.
Supports 5Gbps data transfer speed , can transfer files in Seconds,Much faster than USB 2.0.
USB3.0 dual monitor KVM switch can simulate the EDID of the display, when the monitor is switched between two computers, the original window order will not change.
4 USB 3.0 ports, backward compatible with USB 2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

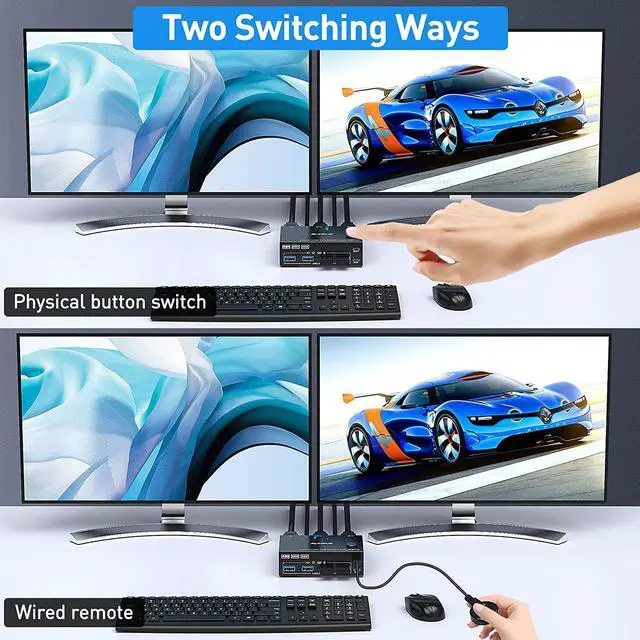

1 of the ways to switch: directly press the button on the machine to switch, simple and convenient.
Supports remote switching of desktop controllers for easy cable management.With indicator light (green light).
Video Signal HDMI: HDMI with 4K@60Hz 4:4:4, HDCP 2.2
USB Data: USB 3.0, up to 5Gbps data transfer rate
Power: High- power of 5V/2A port and 1 SELECT port included.
60Hz: 720×480, 720×576, 1176×664, 1280x720P, 1280×768, 1280×800, 1280×960, 1280×1024, 1360×768, 1366×768, 1440×900, 1600×900, 1600×1024, 1600×1200, 1680×1050, 1920×1200, 1920×1440, 2048×1536, 2560×1600, 3440×1440, 3840×2160, 4096×2160
75Hz 800×600, 1024×768, 1152×864
60Hz/120Hz/144Hz 1920x1080P, 2560x1080P, 2560×1440, 3840×1080
NOTE The above resolution test results are from KCEVE labs and are for reference only
Device Dimensions (W x H x D) 100mm x 30mm x65mm/ 3.94" x 1.18" x 2.56"
Product Weight: 0.63kg/1.39lbs

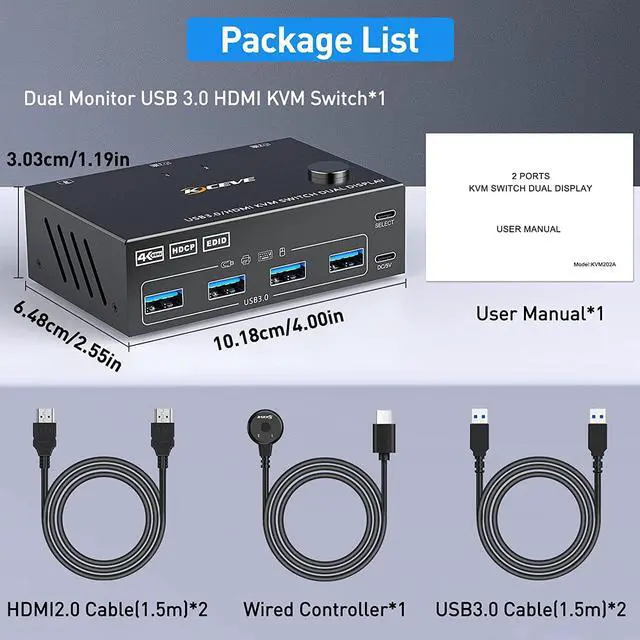

Package included:
- 1* Dual Monitor USB3.0 HDMI KVM Switch
- 2* HD MI2.0 Cable(1.5m)
- 2* USB3.0 Cable(1.5m)
- 1* Wired Controller
- 1* User Manuals
