Dual Monitor HDMI Switch for 2 Computers
Features:
- Share one set of keyboard, mouse and dual monitors between 2 computers or laptops;

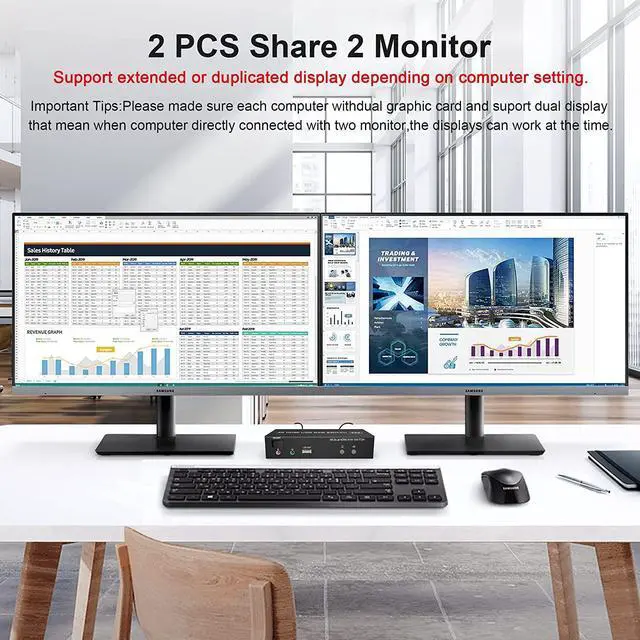

- Dual monitors output support up to 4K @60Hz for extended,mirrored or spliced display;
- No complicated installation is required, and non-professionals can easily operate it;
- Cross support major operation systems including Windows, Linux, Mac and more;

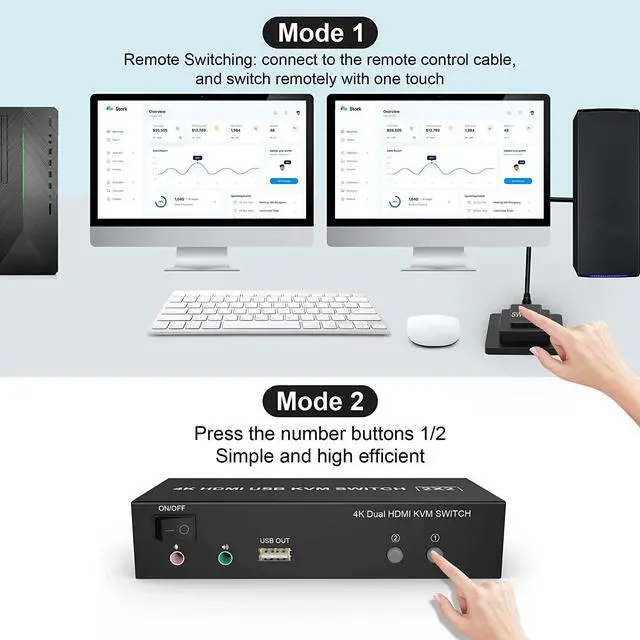

- Switching modes: Buttons on the front panel and wired remote;
- The ports that need to plug in HDMI/USB cables are all hidden behind the KVM, so the desktop doesn't get cluttered;

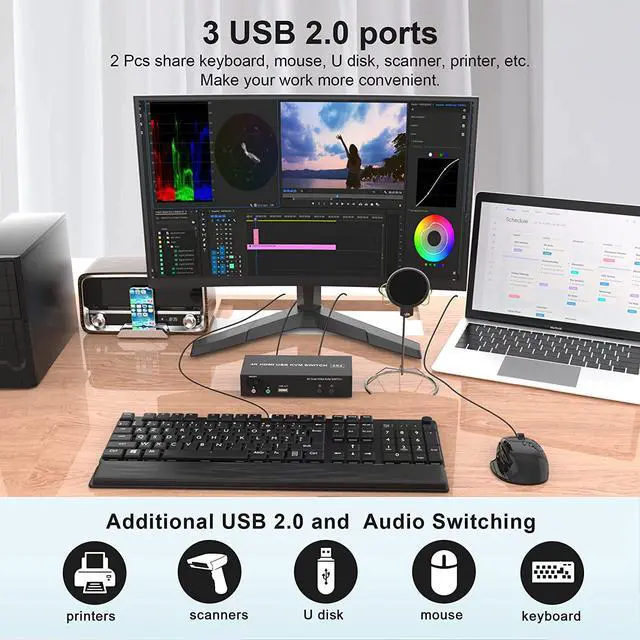

- With extra 3 USB 2.0 and Audio Microphone output.

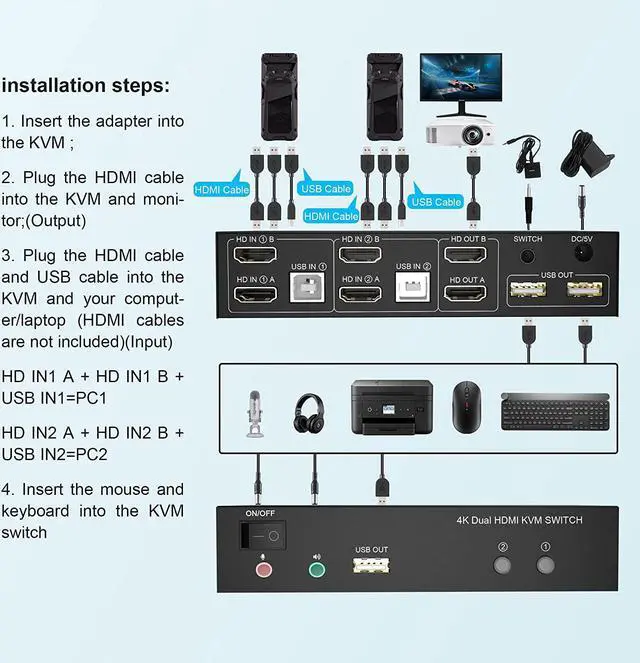

installation steps:
1. Insert the adapter into the KVM ;
2. Plug the HDMI cable into the KVM and monitor;(Output)
3. Plug the HDMI cable and USB cable into the KVM and your computer/laptop (HDMI cables are not included)(Input)
HD IN1 A + HD IN1 B + USB IN1=PC1
HD IN2 A + HD IN2 B + USB IN2=PC2
4. Insert the mouse and keyboard into the KVM switch
5. If needed, you can connect a microphone and audio port
Note:

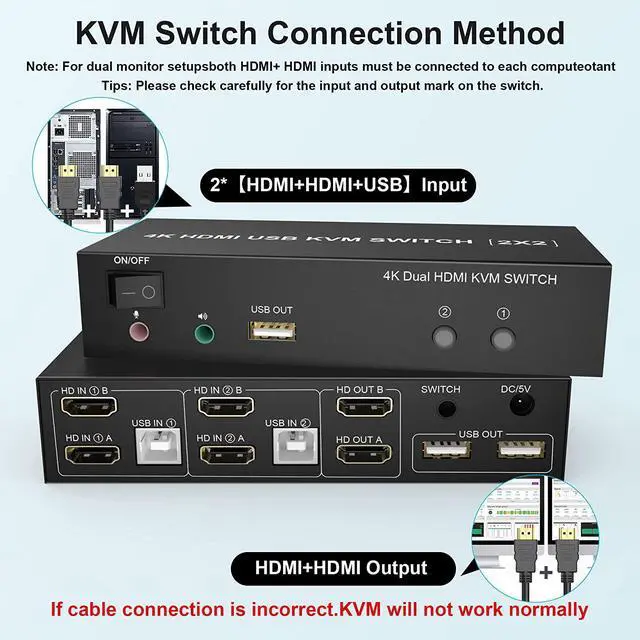

1. Most of the reasons why only onevideo output works is because of incorrect connection. Please make sure eachcomputer have 2 HDMI cables connect to the KVM.
2. If the KVM switch does not work, you can turn off the switch on the panel and turn it on again after 2-3 seconds, and it will return to normal.
