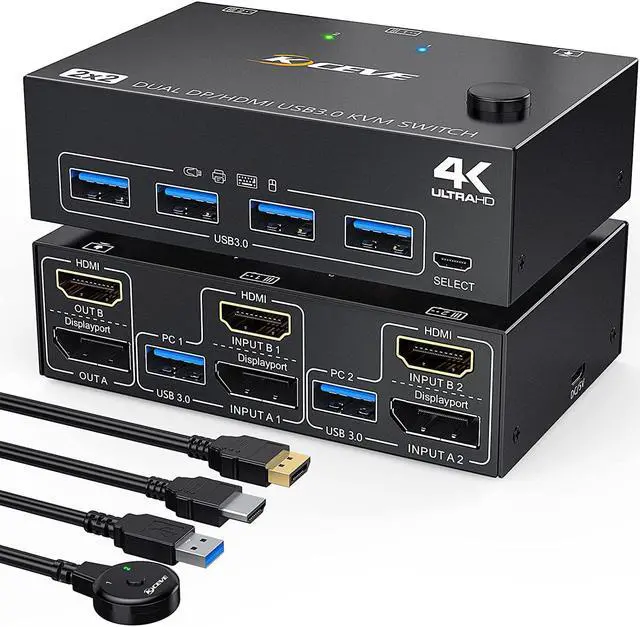

DisplayPort + HDMI Dual Monitor KVM Switch 4K @60Hz, 2K @120Hz USB 3.0 HDMI DP Extended Display Switcher for 2 Computers Share 2 Monitors and 4 USB 3.0 Ports,Wired Remote and 4 Cables Included

Be the first to review this product...
  • [HDMI+Displayport Dual Monitor KVM Switch] This Dual Monitor KVM switch helps to control 2 computers or laptops by 1 set of wired or wireless keyboard mouse,share 4 USB 3.0 devices and 2 monitors(extended mode or copy display mode).
  • [Maximum Support 4K@60Hz/2K@120Hz] Support resolution up to 4K@60Hz,[email protected] switch 2 monitors 2 computers aslo support input terminal to connect 2 computers with different resolutions, e.g. one is 4K@60Hz, the other is 4K@30Hz, 1440P@60HZ, 3D,1080P@60HZ or lower resolution.
  • [with 4 USB 3.0 Ports] with 4 USB 3.0 ports which can recognize keyboard,mouse,printer and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.
  • [Extended Mode&Copy Mode]

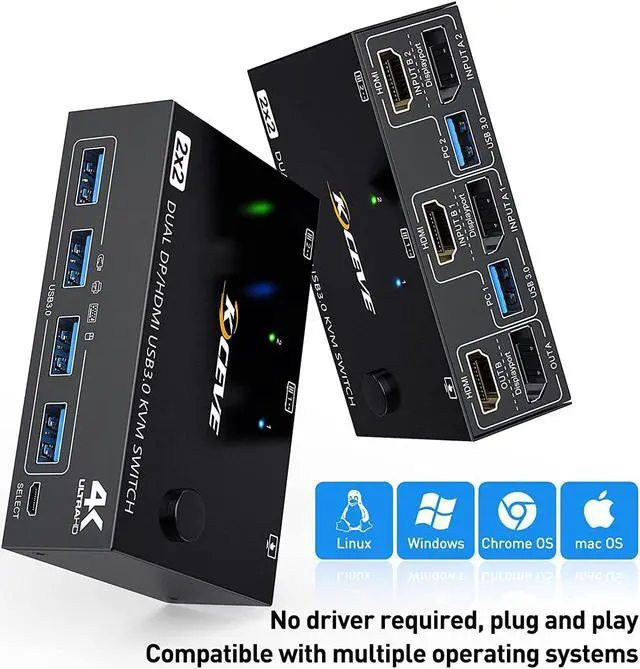

  • [Compatibility & 2 Switching Methdos] Driver-free and plug and play,no external power required. you can press the button on the panel or use the wired remote controller to switch the computers. Two color lights indicate the active computer.
+
+
Overview
Specs
Reviews
image for this item
Dual Monitors HDMI+Displayport KVM Switch



2 ports Dual-monitor USB3.0 DP+HDMI KVM Switch (DP +HDMI TO DP +HDMI ). Each input source device must be connected to two dual-monitor

Features:

  • 2 computers share a wired/wireless keyboard, mouse and 2 monitors.
  • Dual monitor output supports extended and copy display.
  • Switching mode: push-button switch and wired remote control.
  • Supports wired or wireless keyboard and mouse.
  • Support for most major operating systems, including Windows, Linux, and Mac.(Note:We generally do not recommend the MAC system, because the compatibility between KVM and the MAC system is unstable, and it is easy to cause failures)
  • Support the highest resolution 4K@60Hz, downward compatible,DP Port can support 8K@30Hz(Need connected 8K DP1.4 Cable,The cable that comes with the package is DP1.2)
  • Share 4 USB3.0 devices



Note:

Dual display KVM switches require DP+HDMI connections per computer, and for computers with discrete and integrated graphics cards require DP+HDMI port to be part of the discrete graphics card.

  Dual Monitor DP+ HDMI KVM Switch
image for this item

Displayport support:

3440*1440@144Hz/100Hz/60Hz/50Hz

2560*1440@144Hz/100Hz/60Hz/50Hz

1920*1440@144Hz/100Hz/60Hz/50Hz

1920*1200@144Hz/100Hz/60Hz

1920*1080@144Hz/100Hz

Note:If computers and monitors support 8K@30Hz, 4K@144Hz, please use 8K DP1.4 cable to connect, otherwise cannot get 8K@30Hz, 4K@144Hz. In addition, the DP cable included in the package is a DP1.2 cable



HDMI port support:

3840*2160@60Hz

3440*1440@100Hz/60Hz/50Hz

2560*1440@144Hz

1920*1080@144Hz/120Hz



Note: These data are obtained according to the monitor and computer test in our laboratory. The results may be inconsistent due to the differences of computer, monitor and wire.

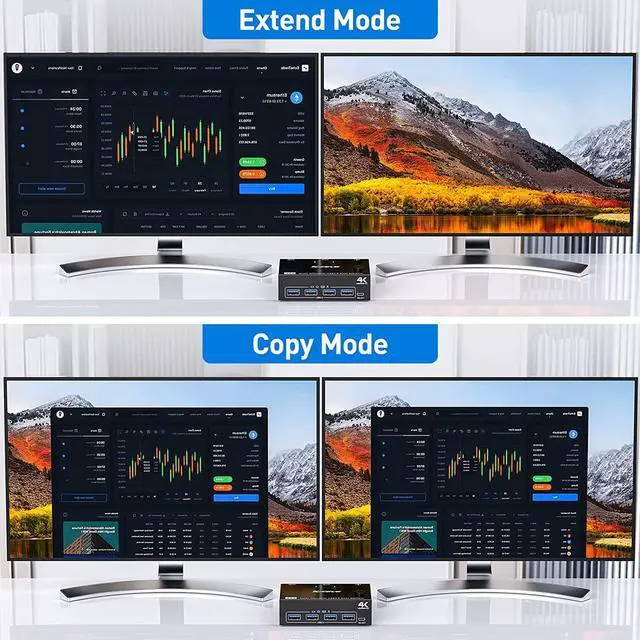

Dual Monitor KVM Switch DisplayPort 1.4+HDMI with Two Working Mode
image for this item
Dual screen setup.


Set up step:

Windows system to quickly set dual-screen output.

1. Press Windows and P on the keyboard

2. Select Extend or Copy

3. Enter to confirm



Warm tips:

If using the MST multi-screen docking station, the computer CPU requires 11th generation; Docking station resolution work with 4k@30Hz or 1080p@60Hz when dual screen display.

MAC1/MAC2 only supports one external screen, no multi-screen output.

In order to get a good using experience, it is recommended to use DP+HDMI monitors with the same resolution.

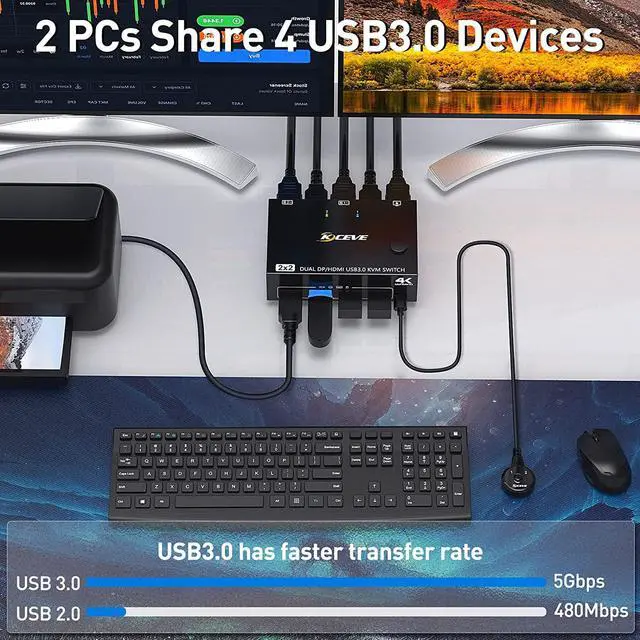

Dual Monitor DP HDMI KVM Switch with 4 USB3.0 Ports
image for this item

4 USB3.0 ports, backward compatible with USB2.0 and USB 1.1, share USB devices such as keyboard mouse scanner, printer, flash drive, etc.

USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.



Note:

If the input USB3.0 ports are not connected or connected incorrectly, the output USB device will not be recognized.

If you use a light-emitting keyboard or mechanical keyboard or high-powered USB devices, or when the USB is not recognized and recognition is not stable, please connect the DC5V power cable

Dual Monitor KVM Switch with Two switching Methods
image for this item
with DC/5V Port

The DC/5V Port is used to power the KVM in the event of a power shortage.

Under normal circumstances, the USB port also plays a role in powering the KVM, so it can be used without connecting to the DC/5V port. If you connect high-powered USB devices, such as light-emitting keyboards, mechanical keyboards, mechanical mice, etc., which require too much power, you can connect the DC/5V port to supply power.

image for this item

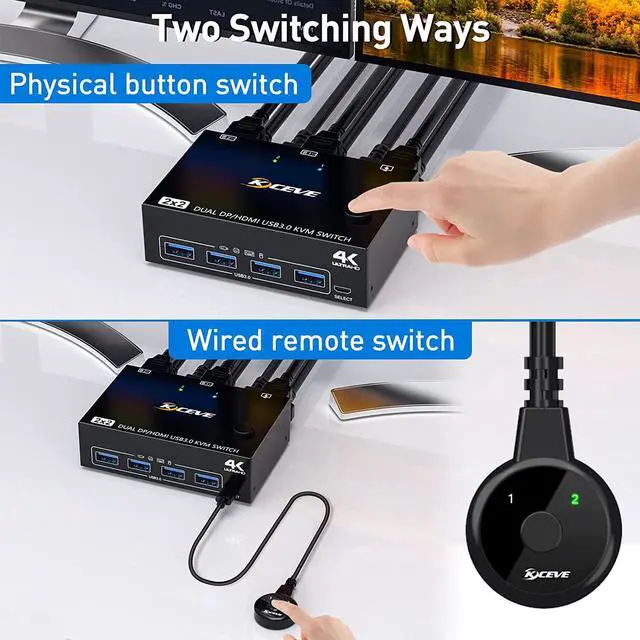

Switching button on the control panel

The toggle button is on the control panel and can be toggled with one click.

The two color indicators show which computer to switch to, the indicator is blue when switching to PC 1, and green when switching to PC 2, the indicator is obvious, but not blinding.

image for this item
Wired control switching

The length of the wired controller is 1.52m/4.98ft, which is long enough to make it very easy to use.

In addition, we also gave the wired controller with adhesive, so that the control panel can be fixed to the desktop or keyboard.

Features:

HDMI+Displayport Dual Monitor KVM Switch

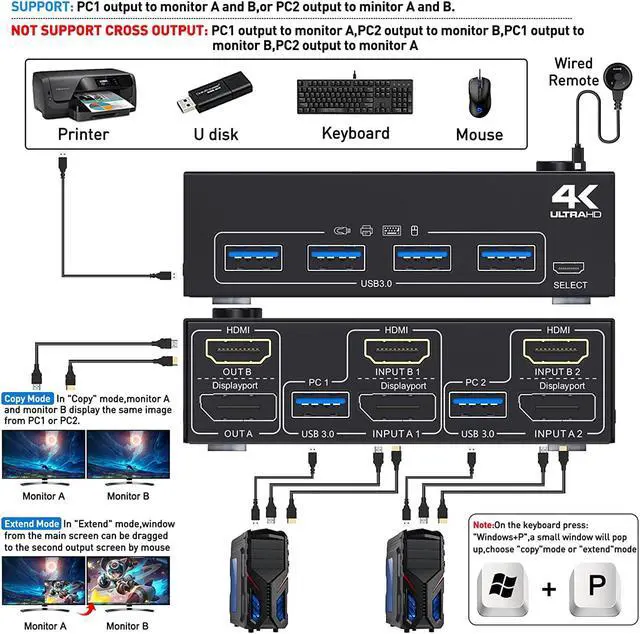

This Dual Monitor KVM switch 2 monitors 2 computers helps to control 2 computers or laptops by 1 set of wired or wireless keyboard mouse, share 4 USB 3.0 devices and 2 monitors (extended mode or copy display mode).
Note: The extended mode can output two different screens, and the copy mode can output two identical screens. Press "Window+P", a small window will pop up, in which to choose "Copy" Mode or "Extend" Mode.

Maximum Support 4K@60Hz/2K@120Hz
Dual Monitor KVM switch HDMI+Displayport support resolution up to 4K@60Hz, 2K@120Hz. KVM switch 2 monitors 2 computers aslo support input terminal to connect 2 computers with different resolutions, e. g. one is 4K@60Hz, the other is 4K@30Hz, 1440P@60HZ, 3D, 1080P@60HZ or lower resolution.
Note: Final resolution is also subject to graphic cards, monitors, cables and adapters and how those work together.!

Dual Monitor KVM Switches with 4 USB 3.0 Ports
Dual monitor HDMI+Displayport KVM switch with 4 USB 3.0 ports which can recognize keyboard, mouse, printer, scaner and other USB devices. USB 3.0 offers data transfer speeds of up to 5Gbps, while USB 2.0 offers data transfer speeds of only 480Mbps.

Extended Mode&Copy Mode
Dual display KVM switches require DP+HD-MI connections per computer, and for computers with discrete and integrated graphics cards require DP+HD. MI ports to belonging the discrete graphics card. Most laptops, do not have DP +HD-MI port and therefore require a reliable adapter or docking station.
Note: (1) M1/M2 only supports one external screen, no multi-screen output. (2) If using the MST multi-screen docking station, the CPU requires support for 11th generation.

Compatibility & 2 Switching Methdos
Dual monitors KVM switch driver-free and plug and play, no external power required. you can press the button on the panel or use the wired remote controller (included in the package) to switch the computers. Two color lights indicate the active computer.

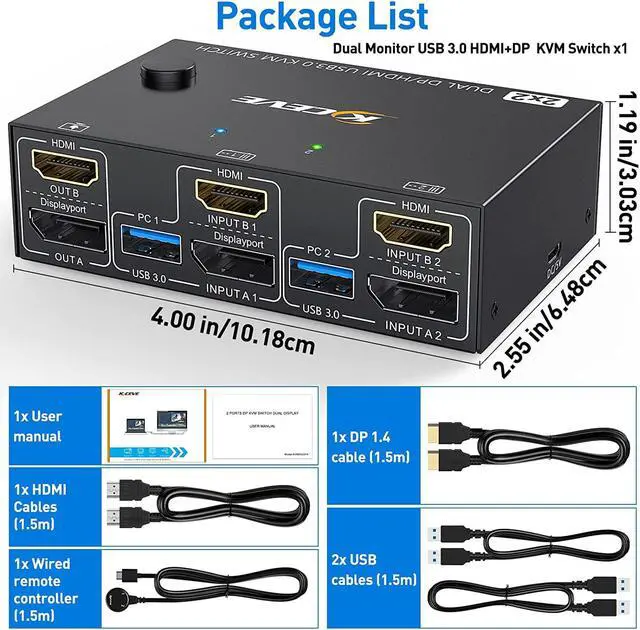

Package List:
1*Dual Monitor USB 3.0 KVM Switch
1*DP Cables( 1.5 m/ 4.9 ft)
1*HD-MI Cables( 1.5 m/ 4.9 ft)
2*USB 3.0 Cables( 1.5 m/ 4.9 ft)
1*Wired remote controller( 1.52 m/5ft)
1*User manual.
