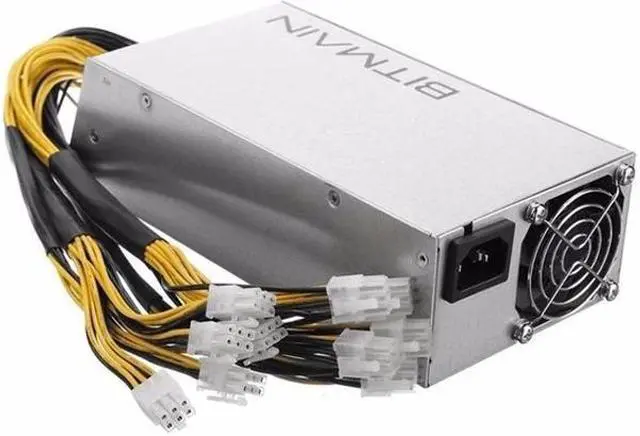

APW3++ APW7 1800W Server Power Supply Mining PSU For Bitmain Antminer 12V 10x PCI-E 6 Pin Mining GPU

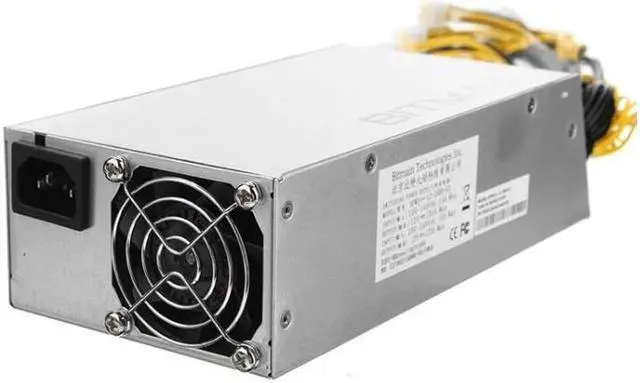

- The power supply's fundamental characteristics (APW7 -12-1800-A3) are displayed on the side, and it offers 100-264V ultra-wide voltage.
- As with other mining equipment, the cooling fan and power cord interface are located at the front of the power supply, allowing for easy heat dissipation throughout the mine.
- The power supply has four channels, two of which contain four PCI-E six-hole interfaces each, for a total of ten interfaces, just enough for antminer L3++ and other ASIC mining devices.
- APW7 can guarantee the stability of the cryptocurrency mining rig operation and can match the common load demand within 12V 1800W, making it ideal for situations requiring high power such as bitcoin mining.
+
+
Overview
Specs
Reviews
Description:
1) The air flow direction runs from the AC input to the DC output, which is the same configuration as most miners. This proves beneficial for those with large-scale mining operations where heat management is a major consideration.
2) The PCB uses a conformal coating to prevent damage from high voltage spark discharges on MOS pins, or near high-pressure solder joints when external conductive particles or dust enter the PSU.
3) The APW7 can work stably in environments with a 50°C ambient temperature. If temperatures exceed 50°C, the PSU should be underclocked (refer to Max Load vs. Ambient Temperature Graph in the user guide for details). Considering the high temperature in mining operations, all internal components are selected with a standard of 105°C, so the APW7 has a much longer lifespan than a general use PSU under similar high temperatures.
4) One APW7 can power up one S9i, one L3++, one D3, one V9, one X3, one E3 or one Z9 mini. This APW7 has 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
Features:
DC Voltage: 12.0V
Rated Current (Input 220V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA

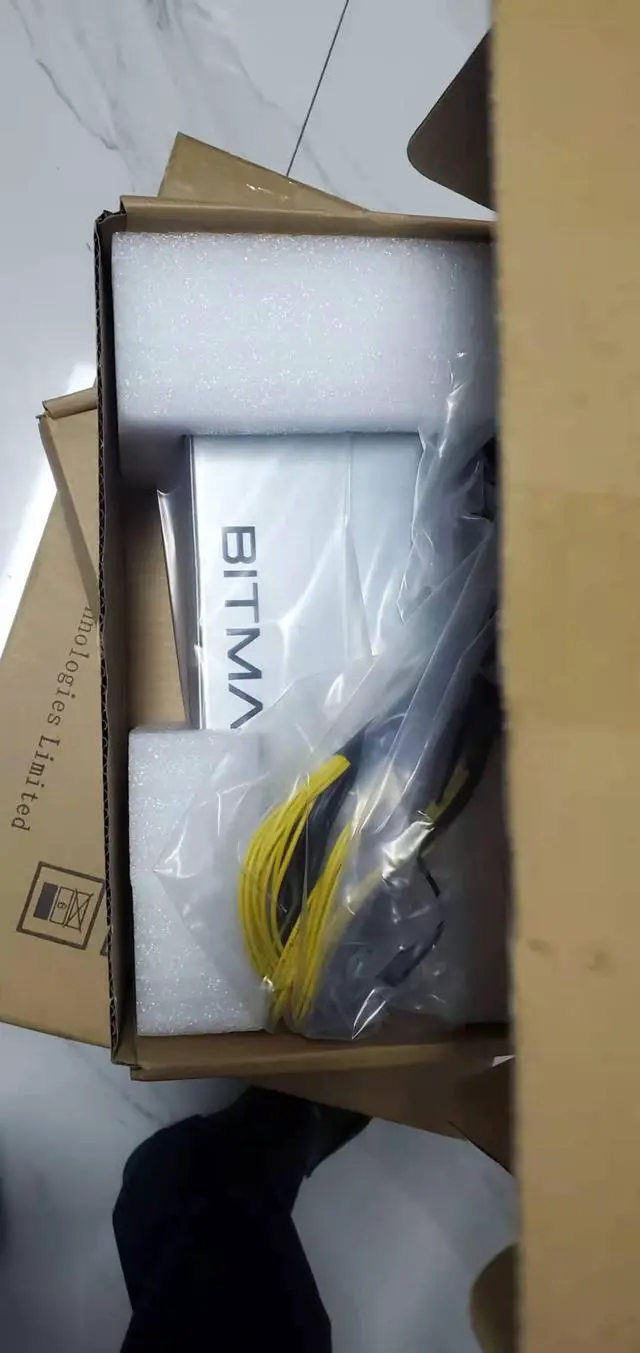

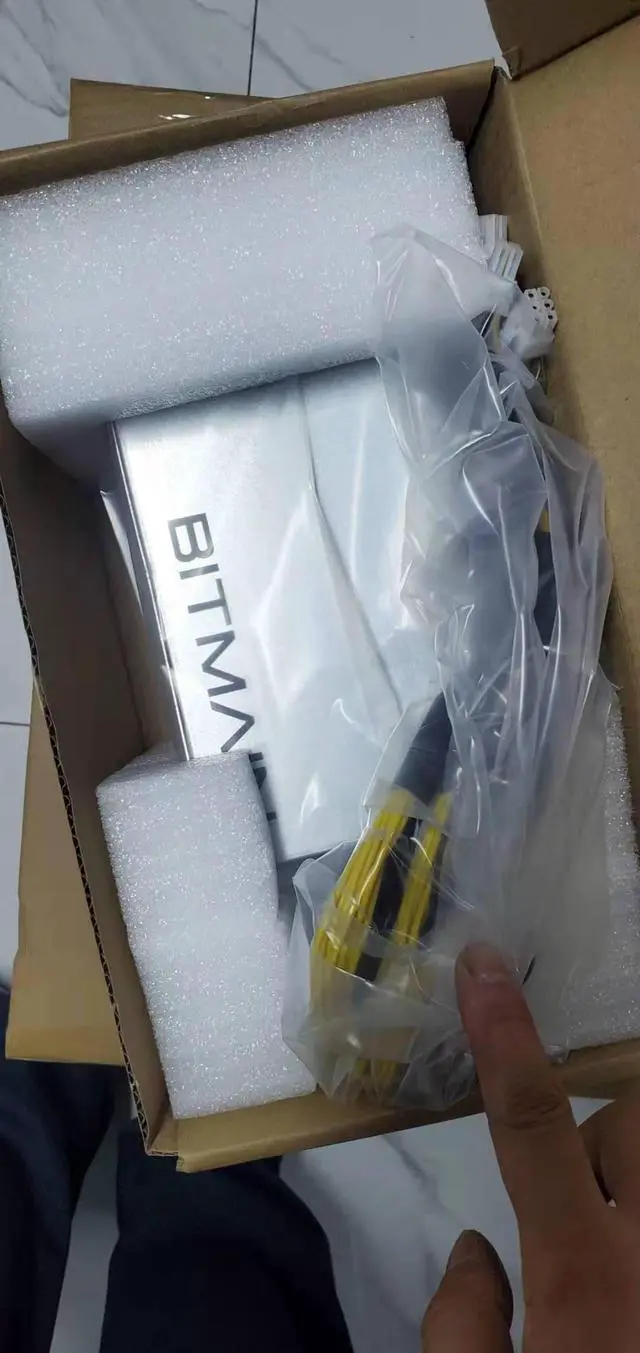

Package including:1* power supply + 10*cables
1) The air flow direction runs from the AC input to the DC output, which is the same configuration as most miners. This proves beneficial for those with large-scale mining operations where heat management is a major consideration.
2) The PCB uses a conformal coating to prevent damage from high voltage spark discharges on MOS pins, or near high-pressure solder joints when external conductive particles or dust enter the PSU.
3) The APW7 can work stably in environments with a 50°C ambient temperature. If temperatures exceed 50°C, the PSU should be underclocked (refer to Max Load vs. Ambient Temperature Graph in the user guide for details). Considering the high temperature in mining operations, all internal components are selected with a standard of 105°C, so the APW7 has a much longer lifespan than a general use PSU under similar high temperatures.
4) One APW7 can power up one S9i, one L3++, one D3, one V9, one X3, one E3 or one Z9 mini. This APW7 has 5 pairs of 6 pin PCI-E connectors (i.e. 10 connectors)
Features:
DC Voltage: 12.0V
Rated Current (Input 220V): 150A
Rated Power (input 220V): 1800W
Rated Current (Input 110V): 83.3A
Rated Power (input 110V): 1000W
Start-Up Time: Less than 2 seconds
Power of retention time: more than 10ms
Voltage Range:100-264V AC
Frequency Range: 47-63 hz
Power factor: greater than 0.99 (full load)
Leakage Current: Less than 1.5mA
Package including:1* power supply + 10*cables
