be quiet! Silent Wings 3 140mm High-Speed, BL069, Cooling Fan
- 140mm
- 75-80 CFM
- Fluid Dynamic
- 25 - 30 dBA
Overview
Specs
Reviews (116)
IDEAL APPLICATIONS
Very quiet workstations and desktop PCs
High-resolution gaming and multimedia systems
Super silent water-cooled PCs
Extremely overclocked systems
HIGHLIGHTS
Very silent even at high-speed operation
Optimized fan frame and blades
Smooth-running 6-pole fan motor
Noise absorbing anti-vibration concept
3-pin connector
No Compromise Silence and Performance
be quiet! SilentWings® 3 fans stand for state-of-the-art technology, virtually inaudible operation and superior cooling. Their secret: a smooth-running 6-pole fan motor, an advanced fluid-dynamic bearing, a unique airflow-optimized fan blade design and a fan frame with funnel-shaped air inlets.
Highlights »
- Great performance-to-noise ratio with the perfect balance between cooling and silence
- 6-pole fan motor with three phases giving very low power consumption and less vibration
- Advanced fluid-dynamic bearing (FDB) enables a super long fan life of up to 300,000 hours
- Seven fan blades with optimized surface structures ensure excellent airflow
- The rubberized fan frame is equipped with funnel-shaped air inlets producing extremely high air pressure
- Removable anti-vibration mountings minimize the transmission of vibrations to the PC case and its components
- Advanced high quality IC motor controller reduces electrical noise
- High-speed models are especially recommended for use in powerful water cooling and air cooling set ups
- 3-year manufacturer’s warranty
- Product conception, design and quality control in Germany
SilentWings 3 »
They are your best choice for any application that requires the ultimate in quiet operation and uncompromised performance.
Features
Innovative 6-pole fan motor
6-pole fan motor with 3 phases for very
low power consumption, less vibrations and
therefore quieter operation.
High-quality motor controller
The high quality motor controller leads to a
minimization of electronic noises.

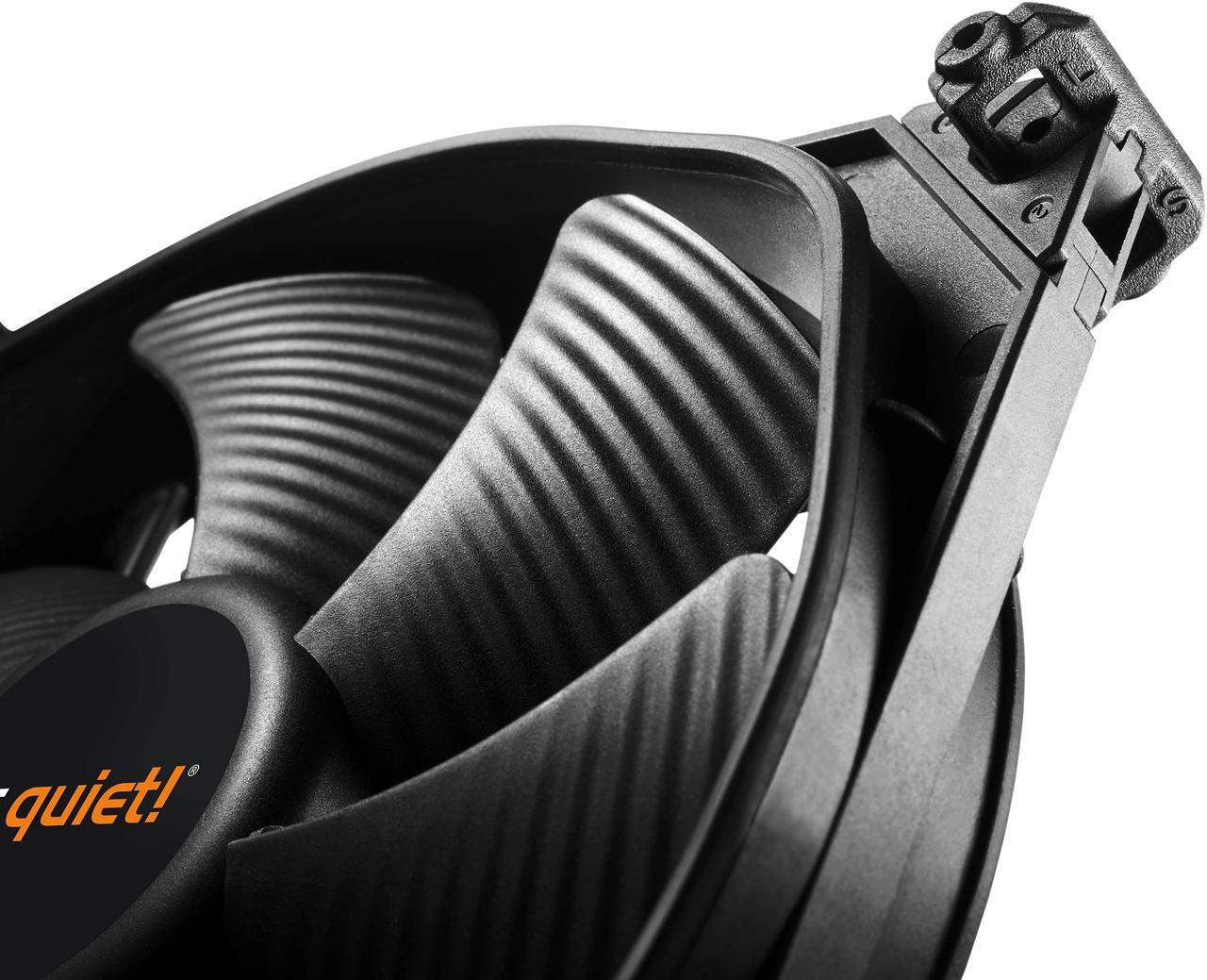

Airflow-optimized fan blades
Seven fan blades with optimized surface
structure ensure virtually inaudible operation and excellent airflow.
Anti-vibration mountings
Removable anti-vibration mountings on all four edges of the fan reduce the transmission of
vibrations to the PC case to a minimum.
Rubberized fan frame
The rubberized fan frame is equipped with
funnel-shaped air inlets for excellent air
circulation and pressure.
Technical Data »
| Model | 140mm | 120mm | 140mm high-speed | 120mm high-speed |
|---|---|---|---|---|
| Article no. | BL065 | BL064 | BL069 | BL068 |
| EAN Code | 4260052184257 | 4260052184240 | 4260052184745 | 4260052184738 |
| Dimensions, (W x H x D in mm) | 140 x 140 x 25 | 120 x 120 x 25 | 140 x 140 x 25 | 120 x 120 x 25 |
| Fan speed (rpm) @ 100% PWM | 1,000 | 1,450 | 1,600 | 2,200 |
| Noise level (dB(A)) @ 100% PWM | 15.5 | 16.4 | 28.1 | 28.6 |
| Airflow @ 12V (cfm / m3/h) | 59.5 / 101.09 | 50.5 / 80.47 | 77.57 / 131.79 | 73.33 / 124.58 |
| Air pressure (mm / H2O) | 1.08 | 1.79 | 2.16 | 3.37 |
| Voltage range DC (V) | 5-13.2 | 5-13.2 | 5-13.2 | 5-13.2 |
| Input power (W) | 3.6 | 1.44 | 6 | 4.44 |
| Input current (A) | 0.3 | 0.12 | 0.5 | 0.37 |
| Connector | 3-pin | 3-pin | 3-pin | 3-pin |
| Lifetime @ 25°C (h) | up to 300,000 | up to 300,000 | up to 300,000 | up to 300,000 |

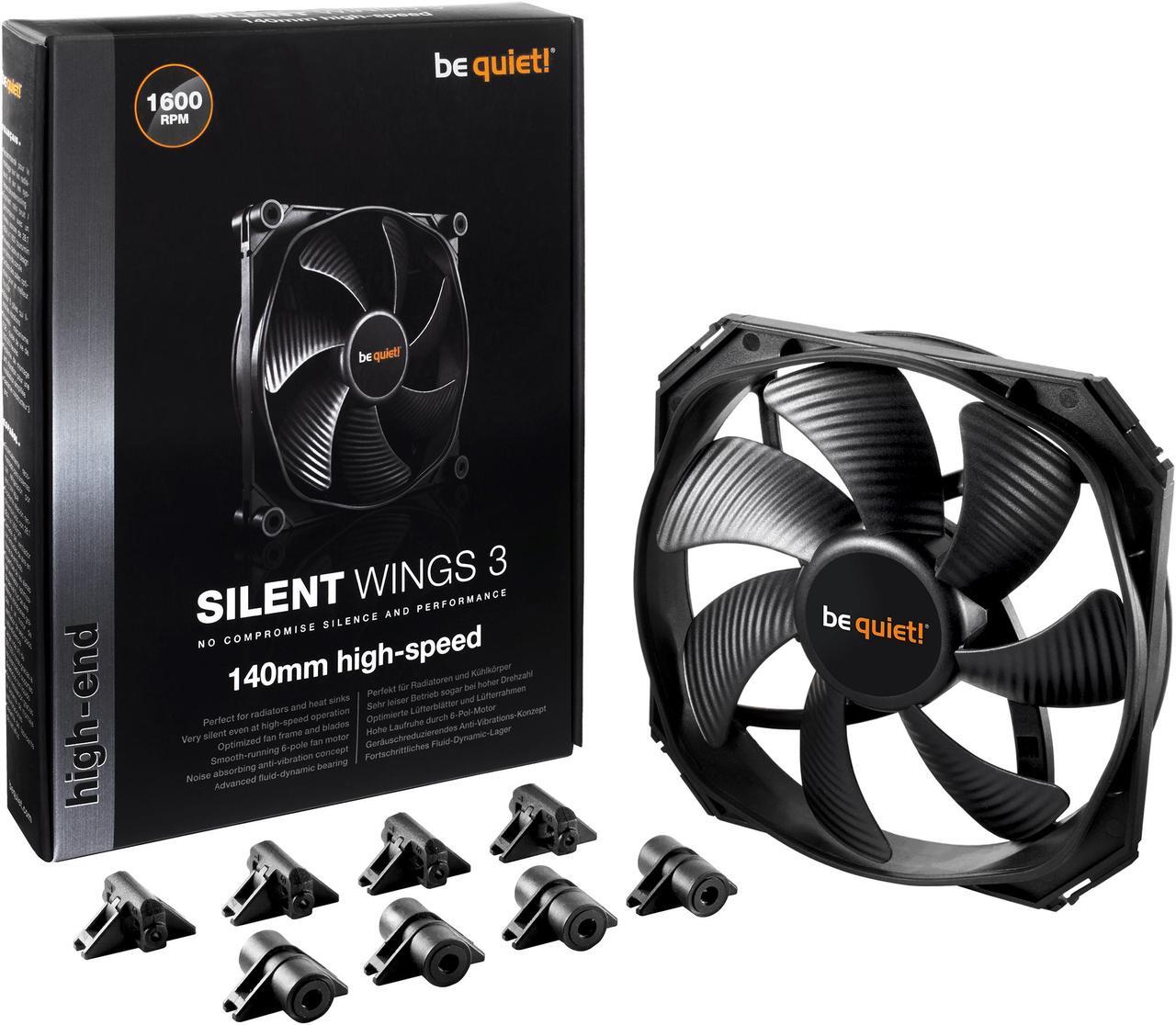

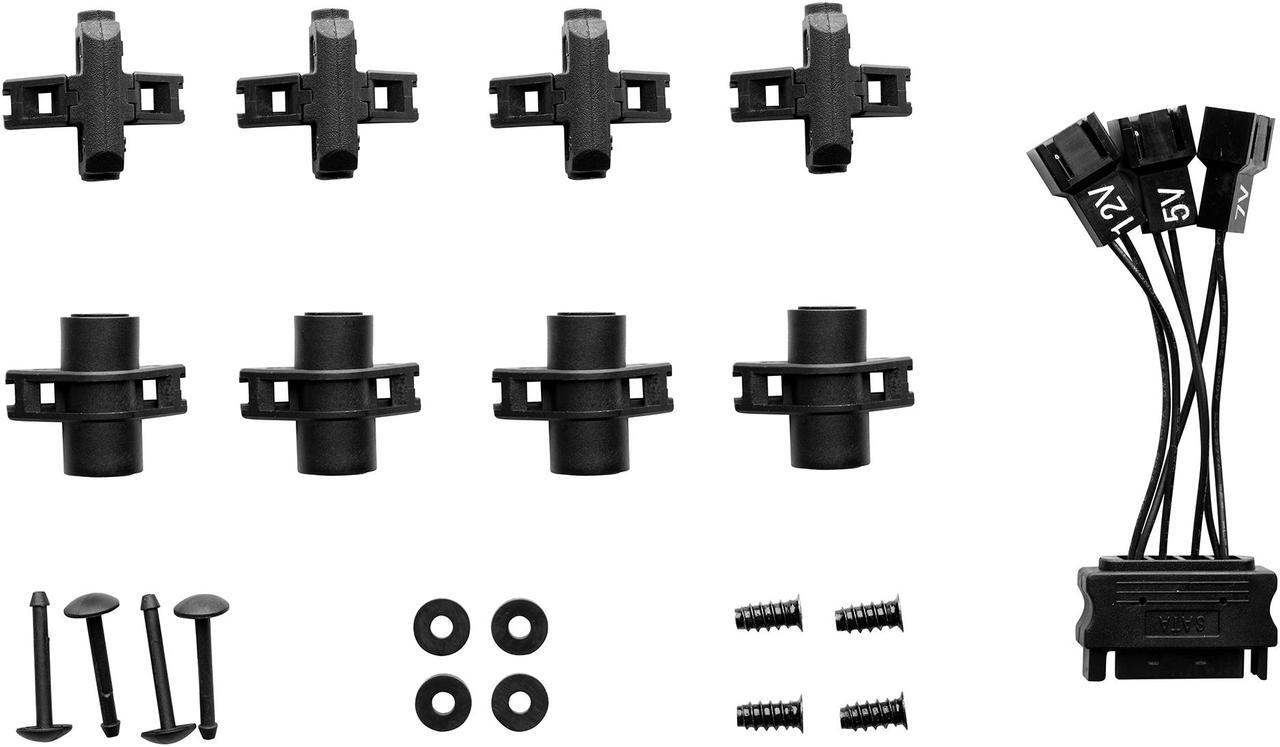

| Accessories | SATA multi-voltage adapter, rubber & hard plastic mountings, fan screws | |||
6-Pole Fan Motor »
6 poles contribute to:
- smoother transition between magnetic poles
- less vibration for quiet operation
- reduced power consumption
- low start-up voltage
