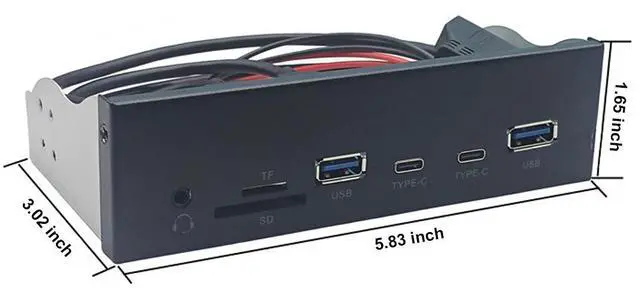

5.25" Front Panel USB 3.2 Gen1 5Gbps Hub - 2x Type C & 2 x USB-A ,USB 3.0 SD/Micro SD/TF Internal Card Reader with 4-Pole 3.5mm HD-Audio for Optical Drive Bay
- 5.25" Front Panel USB 3.2 Gen1 5Gbps Hub
- 4 Ports USB Hub - 2x Type C & 2 x USB-A for 5.25 Optical Drive Panel
- USB 3.0 SD/Micro SD/TF Internal Card Reader
- 4-Pole 3.5MM HD Audio for Stereo Audio output and Microphone Input
- One USB 19pin Internal Header on motherboard is Requested for USB Hub & Card Reader
- One HD-Audio 9Pin Header on motherboard is Requested for Stereo Audio & Microphone
- 2ft Cable Length,Long Enough for Most all PC Case
- SD/TF Card slot can not be used Simultaneously
+
+
Overview
Specs
Reviews
Features

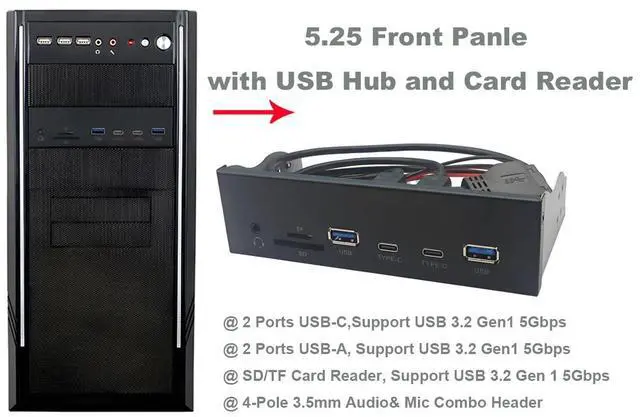

5.25 inch USB Hub Front Panel & Internal Card Reader - Convert your 5.25 inch optical drive space into 2x Type-C & 2 USB-A ports, 1 SD slot, 1 Micro SD slot. Increase the scalability of desktop computers to meet various needs.
Super Speed Data Transfer - The USB 3.2 Gen1 front panel uses the latest USB 3.2 Gen1 high quality chip with a maximum transmission speed of 5Gbps. It is backward compatible with USB 3.1/USB 3.0/2.0/1.1/1.0 devices. Support fast charging and high speed transmission simultaneously.
USB 3.0 Card Reader - Fast data/ files access and transfer rate up to super-speed (5Gbps) through SD/Micro SD/TF slots
4-Pole 3.5mm HD-Audio jack is equipped.HD Audio & Microphone is Compatible with HD Audio standards with autosensing
USB 20pin Motherboard Header - 1 x USB motherboard 20pin headers on motherboard is needed for the hub connection
HD Audio Motherboard Header - 1 x HD Audio 9pin headers on motherboard is needed for the hub connection
Easy Installation - Installation is quick and easy, and the unit is plug and play.
Great compatibility and easy to use - Compatible with Windows 10/8/8. 1/7/ Vista/ XP and Mac OS X, Linux and chrome OS.
2ft lngth of USB and audio cable,long enough for most all PC case
Metal Case - Stable performance and durable
Note
Not all USB 20pin motherboard header on motherboard is driven as default. If the front panel install, but can not be recognized correct. Please try to drive motherboard USB 20pin header first.

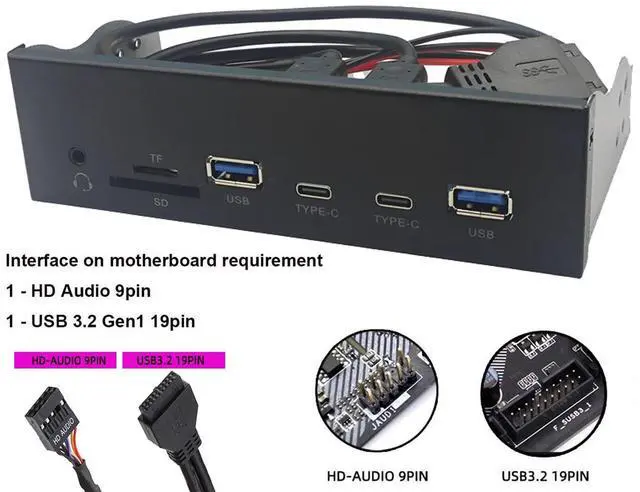

USB3.0 19Pin Header on Motherboard is Required
HD Audio 9Pin header in motherboard is Required

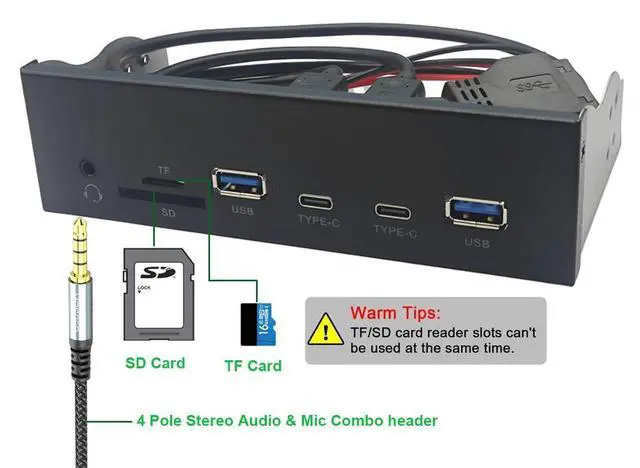

Please notice that SD/TF Card slot can not be used at the same time
5.25 inch USB Hub Front Panel & Internal Card Reader - Convert your 5.25 inch optical drive space into 2x Type-C & 2 USB-A ports, 1 SD slot, 1 Micro SD slot. Increase the scalability of desktop computers to meet various needs.
Super Speed Data Transfer - The USB 3.2 Gen1 front panel uses the latest USB 3.2 Gen1 high quality chip with a maximum transmission speed of 5Gbps. It is backward compatible with USB 3.1/USB 3.0/2.0/1.1/1.0 devices. Support fast charging and high speed transmission simultaneously.
USB 3.0 Card Reader - Fast data/ files access and transfer rate up to super-speed (5Gbps) through SD/Micro SD/TF slots
4-Pole 3.5mm HD-Audio jack is equipped.HD Audio & Microphone is Compatible with HD Audio standards with autosensing
USB 20pin Motherboard Header - 1 x USB motherboard 20pin headers on motherboard is needed for the hub connection
HD Audio Motherboard Header - 1 x HD Audio 9pin headers on motherboard is needed for the hub connection
Easy Installation - Installation is quick and easy, and the unit is plug and play.
Great compatibility and easy to use - Compatible with Windows 10/8/8. 1/7/ Vista/ XP and Mac OS X, Linux and chrome OS.
2ft lngth of USB and audio cable,long enough for most all PC case
Metal Case - Stable performance and durable
Note
Not all USB 20pin motherboard header on motherboard is driven as default. If the front panel install, but can not be recognized correct. Please try to drive motherboard USB 20pin header first.
USB3.0 19Pin Header on Motherboard is Required
HD Audio 9Pin header in motherboard is Required
Please notice that SD/TF Card slot can not be used at the same time
