Deyowo 24 Inch Interactive 10 Points Infrared IR Touch Screen Overlay Frame Free Driver

Be the first to review this product...
  • 1-10 POINTS TOUCH: This item is 24 inch 10 points interactive infrared touch screen frame, not including glass, Design for for 24 inch LCD display.
  • 2-EASY INSTALLATION: Our IR touch frames is Plug in design, the installation job is very simple and easy. You can read Installation Guide Manual or watch installation video online, you will do it well. If the touch positioning is not accurate after installation, we can provide the calibration software.
  • 3-FREE DRIVER: You don't need to install drivers for this Item on Windows,Android and Linux, meanwhile it support Mac iOS with HID driver. If you use this item on Mac iOS, please contact us and get the driver.If use this item on Android TV box, please inquiry TV box supplier if the box be with touch function before you order this item!
  • 4-LONG LIFE: The out frame material is full aluminum, the infraed light and PCBA is reliable quality and stable performance. Warranty is 3 years.
  • 5-APPLICATION: Design for Touch Screen Monitor, Touch All in one
+
+
Overview
Specs
Reviews

BUSINESS FOCUS

We are the professional manufacturer and supplier of touch screen product whose with over ten years experience, including Infrared touch overlay, P-cap touch panel, touch monitor,touch AIO PC, touch kiosks. Industry sector cover Kiosks, Digital Signage, Interactive display and Whiteboard and so on. We can provide ODM/OEM service.

DETAIL SPEC

?Product name: 24 inch interactive IR infrared touch scree frame overlay panel

?Detection Method: Infrared rays

?Detail size data

Display area: L1=701.1mm, W1=396.3mm

Outside area: L2=747.1mm,W2=442.3mm

?Ratio: 16:9

?Touch Points: 10 points

?Object Touch Size: = Ø5mm

?Touch Activation Force: Non Minimum activation force

?Touch Durability: Over 60 millions for single touch

?Touch Resolution: 32768*32768

?Position Accuracy: 2mm

?Fault Tolerance: Workable even 75% sensors are damaged

?Frames per Second: Up to 450 fps

?Touch Response Time: 8ms

?Draw Response Time: 8ms

?Altitude: 3,000m

?Light Transmission: 100% without glass

?Operating Systems: Driver free for Windows7, Windows8, Windows10, Native Linux, Android

Need to install the HID driver in Mac OS(Does not support Smart TV Android system, Raspberry Pi)

(Does not support Smart TV Android system, Raspberry Pi)

?Second-development Support: free SDK, support C/C++, C#, Java etc.

ElECTRICAL

?Operating Voltage: DC 4.5V ~ DC 5.5V

?Power Supply: Single USB Connection

?Power Consumption: 1.0W (200mA at DC 5V)

ENVIRONMENT

?Operating Temperature: -20°C~70°C

?Storage Temperature: -30°C~80°C

?Operating Humidity: 10%~90%RH(Non-condensing)

?Storage Humidity: 0~95%RH

?Certification: FCC,CE,ROHS

?Warranty: 3 year

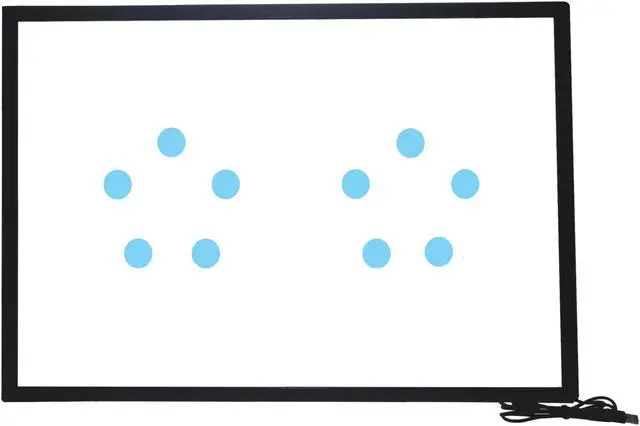

image for this item
24 inch IR touch frame
Product description

1-This item is Deyowo 24 inch 10 points interactive infrared touch screen frame overlay, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

2-The out frame of Infrared Touch using alluminum material, product is strong and durabel, not including glass.

3-The infrared touch screen is anti-sunshine, there are no light interference, no drift even if it be uesed under the sunshine directly.

4-This item just only matching 24 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

5-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

6-The infrared touch screen is Free driver for Windows, Android and Linux. Support Mac iOS with HID driver, you can sent E-mail to us on Amazon and get Mac driver. Don't support Android TV box

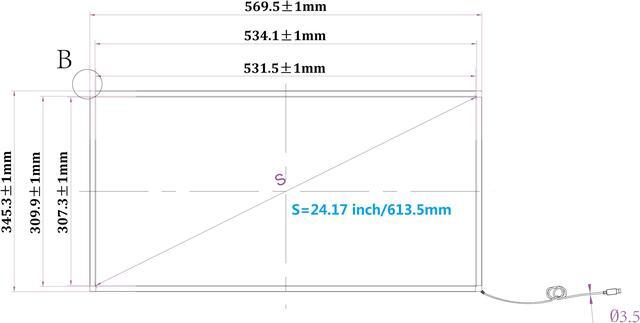

drawing for 24 inch IR touch frame
Product drawing

1-This item just only matching 24 inch display or monitor, we showed the detail dimension drawing on webpage, you can check if your display or monitor can match this item.

2-This item is only touch frame for sale which be without glass, the installation is very simple and very easy, we will provide Installation Manual.

Product advantage
10 points touch
10 points touch

Support 10 points interactive touch, design and use for interactive board, touch LCD monitor, touch display TV. Touch Kiosks, Touch Digital Signage, Whiteboard, Exhibition and etc.

IR touch frame can be used under sunshine
Anti light interference

Anti light interference function, it can run well even if it is under sunshine.

OS compatible
OS support

1-Driver free for Windows7, Windows8, Windows10, Native Linux and Android OS.

2-Need to install the HID driver on Mac OS

3-Does not support Smart TV Android system, Raspberry Pi

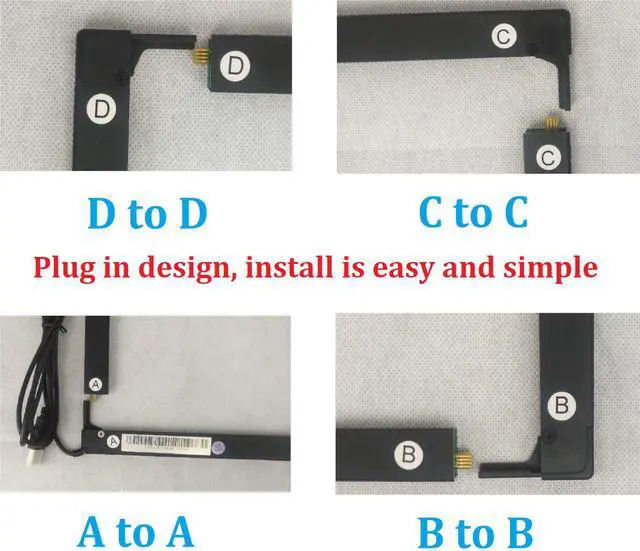

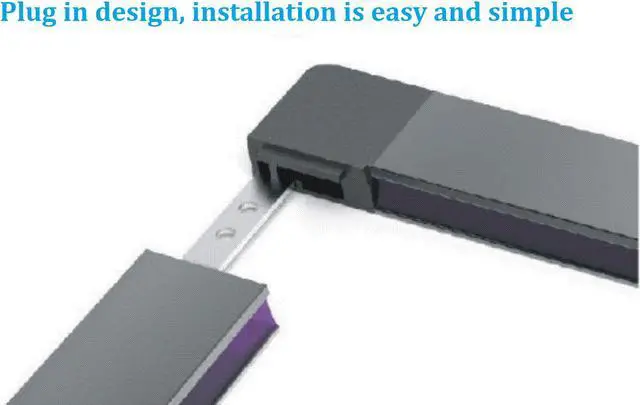

IR touch frames connection
Interface port connecting

Slot design for four corner interface ports connecting, A to A, B to B, C to C and D to D. Easy and simple

Detail specification
Product name interactive IR infrared touch scree frame overlay
Detection Method Infrared rays
Touch Activation Force Non Minimum activation force
Object Touch Size min Ø5mm
Touch Durability Over 60 millions for single touch
Touch Resolution 32768*32768
Position Accuracy 2mm
Fault Tolerance Workable even 75% sensors are damaged
Frames per Second Up to 450 fps
Touch Response Time 8ms
Draw Response Time 8ms
Altitude 3000m
Light Transmission 100% without glass
