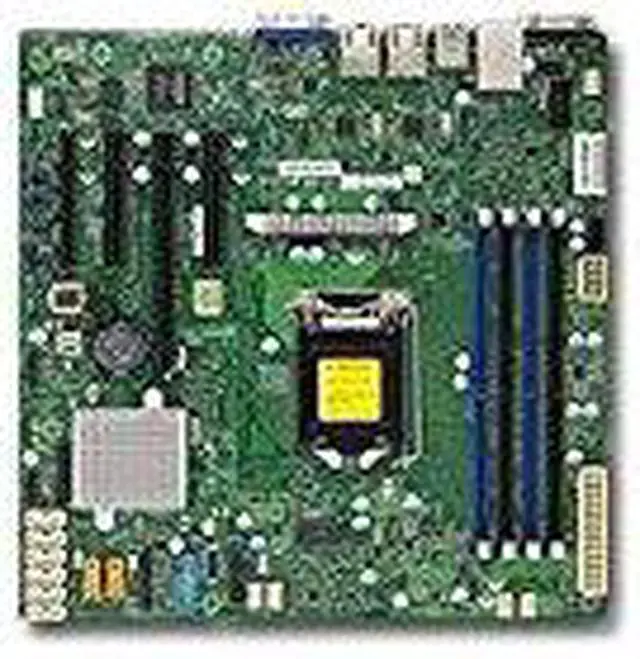

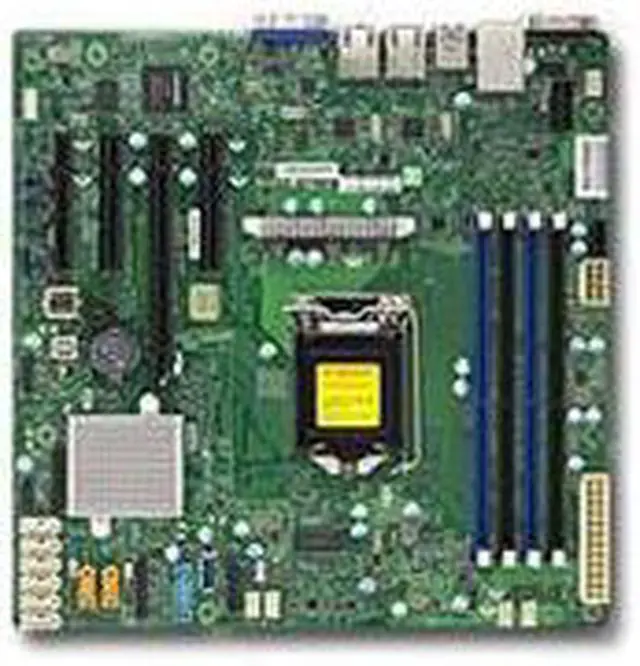

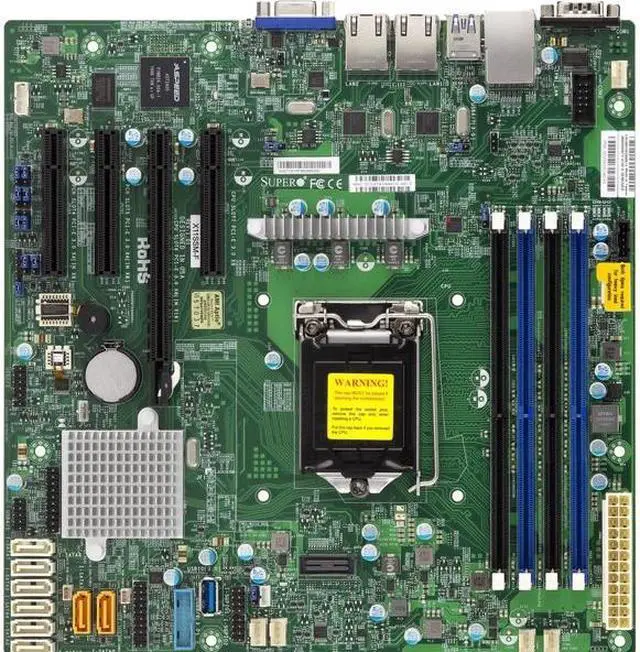

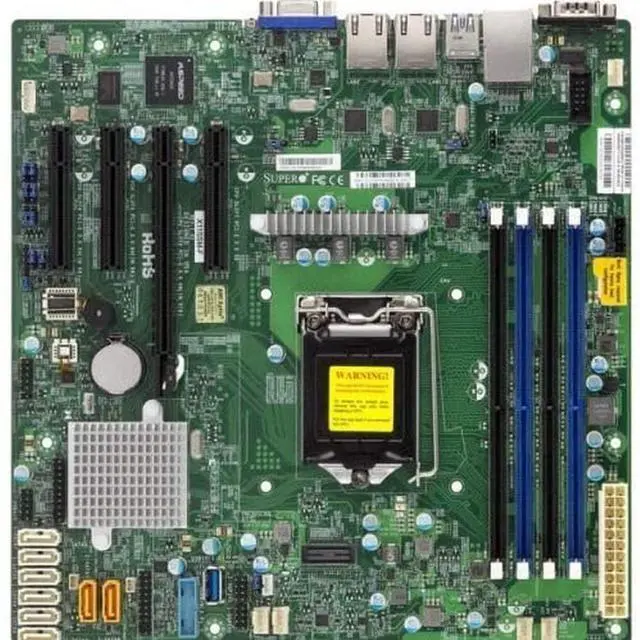

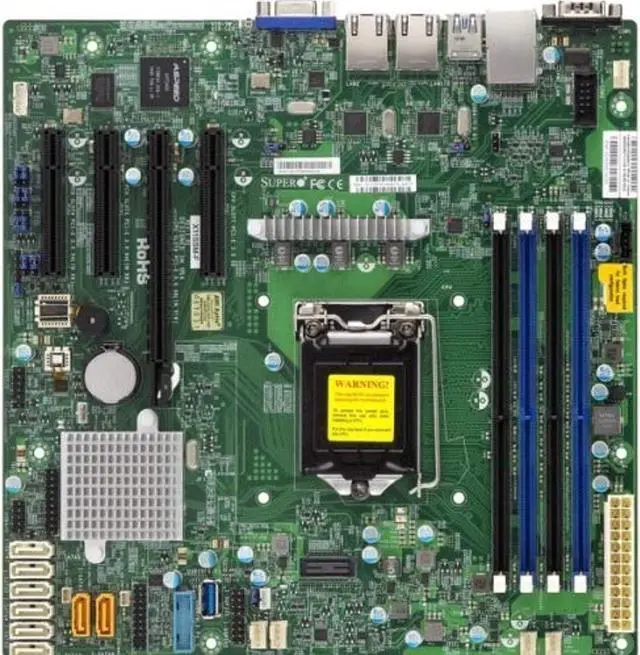

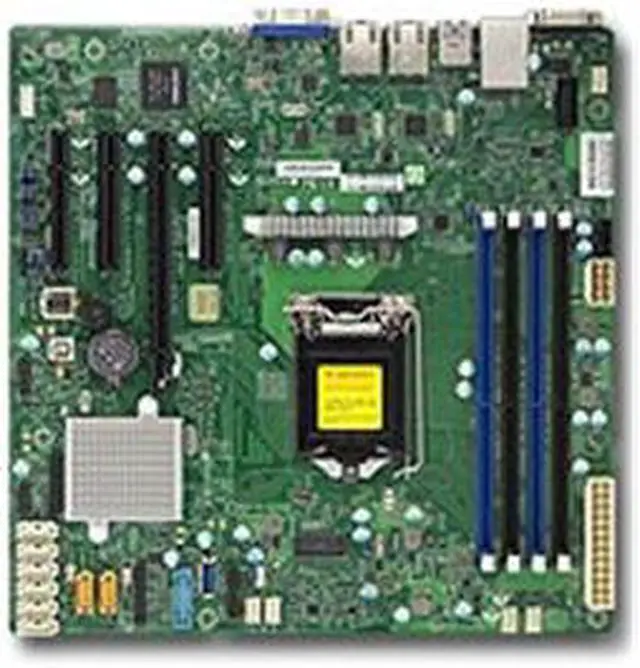

Supermicro X11SSM-F-B LGA1151/ Intel C236/ DDR4/ SATA3&USB3.0/ V&2GbE/ MicroATX Motherboard
Overview
Specs
Reviews
Specifications
- Mfr Part Number: X11SSM-F-B
- CPU: LGA1151
- Supports Intel Xeon E3-1200 v5 Processor
- Supports 6th Generation Intel Core i3/ Pentium/ Celeron Processors
- Support up to 80W TDP
- Chipset: Intel C236
- Memory: 4x 288pin DDR4-2133/ 1866/ 1600 DIMM Slots, ECC, Unbuffered, Max Capacity of 64GB
- Slots: 1x PCI-Express 3.0 x16 Slot (runs at x8), 3x PCI-Express 3.0 x8 Slots (two runs at x4)
- SATA: 8x SATA3 Ports, Support RAID 0, 1, 5, 10
- Video: ASPEED AST2400 BMC
Graphics - LAN: 2x Intel I210-AT Gigabit Ethernet Controllers
- Ports: 5x USB 3.0 Ports (2 rear, 2 via header, 1 Type A), 6x USB 2.0 Ports (2 rear, 4 via headers), 1x VGA Port, 2x Serial Ports (1 rear, 1 header), 2x RJ45 Ports, 1x RJ45 Dedicated IPMI LAN Port
- Form Factor: Micro
ATX, 9.6 x 9.6 inch / 24.4 x 24.4 cm - RoHS Compliant
