HNZXIB 20L Large Centrifuge Industrial De-watering Touch Screen PLC control PPTD series High and Low Speed Rotation Soaking Blending Filter Separation Deliquoring, Customizable

PPTD Series BASKET CENTRIFUGE
This centrifuge has the function of washing and soaking and can fully blend the mixture with ethanol through Positive inversion. Also according to the needs of American customers to do the sandwiches, can be connected with cooling chiller, in the process of fluid removal plays a role in heat preservation.

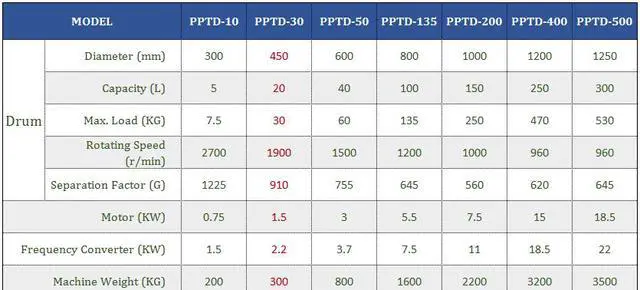

================ PARAMETERS ================
Model: PPTD-30
Drum Diameter: 450(mm)
Capacity: 20(L)
Max. Load: 30(KG)
Rotating Speed: 1900(r/min)
Separation Factor: 910
(r/g)
Motor: 1.5(KW)
Frequency Converter: 2.2(KW)
Machine Weight: 300(KG)

================ INTRODUCTION ================

>>> Description

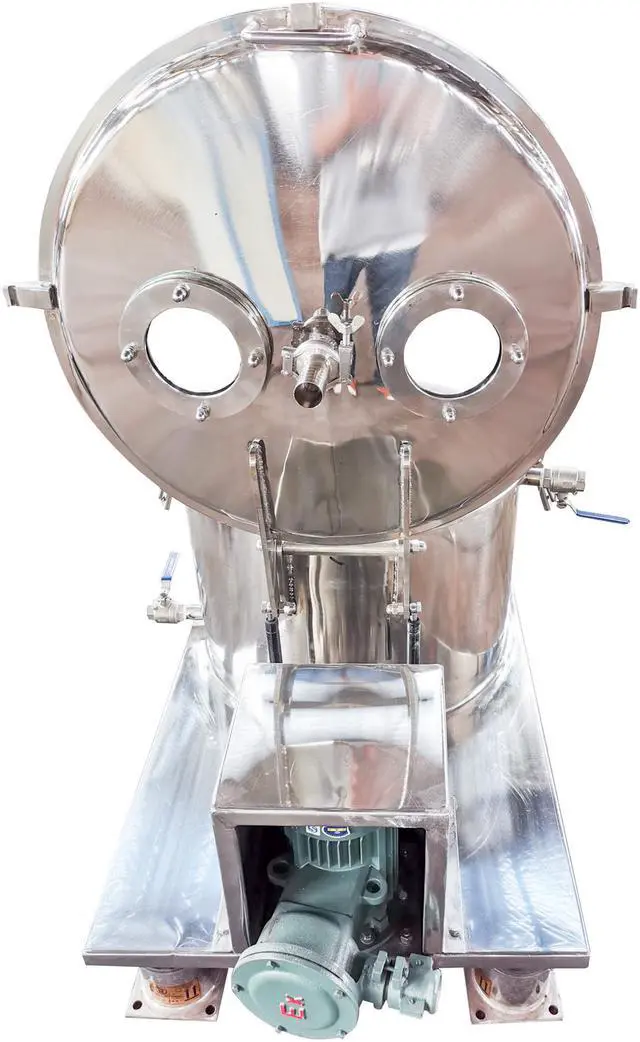

1. The top of the centrifuge usually has four ports, a glass visual window, an explosion-proof lamp, a feed port, a liquid inlet, also can be customized according to the specific needs of customers.
2. All the parts contact with material is made by SS304L stainless which can fully fit the food grade processing requirement.

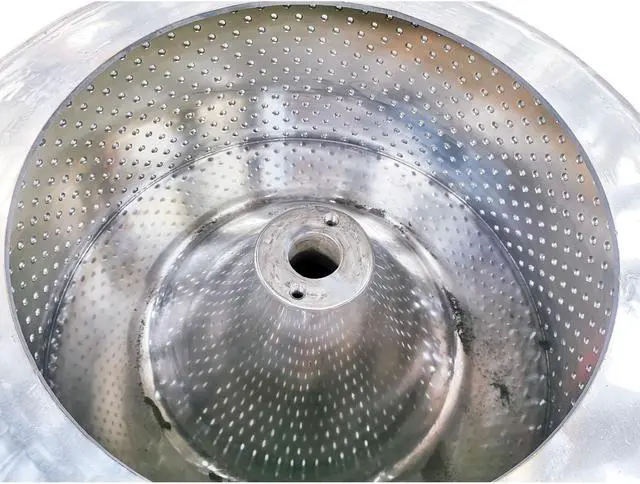

3. The inner bowl can be used the filter bag with 200-600 mesh and the material of the filter bag can be customize by client selection. After separation, the solid will collect on the bag , then stop machine , remove the filter bag.
Contrasting with other filter machinery, this filter centrifuge have good capacity with high paste holding by the filter bag thus each coconut oil processing plant need this filter centrifuge indeed.

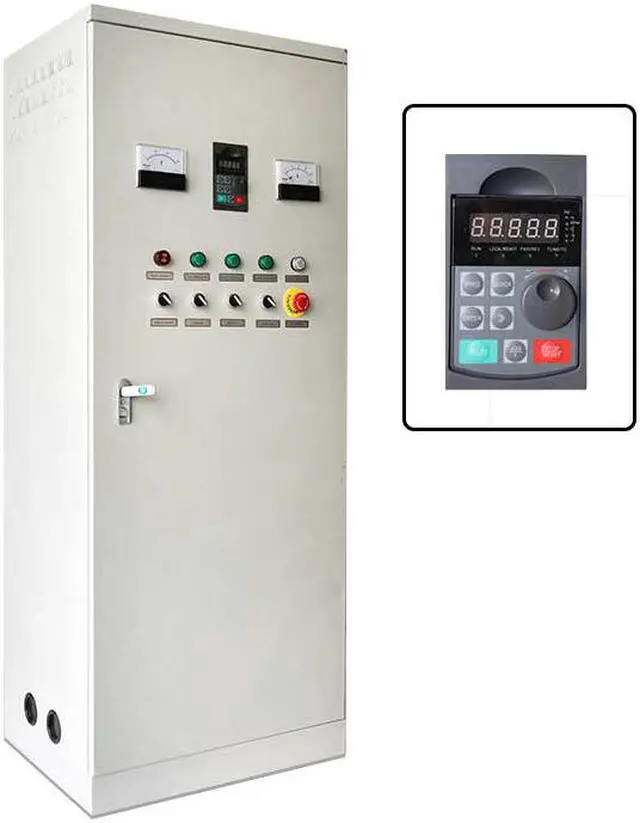

4. The controller part uses Siemens imported touch screen, Honeywell frequency converter from American, Schneider electrical components.
5. The main bearings of centrifuge are all NSK. imported from Japan.

>>> Application
This type filter centrifuge are widely used in food, chemical, pharmaceutical industry. For separating some crystal from liquid, Salt, Calcium carbonate,Copper sulphate, etc.
And it is also good at extracting plant oil.

>>> Customizing Instruction
According to the special needs of customers, individual design and manufacturing can be adopted. The following options are available:
1. Material: The material of the material contact part can be SUS304, 316, 316L, 321, lining plastic, titanium material, lining PTFE, lining Halay and so on.
2. Uncovering method: oil cylinder, cylinder, electric cylinder or mechanical balancer can be used.
3. Can be designed and manufactured according to GMP specifications.
4. Other technical requirements can be agreed upon.

Please offer details of the material characteristics and working conditions during inquiring.
The technical parameters of the customized product are subject to the product specification.
